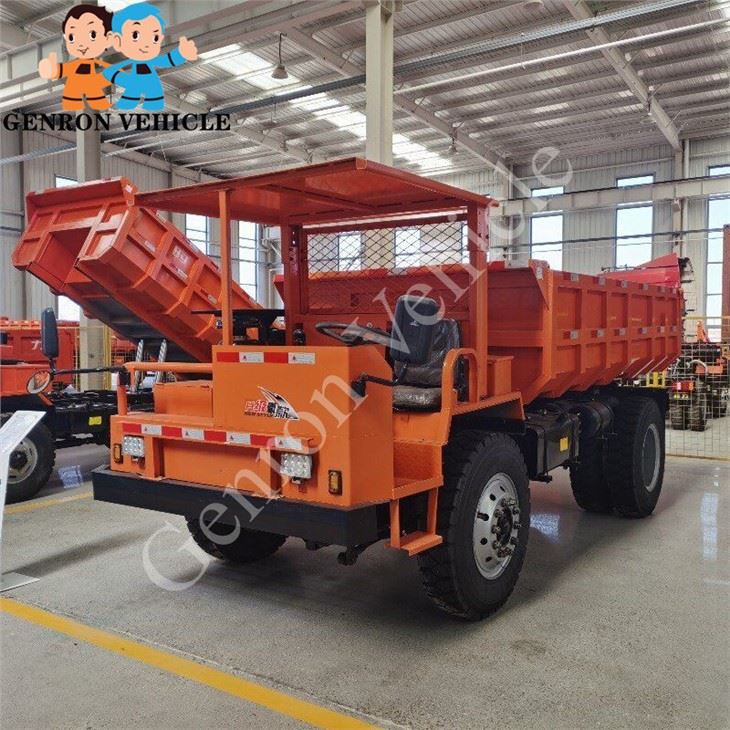

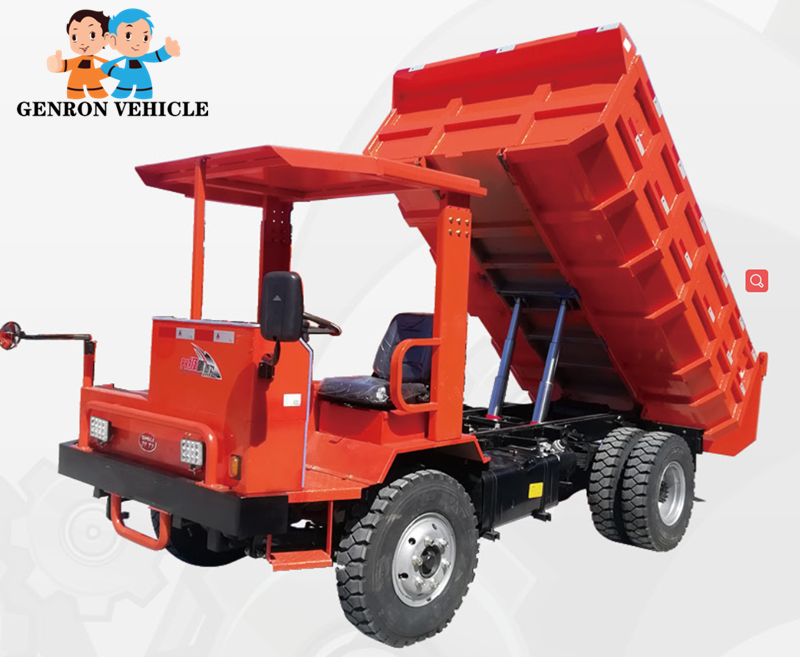

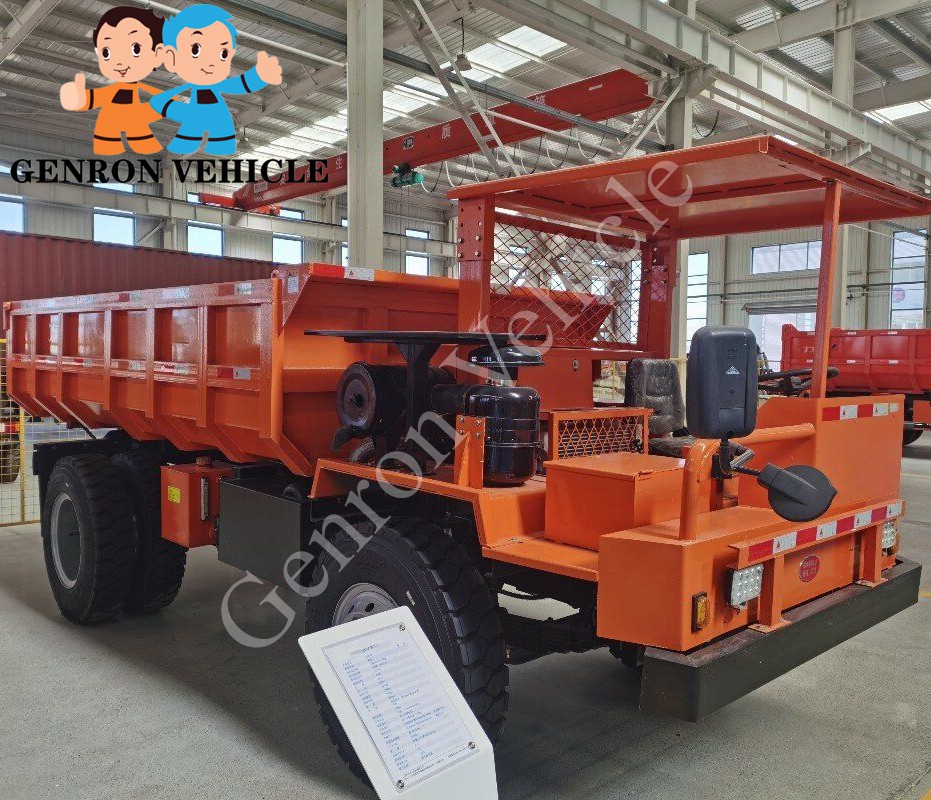

Hot Sale16 Tons Diesel Powered Underground Mini Mining Dump Trucks
hot sale16 tons diesel powered mini mining dump trucks
Send Inquiry
| Fuel type | Diesel |
| Engine | Yuchai 4108 |
| Engine power | 118KW(160HP) |
| Gearbox | 10JS90 |
| Drive way | Rear axles |
| Rear axles | DF153 |
| Front axles | DF153 |
| Breaking | automatically air-cut brake |
| The rear wheel tread | 2250mm |
| The front wheel tread | 2100mm |
| Wheel base | 3000mm |
| Frame | Double: 200*60*10mm |
| Grouand clearance | 250mm |
| Cylinder | dump, 110*950mm, double |
| Front tire | 900-20 single |
| Rear tire | 900-20 double tire |
| Dimension | 5800*2250*1990mm |
| Box size | 3900*2200*800mm |
| Box material size | Bottom 12mm, side 6mm |
| Spring | 90*16mm 13pcs |
| Capacity | 6 Cubic meters |
| Gradeability | 12° |
| Capacity | 16000KG |
| Tail gas treatment | Exhaust purifier |
Qingdao Genron International Trade Co., Ltd is Produce and Exporting
all kinds of New truck trailers, semi-trailers,dumping truck trailers,
trailer parts and used truck trailers.
We have our own factory which produce trailers for more than 15 years.
We cooperate with sino truck, Beiben Truck, Foton truck, Shacman Truck ,Faw trucks.
Our products have been export to 22 countries.
We have own technical team gave you design drawing in shortest way and cheapest value.
China as a global manufacturing center, Genron want to be your first service center in china.
Genron composed by efficient, experienced and reliable team,
has low costs, competitively priced services and reliability reputation.
We have ability to reduce risk and facilitate procurement in the mirror trade business averment
through our comprehensive system and reliable factories.
