13 Tons FUWA Type Axles

Name: 13 Tons FUWA Type Axles
Brand: Genron
SKU: 89066804

We will gave you the matched product details configeration and drawing according to your market,show you the best-selling model pictures and reasonable best price.

Send Inquiry

120.2(001)

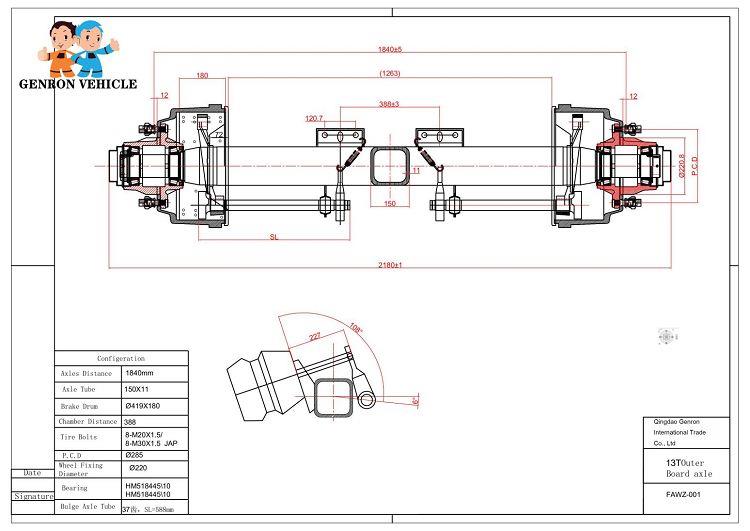

13 Ton FUWA Type AXLES configuration list

Axle Type	Max Capacity (T)	L2 Wheel Distance(mm)	Brake (mm)	Bearing	L3 (Distance between center of Spring seat)	Axles Tube	L4 Center Distance of Brake Chamber(mm)	Wheel Fitting			L1 Outer Length (mm)	Rim Size	Weight (KG)
Axle Type	Max Capacity (T)	L2 Wheel Distance(mm)	Brake (mm)	Bearing	L3 (Distance between center of Spring seat)	Axles Tube	L4 Center Distance of Brake Chamber(mm)	BOLT	P.C.D （mm）	H (mm）	L1 Outer Length (mm)	Rim Size	Weight (KG)
FA13YA1227	13	1840	420×180	HM518445/10	≥970	127	388	1O×M22×1.5ISO	285.8	219.8	2180	7.5V/8.0-20 9.0-22.5	360
FA13YA1327	13	1840	420×180	HM518445/10	≥970	127	382	1O×M22×1.5ISO	335	280.8	2180	7.5V/8.0-20 9.0-22.5	342
FA13FA1227	13	1840	420×180	HM518445/10	≥930	150	388	1O×M22×1.5ISO	285.8	219.8	2180	7.5V/8.0-20 9.0-22.5	358
FA13FA1327	13	1840	420×220	HM518445/10	≥930	150	350	1O×M22×1.5ISO	335	280.8	2180	7.5V/8.0-20 9.0-22.5	340
FA16YA1329	16	1850	420×220	HM220149/10 HM518445/10	≥980	127	350	1O×M24×1.5ISO	335	280.8	2200	8.0V-20	362
FA16FA1329	16	1850	420×220	HM220149/10 HM518445/10	≥940	150	350	1O×M24×1.5ISO	335	280.8	2200	8.0V-20	388
FA20FA1429	20	1850	420×220	32222 HM518445/10	≥940	150	345	1O×M24×1.5ISO	335	280.8	2247	8.5V-20	430

13 Ton FUWA Type AXLES axles production line

117.2_FGDDF

117.4_SD

13 Ton FUWA Type AXLES Electric Coating/Painting

117.6_DF

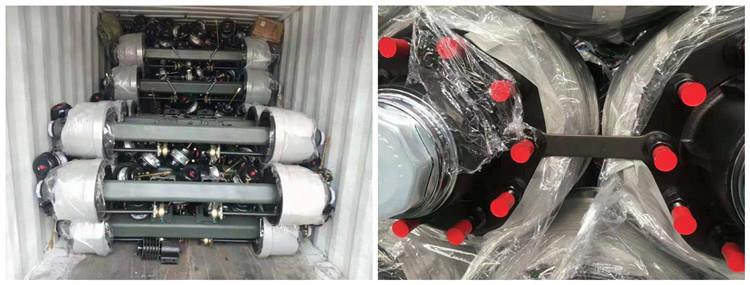

Shipped By 20feet containers , one 20 feet container can loading 58 pcs 13 Ton FUWA Type AXLES trailer axles.

117.8_SDSDSDSDDS
