Longitudinal Seam Automatic Welding Machine
We have strong design ability not limited to the tube and pipe welding can work with us as strategic partner for all your customers reqeust .
Send InquiryChat Now

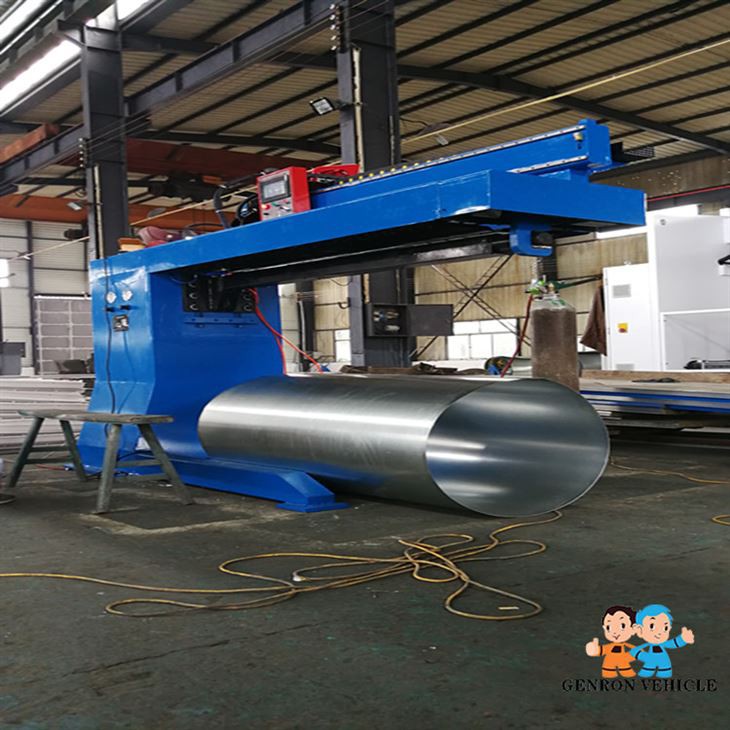

1500mm TIG New design longitudinal seam automatic welding machine
Welding Length | 3000mm |
Welding palte material | Carbon steel, stainless steel, galvanized sheet, aluminum alloy |
Thickness of workpiece | 0.5mm-1.5mm /2mm-8mm |
Welding process | TIG/MIG |
Welding power source | SAF / Miller/ Panasonic |
Effect of the Welding Seam | One-Side is Welded; Two Sides are Shaped(Finished) |
Method of Pressing the stainless steel plate | The Cylinder help Pressed |
Welding Speed | 100-1500mm/min |
Molding channel material | Red copper |
Molding channel cooling type | Water-cooling (cooling water should use antifreeze) |
Walking speed (empty)
| Infinitely variable speeds (The adjusting range is 0 to 4000 mm/min) |
Weld adjusting | Manual fine-tuning |
Power | 30KW |
Welding torch quantity | 1 set |
Feeding dolly | 1 set |
Boundary dimension | 5200mm×2500mm×3000mm |
Weight | About 6T |
Production Term | 65 days |

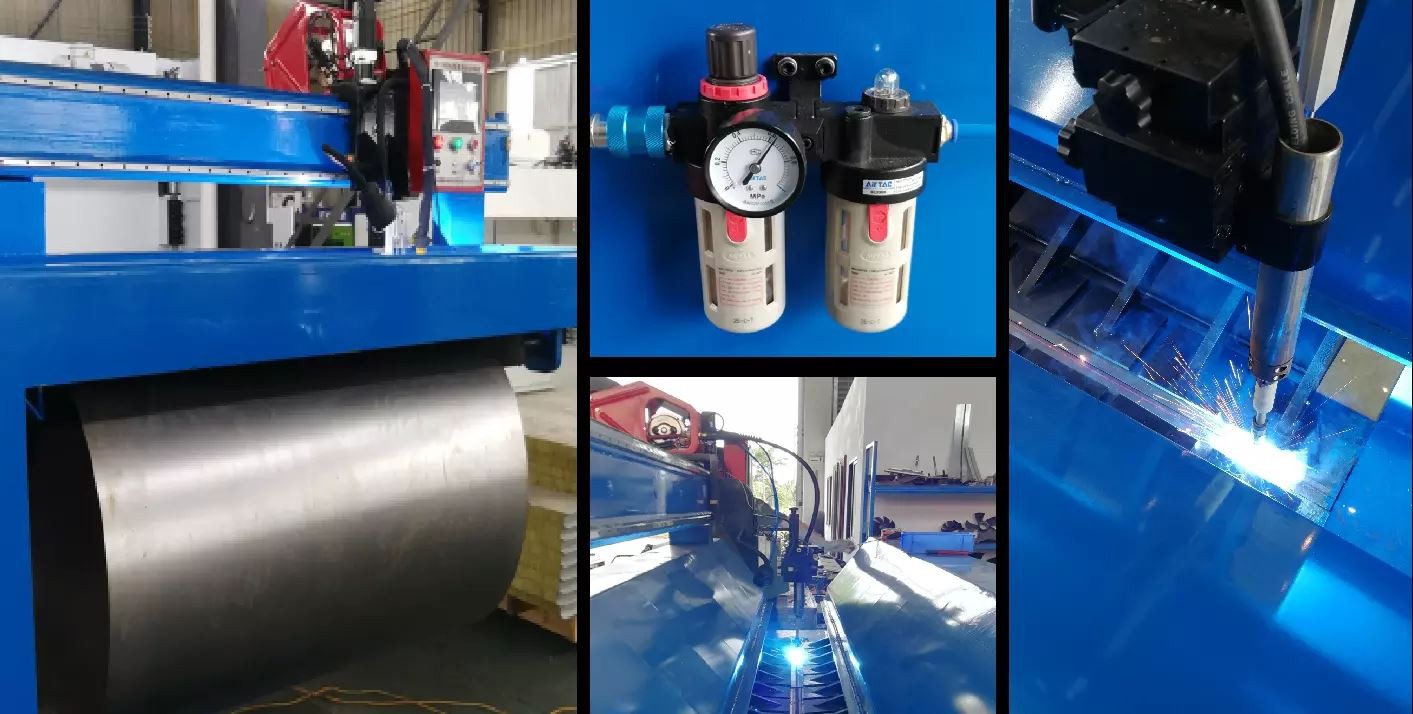

Product Details
Features

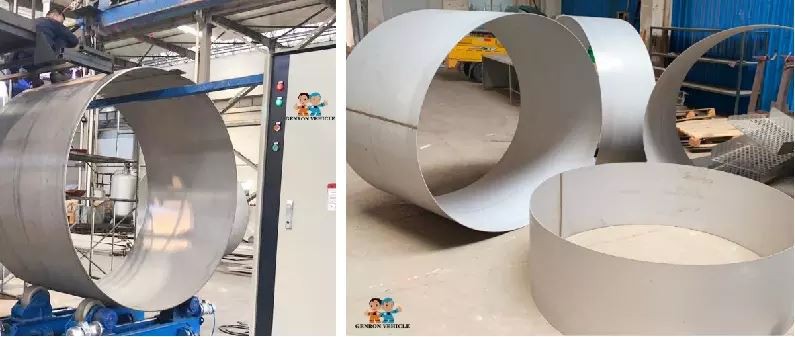

1.To ensure that the steel is flat,one-Side is Welded; Two Sides are Shaped.
2.The width of the welding seam is 5-12mm.
3.There are clean and beautiful seam on both sides, round and smooth transfers.
4.Ensure within 30 mm near the weld seam and the weld seam without oil, burr, rust and other defects.
5.The gap between two plates less than 1mm.
6.Must add arc starting and arc stopping plate.

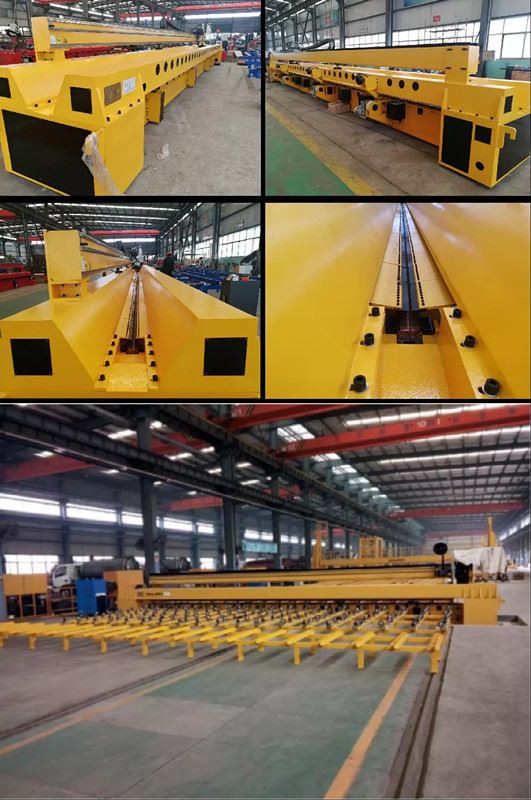

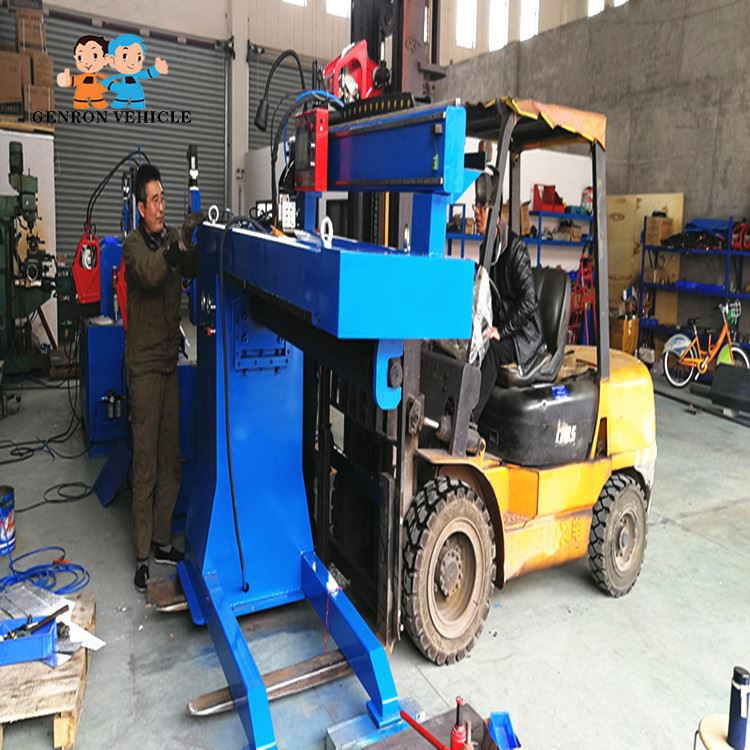

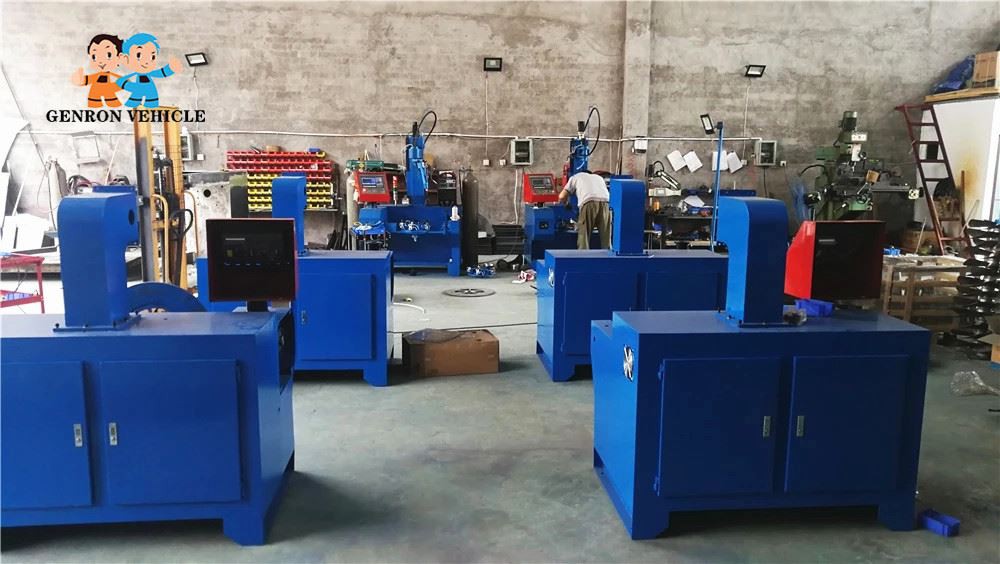

The workshop

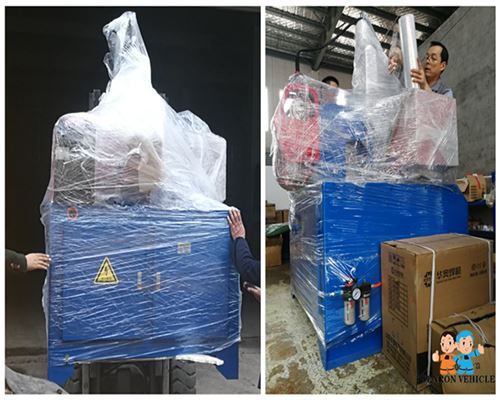

The packing
