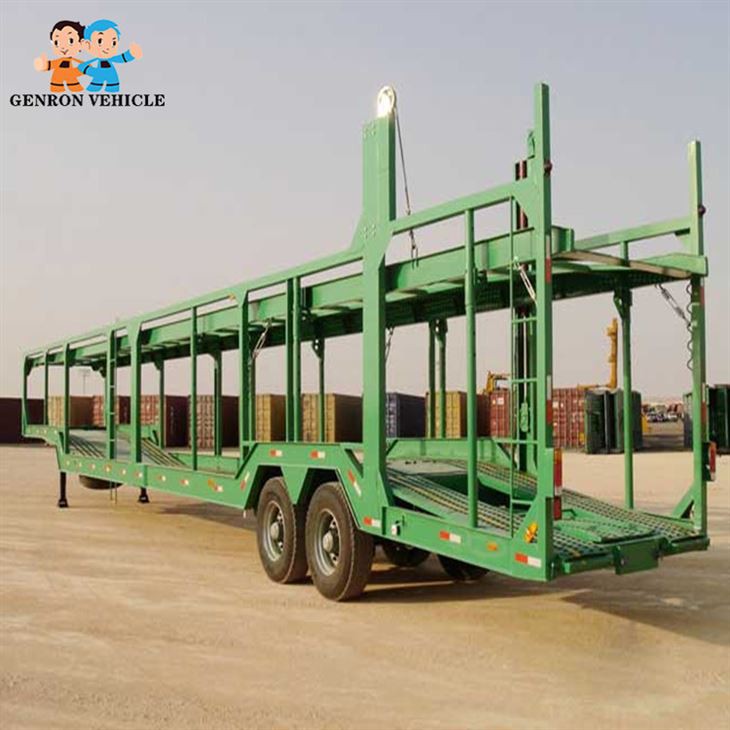

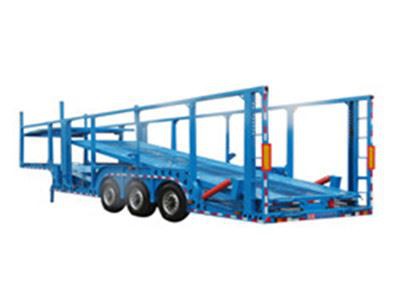

2 Axles/ 3 Axles Car Transport Trailer
The 2 Axles/ 3 axles car transport trailer transport trailer mainly carries cars, but also can carry vans, business cars, jeeps and other passenger cars.
Send Inquiry
The 2 axles/ 3 axles car transport trailer mainly carries cars, but also can carry vans, business cars, jeeps and other passenger cars.
Main Dimensions | |||
Overall Length | 24000mm |
| |
Overall Height | 4350mm | ||
Overall Width | 2800mm | ||
Tare Weight | 12500KGS | ||
Loading Capacity | 24tons | ||
Photo only for reference, final product can be made according to exact requirements | |||

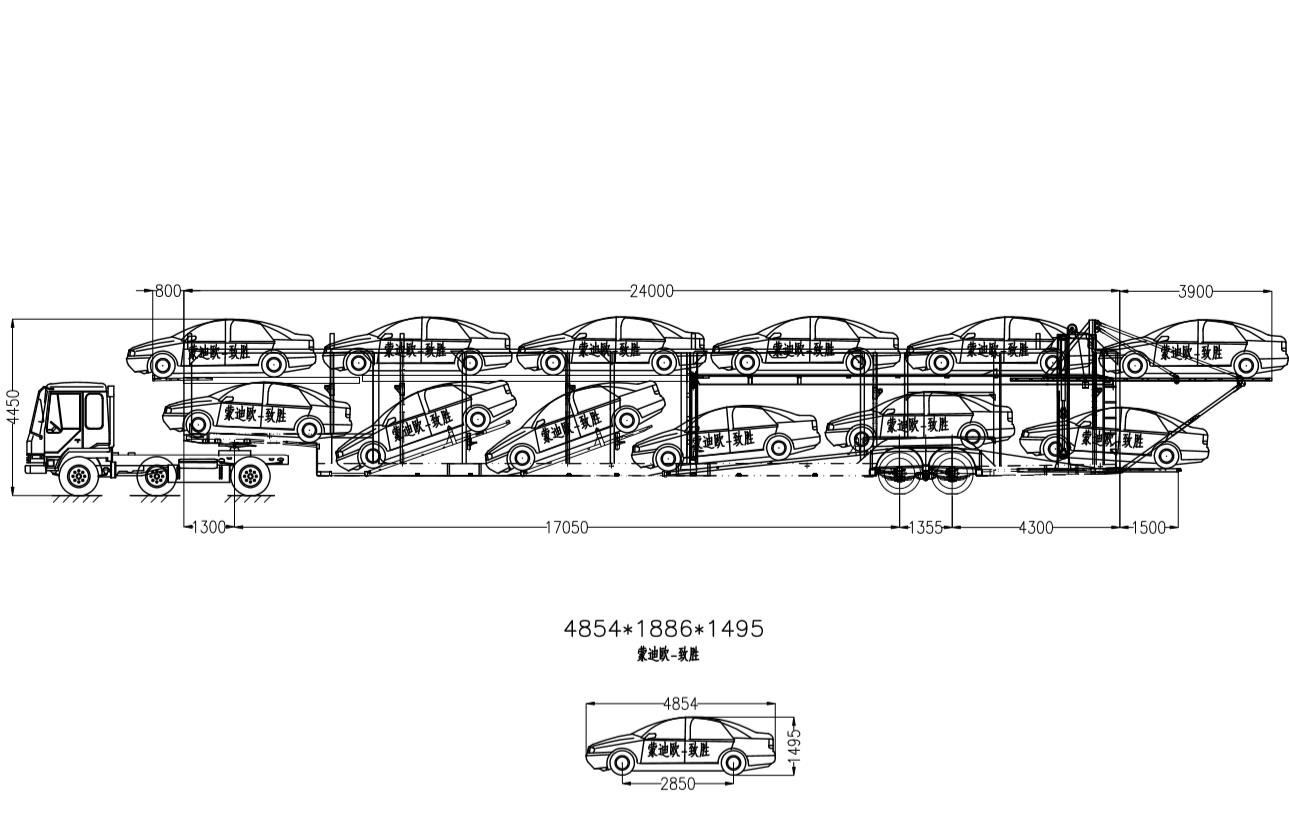

Trailer body configuration （Loading for twelve’s pieces of cars ,check the drawing ） | |||
Material | Q235+Q345 | ||
Traction Pin /king pin | 3inch bolts type | ||
Tire | 11R22.5 triangle brand / eight pieces | ||
Rim | 8.25-22.5 / four pieces | ||
Axle | 13 T Fuwa brand two axles | ||
Steel spring | 10*90*mm | ||
Suspension | Mechanical Suspension | ||
Brake suspension | Double chamber , Double tube | ||
Support Legs | Two pieces , 12.5T/PER | ||

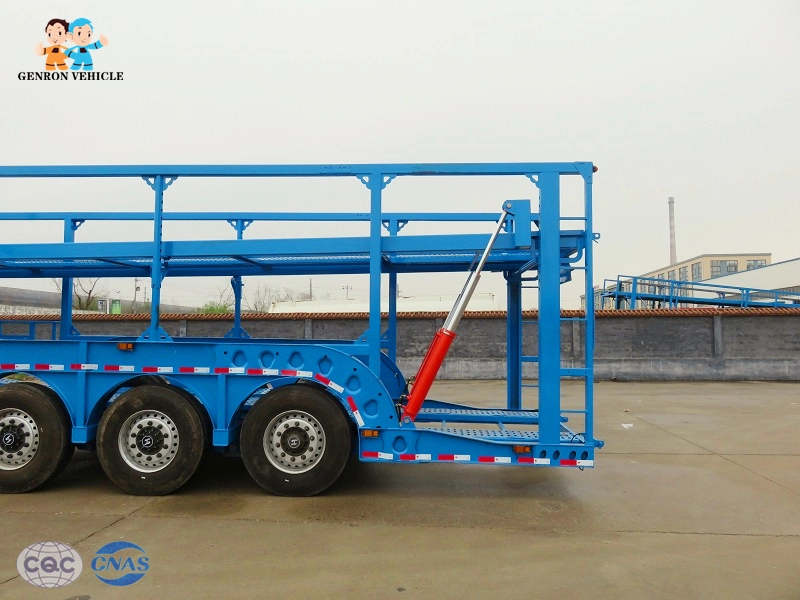

Cylinder | Two pairs ( at rear and the front flat bed of the trailer ) | ||
Chocks and Euphroe | Twenty-three chocks and twenty-three euphroes | ||
Hydraulic system | With Transition springboard on the front of tire ,hydraulic lifting system, there are two big hydraulic cylinders, totally five pieces of cylinders . | ||
Lights | Led light 24 V seven cable | ||
Advantages of the 2 Axles/ 3 axles car transport trailer
1. The car body is of rod and cabinet frame structure, with light structure and light weight. Most of them are upper and lower loading platforms. The platform adopts hydraulic cylinder opening, steel wire rope pulley structure, stable lifting and multiple positioning.
2. Light structure: the whole vehicle adopts the derivative frame structure, and the frame bears the whole load. Without the longitudinal beam structure of semi-trailer, the weight is light, about 30% lighter than that of similar vehicles.
3. Safe and convenient operation: the lifting control of all loading and unloading platforms is reliable and can be observed clearly and operated accurately.
4. Suspension system: the unique leaf spring downward suspension system, variable cross-section leaf spring, good ride comfort.

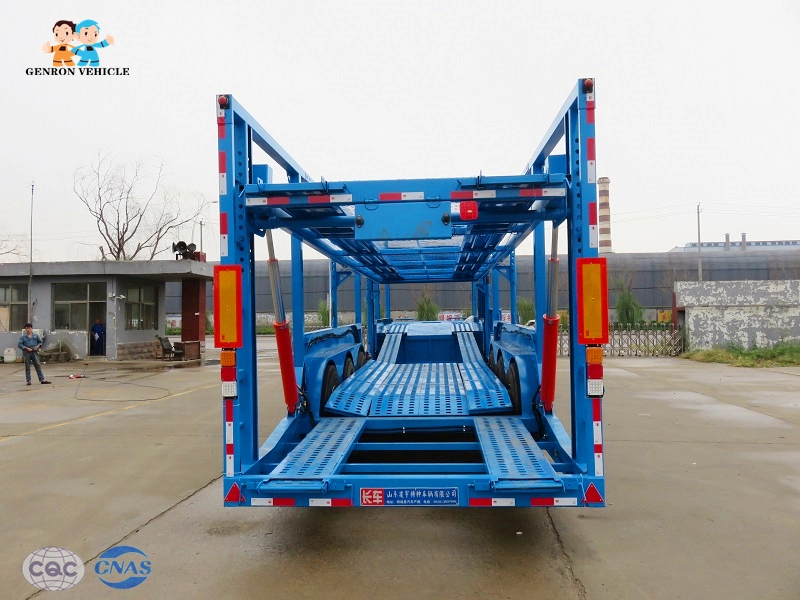

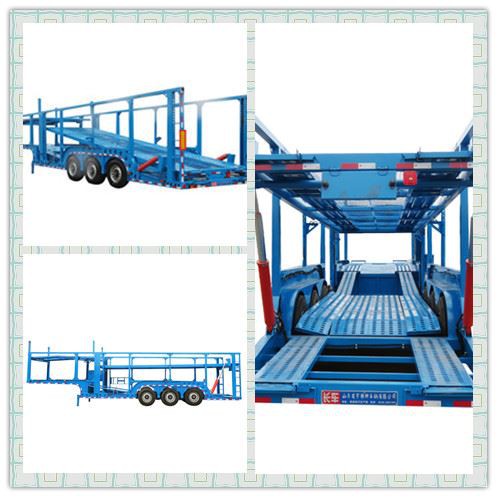

Product details
Payment terms
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished.
2. L/C at sight .

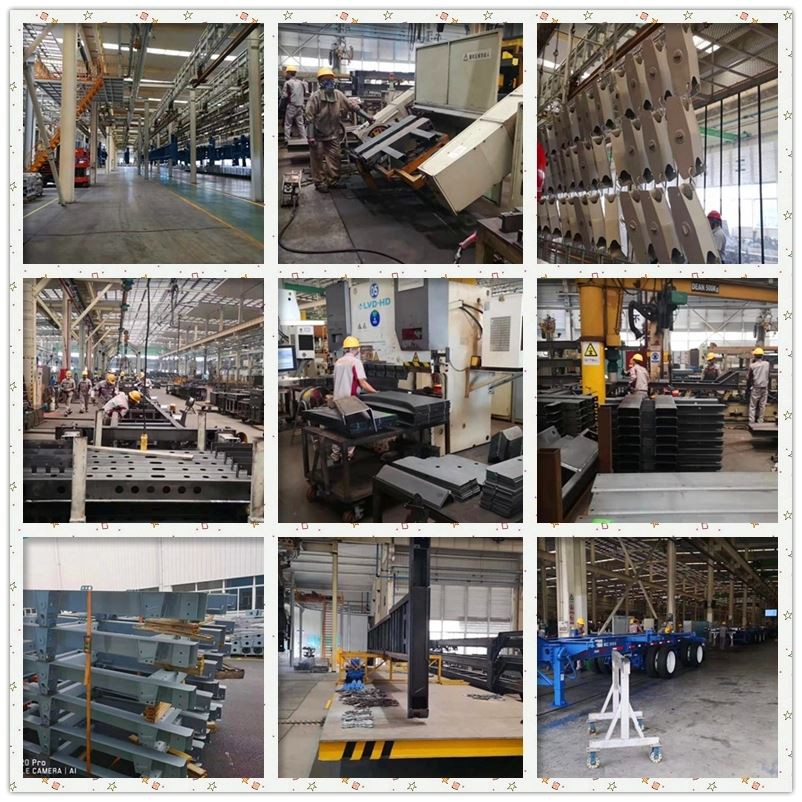

The workshop
Products Exhibition
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A: T/T or L/C
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Kazakhstan, Uzbekistan, Malaysia ,and so on.
