Tri-axles Tanker Trailer
Last Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.
Send Inquiry
1.Tri-axles tanker trailer–Delivery for bulk cement and flour or other powder. Or you can choose fuel/diesel tanker semi trailer or LPG LNG tanker trailer
Main Dimensions | |
Tank Body | |
Shape | Optional ( One Silo with V type or Two ,Three Silos Design) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 7500KGS-15000KGS |
Total Volume（m3） | 25m³-68 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
End Plate | 5mm or 6mm /Q235 carbon steel |
Diesel Engine | WEICHAI ，Tianhe 4100/4102 or other brand |
Compressor | BOHAI 10m³/12 m³or other brand |
Manhole Cover | Carbon steel or Aluminum∮500mm |
Discharging Valve | Diameter is 3 or 4 inch （Material: Aluminum ） |
Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding Design ,Q345 carbon steel |
Axle | 2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /Air Suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System | 6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO |
Tri-axles tanker trailer Spare Parts Exhibition：
Tri-axles tanker trailer Shipping Method :
This package for roro ship or bulk cargo ship delivery .
Advantage: no need welding ,can be work directly after you received.

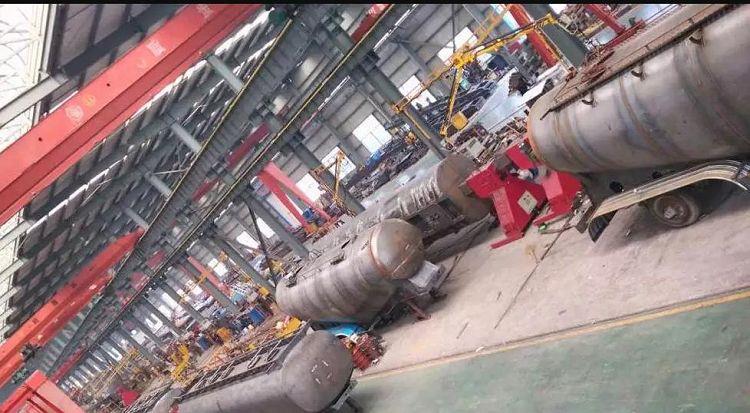

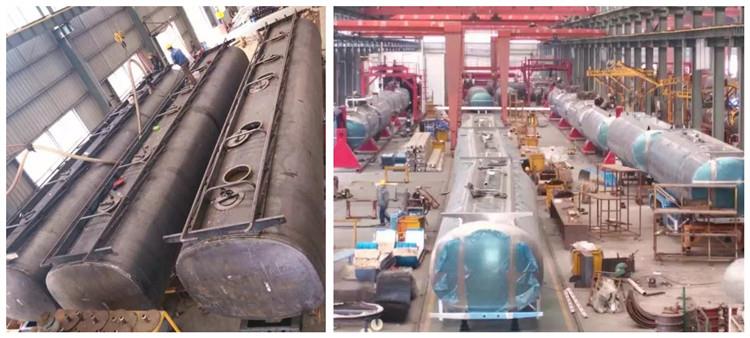

Working Production Line
E-coating Process
First Step：
Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.
Last Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.
Before sale service
* Inquiry and consulting support.
* Sample testing support.
* pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service
* We will often go abroad to check our products .
* Engineers available to service machinery overseas.
1.Why choose us?
Competitive price/Quick response/Professional/Protect client's interest
2.Do you test all your goods before delivery?
Yes, we test 100% before delivery
3.How do you make your business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit
4.Are you a manufacturer or trading company?
We are a professional semi - Trailer supplier, we produce and export ourselves.
You are welcomed to visit our factory.
Our Technical Support Team:
Don't waste your time! Don't waste more money!
Cooperate with professionals! Spent your Money on valued things!
Let us to be your business partner is the shortest way to get your goods!
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
