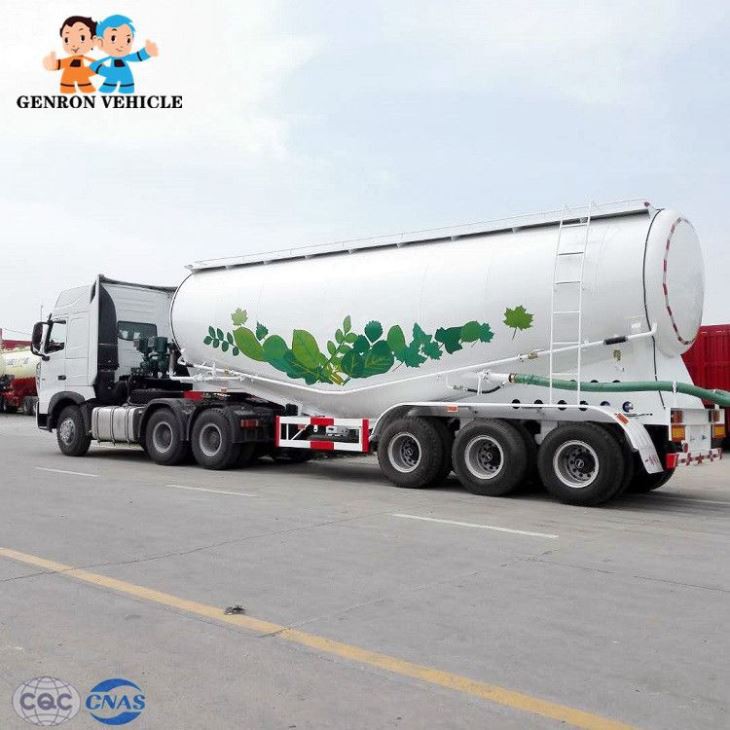

Bulk Cement Tanker Semi Trailer

Name: Bulk Cement Tanker Semi Trailer
Brand: Genron
SKU: 89050394

Our After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).

Send Inquiry Chat Now

104.6

1.bulk cement tanker semi trailer –shipping for bulk cement powder, food feeds.

Main Dimensions
Tank Body
Shape	Optional ( One Silo with V type or Two ,Three Silos Design)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 7500KGS-15000KGS
Total Volume（m3）	25m³-68 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel
End Plate	5mm or 6mm /Q235 carbon steel
Diesel Engine	WEICHAI ，Tianhe 4100/4102 or other brand
Compressor	BOHAI 10m³/12 m³or other brand
Manhole Cover	Carbon steel or Aluminum∮500mm
Discharging Valve	Diameter is 3 or 4 inch （Material: Aluminum ）
Discharging Pipe	3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding Design ,Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
Pneumatic Braking System	6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO

Spare Parts photos

104.7(001)

104.8(001)

104.9(001)

105.1

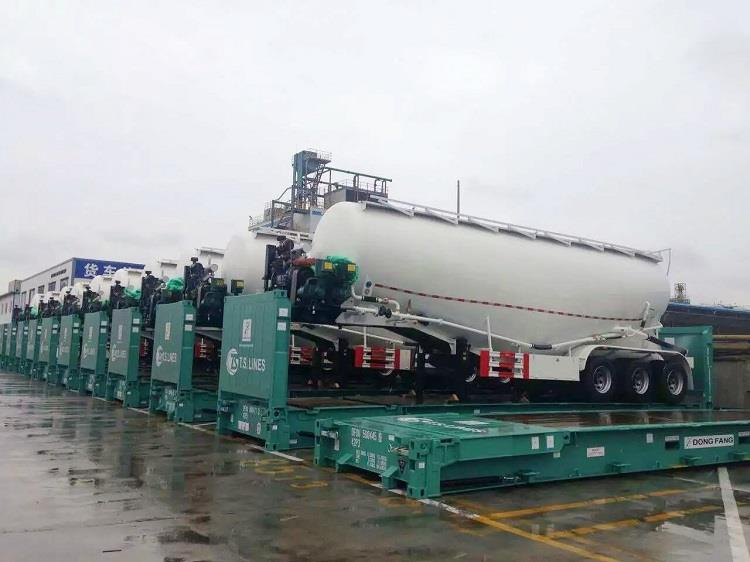

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received

About our company:

Our After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).We are focusing on that Genron products can got repair within 24 hours in everywhere of the world. We did it in china market ,We are doing step by step out of china market .

We have flexible cooperate items. Firstly, you can be Genron Sales Agent: We have our own brand and logo, we have more than five very steady producer partners of each product which we supply to you from China, after you to be Genron agent in your country you will have very steady supplier of China, no need worried one factory will close down. Or you can choose Genron As your China Purchasing Agent. Your can buy from the China factory directly, we can be your exporting agent in China.

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Our Technical Support Team:

85.6(001)
