Fuel Tanker Semi Trailer

Name: Fuel Tanker Semi Trailer
Brand: Genron
SKU: 89057163

We have our own brand and logo, we have more than three very Steady producer partners of each product which we supply to you in China ,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.

Send Inquiry Chat Now

108.2

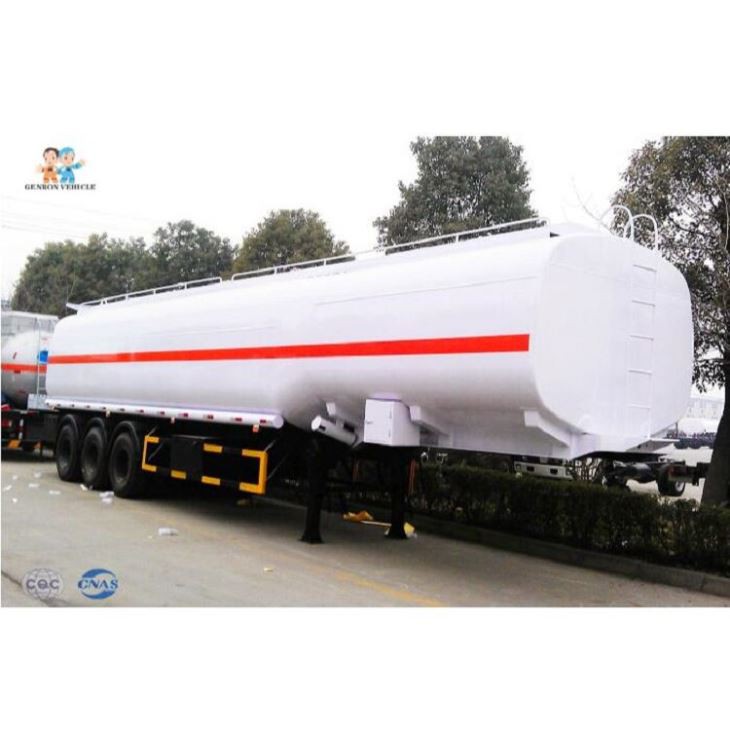

1.fuel tanker semi trailer –Ship for oil and diesel or fuel.

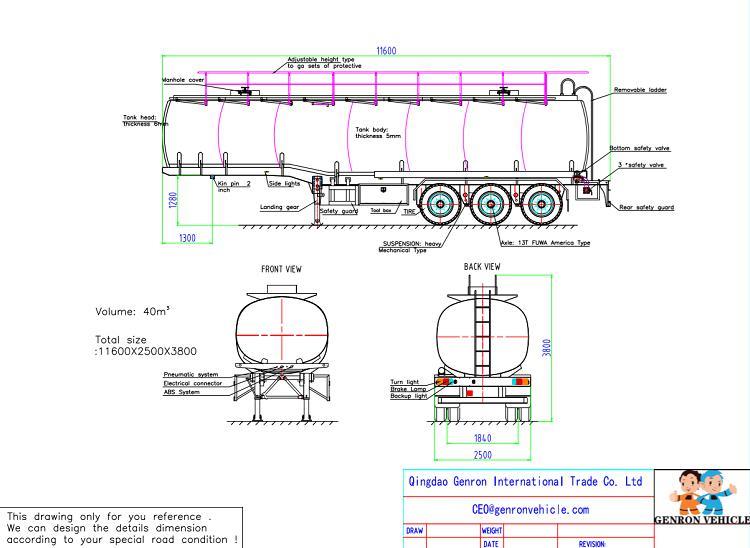

Main Dimensions
Tank Body
Shape	Optional ( Round or Square)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 8000KGS-12800KGS
Total Volume（m3）	25m³-60 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel
End Plate	5mm or 6mm /Q235 carbon steel /aluminum /stainless steel
Manhole Cover	Carbon steel or Aluminum alloy API manhole cover, ∮500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	Optional
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle	2 or 3 axles, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers

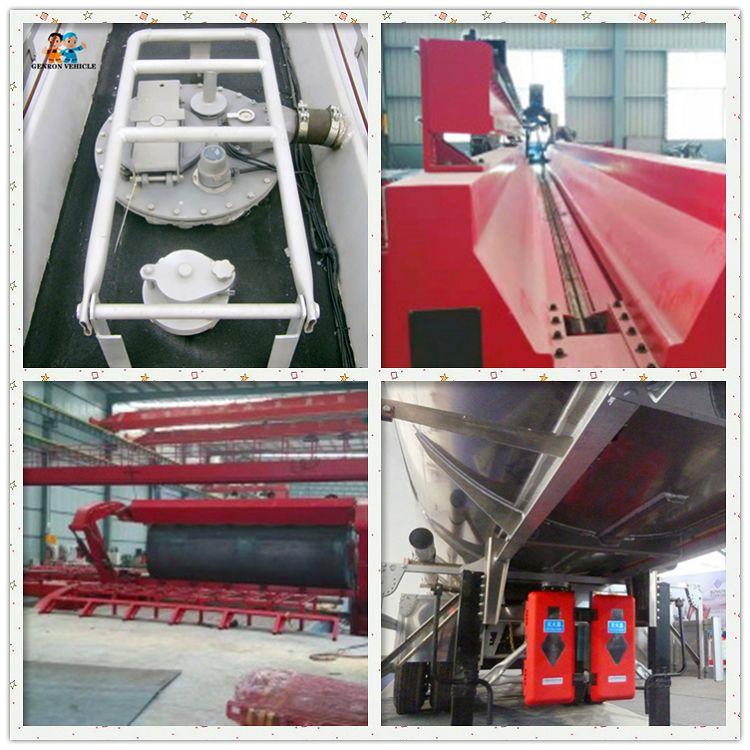

Fuel tanker semi trailer Accessories Pictures:

110.7(001)

Working Production Line

105.3_DF 106.5(001)

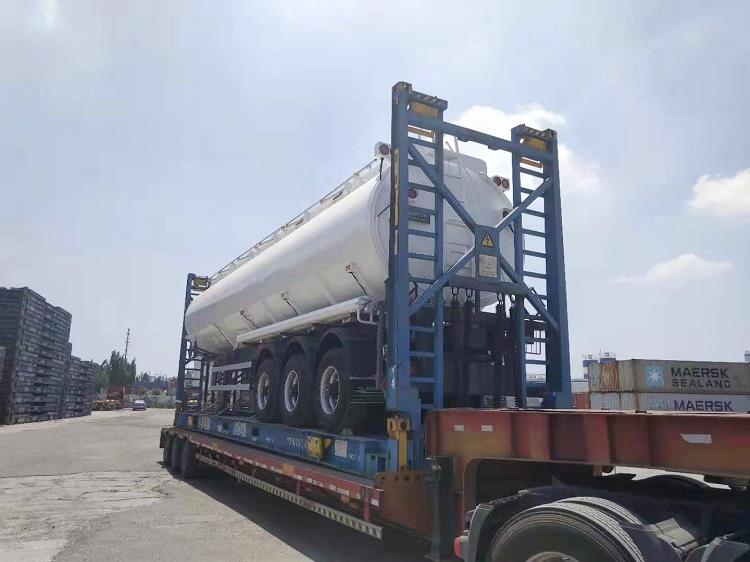

Fuel tanker semi trailer Shipping Item :

108.4

This package for roro ship or bulk cargo ship delivery .
