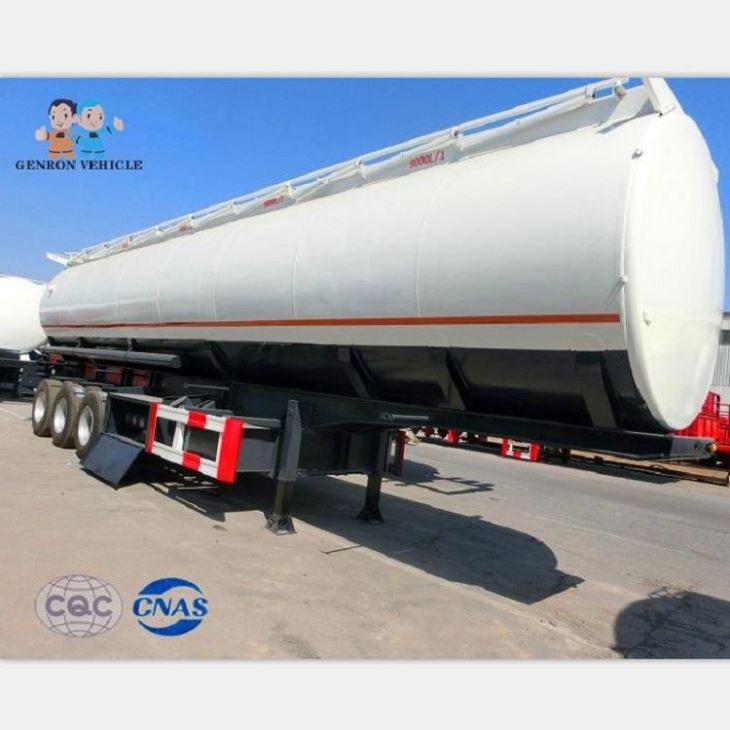

Oil Transport Trailer
Using this automatic cleaning machine can make every point of the trailer very clean and remove all residues.
Send Inquiry
1.oil transport trailer –Shipping oil and diesel or fuel.
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Square) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Carbon steel or Aluminum alloy API manhole cover, ∮500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding design or Special design I beam, connected by bolts and nuts |
Axle | 2 or 3 axles, BPW/FUWA/GV brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |

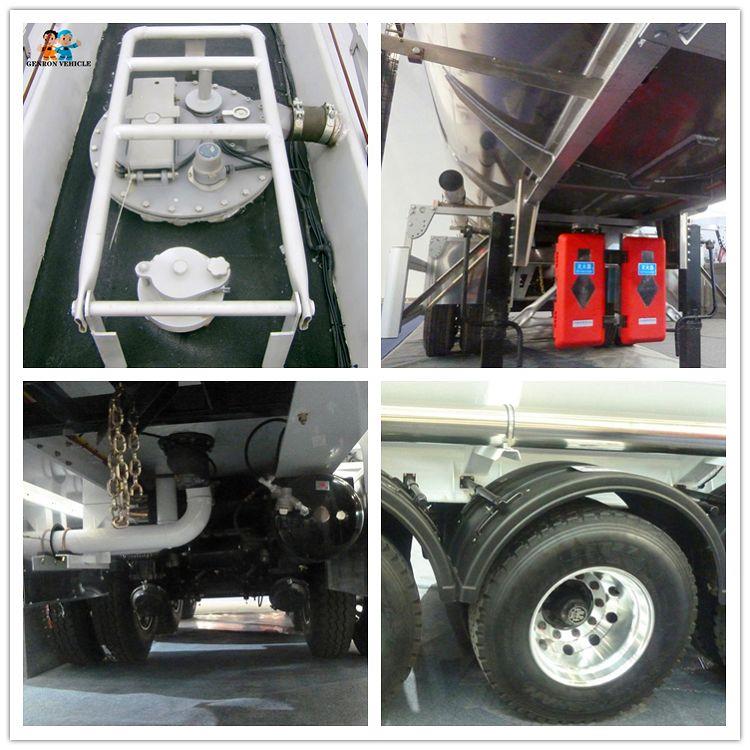

Oil transport trailer Accessories Show
Working Production Line
E-Coating :
The step of E-coating Process:
Using this automatic cleaning machine can make every point of the trailer very clean and remove all residues. Put the main body of the trailer into the steam room for electrophoresis drying, adjust the temperature to below 50 ℃, and then spray the powder to make it steam again, so that its surface is very smooth. After spraying, it is in close contact with the trailer until 7 years.
Oil transport trailer Shipping Item :
This package for roro ship or bulk cargo ship delivery .
Our Technical Support Team:
The strong advantage of Genron company with other trading company is we have our own professional technical design team. If you uncertain your products or your own design ,we can go to visit you ,help you checking and analysis your market and gave you special and right design according to your country situation. As our more than 11 years overseas visited record and exporting business experience focus on the trailer and truck filed ,we can gave you the right product in very short way.
Don't waste your time! Don't waste more money!
Cooperate with professionals! Spent your Money on valued things!
Let us to be your business partner is the shortest way to get your goods!
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
