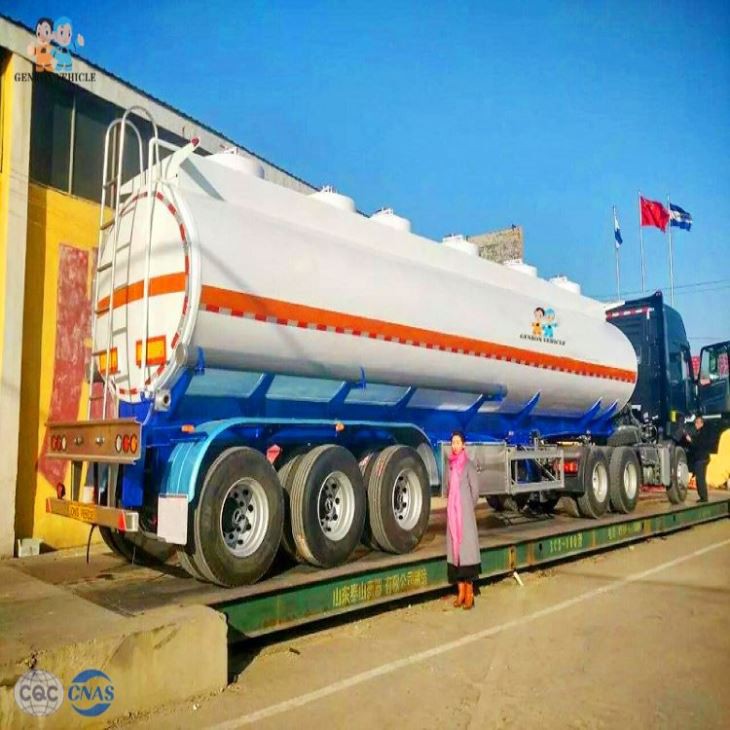

40000 Gallon Tanker
To build Genron’ Maintenance department in every place where Genron products arrived. (We are looking for local cooperate also) We focus on Genron products can got repair within 24 hours in everywhere of the world.
Send Inquiry
1.40000 gallon tanker –Transport oil and diesel or fuel.
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Square) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Carbon steel or Aluminum alloy API manhole cover, ∮500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding design or Special design I beam, connected by bolts and nuts |
Axle | 2 or 3 axles, BPW/FUWA/GV brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |

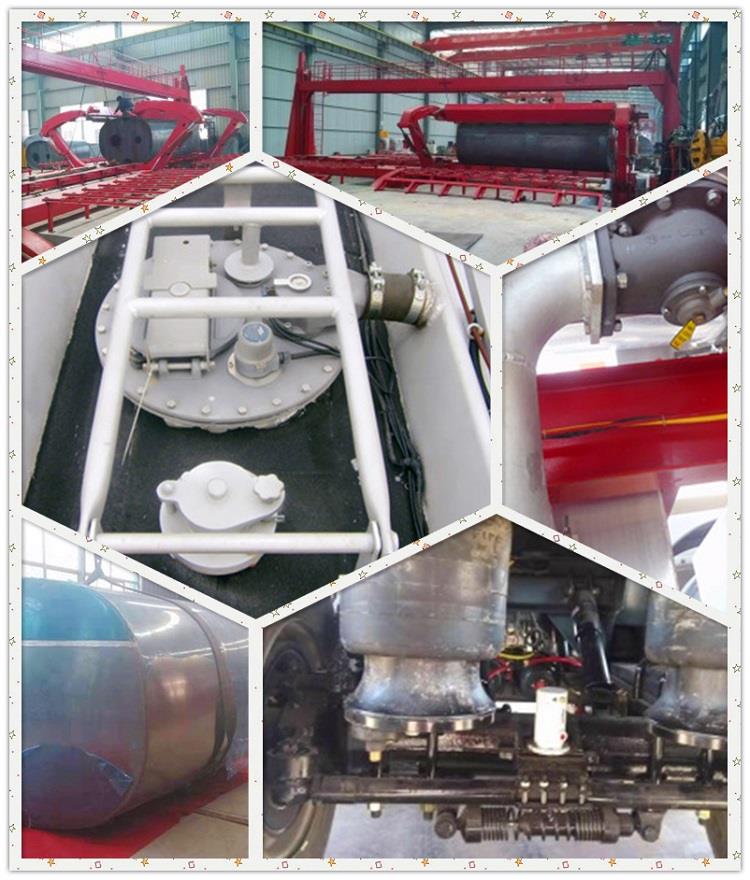

40000 gallon tanker Parts Display:
Working Production Line

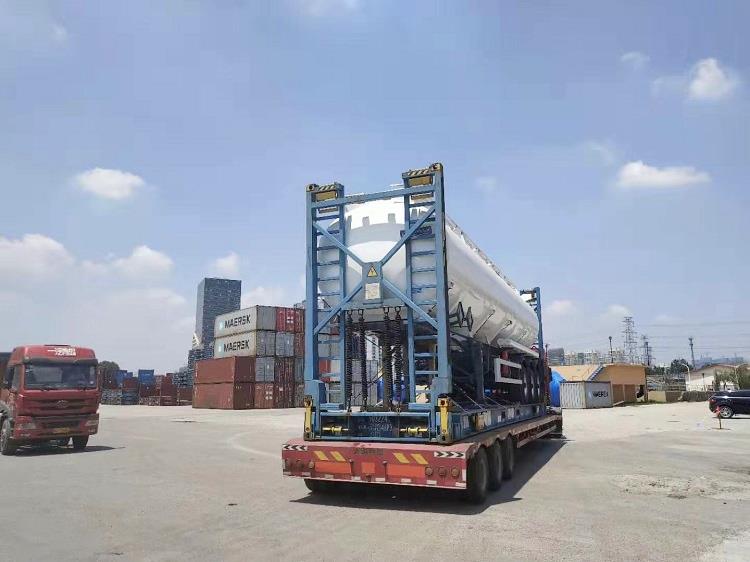

40000 gallon tanker Shipping Item :
This package for roro ship or bulk cargo ship delivery .
IF your order is more than three units or 6 or 9 can be package like this .
Pls check your destination port if there is bulk cargo port near to your city.
Advantage: no need welding ,can be work directly after you received.
Our service:
* Reply your inquiry in 12 working hours;
* Experienced staffs answer all your questions;
* Customer’s design is available for certain products(OEM);
* Spare parts for all types of engine machinery with reasonable price;
* Different kinds of semi trailer can be provided with competitive price.
Our Main Target :
To build Genron’ Maintenance department in every place where Genron products arrived. (We are looking for local cooperate also) We focus on Genron products can got repair within 24 hours in everywhere of the world. We did it in China ,We are doing step by step out of China.
Our Technical Support Team:
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
