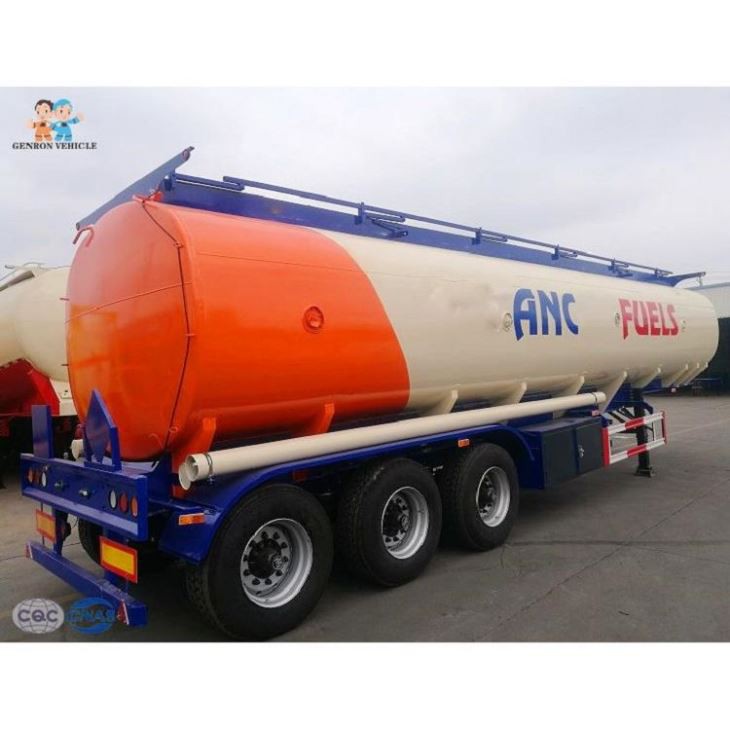

Oil Truck Transporter
The use of this automatic cleaning machine can make every point of the trailer very clean and remove all residues.
Send InquiryChat Now
1、oil truck transporter –Transport oil and diesel or fuel.
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Square) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Carbon steel or Aluminum alloy API manhole cover, ∮500mm |

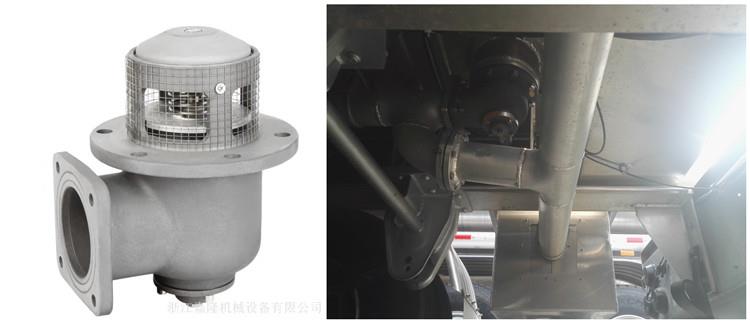

Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding design or Special design I beam, connected by bolts and nuts |
Axle | 2 or 3 axles, BPW/FUWA/GV brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |

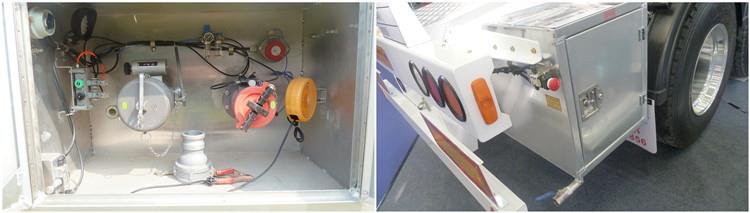

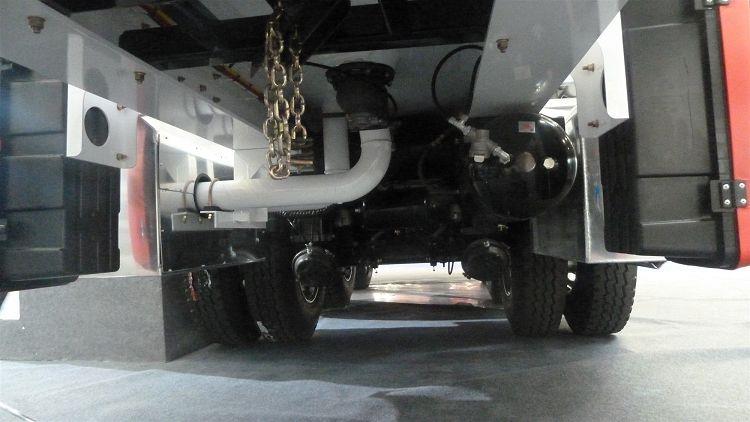

Oil truck transporter Accessories Show
Working Production Line
E-COATING:
The use of this automatic cleaning machine can make every point of the trailer very clean and remove all residues. Put the main body of the trailer into the steam room for drying, adjust the temperature to below 50 ℃, and then carry out powder spraying to make it steam again, so that its surface is very smooth. After spraying, it is in close contact with the trailer, keeping color for 7 years.

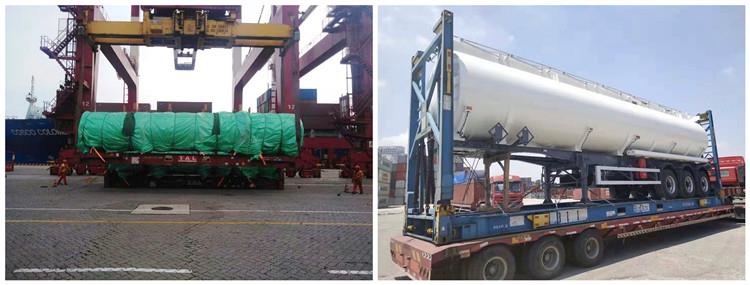

Oil truck transporter Shipping Item :
This package for roro ship or bulk cargo ship delivery .
Our service:
1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the quality goods.
4. Our rich-experience technical teams are standing by all the time.
5. You can know the advance overseas technology from our products. Which bring you more
competitive advantages.
What is Genron profit ?
To be Purchase agent : You buy the product from the factory I help you export off china and shipping to your Country port,you should pay 5% FOB price of the goods for us .
You buy from Genron or to be agent of Genron:
The factory will pay us export agent fees.
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
