Bulk Cement Transporter Truck Trailer

Name: Bulk Cement Transporter Truck Trailer
Brand: Genron
SKU: 89051275

We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

Send Inquiry

104.6

1.bulk cement transporter truck trailer –To deliver bulk cement and flour or other powder.

Main Dimensions
Tank Body
Shape	Optional ( One Silo with V type or Two ,Three Silos Design)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 7500KGS-15000KGS
Total Volume（m3）	25m³-68 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel
End Plate	5mm or 6mm /Q235 carbon steel
Diesel Engine	WEICHAI ，Tianhe 4100/4102 or other brand
Compressor	BOHAI 10m³/12 m³or other brand
Manhole Cover	Carbon steel or Aluminum∮500mm
Discharging Valve	Diameter is 3 or 4 inch （Material: Aluminum ）
Discharging Pipe	3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding Design ,Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
Pneumatic Braking System	6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO

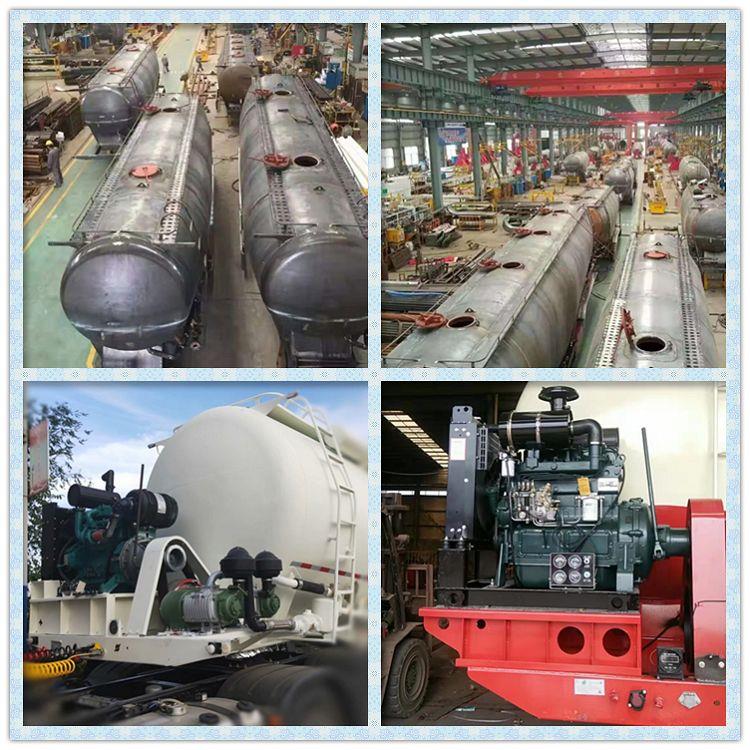

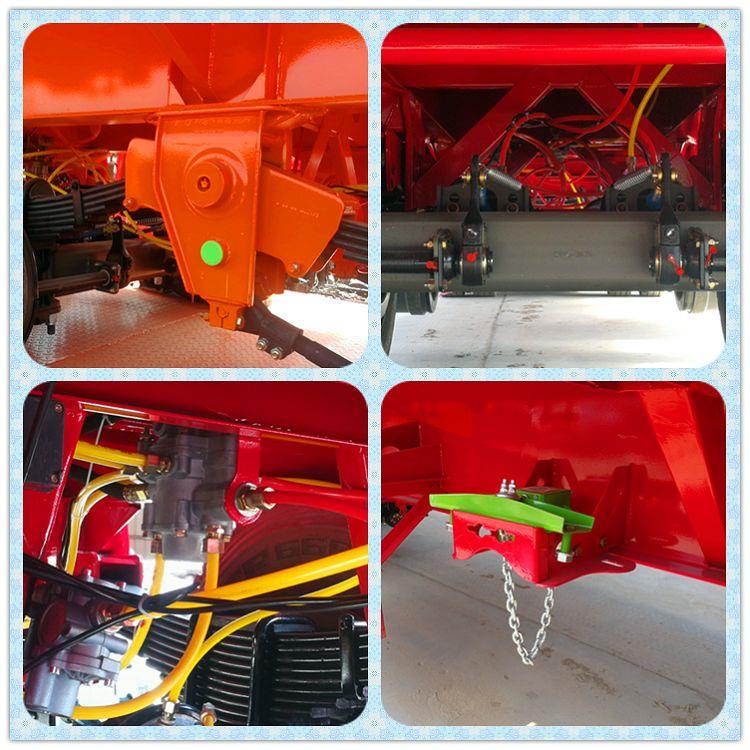

Bulk cement transporter truck trailer Parts Pictures:

105.6(001) 86(001)

Painting Process :

The first step of E-coating Process

Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.

104.8(001)

104.9(001)

Final process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

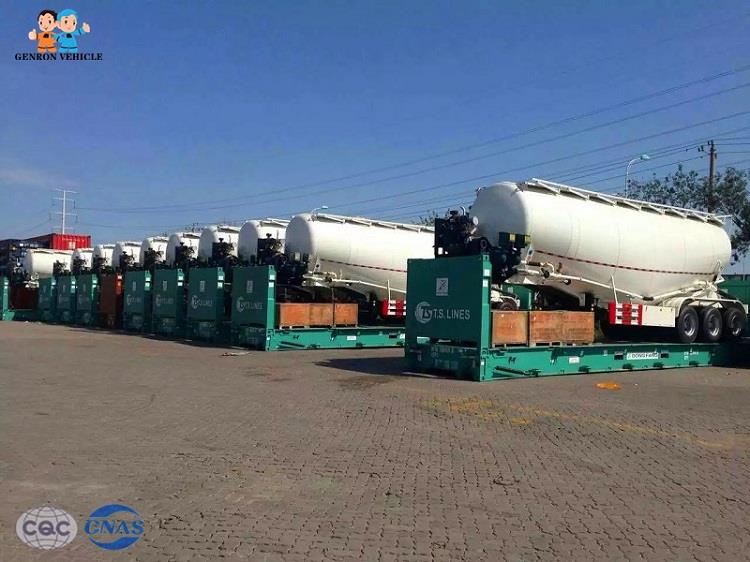

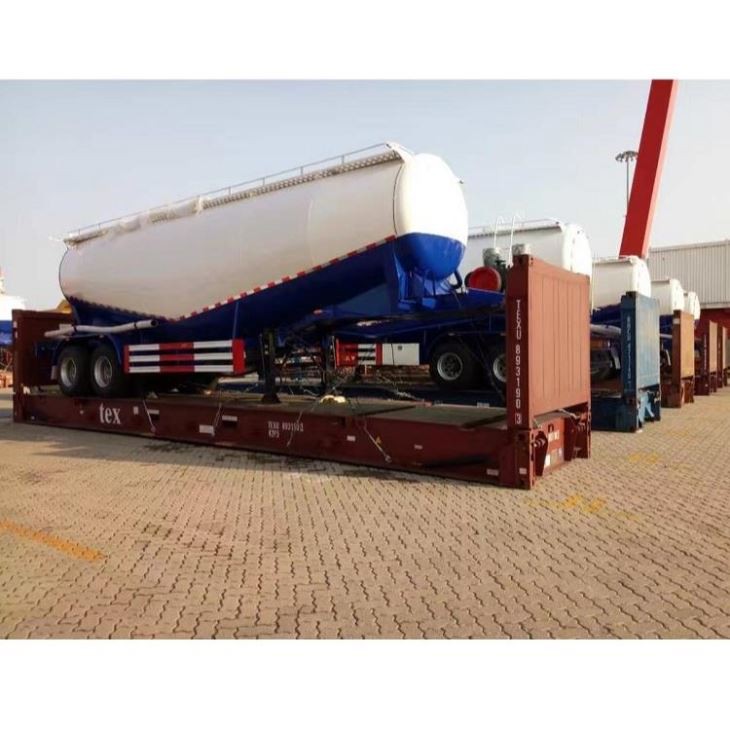

Bulk cement transporter truck trailer Shipping Method :

105.7

This package for roro ship or bulk cargo ship delivery .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received.

1. How do you transport the semi trailers?

We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

2. Can you satisfy my special requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

3. How can you guarantee quality?

Our raw material and OEM parts including axle, suspension, tire, are purchased centralized by Genron group,

every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied

during the whole producing process to ensure the welding quality.

85.6(001)
