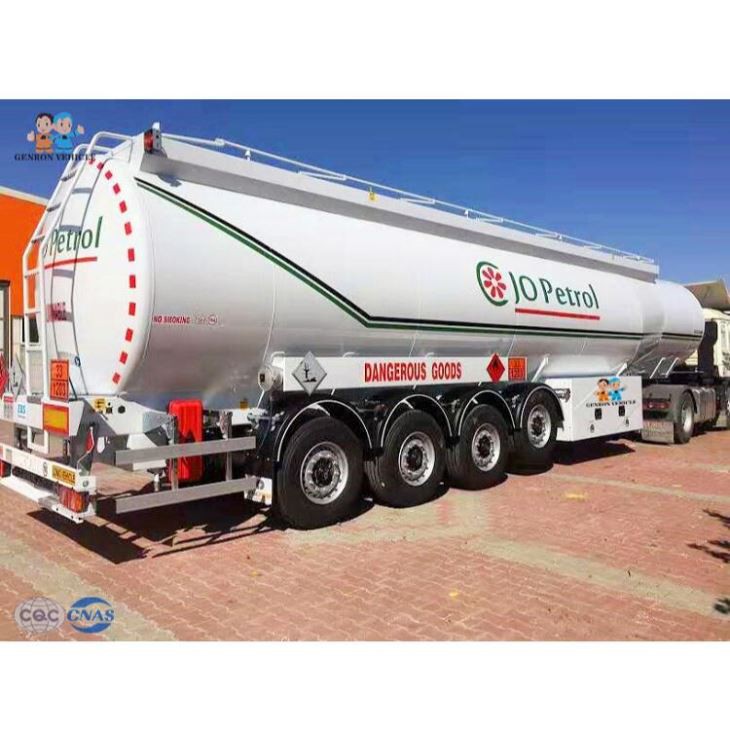

Four Axles Fuel Tank Semi Trailer

We can arrange the most cost-effective transportation solution according to the number of semi-trailers required by customers.

Send Inquiry Chat Now

111.4

1.four axles fuel tank semi trailer –Deliver oil and diesel or fuel.

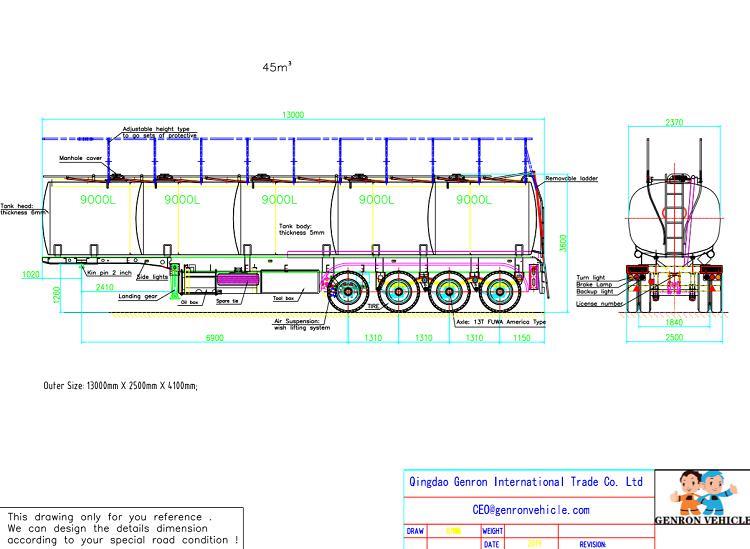

Main Dimensions
Tank Body
Shape	Optional ( Round or Square)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 8000KGS-12800KGS
Total Volume（m3）	25m³-60 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel
End Plate	5mm or 6mm /Q235 carbon steel /aluminum /stainless steel
Manhole Cover	Carbon steel or Aluminum alloy API manhole cover, ∮500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	Optional
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle	2 or 3 axles, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers

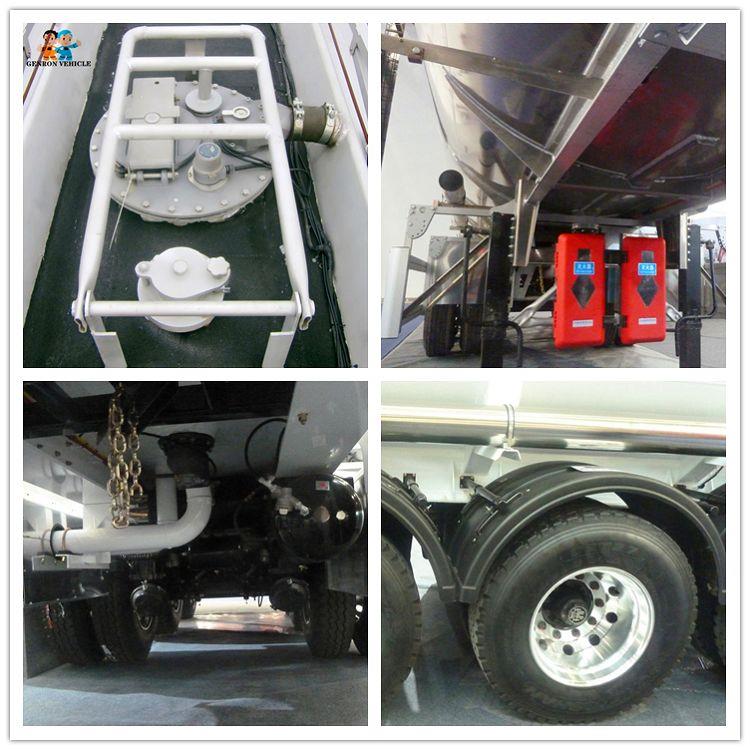

Four axles fuel tank semi trailer Parts Pictures：

110.2(001)

Working Production Line

105.3_DF 106.5(001)

E-coating

First Process：

Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual

Second Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

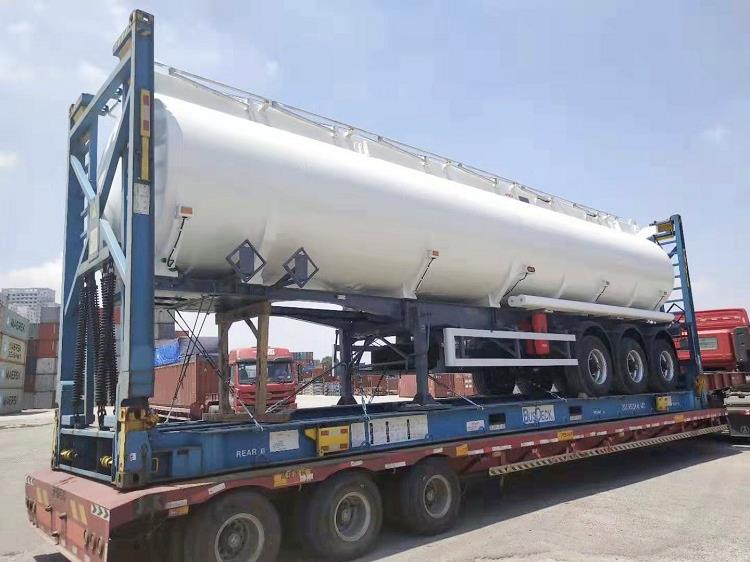

Four axles fuel tank semi trailer Shipping Item :

106.7

Mode of transport: bulk cargo, ro-ro transport, container transport

We can arrange the most cost-effective transportation solution according to the number of semi-trailers required by customers.

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

What are our advantages compared with manufacturers

Competitive Price -- We work as the leading dealers of various leading China Semi Trailers manufacturers/factories, and are treated with best dealership prices every year. From numerous comparison and feedback from clients, our price is more competitive than manufacturers/factories.

Quick Response-- Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond client inquiries and questions all the time. Most problems can be solved within 12 hours.

Fast delivery -- Normally it will take more than 25-45 days for manufacturers/ factories to produce the ordered trailers, while we have a variety of resources, locally and nation widely, to receive trailers in timely manner. In 70% circumstance, we can have a 15-20 days delivery of regular trailers for our clients.
