Bulk Tank Trailer

Name: Bulk Tank Trailer
Brand: Genron
SKU: 89051608

Our After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).

Send Inquiry Chat Now

104.6

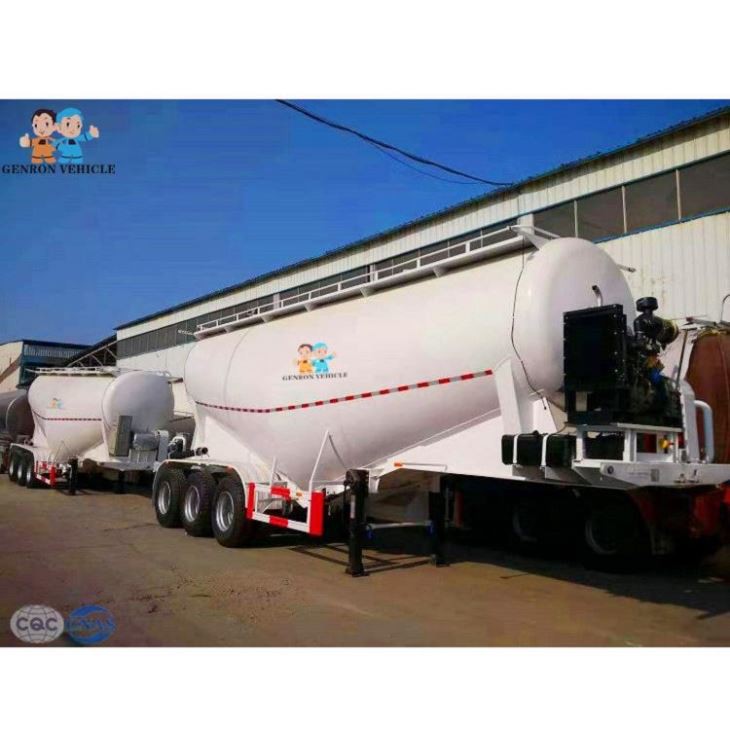

1.bulk tank trailer –transport bulk cement and flour or other powder.

Main Dimensions
Tank Body
Shape	Optional ( One Silo with V type or Two ,Three Silos Design)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 7500KGS-15000KGS
Total Volume（m3）	25m³-68 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel
End Plate	5mm or 6mm /Q235 carbon steel
Diesel Engine	WEICHAI ，Tianhe 4100/4102 or other brand
Compressor	BOHAI 10m³/12 m³or other brand
Manhole Cover	Carbon steel or Aluminum∮500mm
Discharging Valve	Diameter is 3 or 4 inch （Material: Aluminum ）
Discharging Pipe	3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding Design ,Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
Pneumatic Braking System	6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO

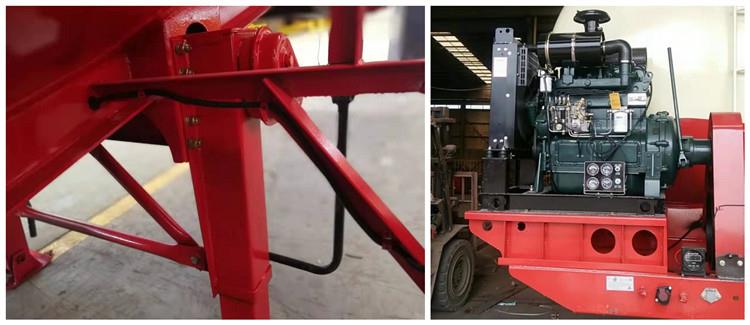

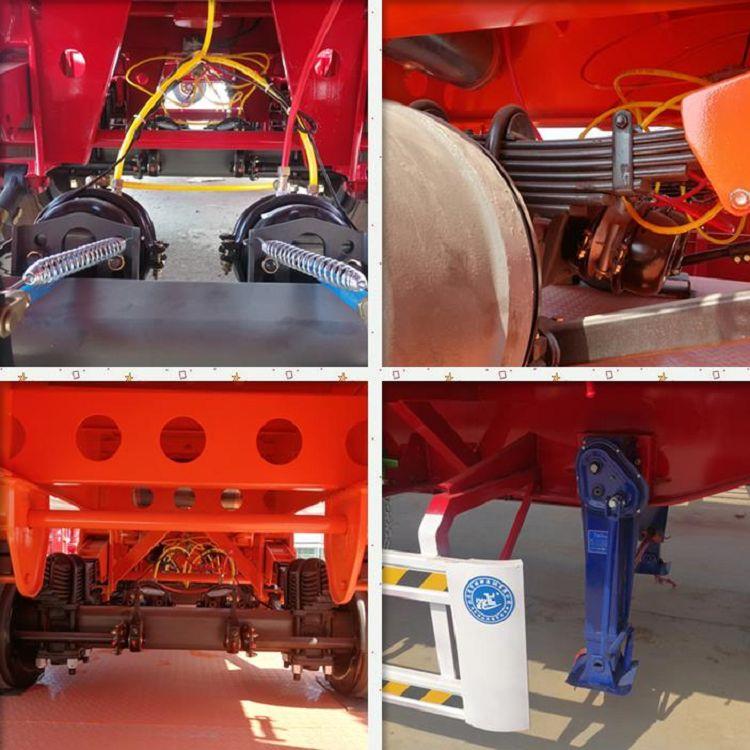

Bulk tank trailer Spare Parts Show

105.3_SD

83(001)

104.8(001)

104.9(001)

106.1

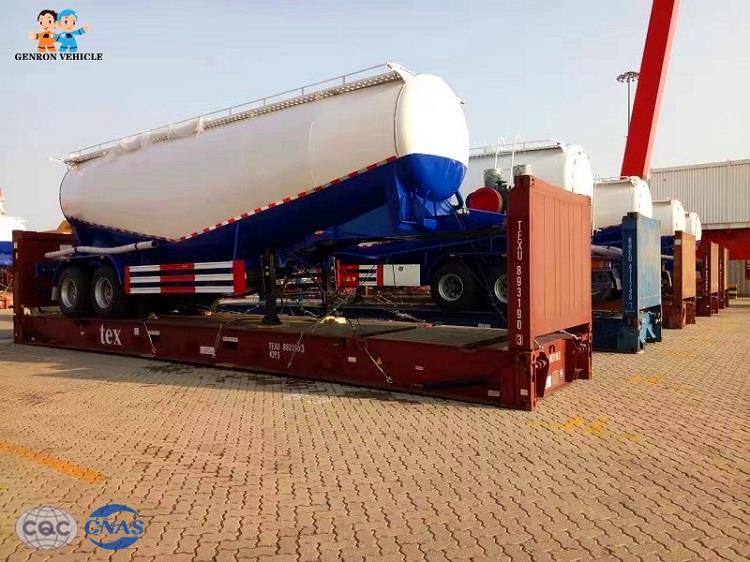

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received.

Our service:

Our After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).We are focusing on that Genron products can got repair within 24 hours in everywhere of the world. We did it in china market ,We are doing step by step out of china market .
