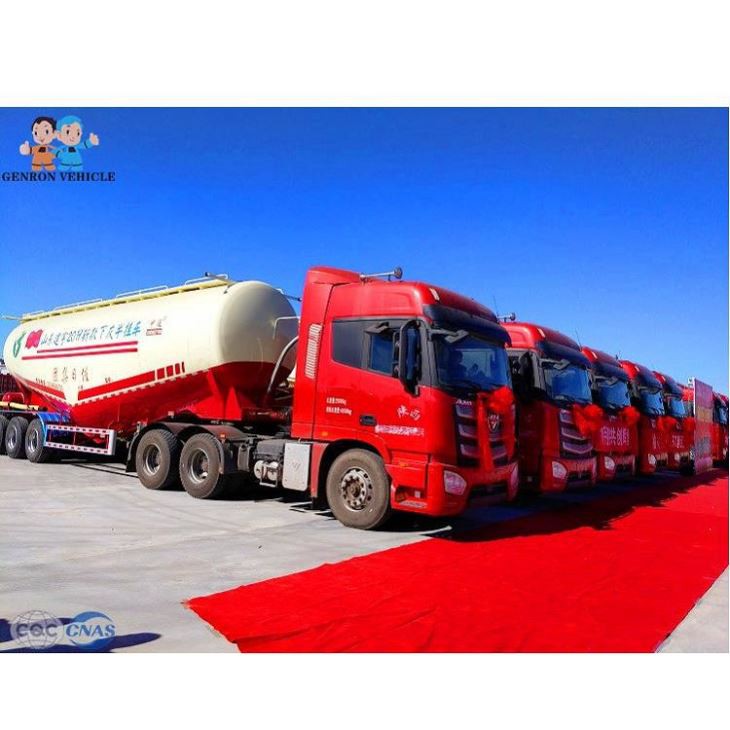

3 Axles Tanker Semi Trailer
We have our own brand and logo ,we have more than three very Steady producer partners of each product which we supply to you in China ,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.
Send Inquiry
1.tanker semi trailer–Transport bulk cement and flour or other powder. You can choose LPG TANKER ,LNG TANKER ,AND FUEL/OIL TANKER
Main Dimensions | |
Tank Body | |
Shape | Optional ( One Silo with V type or Two ,Three Silos Design) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 7500KGS-15000KGS |
Total Volume（m3） | 25m³-68 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
End Plate | 5mm or 6mm /Q235 carbon steel |
Diesel Engine | WEICHAI ，Tianhe 4100/4102 or other brand |
Compressor | BOHAI 10m³/12 m³or other brand |
Manhole Cover | Carbon steel or Aluminum∮500mm |
Discharging Valve | Diameter is 3 or 4 inch （Material: Aluminum ） |
Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding Design ,Q345 carbon steel |
Axle | 2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /Air Suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System | 6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO |
Tanker semi trailer Shipping Item :
This package for roro ship or bulk cargo ship delivery .
IF your order is more than three units or 6 or 9 can be package like this .
Pls check your destination port if there is bulk cargo port near to your city.
Disadvantage : the bulk cargo fee is a little expensive than the container fee.
Advantage: no need welding ,can be work directly after you received.

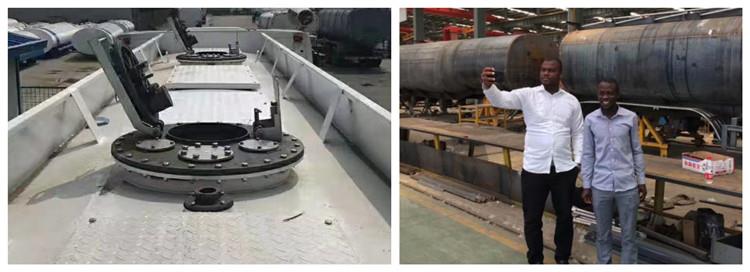

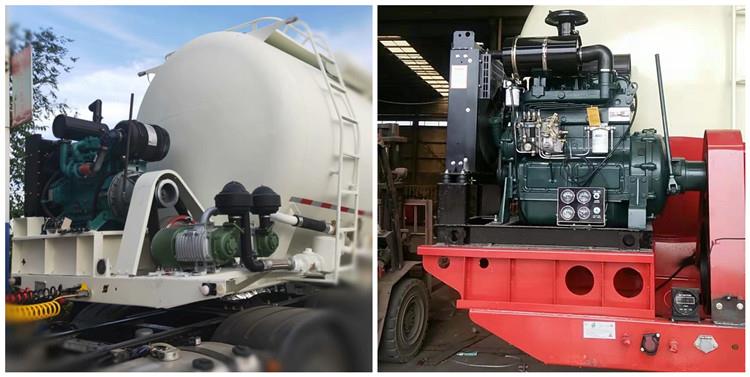

Tanker semi trailer Spare Parts Show

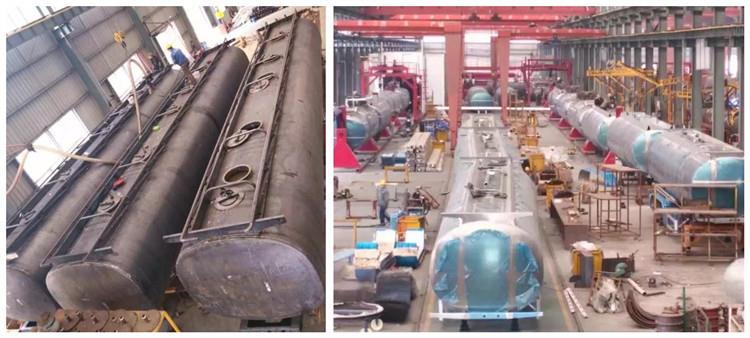

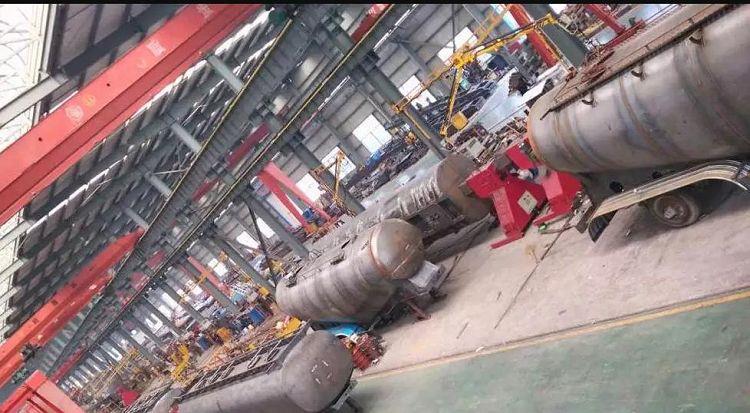

Working Production Line:
How we can cooperate (Business Partnership) ?
As your China Purchasing Agent:
You can buy from the factory directly ,we can be your exporting agent in China.
You can be Genron Sales Agent : We have our own brand and logo ,we have more than three very Steady producer partners of each product which we supply to you in China ,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.
Our service
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.
Our Technical Support Team:
Company Introduction
Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers, trailer parts and Man-hand Welding Machinery, Automatic Welding machinery, Trailer Production Line Etc. We have our own factory which produce trailers for more than 15 years, Our CEO Mrs. Zhao have 11 years export Construction and trailer trucks experiences; She have visited more than 22 countries for checking trailer truck markets. We can supply the right product in shortest ways and cheapest value.
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
