45000L Fuel Oil Tanker Truck

Name: 45000L Fuel Oil Tanker Truck
Brand: Genron
SKU: 89053459

We Minimize all loses that may arise from the producers .We respond to the demands and requirements of the companies , we work with in the most effective way and as soon as possible.

Send Inquiry Chat Now

106.2

1.45000l fuel /oil tanker truck –Deliver oil and diesel or fuel.

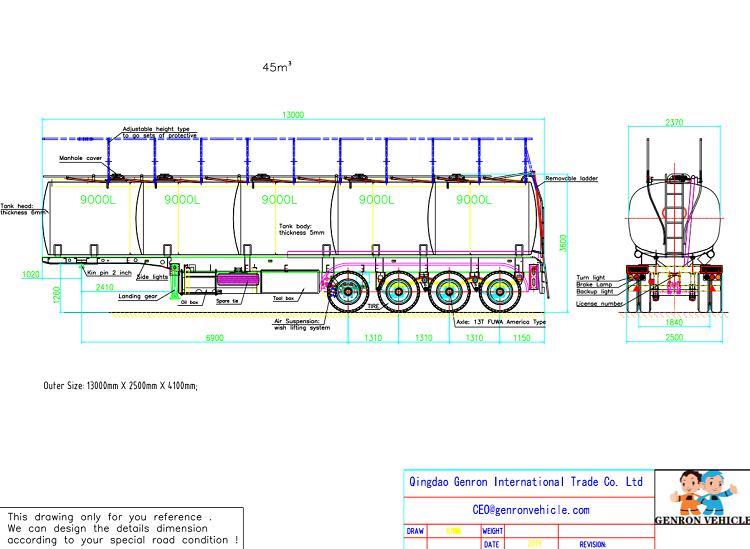

Main Dimensions
Tank Body
Shape	Optional ( Round or Square)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 8000KGS-12800KGS
Total Volume（m3）	25m³-60 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel
End Plate	5mm or 6mm /Q235 carbon steel /aluminum /stainless steel
Manhole Cover	Carbon steel or Aluminum alloy API manhole cover, ∮500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	Optional
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle	2 or 3 axles, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers

106.3(001)

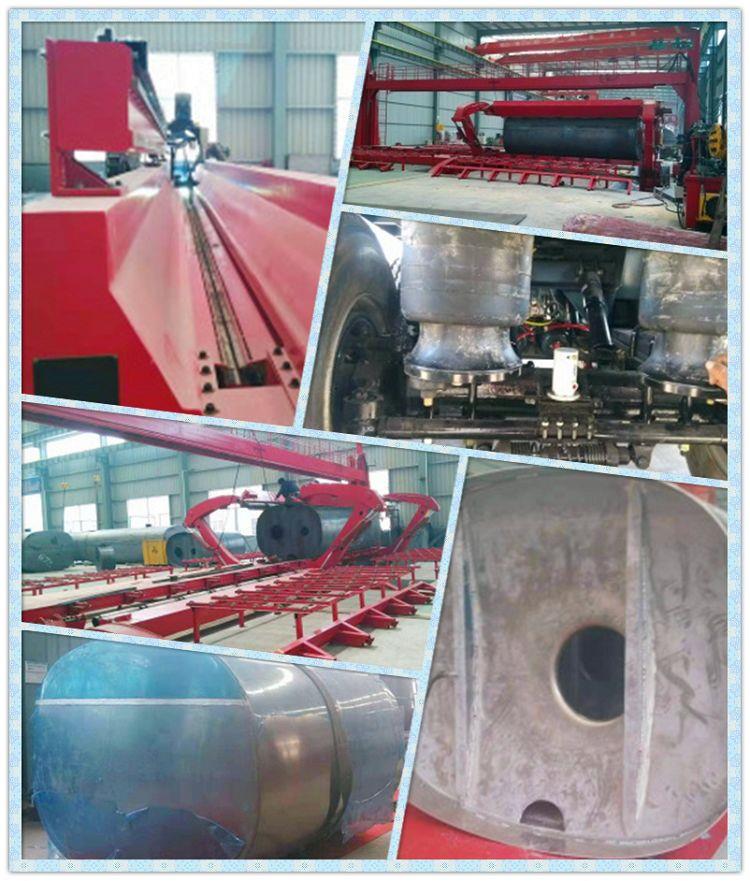

45000l fuel /oil tanker truck Spare Parts Show

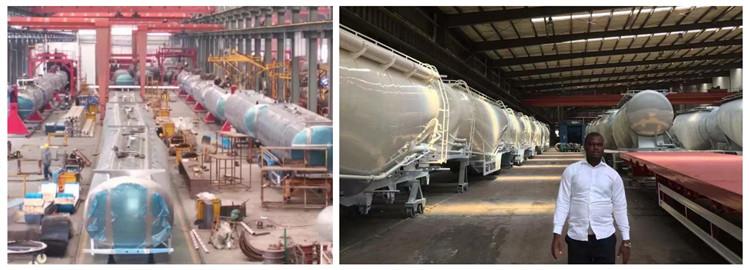

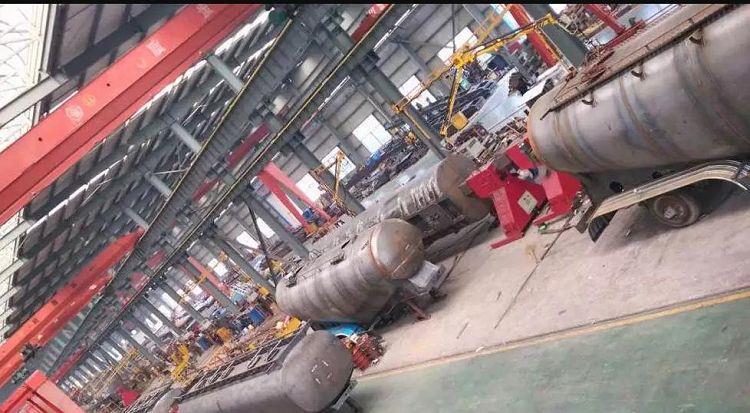

Working Production Line

105.3_SDSDSD

106.5(001)

The first step of E-coating Process

Use this automatic washing maching can make the trailer all points very cleaning ,remove all ressidcau.

Last Process: put the trailer body into the steaming room to Electrophoresis drying,and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smootly and painting touch the trailer firmly till 7 years.

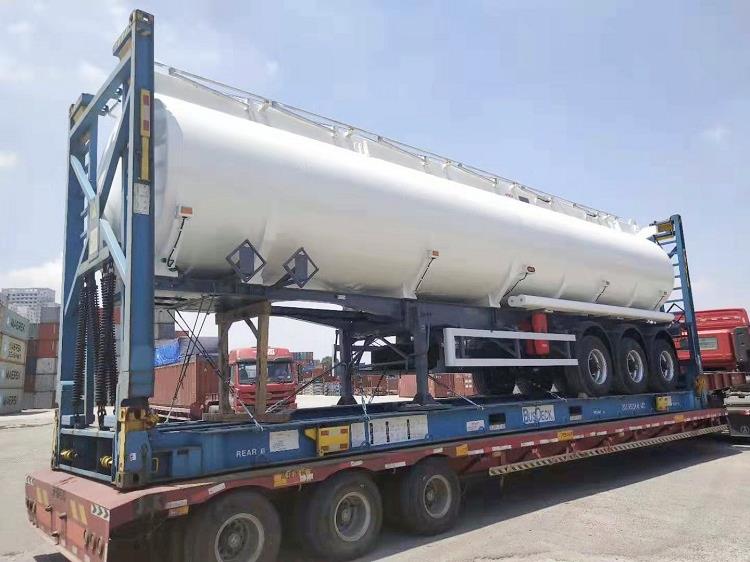

45000l fuel /oil tanker truck Shipping Item :

106.7

The mode of transportation:

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received.

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Why do you choose Genron?

11 years overseas experience :

As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana,Burkina faso,Cameroon,Nigeria,Mozambique,Zambia ,Tanzania ,Kenya,Malaysia ,Indonesia ,Philippine,Vietnam ,LAOS ,Mayanmar,Algeria,Dubai.

Mirror Trading: we will gave you the best price and quality product .Because we hope our cooperation like mirror ,Customer as mirror ,one side is factory ,inside is Genron,

We Minimize all loses that may arise from the producers .We respond to the demands and requirements of the companies , we work with in the most effective way and as soon as possible.

Professional Technical Team:

The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years, design trailer and production line six years),Five technical person:Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang( design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).

Our Technical Support Team:
