LNG Tanker Trailer

We provide fantastic power in excellent and growth,merchandising,revenue and promoting and operation for Low MOQ for Semi-trailer Type And Truck Trailer Use Tri Axle 60ton Bulk Cement Tanker Trailer, Our aim is to help customers realize their goals.

Send Inquiry Chat Now

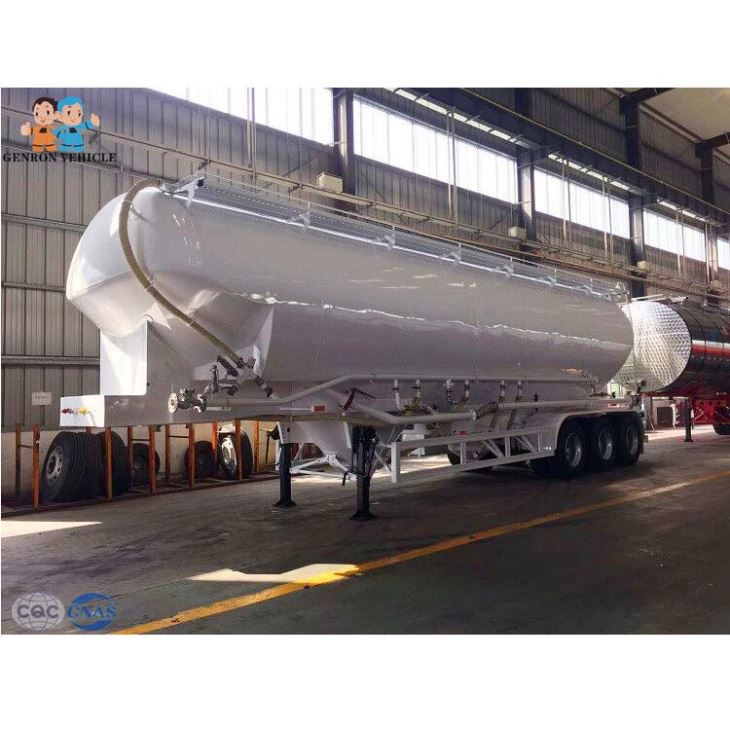

1.stainless steel tanker trailer –To ship bulk cement and flour or other powder.

Main Dimensions
Tank Body
Shape	Optional ( One Silo with V type or Two ,Three Silos Design)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 7500KGS-15000KGS
Total Volume（m3）	25m³-68 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel
End Plate	5mm or 6mm /Q235 carbon steel
Diesel Engine	WEICHAI ，Tianhe 4100/4102 or other brand
Compressor	BOHAI 10m³/12 m³or other brand
Manhole Cover	Carbon steel or Aluminum∮500mm
Discharging Valve	Diameter is 3 or 4 inch （Material: Aluminum ）
Discharging Pipe	3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding Design ,Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
Pneumatic Braking System	6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO

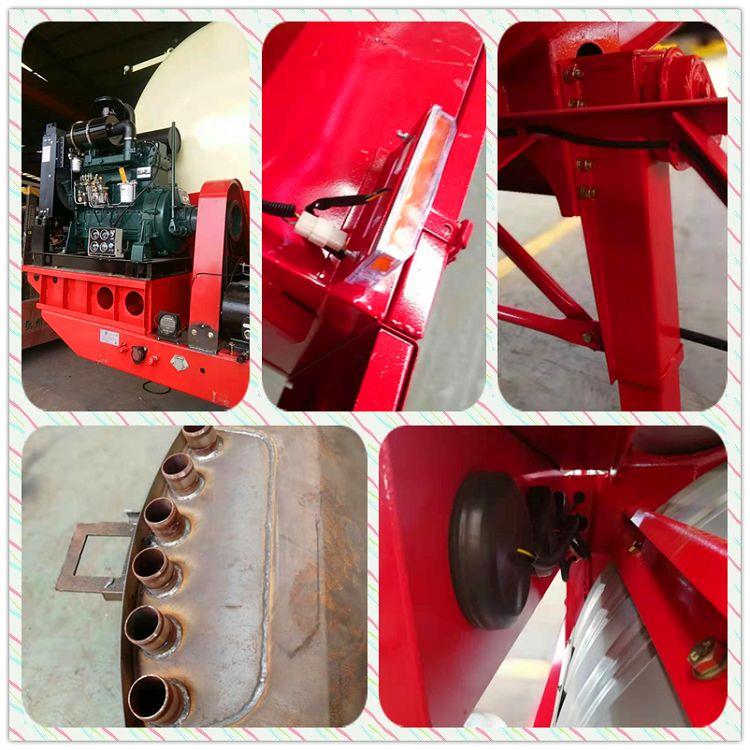

stainless steel tanker trailer Parts photos:

112.1(001)

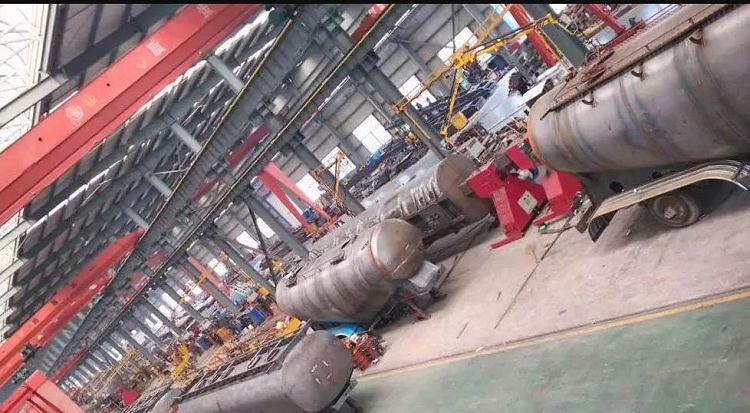

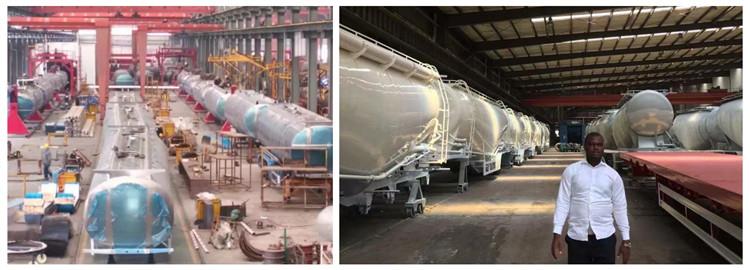

Working Production Line

105.3_DF 106.5(001)

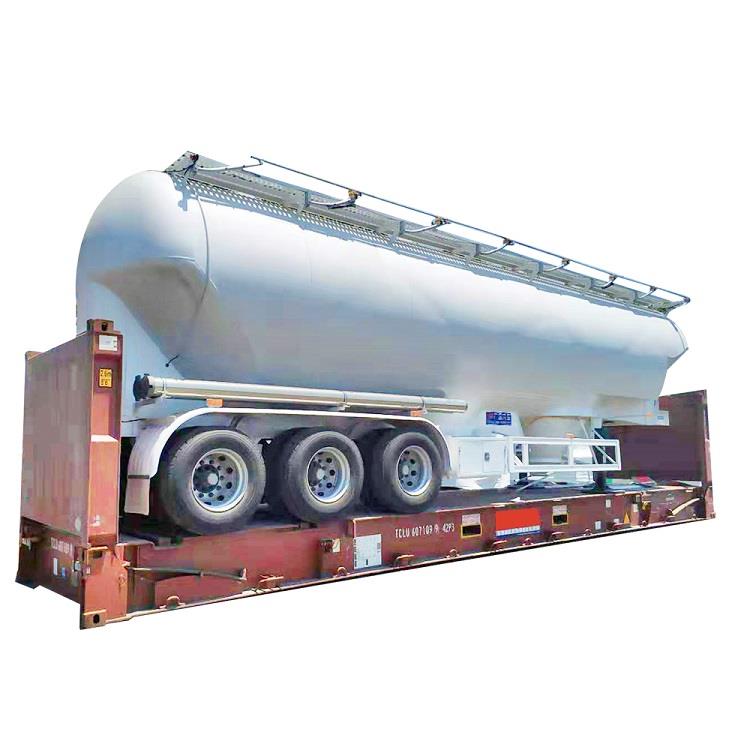

Stainless steel tanker trailer Shipping Method :

112.2

This package for roro ship or bulk cargo ship delivery .

Before-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

How long will our price be valid?

Price with long valid time -- We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations: The rate of USD:RMB varies significantly according to the international currency exchange rates. Manufacturers/factories adjusted the trailer price, because of the increasing labor cost and raw material cost.

Our Technical Support Team:

85.6(001)
