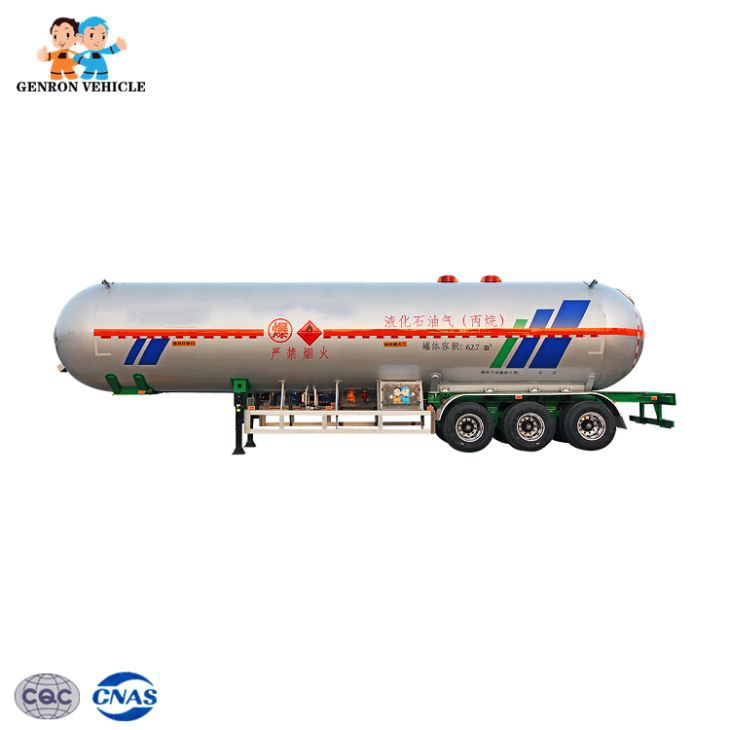

LPG Semi Trailer

For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.

Send Inquiry Chat Now

108.2

1.LPG semi trailer –Transport LPG.

Main Dimensions
Tank Body
Shape	Optional ( Round or Square)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 8000KGS-12800KGS
Total Volume（m3）	25m³-60 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel
End Plate	5mm or 6mm /Q235 carbon steel /aluminum /stainless steel
Manhole Cover	Carbon steel or Aluminum alloy API manhole cover, ∮500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	Optional
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle	2 or 3 axles, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers

LPG semi trailer Spare Parts Pictures:

112.3 110.8(001)

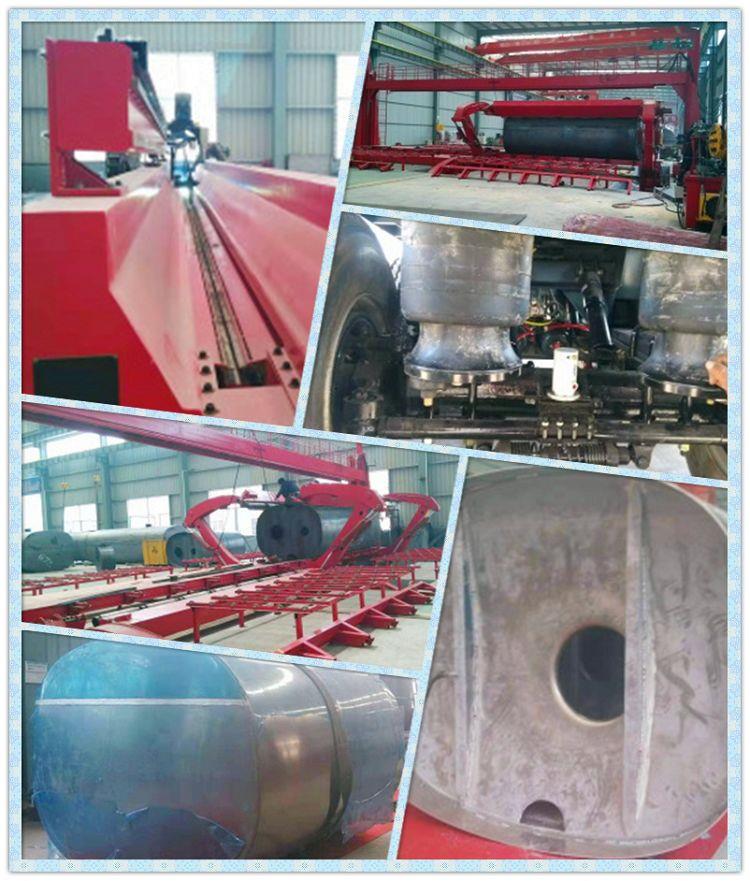

Working Production Line

105.3_DF 106.5(001)

The first step of E-coating Process

Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.

Last Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

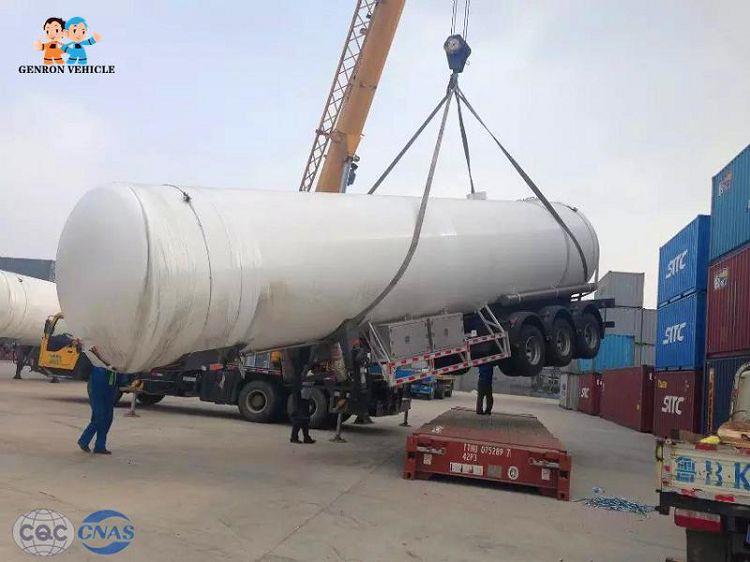

Way of LPG semi trailer Shipment:

112.4(001)

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Advantage: no need welding ,can be work directly after you received.

Before sale service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

What logistics ways we can work for shipment?

We can ship all trailer by various transportation tools.

For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.

For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan, Mongolia ,etc, we can ship trucks by road or railway.

For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
