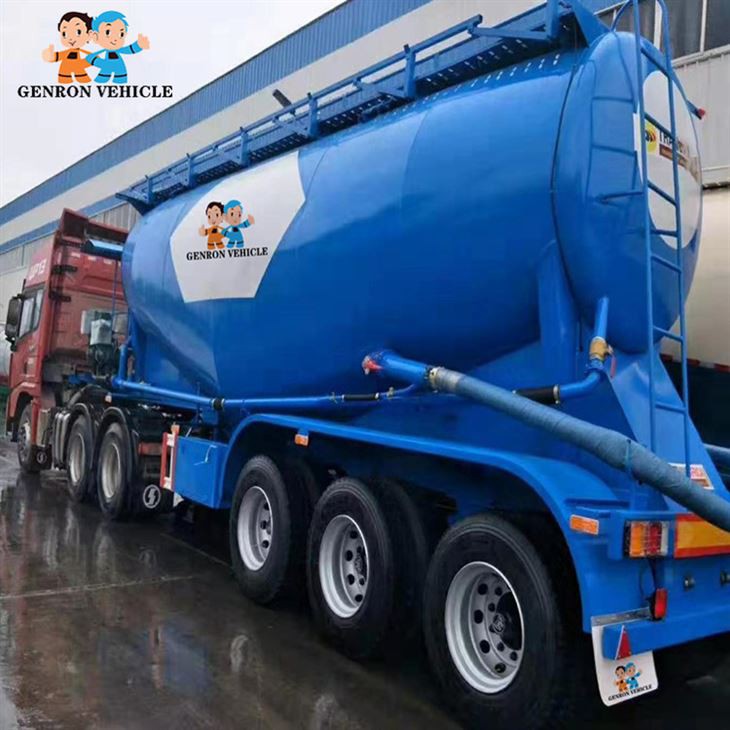

3 Axles Bulk Cement Tank Semi Trailer

The 3 axles bulk cement tank semi trailer is suitable for bulk transportation of dry materials with particle diameter less than 0.1 mm, such as fly ash, cement, lime powder, ore powder, granular alkali, etc. It is mainly used for cement plant, cement warehouse and large construction site, which can save a lot of packing materials and loading and unloading labor.

Send Inquiry

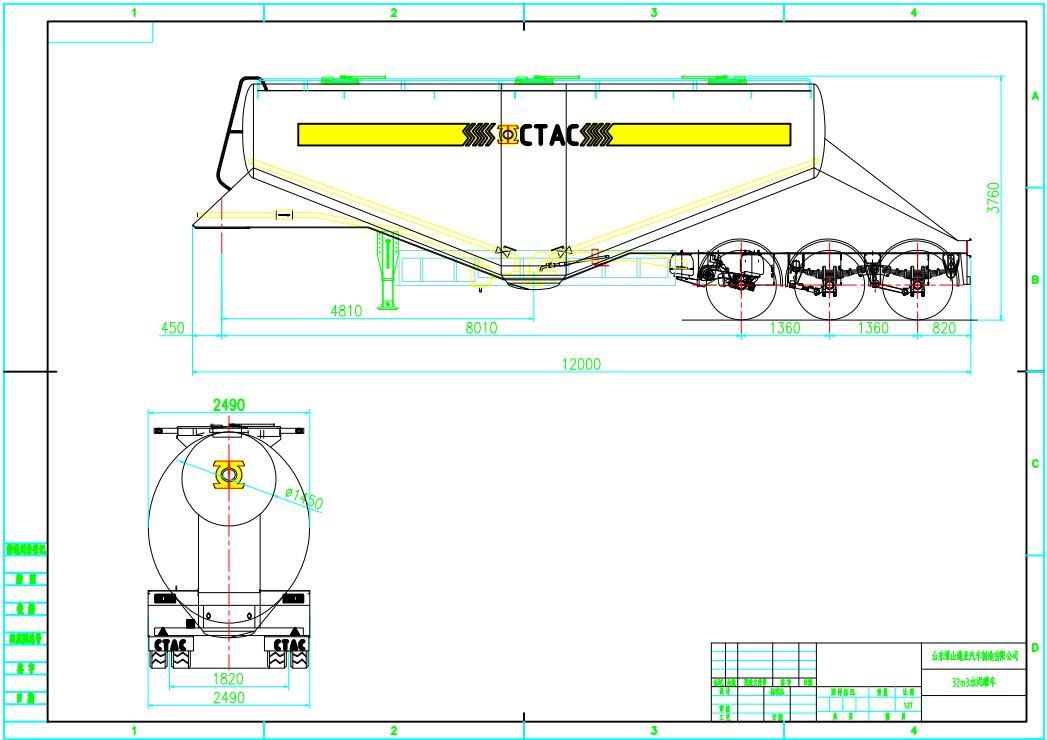

粉罐半挂车图纸5

3 Axles bulk cement tank semi trailer --for transportating bulk cement,coal,ash ,or other poder.

Main Dimensions
Tank Body
Shape	Optional ( One Silo with V type or Two ,Three Silos Design)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 7500KGS-15000KGS
Total Volume（m³）	25m³-68 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel
End Plate	5mm or 6mm /Q235 carbon steel
Diesel Engine	WEICHAI ，Tianhe 4100/4102 or other brand
Compressor	BOHAI 10m³/12 m³or other brand
Manhole Cover	Carbon steel or Aluminum∮500mm
Discharging Valve	Diameter is 3 or 4 inch （Material: Aluminum ）
Discharging Pipe	3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding Design ,Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO

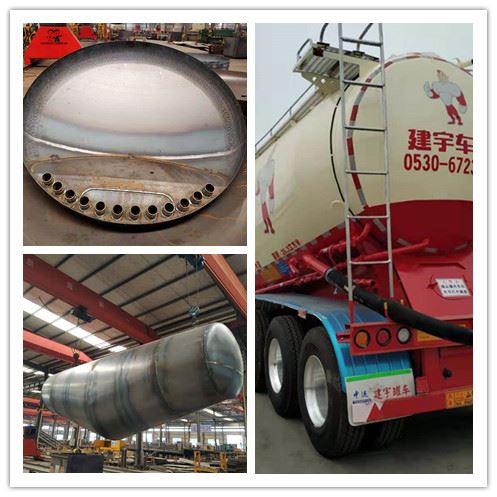

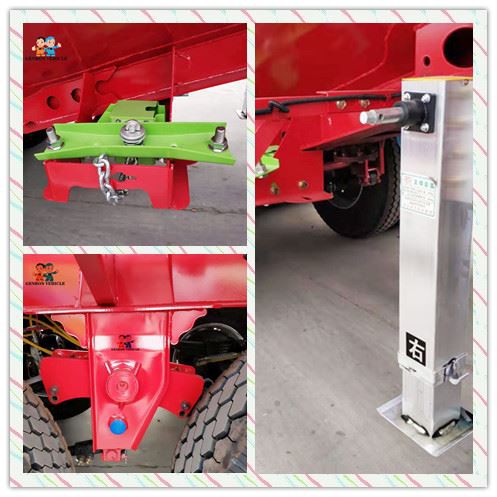

Details of the 3 axles bulk cement tank semi trailer

Advantages of the 3 axles bulk cement tank semi trailer

1. Reduce manpower consumption, increase labor productivity and improve working conditions;

2. Save the cost of raw materials and paper bag packaging and crushing, and reduce the transportation cost;

3. The loss rate of cement is generally less than 0.5%, while the loss rate of bagged cement is greater than that;

4. To ensure the quality of cement, bulk cement is not easy to be affected by moisture during transportation and rarely deteriorated after one year storage;

5. Reduce environmental pollution.

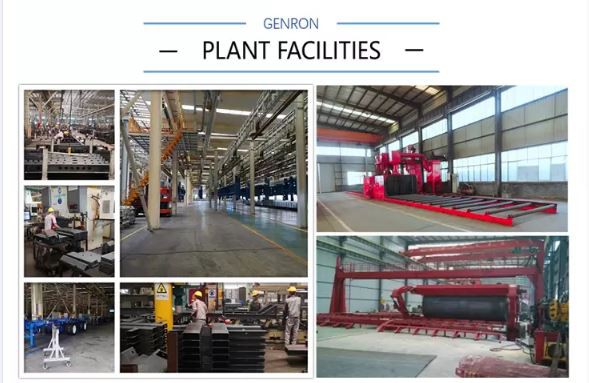

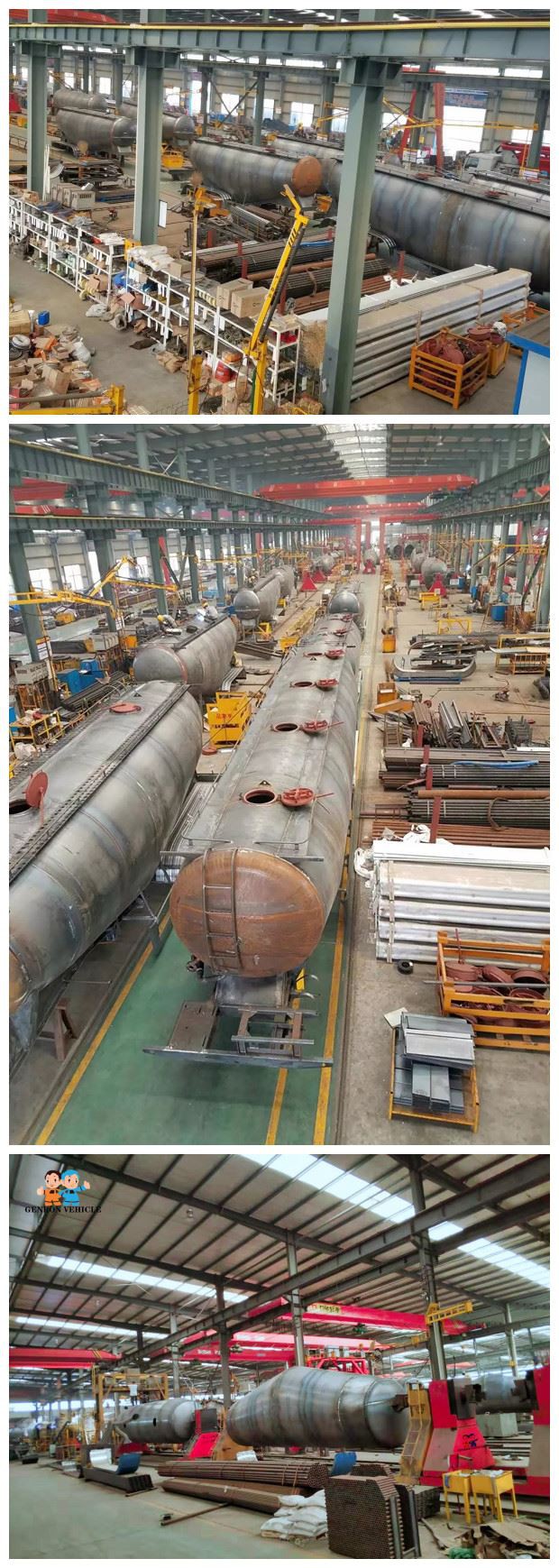

The workshop

Characteristics of the 3 axles bulk cement tank semi trailer

Our powder tank semi-trailer independent research and development, is a patented product, has obtained the Chinese utility model patent certificate!
The "V" line tank designed by our company has light weight, less than 1% discharge residual rate and reliable performance. It has the best reputation in the domestic tank transportation industry.
Please tell us the nature of the goods you are carrying, particle size, volume or density, weight, etc. we will design it separately for you, and guarantee to give you a satisfactory effect picture in the shortest time.
