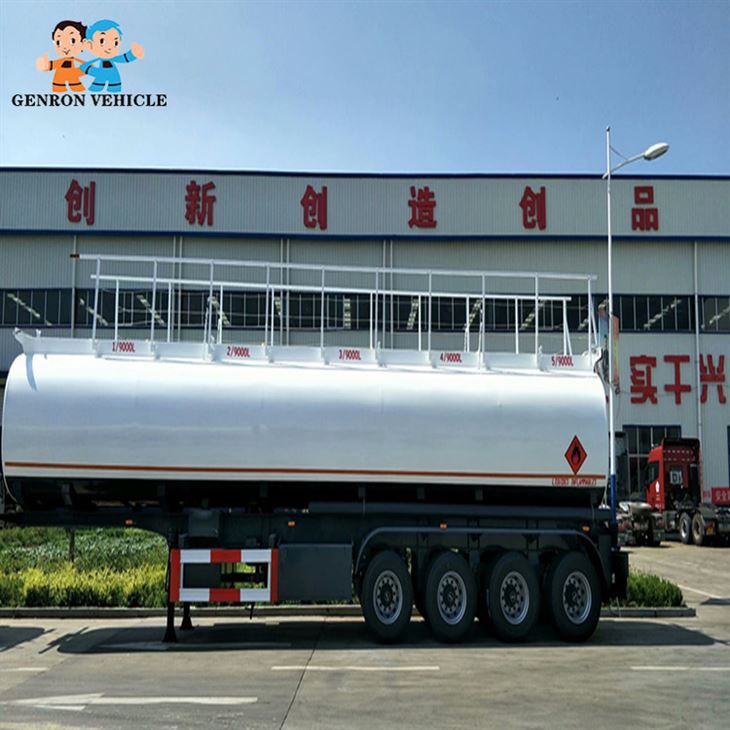

Fuel Tanker Trailer
Fuel tanker trailer can transport diesel ,petrolum ,crude oil ,edible oil ,palm oil ,liquid bitumen ,etc. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers, and select different chassis, tank and tanker according to the customer's needs.
Send Inquiry
Fuel tanker trailer--For transporting diesel ,petrolum ,crude oil ,edible oil ,palm oil ,liquid bitumen ,etc.
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Suare) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Cabon steel or Aluminum alloy API manhole cover, ∮500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Weldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |

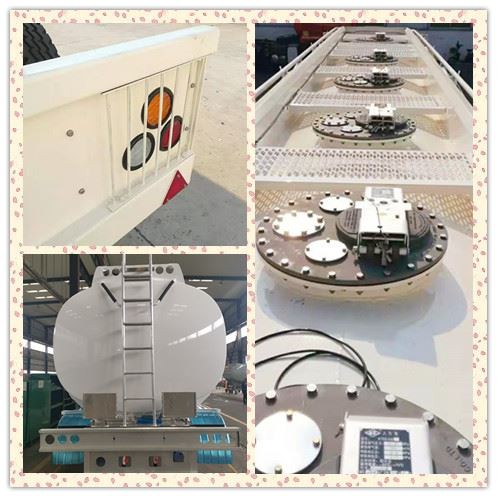

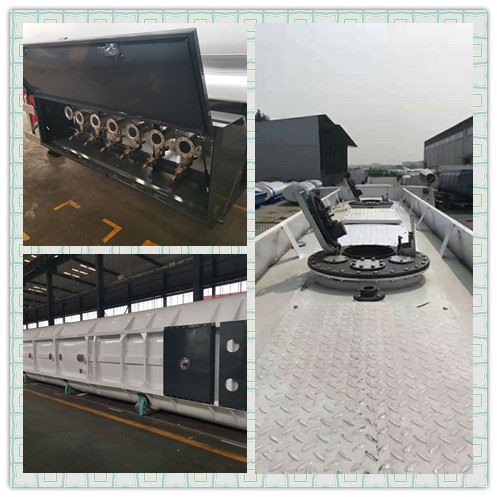

Details of the fuel tanker trailer
Characteristics of the fuel tanker trailer
The oil semi-trailer is mainly used for the transportation of large-scale oil and liquid asphalt, with a tonnage of about 40-60 cubic meters.
The tank body of oil semi-trailer is mostly made of Q235 carbon steel plate, stainless steel or aluminum material. The tank body is equipped with multi-channel reinforced anti wave clapboard, and there are through holes at the lower end of the baffle plate, so as to reduce the impact of oil in the tank and improve the strength of the tank body.
The opening of the combined tank is located on the top of the tank body. There is a self-locking small cover on the top of the large cover, and a breathing valve is installed on the upper side of the large cover to ensure the same atmospheric pressure inside and outside the tank; it is equipped with static grounding wire.
The pump oil system can be installed, and the force can be extracted from the gearbox side through the power take-off, which can be self-priming and self draining; it has two oil pumping pipes, and is equipped with quick fitting joint, with a suction range of 6m.
It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different, so we can design the corresponding model for you.
The valve, discharge port and tank cover of tank car accessories are provided according to customers' habits, such as round or square.

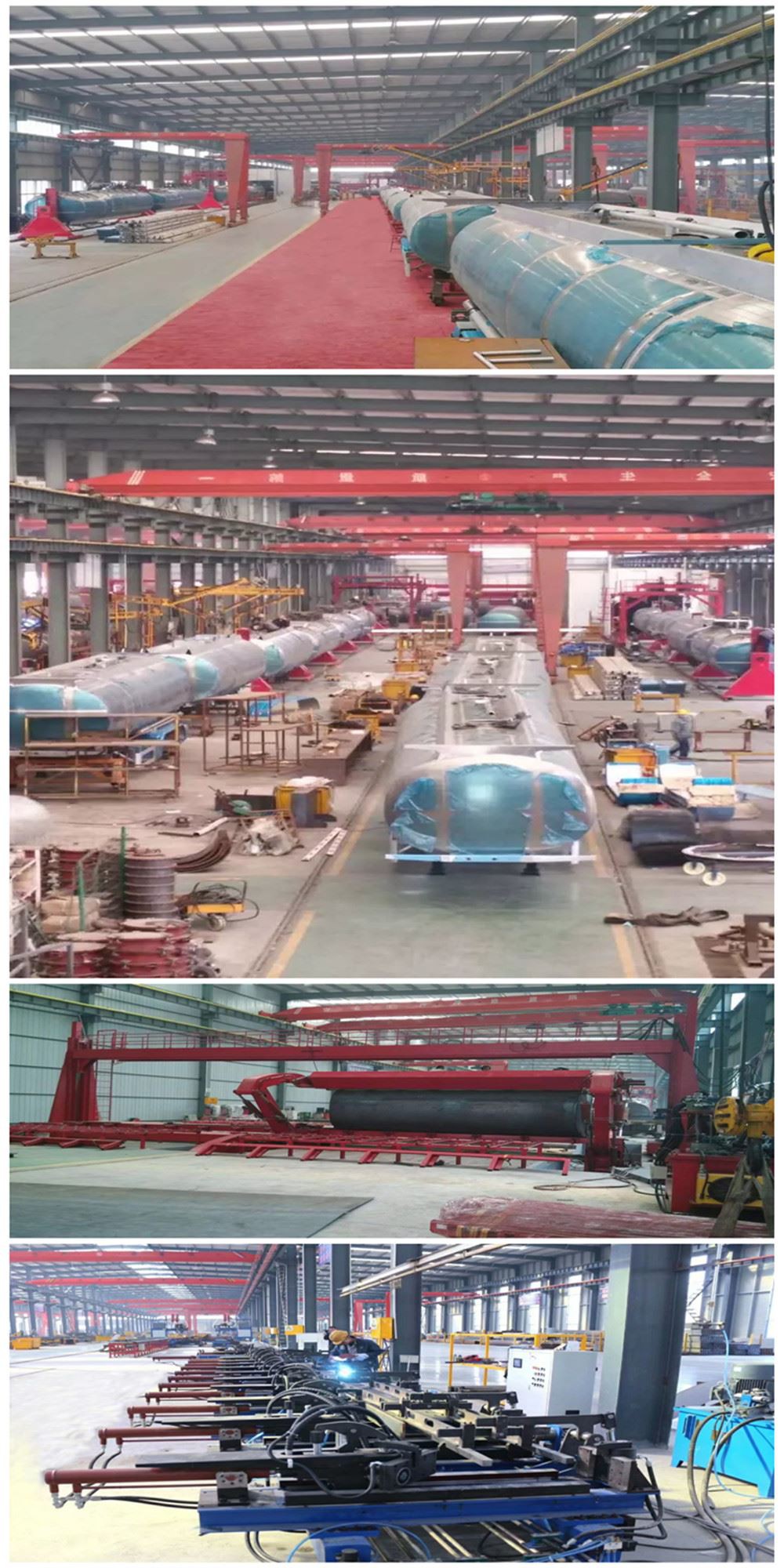

The workshop
Why choose us
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company or factory at any time
5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security.
Just trust us, you will get a satisfactory answer.
FAQ
Q: What’s your payment terms?
A: T/T or L/C
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it
Q: What’s your shipping terms?
A: By Bulk Cargo ,RORO or 40HQ Containers
