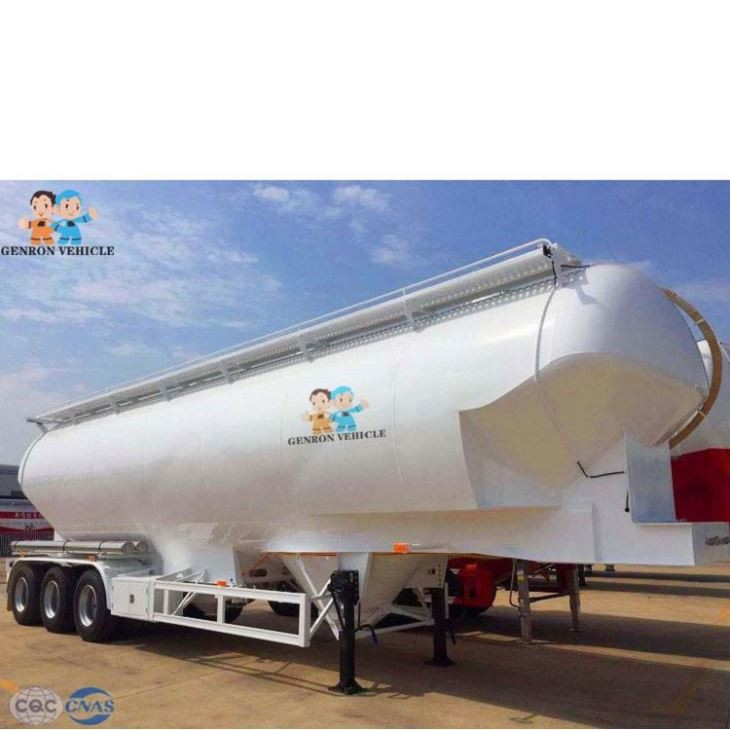

Bulk Powder Transport Vehicle

With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.

Send Inquiry Chat Now

104.6

1.bulk powder transport vehicle –Transporting for bulk cement and flour powder or other powder.

Main Dimensions
Tank Body
Shape	Optional ( One Silo with V type or Two ,Three Silos Design)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 7500KGS-15000KGS
Total Volume（m3）	25m³-68 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel
End Plate	5mm or 6mm /Q235 carbon steel
Diesel Engine	WEICHAI ，Tianhe 4100/4102 or other brand
Compressor	BOHAI 10m³/12 m³or other brand
Manhole Cover	Carbon steel or Aluminum∮500mm
Discharging Valve	Diameter is 3 or 4 inch （Material: Aluminum ）
Discharging Pipe	3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Welding Design ,Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
Pneumatic Braking System	6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO

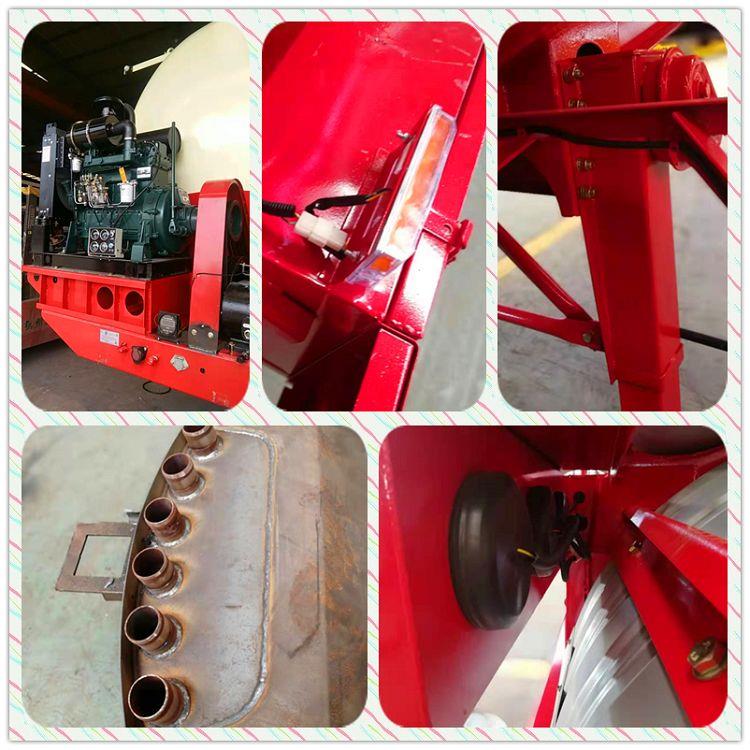

Bulk powder transport vehicle Spare Parts Potos:

105.2(001)

Bulk powder transport vehicle E-Coating Process :

104.8(001)

104.9(001)

Put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

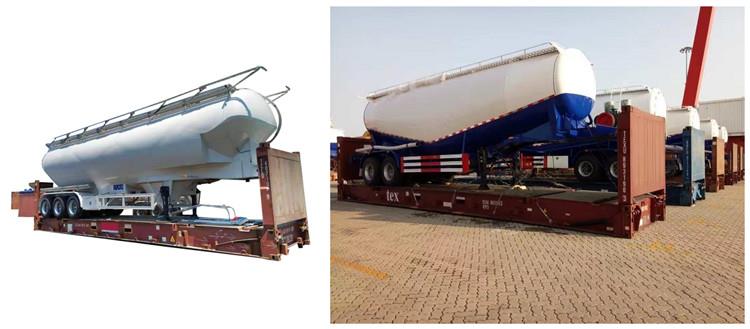

Bulk powder transport vehicle Shipping Way :

105.3_DFDS

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Our Advantage for Truck Trailer or Semi Trailer

1.With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.

2.An professional team which is experienced with international market and has strong technical capability to customized cost effective, because we have more than 60 Designer and engineers as our solid backing. Among them , our technical adviser has more than 40years' experience in the trailer field.

3. Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..

4.Two Years Guarantee for all the main beam of trailers, timely shipment;

5.Dealing is not only buying or selling, but also the good matching; Not only product but also excellent service; Therefore we will be at your service at any time even the midnight in our time.

6.Your order could be a priority in our company whenever your order is small/medium size order or your low price.

7.We would be always grateful whatever you would be a" big fish for a small company or a small potato for a big company".

Our Technical Support Team:

85.6(001)
