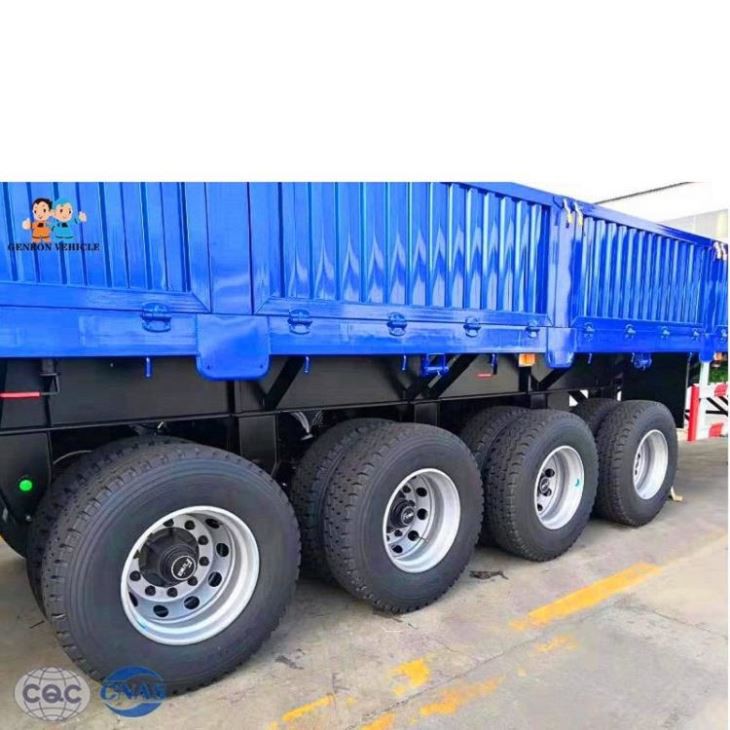

60 Tons Cargo Semi Trailer
Personalized Products Cargo Fence Sheep Semi Trailer, Cargo Fence Sheep Semi Trailer, Cargo Fence Sheep Semi Trailer.
Send InquiryChat Now
1.60 tons Cargo Semi Trailer –For delivering beer case or Cement Powder Bags and other bulk cargo.
Tare Weight | About 7.6T-9T |
Dimension | 10000-13000mm*2490mm*2860mm |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 9.00-22.5 9.75-22.5（special for export market ） |
Tire | 12.00R22.5/ 315 80R22.5 （special for export market ） |
Suspension | Mechanical suspension (Germany Type or America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom Platform | 3mm diamond steel plate |
Side Wall | 600mm-1500mm ，or can be made into box type ,for choice |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
Valve | WABCO valve |
Light | LED light （special for export market ） |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Our personnel are generally within the spirit of "continuous improvement and excellence", and using the excellent top quality goods, favorable rate and superior after-sales expert services, we try to win every customer's believe in for Personalized Products Cargo Fence Sheep Semi Trailer, We welcome shoppers everywhere in the word to call us for long run small business associations. Our solutions are the top. Once Selected, Excellent Forever!
Personalized Products Cargo Fence Sheep Semi Trailer, Cargo Fence Sheep Semi Trailer, Cargo Fence Sheep Semi Trailer, Our faith is to be honest first, so we just supply high quality goods to our customers. Actually hope that we can be business partners. We believe that we can establish long time business relationship with each other. You can contact us freely for more information and pricelist of our merchandise ! You will be Unique with our hair merchandise !!
Cargo Semi Trailer Shipping Ways: A & B
A This package for roro ship or bulk cargo ship delivery.
IF your order is more than three units or 6 or 9 can be package like this.
Pls check your destination port if there is bulk cargo port near to your city.
Disadvantage: the bulk cargo fee is a little expensive than the container fee.
Advantage: no need welding, can be work directly after you received.
B: If your order is two units flatbed trailer or double pieces you can choose put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.

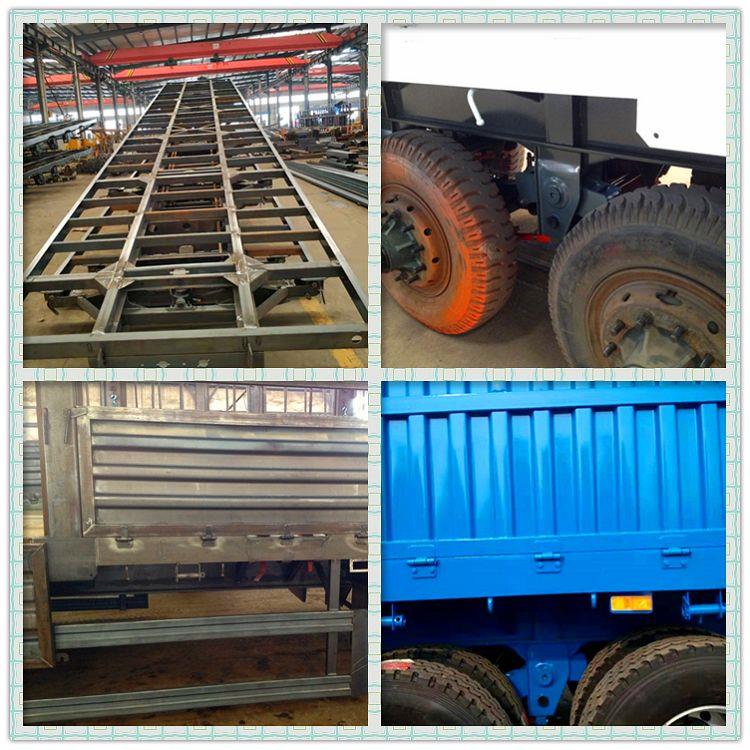

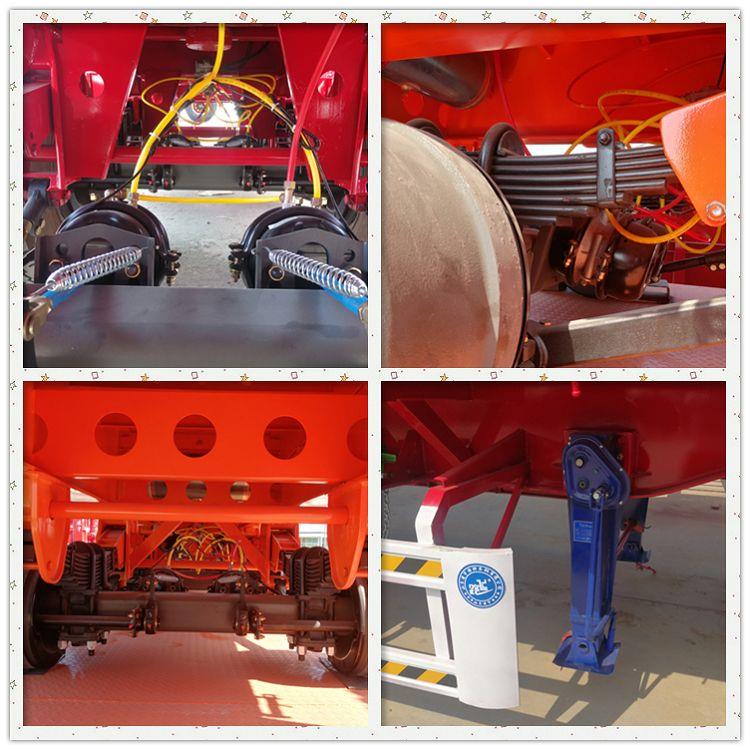

Cargo Semi Trailer Parts Exhibition:

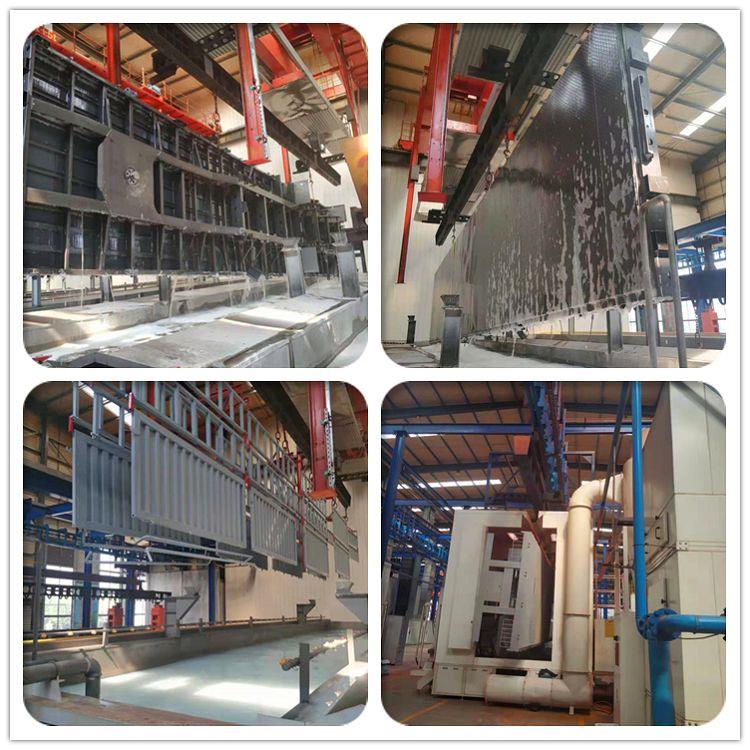

E-Coating:
Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service
* We own strong teams in technology that could help you solve problem quickly.
* We are rich experienced team and could provide good after-sales service
Our Technical Support Team
How we can cooperate (Business Partnership) ?
As your China Purchasing Agent:
You can buy from the factory directly ,we can be your exporting agent in China.
You can be Genron Sales Agent : We have our own brand products and logo, we have more than three very Steady producer partners of each product which we supply to you in China ,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
