Axle Parts

Name: Axle Parts
Brand: Genron
SKU: 89065348

Or you can choose Genron As your China Purchasing Agent.Your can buy from the China factory directly, we can be your exporting agent in China.

Send Inquiry

118.2_SD

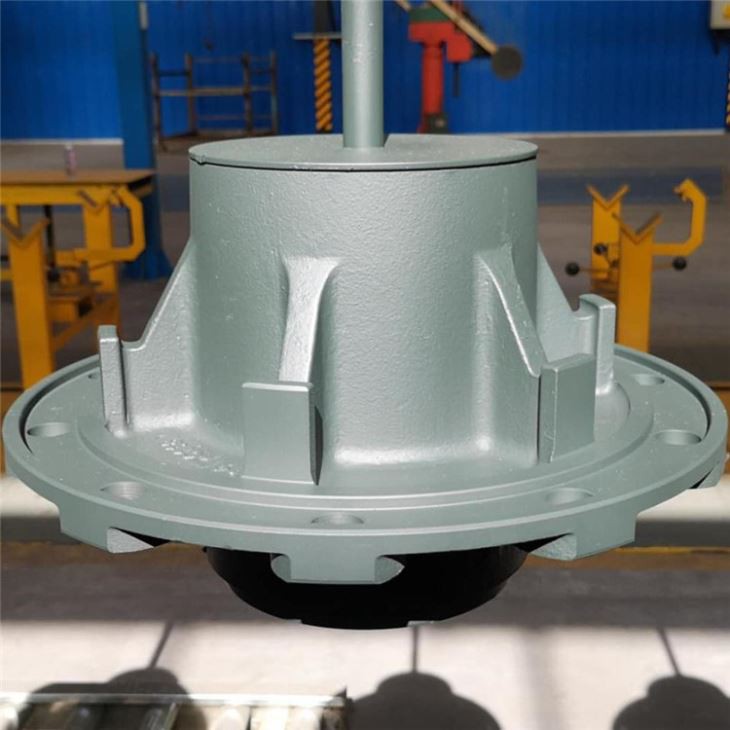

Our axles parts mainly have ,axles beam /tube , Axles drum ,axles brake hub , and brake cover head , brake T leafs

Axle Type	Max Capacity (T)	L2 Wheel Distance(mm)	Brake (mm)	Bearing	L3 (Distance between center of Spring seat)	Axles Tube	L4 Center Distance of Brake Chamber(mm)	Wheel Fitting			L1 Outer Length (mm)	Rim Size	Weight (KG)
Axle Type	Max Capacity (T)	L2 Wheel Distance(mm)	Brake (mm)	Bearing	L3 (Distance between center of Spring seat)	Axles Tube	L4 Center Distance of Brake Chamber(mm)	BOLT	P.C.D （mm）	H (mm）	L1 Outer Length (mm)	Rim Size	Weight (KG)
FA13YA1227	13	1840	420×180	HM518445/10	≥970	127	388	1O×M22×1.5ISO	285.8	219.8	2180	7.5V/8.0-20 9.0-22.5	360
FA13YA1327	13	1840	420×180	HM518445/10	≥970	127	382	1O×M22×1.5ISO	335	280.8	2180	7.5V/8.0-20 9.0-22.5	342
FA13FA1227	13	1840	420×180	HM518445/10	≥930	150	388	1O×M22×1.5ISO	285.8	219.8	2180	7.5V/8.0-20 9.0-22.5	358
FA13FA1327	13	1840	420×220	HM518445/10	≥930	150	350	1O×M22×1.5ISO	335	280.8	2180	7.5V/8.0-20 9.0-22.5	340
FA16YA1329	16	1850	420×220	HM220149/10 HM518445/10	≥980	127	350	1O×M24×1.5ISO	335	280.8	2200	8.0V-20	362
FA16FA1329	16	1850	420×220	HM220149/10 HM518445/10	≥940	150	350	1O×M24×1.5ISO	335	280.8	2200	8.0V-20	388
FA20FA1429	20	1850	420×220	32222 HM518445/10	≥940	150	345	1O×M24×1.5ISO	335	280.8	2247	8.5V-20	430

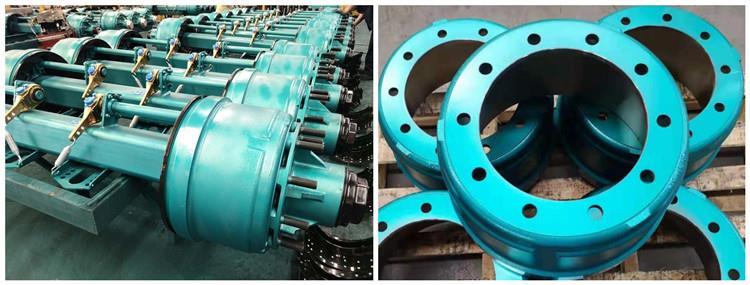

We produce axles for more than 12 years , we produce brake drums ,brake hub and axles tube , they have fuwa model America type and BPW Germany type

117.2_FGDDF

117.4_SD

The axles and all parts was painted in our work room by Electric Painting Automatic.

117.6_DF

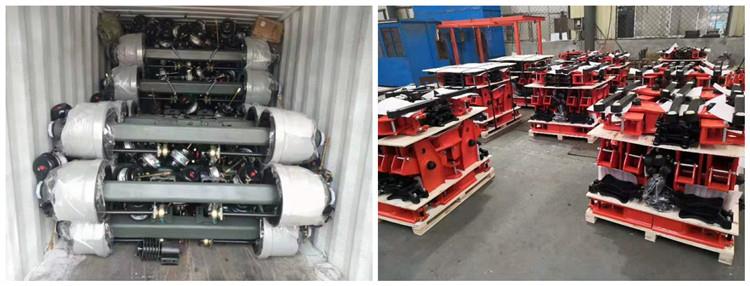

The axles Shipping By 20ft containers , one 20 ft container can loading 58 pcs trailer axles.,the brake drum packaged by plastic .

117.8_SDSDSD

Payment terms

30% contract value paid before produce ;70%contract value paid before delivery after finished production.

After sale service

Our After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).We are focusing on that Genron products can got repair within 24 hours in everywhere of the world.We did it in china market ,We are doing step by step out of china market .

Looking For AGENT!

We have flexible cooperate items. Firstly, you can be Genron Sales Agent:We have our own brand Products and logo,we have more than five very steady producer partners of each product which we supply to you from China, After you to be Genron agent in your country you will have very steady supplier of China,no need worried one factory will close down.Or you can choose Genron As your China Purchasing Agent.Your can buy from the China factory directly, we can be your exporting agent in China.
