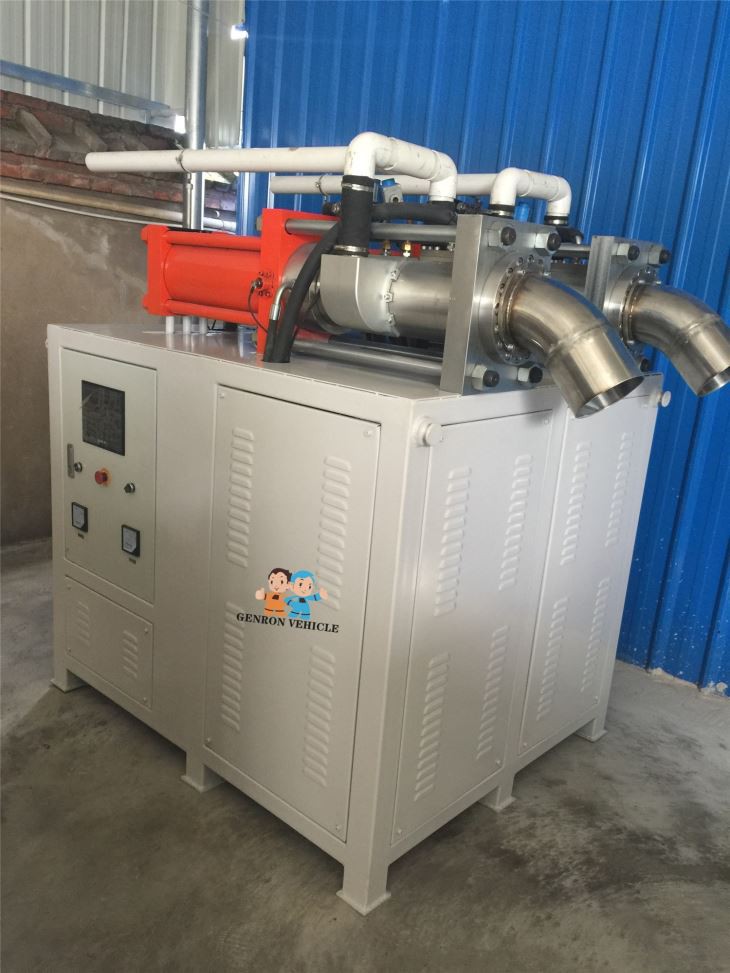

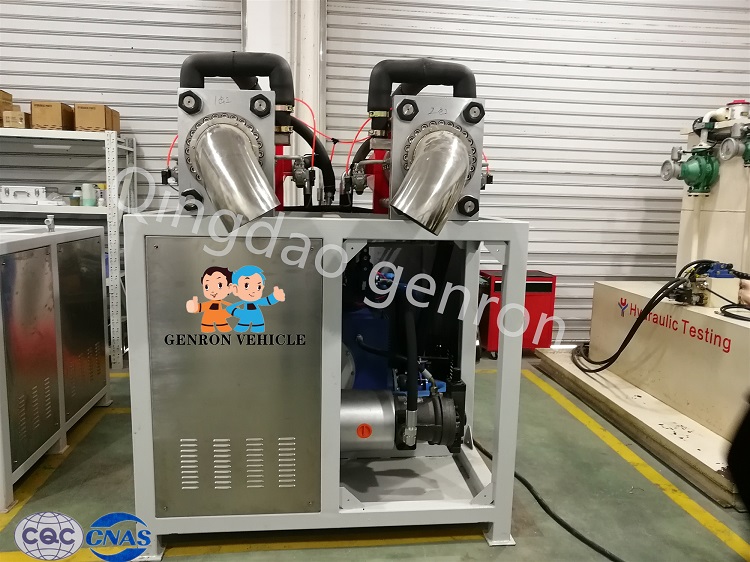

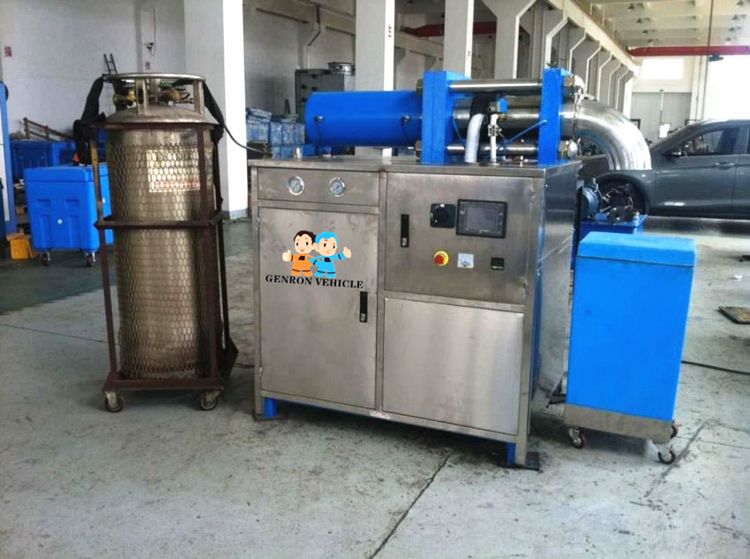

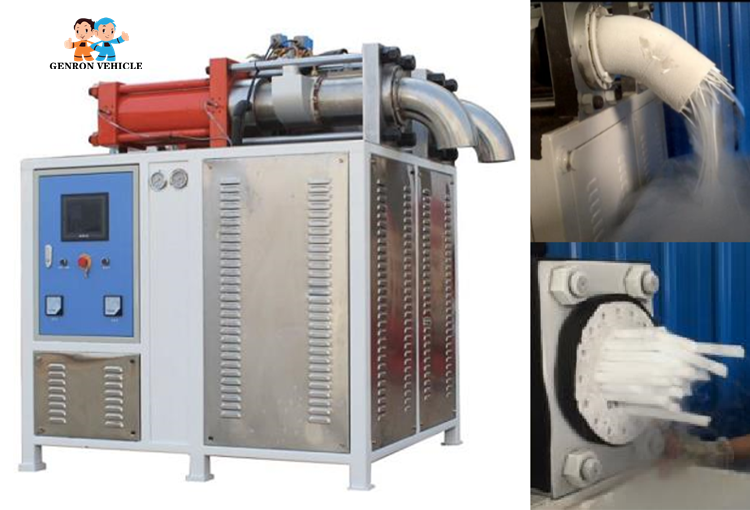

Pelleting Dry Ice Machine
Carbon dioxide solid commonly known as "dry ice", with the development of industry, dry ice is widely used in food preservation, removal of industrial mold equipment grease, dirt and other fields.Dry ice is a process in which liquid carbon dioxide is turned into a snowflake solid by a throttling expansion valve, and then compressed into a snowflake solid by a compression mechanism.
Send Inquiry
(1)The new liquid feeding system improves the molding rate of liquid carbon dioxide raw materials, and the maximum output of columnar particles reaches 500Kg/h;
(2)Moulds can produce granular dry ice of different density and specifications according to customers' requirements, which can be used for dry ice cleaning, food preservation, cold chain transportation, block reforming and other purposes;
(3)Hydraulic extrusion molding technology with buffer is adopted. The extrusion system adopts PLC full-automatic hydraulic control technology. The system has small impact and low noise during operation, so as to ensure the long-term, efficient and stable operation of the equipment;
(4)The electro-hydraulic system adopts multiple safety alarm functions to ensure the safe and stable operation of the equipment.
Dry ice particle application:
(1)Dry ice cold chain transportation for High grade meat, seafood, cold drink, convenient fast food, fruit preservation.
(2)Dry ice used for transportation of vaccines, special drugs, serum, plasma and clinical samples.
(3)Dry ice used for long distance transportation of electronic low temperature materials and precision components.
Products Specification:
| Capacity (kg/h) | 400-500Kg/h |
| Dry Ice Size (mm) | Ø3,Ø16mm |
| Inlet pressure (MPa) | 14-20bar(1.4-2.0MPa) |
| CO2 Transformation rate | ≥42% |
| Motor Power (kw) | 30KW |
| supply voltage(v) | 380V |
| Fuel tankage (L) | 225L |
| Overall dimension (mm) | 1500×1250×1750mm |
| Weight (kg) | 2680Kg |

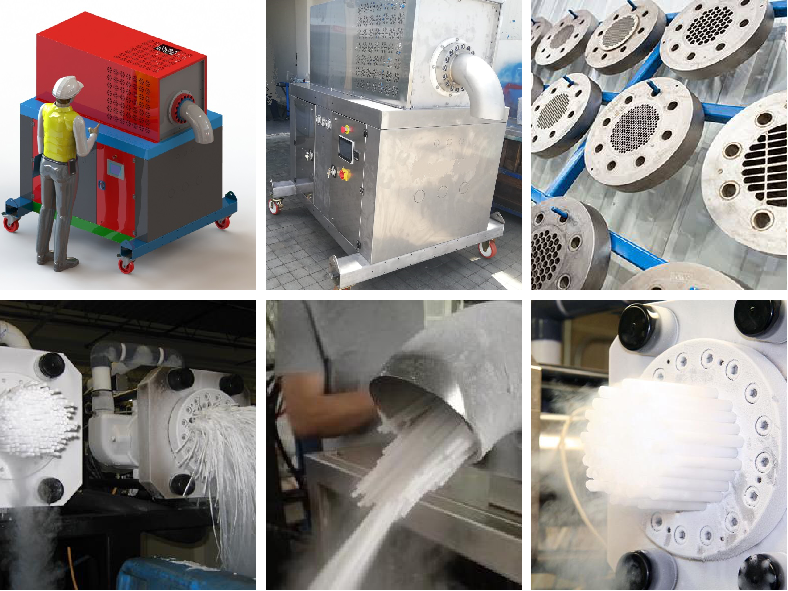

Different type of dry ice press:
Dry Ice Pelleting Machine
Our sevice:
Pre-sales service
*Inquiry and consulting support.
* Sample testing support.
* pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service
* We will often go abroad to check our products .
* Engineers available to service machinery overseas.
24 hours online to answer customer's questions
Company information:

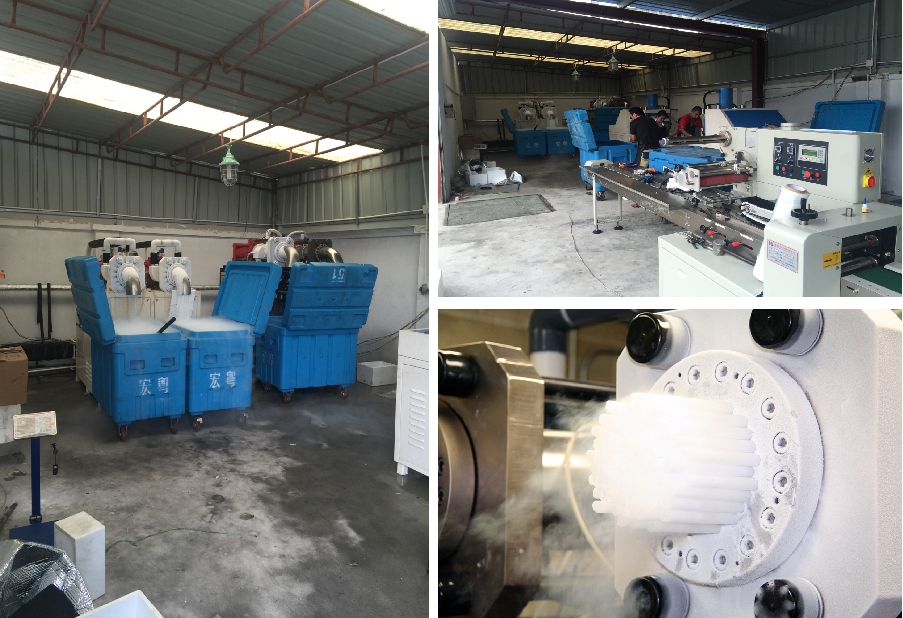

The customer in southeast Asia bought two dry ice machines of our company, and the use situation on site.
