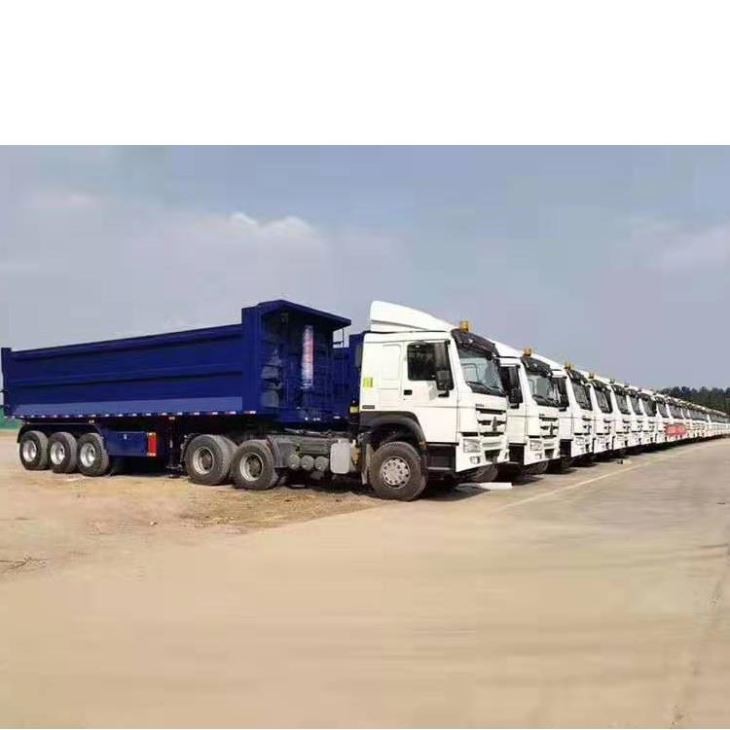

Truck Semi Trailer

Made of high tensile steel, this type of trailer has an I beam processed by automatic submerged-arc welding to carry a heavy load and improve its durability.

Send Inquiry Chat Now

85(001)

Name	Truck Semi Trailer
Tare Weight	About 9T

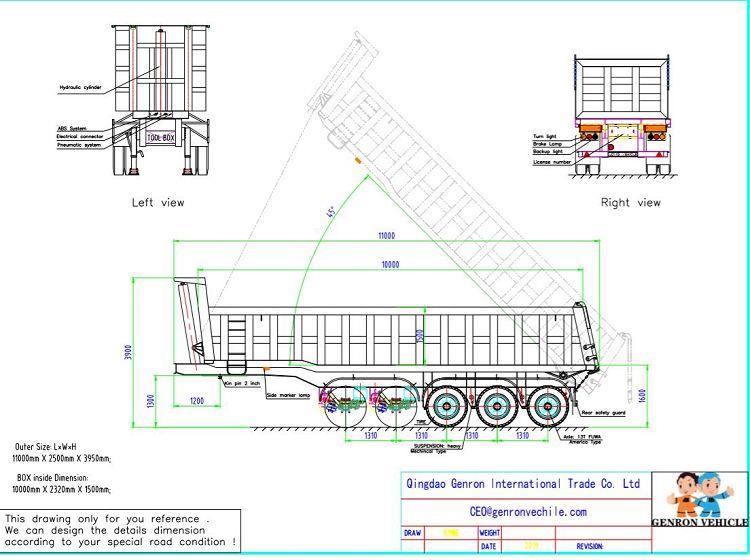

Dimension	11000mm2490mm3950mm
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5（special for export market ）
Tire	12.00R22.5/ 315 80R22.5 （special for export market ）
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) （special for export market ）
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 （special for export market ）
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Bottom Platform	3-6mm diamond steel plate
Side Wall	600mm-1500mm ，or can be made into box type ,for choice thickness from 2mm-6mm
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
Valve	WABCO valve
Light	LED light （special for export market ）
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
	Truck Semi Trailer Spare Parts Show

Made of high tensile steel, this type of trailer has an I beam processed by automatic submerged-arc welding to carry a heavy load and improve its durability. It is suitable for transporting containers and bulk goods, such as agricultural products, building materials and other goods in medium and long-distance .

About the main configuration:

The configuration will be designed by our engineers in accordance with clients’ requirements.

The side guard adopts close-ended design to reduce the crosswise risks and energy consumption effectively. Height and length of sidewalls can be customized.

We choose reliable tires, such as Triangle and other China’s famous brands, which are optional. We also adopt celebrated axle brands, such as Fuwa and BPW.

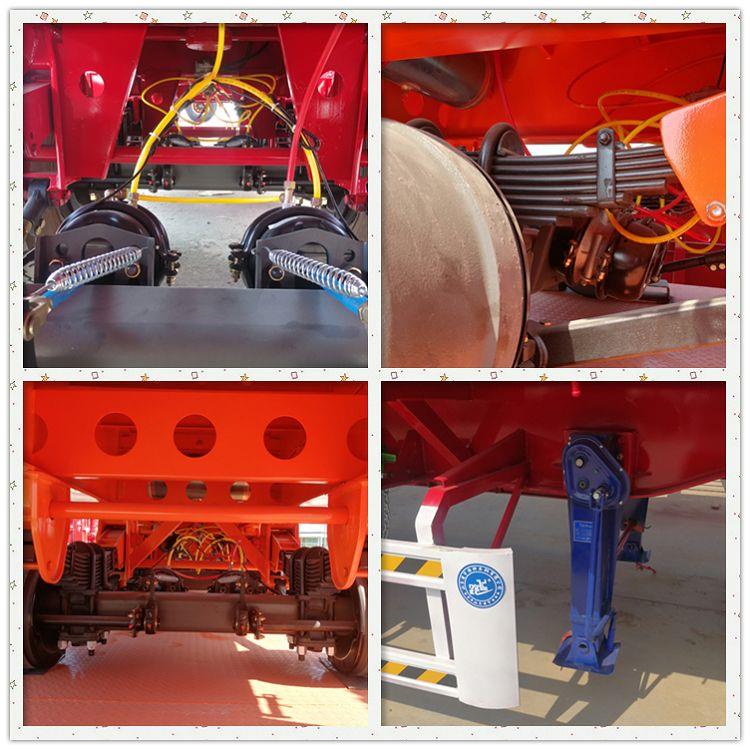

Truck Semi Trailer Spare Parts Display:

85.2(001)

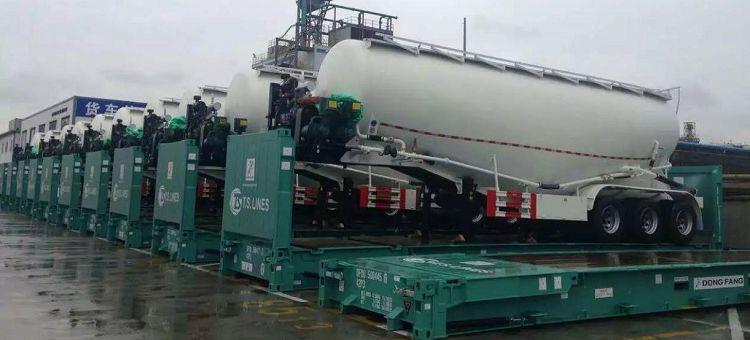

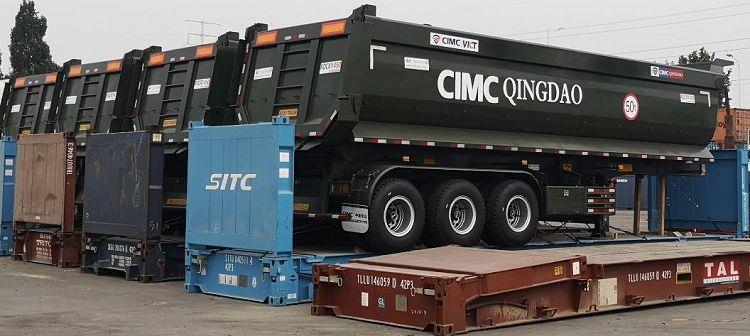

Truck Semi Trailer Shipping method：

85.3(001)

85.4(001)

This package for roro ship or bulk cargo ship delivery.

IF your order is more than three units or 6 or 9 can be package like this.

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage: the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding, can be work directly after you received

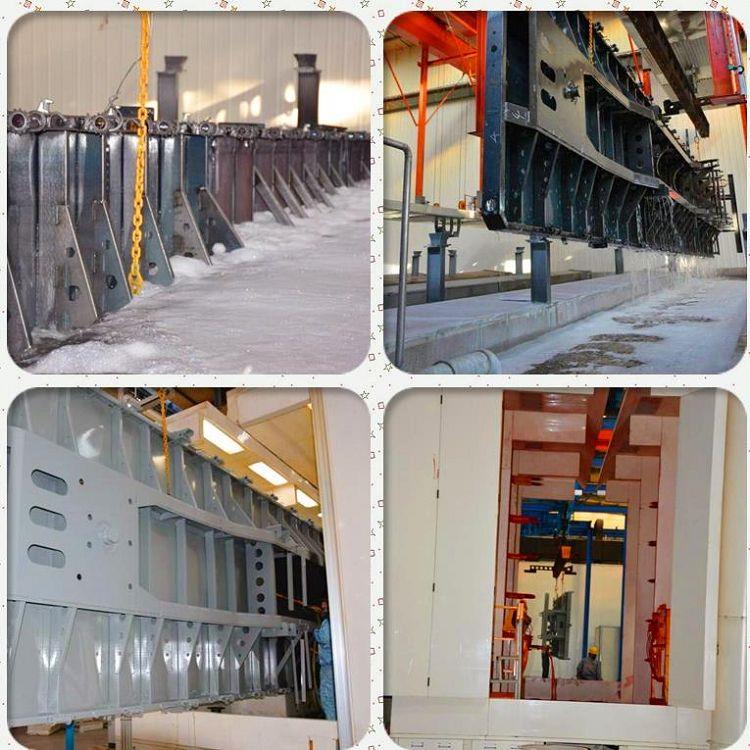

Truck Semi Trailer Painting Process:

84(001)

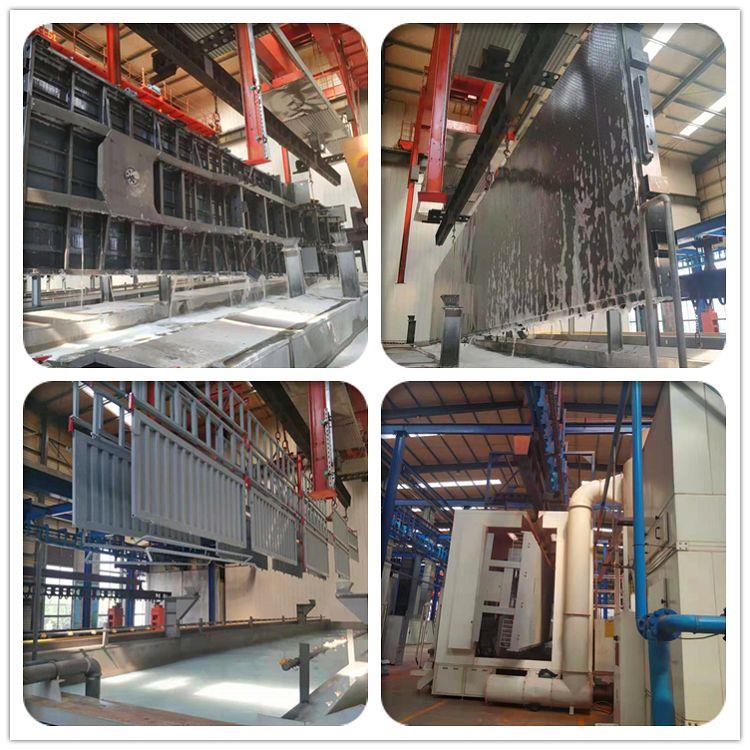

The first step:

Use this automatic washing machining can make the trailer all points very cleaning, remove all residual.

85.5(001)

The Last step of E-coating Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under 50 centigrade, and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

Professional Technical Team:

85.6(001)
