Semi Trailer 4 Axles
We have our own factory which produce trailers for more than 15 years, Our CEO Mrs. Zhao have 11 years export Construction and trailer trucks experiences; She have visited more than 22 countries for checking trailer truck markets.
Send Inquiry

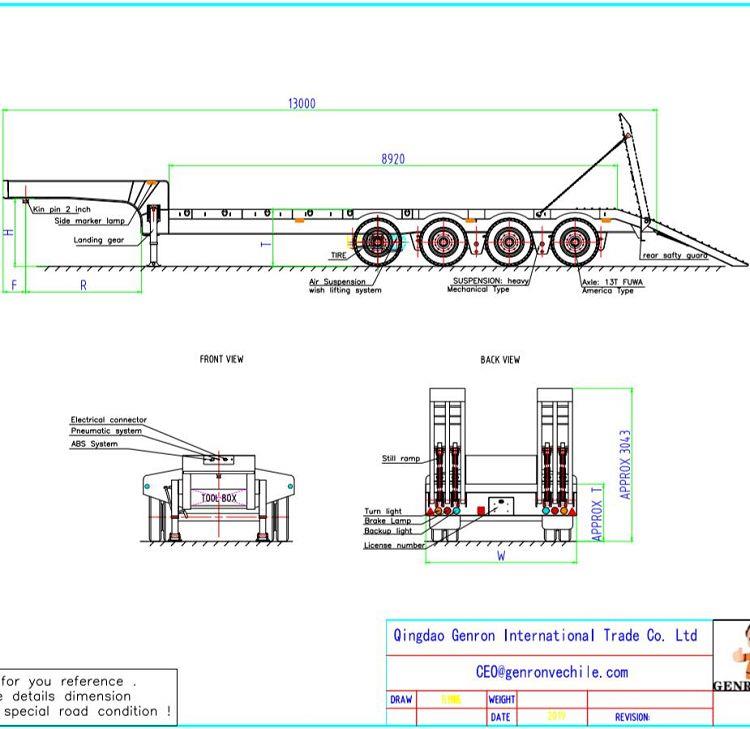

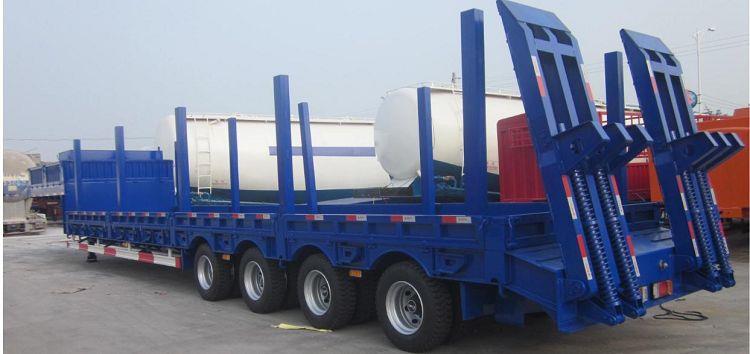

Semi Trailer 4 Axles | |
Shape | LOW BED SEMI TRAILE |
Dimension | 13000-13500*2450*1550mm |
Tare weight | About 8000-12000KGS |
Chassis | |
Main Beams | Welding I beam Design, Q345 carbon steel ,Height: 480MM, Top Flange Plate:14mm, Bottom Flange Plate:16mm, Middle Flange Plate 8-12mm |
Axle | 4 axles, 12T or 13T, FUWA,BPW OR GV brand with three sets mechanical suspension |
Landing Gear | CHINA BRAND 28T double speed |
King Pin | JOST2.00 or 3.5 -inch bolt-in king pin |
Leaf Spring | Six units 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve;; Aluminum air brake tanker. |
Brake Chamber | T30/30 air brake chamber six double chambers , china brand |
Rim | 9.00-22.5 17.5-22.5STEEL China Brand |
Tire | 12R22.5-22.5 275/65R22.5 Triangle brand |
Twist Locks | 12 pcs lifting type (can be choose) |
ABS | Optional/without |
Painting | E-coating Process |
Ramp Lander | Manhand Control or Hydraulic type |
Accessories | One standard tool box |
Shipping Terms | By 40HQ container |

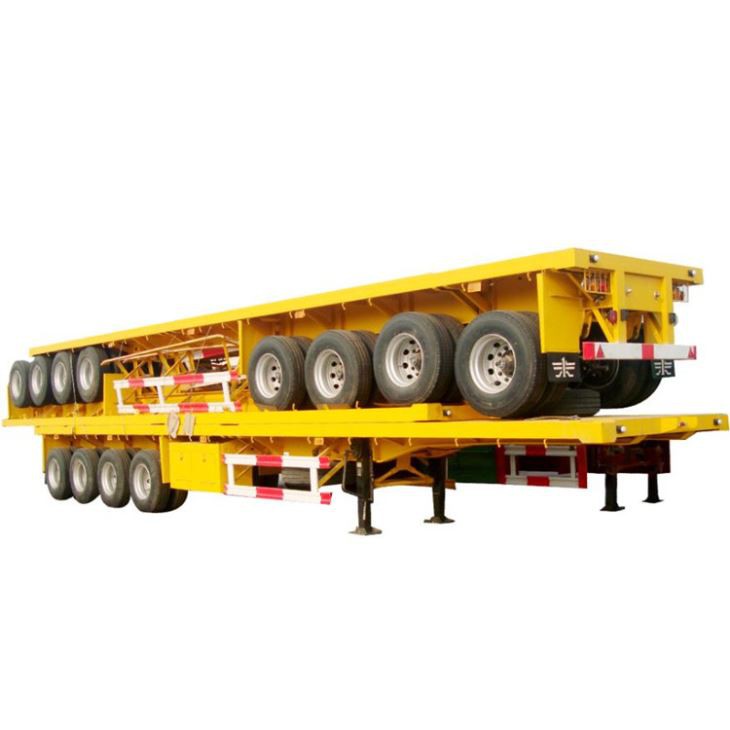

More type for of semi trailer 4 axles for your choose
Semi-Trailer PAINTING : E-COATING PROCESS

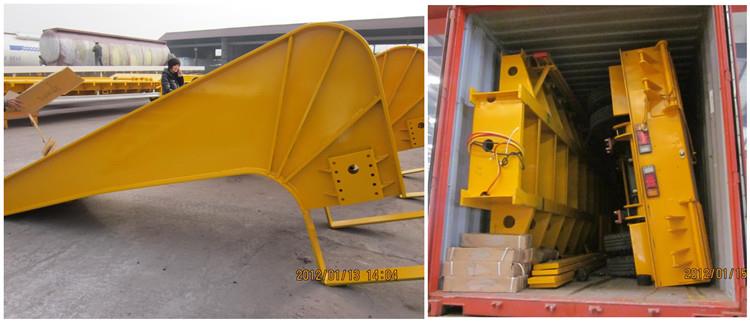

Semi-Trailer Shippping Item : A AND B
A BY CONTAINER :

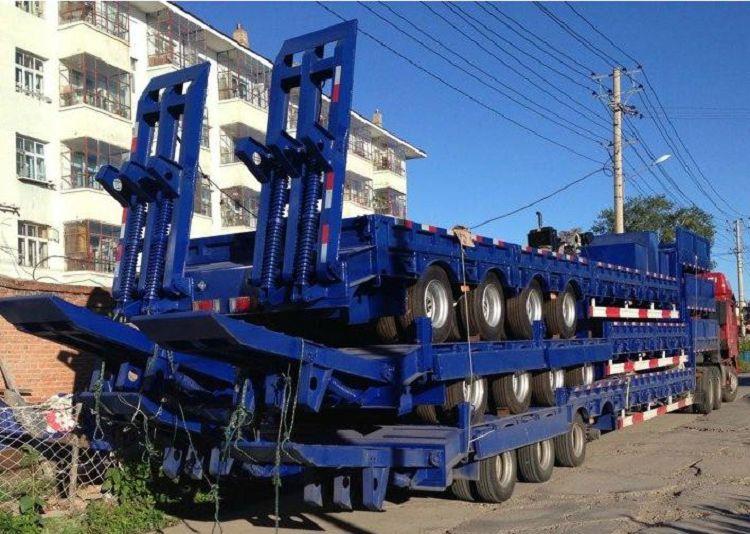

By bulk cargo ；

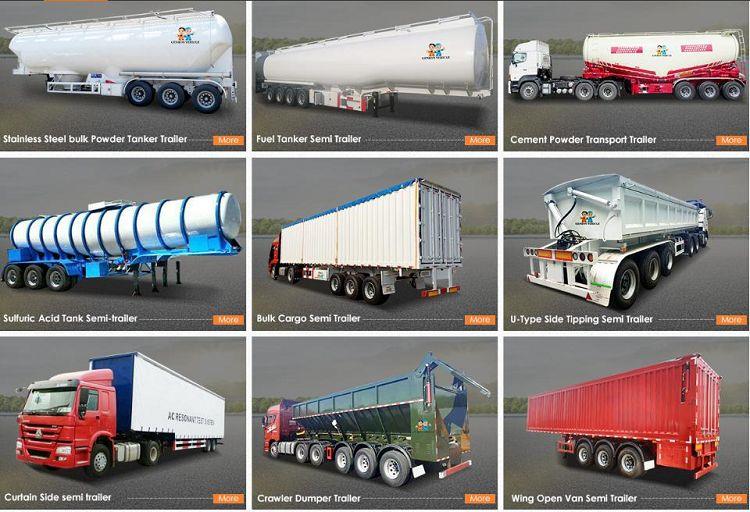

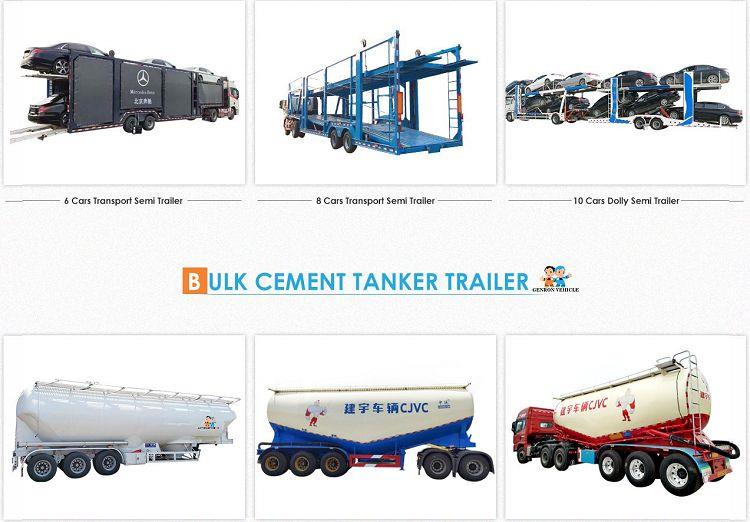

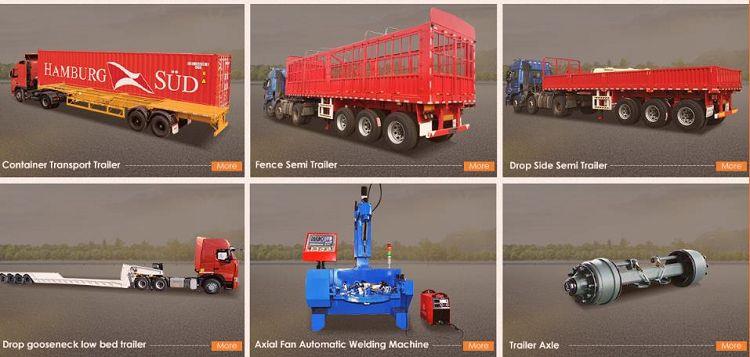

Other type of Semi Trailer
Our service
1. Provide customization.
2. Strictly comply with customer requirements.
3. Strict quality inspection.
4. Lifelong technical support.
5. Give you the most economical shipping way.
PS: Nobody complain for the past 10 years, even big buyers.
Company Introduction
Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers, trailer parts and Man-hand Welding Machinery, Automatic Welding machinery, Trailer Production Line Etc. We have our own factory which produce trailers for more than 15 years, Our CEO Mrs. Zhao have 11 years export Construction and trailer trucks experiences; She have visited more than 22 countries for checking trailer truck markets. We can supply the right product in shortest ways and cheapest value.
