Flatbed Semi Trailer
Our Genron vehicle provides the container semi trailer can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer.
Send InquiryChat Now
1.40ft container transport trailer –Delivery for 40FT or 20FT containers or Cement Powder Bags and other bulk cargo.
Our Genron vehicle provides the container semi trailer can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer. Genron production the container trailer all configurations and accessories used domestic and aboard famous brand. Our main beam material use Q345,it has high-strength and strong stiffness features. other type flatbed trailer , like extendable flatbed trailer , flatbed trailer for transporting logs , and flatbed trailer with side wall.
Tare Weight | About 6.5-7.5T |
Dimension | 12700mm*2500mm*1500mm |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW / GV brand |
Rim | 9.00-22.5 or 9.75-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | 2.0 or 3.5inch bolts type or Welding type |
Support leg | China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 6mm, |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom platform | 3mm diamond steel plate |
Brake chamber | RE 6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve (especial for exporting market) |
Light | LED light (especial for exporting market) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | E-Coating process (make sure 7 years not drop paint,not lose varnish) |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |

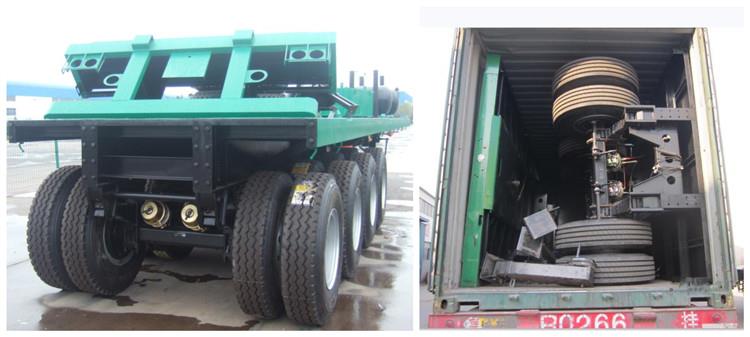

Shipping Item : A & B
A
B

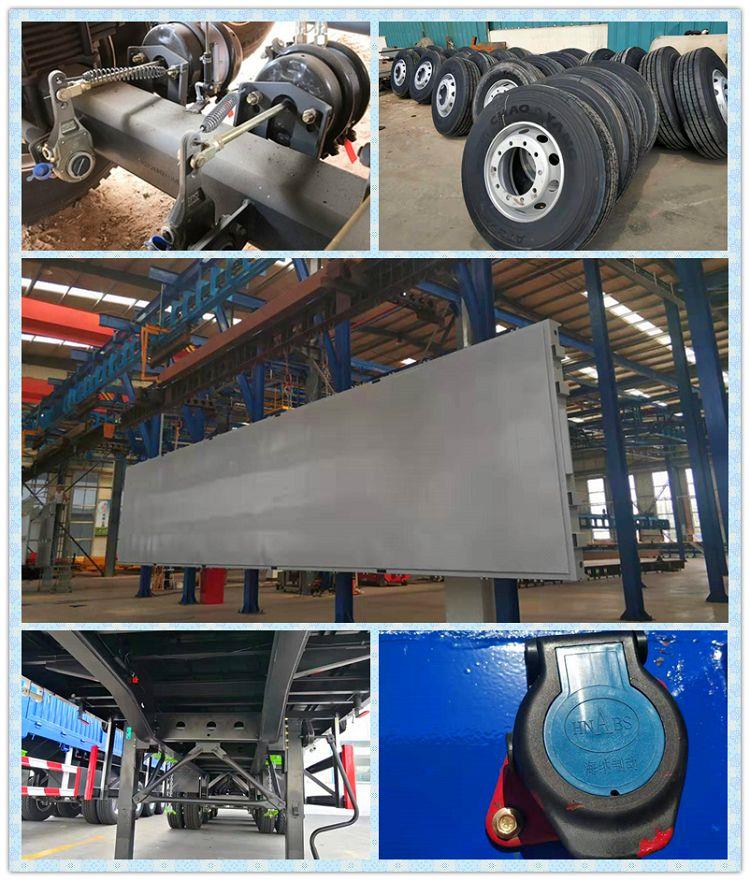

Spare Parts Show

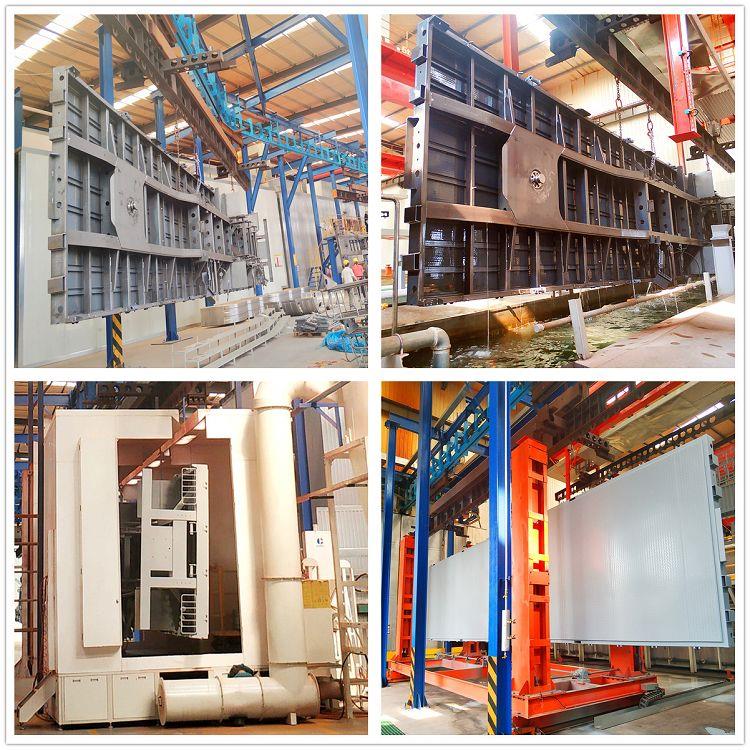

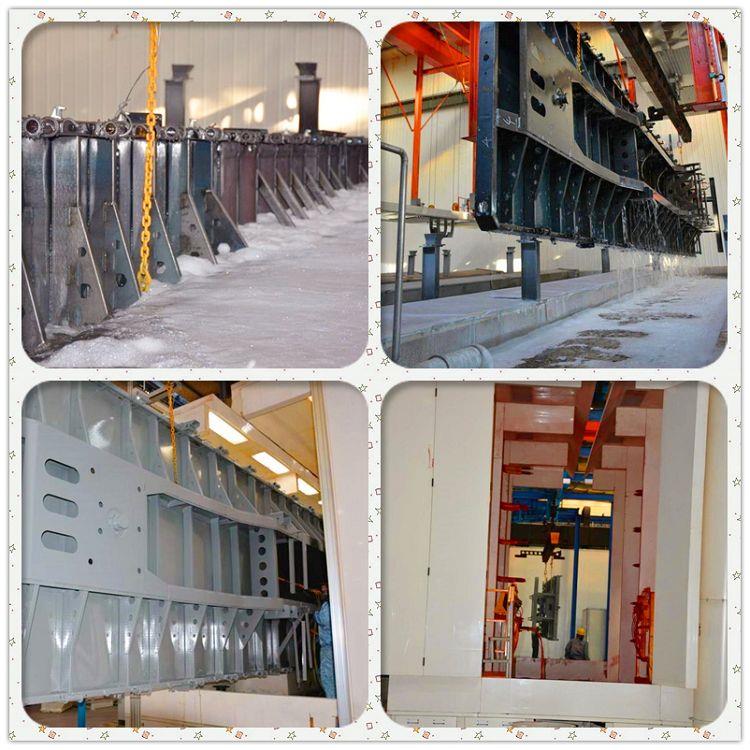

E-Coating/Painting Process :
Advantages of E-Coating/Painting Process:
1. Safety and environmental protection.
2. The most complete and comprehensive corrosion protection.
3. The film is delicate, uniform, smooth, in the precision of the requirements of the product has the best adaptability.
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
After sale service
* We will often go abroad to check our products .
* Engineers available to service machinery overseas.
To the consumer:
We will provide customers with the most economical design according to the loading equipment and the payload.
ODM & OEM customize, professional and technical team provide you the best design, free logo print.
Trailer assembled under strict quality control, any process is inspected .
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
