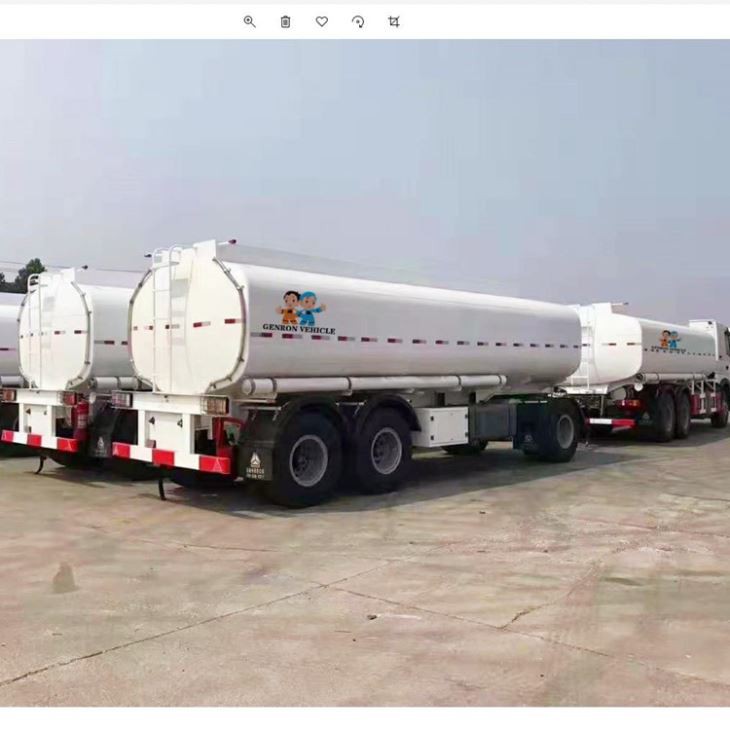

Drawbar Semi Trailer
We will reply for you as soon as possible, from product recommendation to order until you receive the product, we will provide you with quality service.
Send InquiryDrawbar Semi-traier | |
(This type trailer can be flatbed ,drop side ,tanker trailer ) | |
Shape | Optional ( One Silo with V type ) |
Dimension | (7800+7800)mm*2450*1550mm |
Tare weight | About 5200-6000KGS |
Traction hook | 2.00inch |
Chassis | |
Main Beams | Welding I beam Design, Q345 carbon steel ,Height: 480MM, Top Flange Plate:12mm, Bottom Flange Plate:14mm, Middle Flange Plate 6mm |
Axle | 3 axles, 12T or 13T, FUWA,BPW OR GV brand with three sets mechanical suspension |
Landing Gear | CHINA BRAND 28T double speed |
King Pin | JOST2.00 or 3.5 -inch bolt-in king pin |
Leaf Spring | Six units 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve;; Aluminum air brake tanker. |
Brake Chamber | T30/30 air brake chamber six double chambers , china brand |
Rim | 9.00-22.5 STEEL China Brand |
Tire | 12R22.5-22.5 Triangle brand |
Twist Locks | 12 pcs lifting type |
ABS | Optional/without |
Painting | E-coating Process |
Accessories | One standard tool box |
Shipping Terms | By 40HQ container |

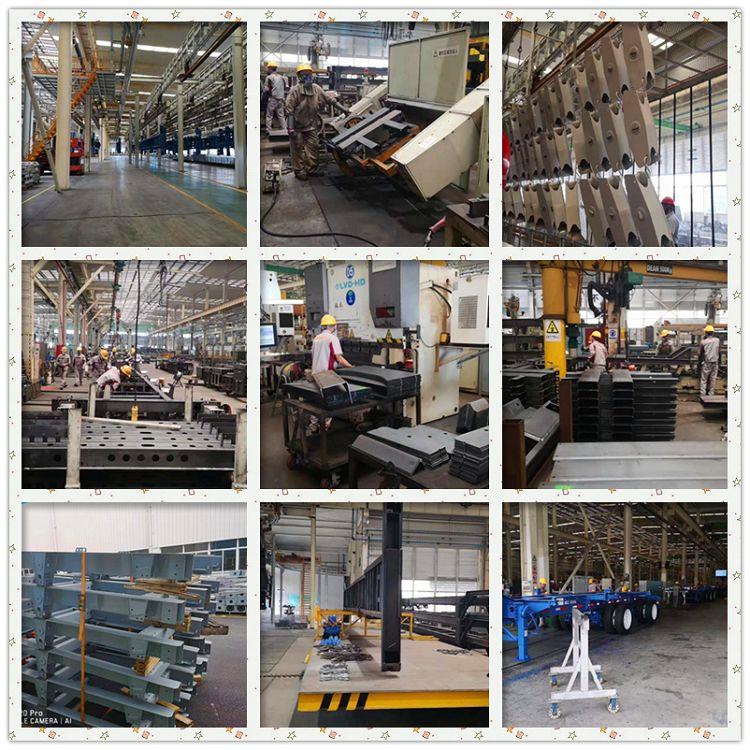

Drawbar Semi-trailer Production Line

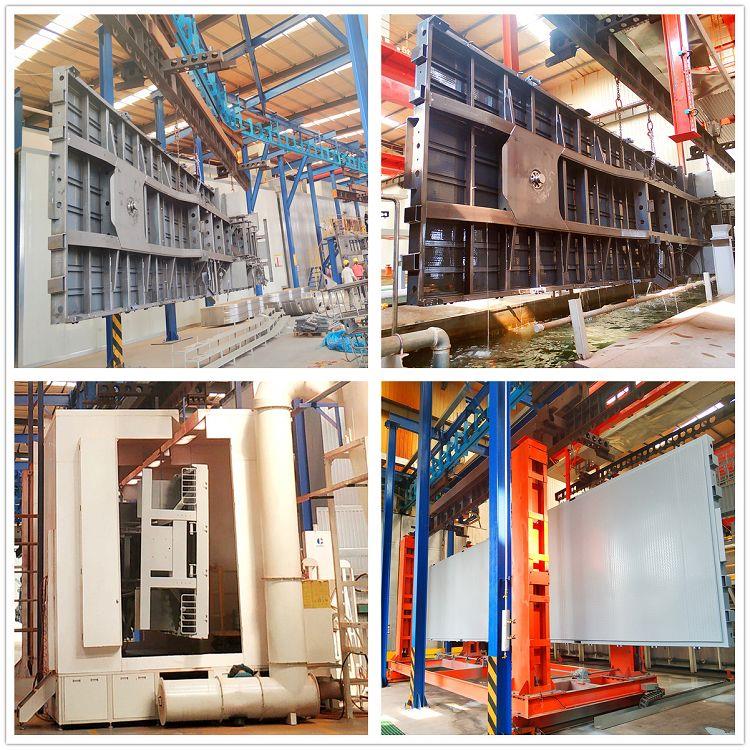

Drawbar Semi-Trailer PAINTING : E-COATING PROCESS
Put the main body of the trailer into the steam room for drying, adjust the temperature to below 50 ℃, and then carry out powder spraying to make it steam again, so that its surface is very smooth. After spraying, it is in close contact with the trailer, keeping color for 7 years.

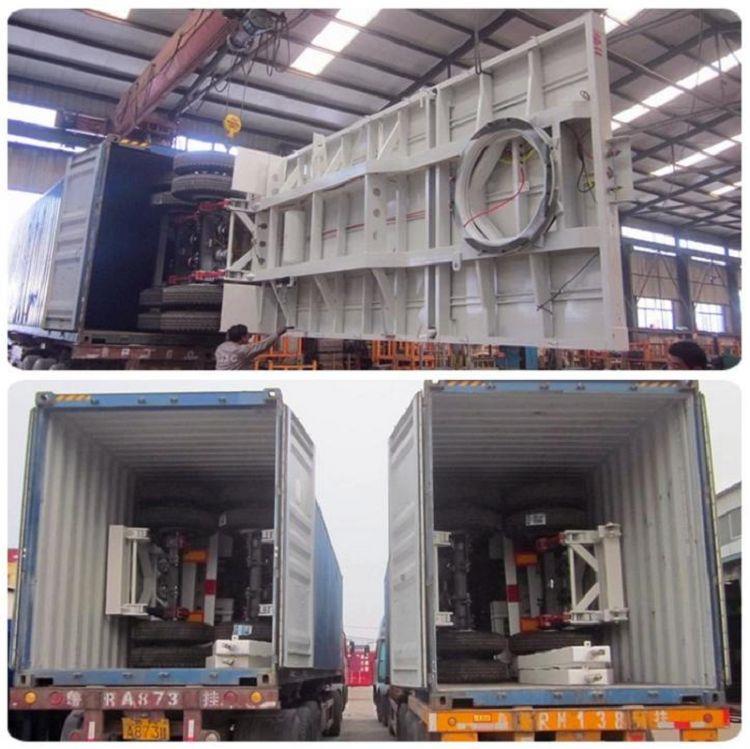

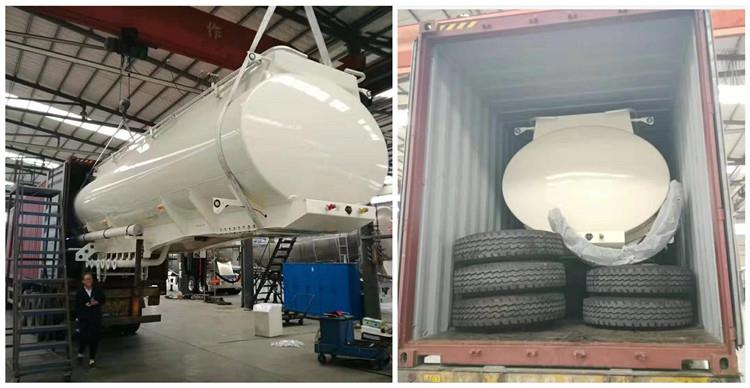

Drawbar Semi-Trailer Shippping Item : A AND B
A BY CONTAINER :

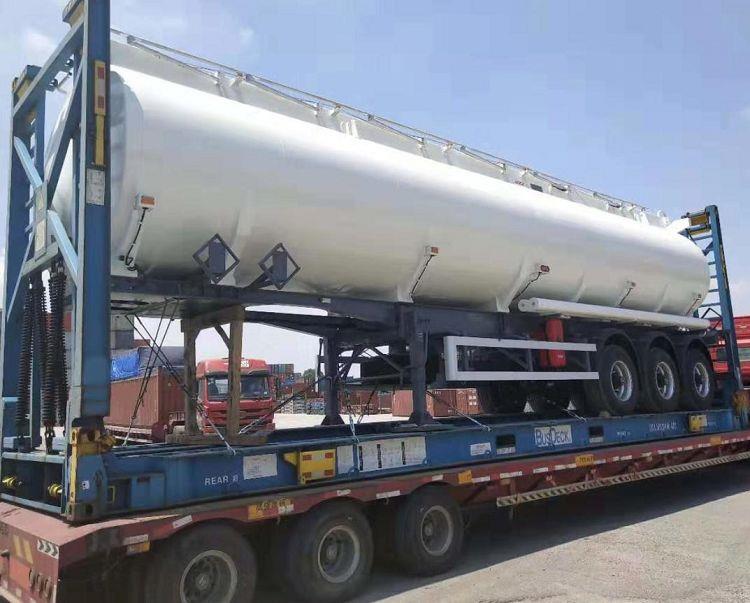

By Flat Rack Containers or bulk cargo ship ；
Other type of Semi Trailer
