2 Axles Container Transport Semi Trailer
The corporate keeps towards the operation concept "scientific administration, superior quality and performance primacy, client supreme for Supply ODM 20ft / 40ft Container Transport Chassis Semi Trailer 2 Axle Truck Trailer, First business, we learn each other.
Send InquiryChat Now
The corporate keeps towards the operation concept "scientific administration, superior quality and performance primacy, client supreme for Supply ODM 20ft / 40ft Container Transport Chassis Semi Trailer 2 Axle Truck Trailer, First business, we learn each other. Further business, the trust is getting there. Our company always at your service at any time.

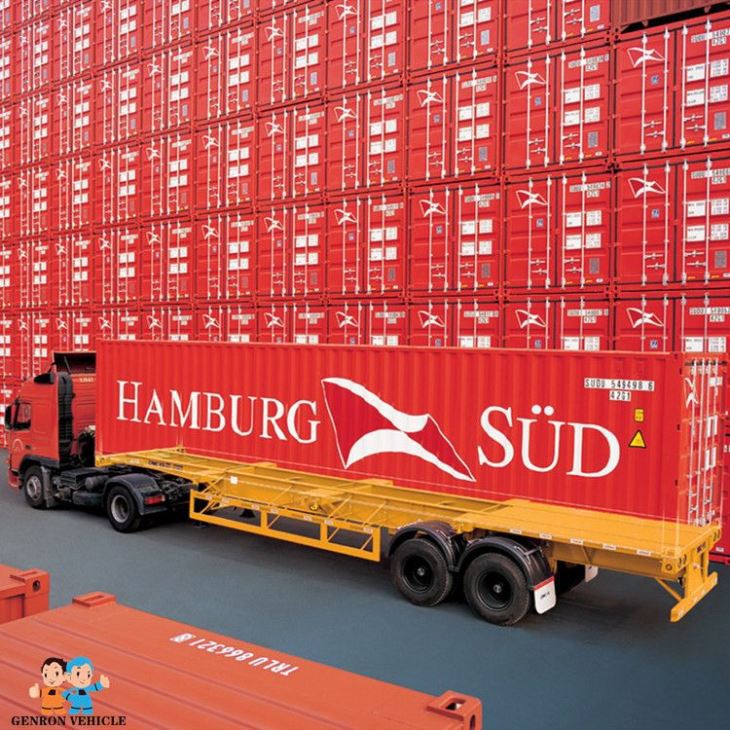

1.40ft container transport trailer –Delivery for 40FT or 20FT containers or Cement Powder Bags and other bulk cargo.
Tare Weight | About 6.5-7.5T |

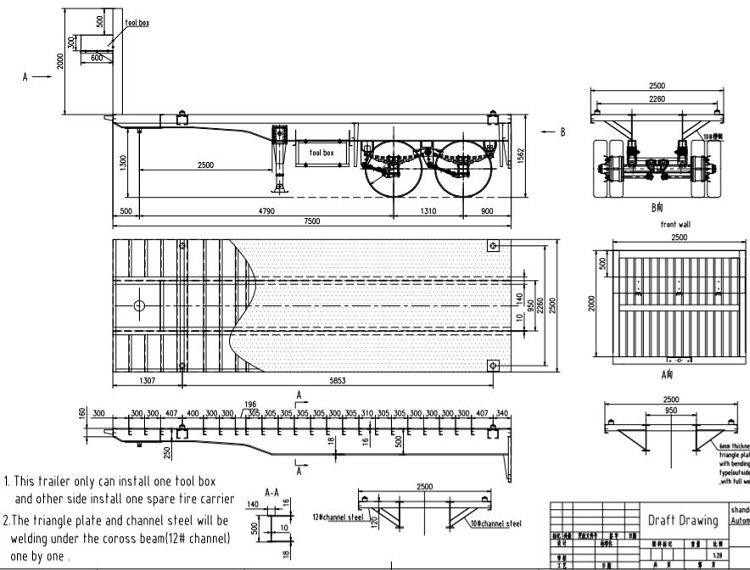

Dimension | 7500*2500*1500mm Loading for 20ft container |
Loading Capacity (T) | ≤ 40 T |
Axle | 13 T/16T, FUWA /BPW / GV brand |
Rim | 9.00-22.5 or 9.75-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | 2.0 or 3.5inch bolts type or Welding type |

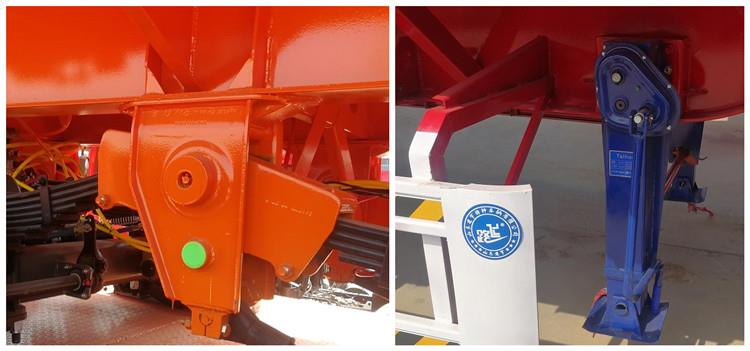

Support leg | China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 6mm, |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom platform | 3mm diamond steel plate |

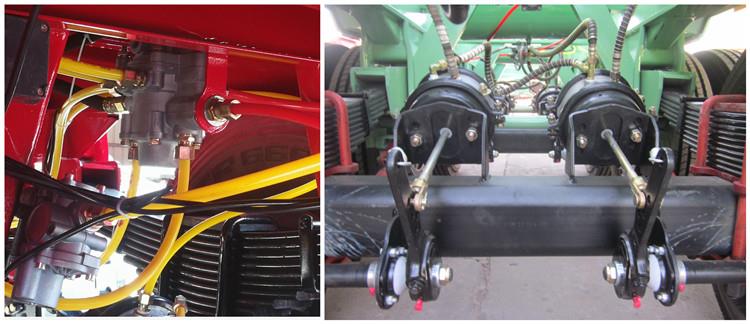

Brake chamber | RE 6 relay valves; T30/30+T30 /T30Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve (especial for exporting market) |
Light | LED light (especial for exporting market) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | E-Coating process (make sure 7 years not drop paint,not lose varnish) |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Note | The size and configuration can be changed according to your special requirement |
Product Details:

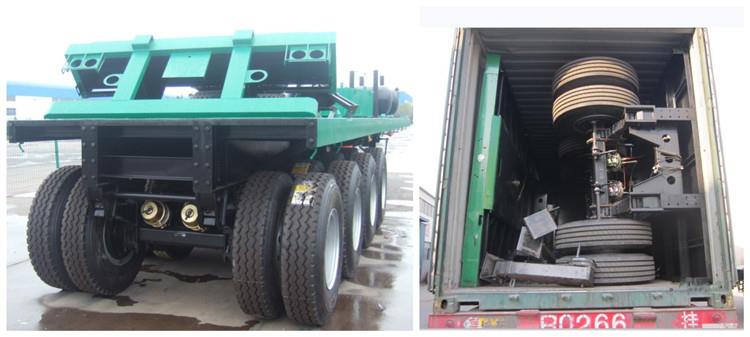

Shipping Item: A & B
A
This package for roro ship or bulk cargo ship delivery .

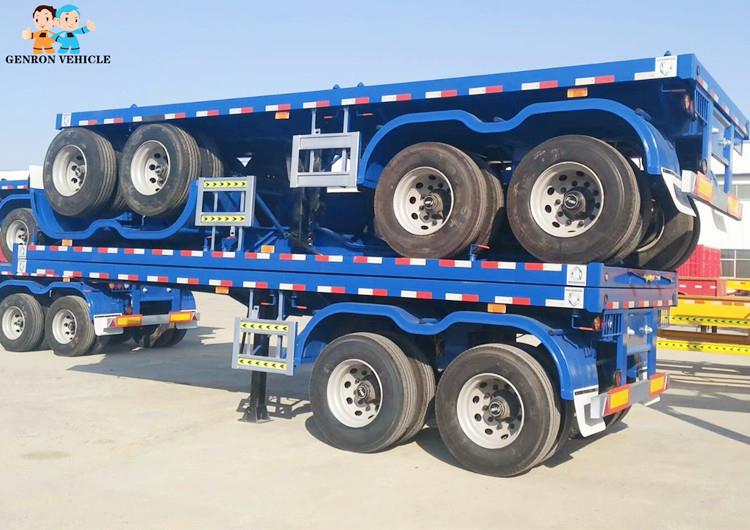

B: If your order is two units flatbed trailer or double pieces you can choose B type

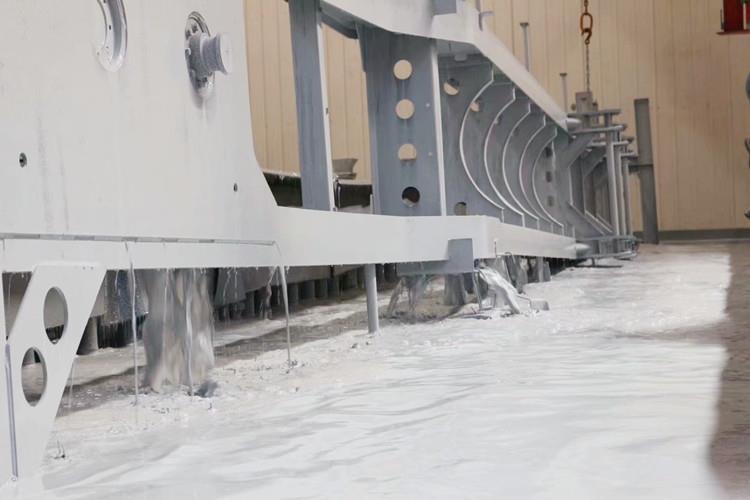

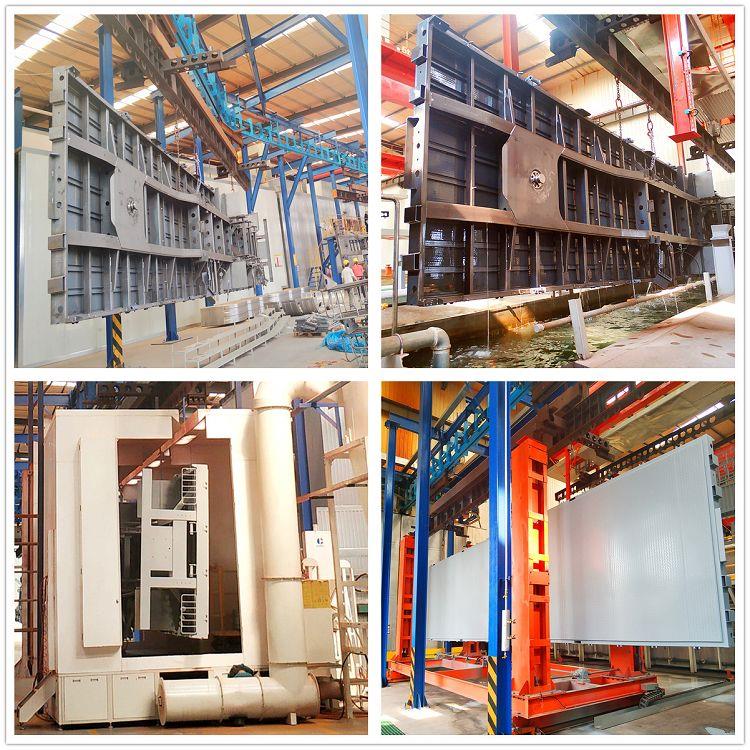

Electric Coating/Painting Process :
The main body of the trailer was put into the drying room for electrophoretic drying, the temperature was adjusted to below 50℃, and then the powder spraying was carried out to steam it again to make its surface very smooth. After spraying, it was in close contact with the trailer for 7 years.
Before-sales service
* Inquiry and consulting support.
* Sample testing support.
* Pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service
*We have our own technical team,we will gave you repaired method within 12 hours through calling or email.We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.
*We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
*We can go to your place to teach your team how to operate the trailer or our machines .
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
