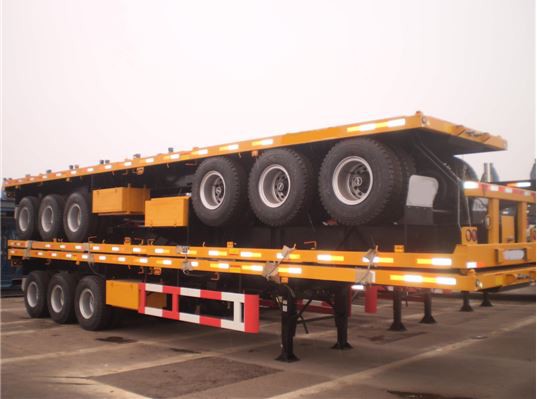

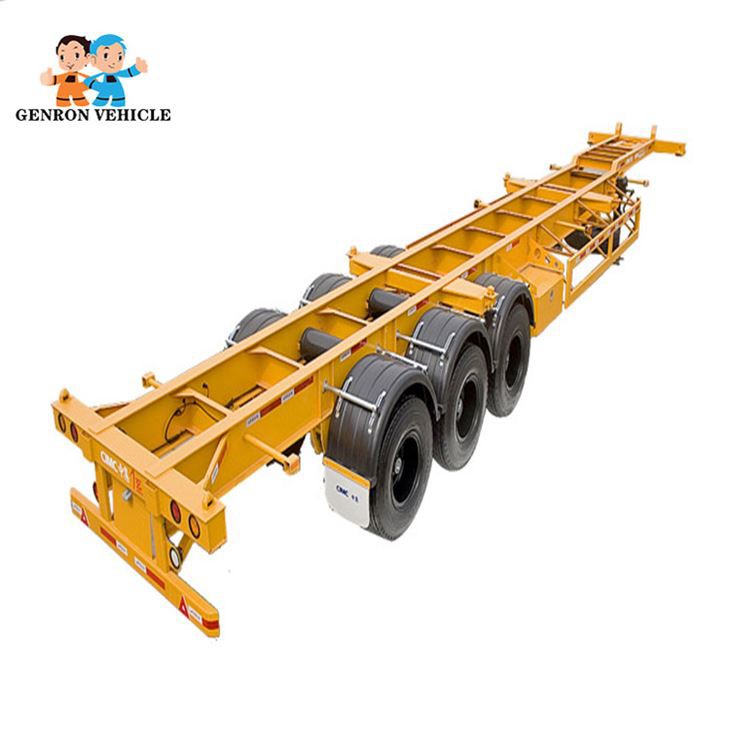

Flatbed Semi Truck
Flatbed semi trailer mainly transport for 40FT or 20FT containers. It is mainly used in the logistics system of ships, ports, routes, highways, transfer stations, bridges, tunnels and multimodal transport. It can be designed separately according to the different needs of customers.
Send InquiryChat Now

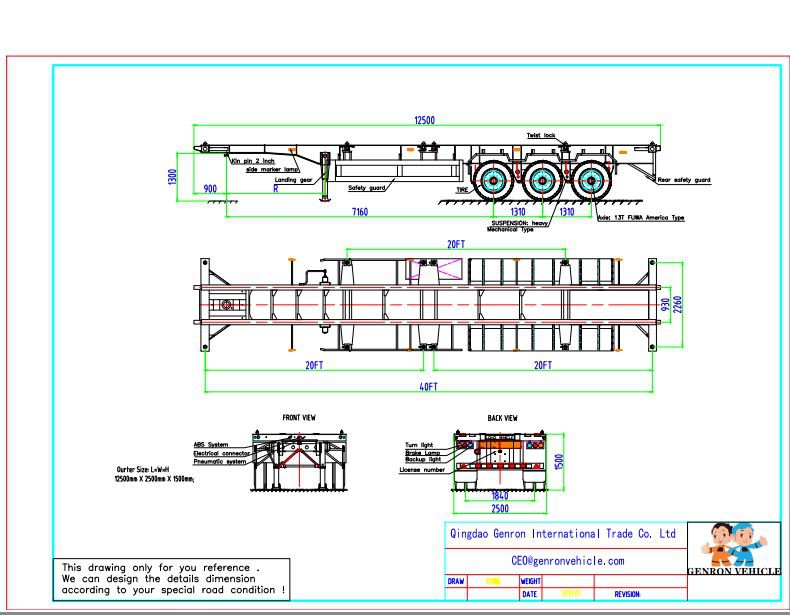

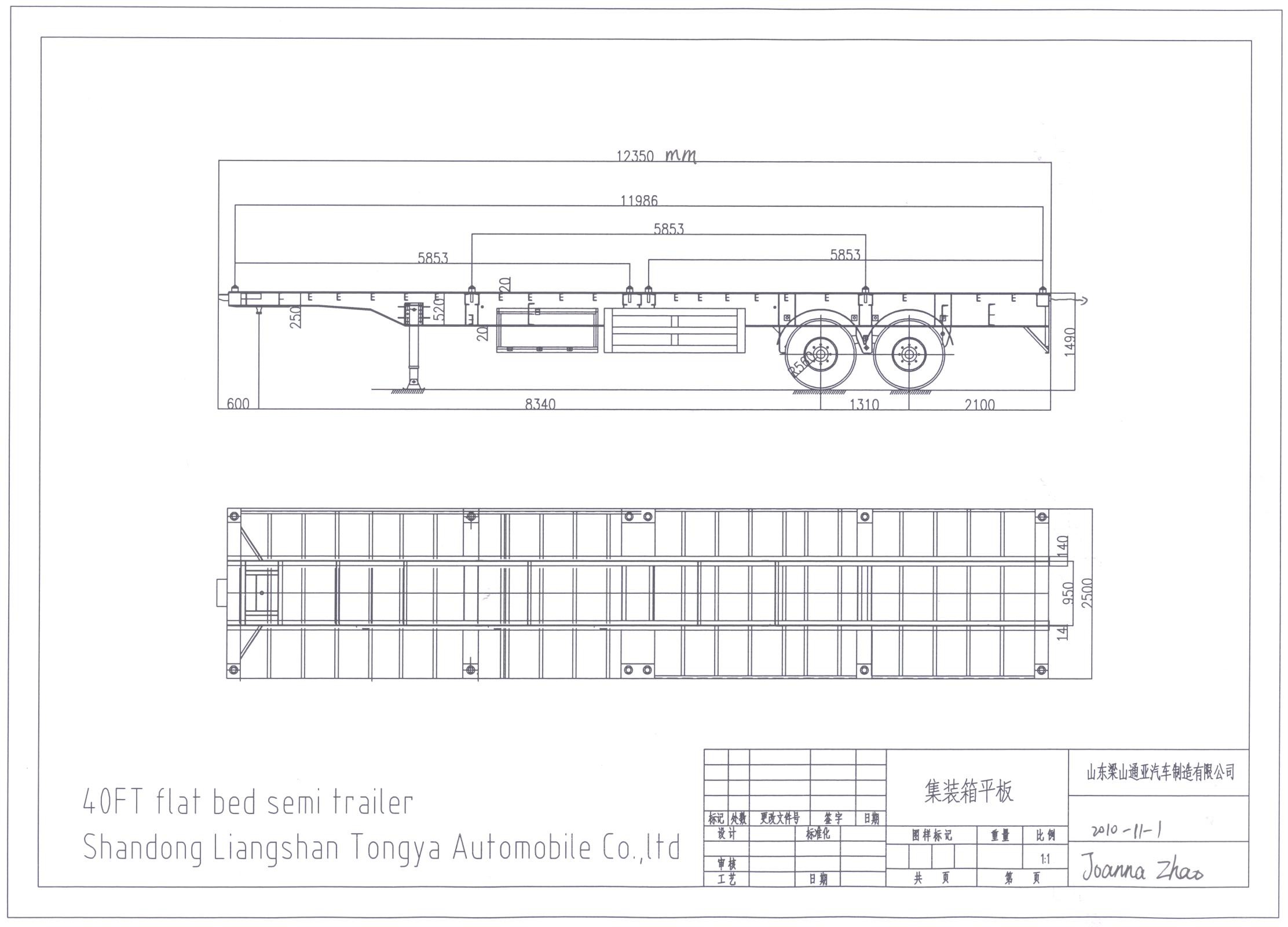

Flatbed semi trailer--mainly transport for 40FT or 20FT containers
Tare Weight | About 7.1T |
Dimension | 12450mm*2490mm*1575mm |
Loading Capacity (T) | ≤ 45 T |
Axle | 13 T/16T, FUWA /BPW / other china famous Brand |
Rim | 9.00-22.5 or 9.75-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or Germany brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (especial for exporting market ) |
King pin | 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom platform | 3mm diamond steel plate |
Brake chamber | RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) (especial for exporting market ) |
Valve | WABCO valve (especial for exporting market ) |
Light | LED light (especial for exporting market ) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |

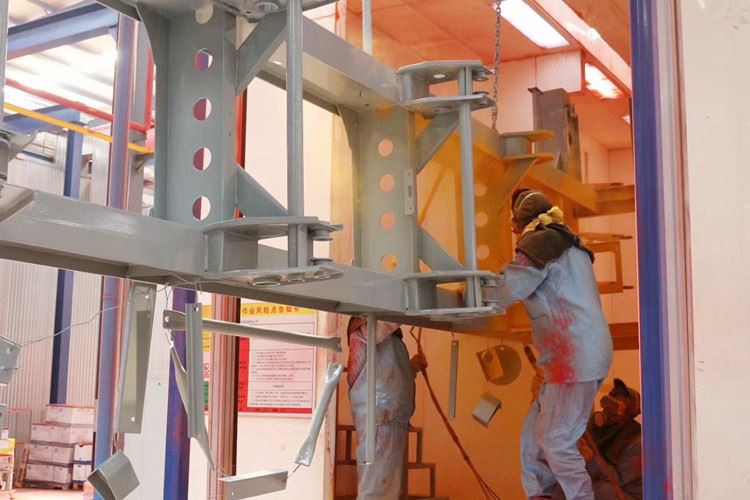

Painting | E-Coating process (make sure 7 years not drop paint,not lose varnish) |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Advantages of the flatbed semi truck
1. It is specially used for the transportation of various containers. It can carry one 40 foot container, two 20 foot containers at the same time, or one 20 foot container. Customers can change the number of locks according to their own needs.
2. This kind of flat semi-trailer can be equipped with detachable breast board, column and so on.
3. It can be used repeatedly for a long time with enough strength.
4. It can be quickly loaded and unloaded, and can be directly and conveniently transferred from one means of transport to another.
5. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers.
6. Design a unique mode of marine transportation.
Packing delivery
Our flatbed semi trailers can shipping by bulk Cargo, Roll-Roll, and 40 HQ Container.
By bulk cargo carrier or RORO

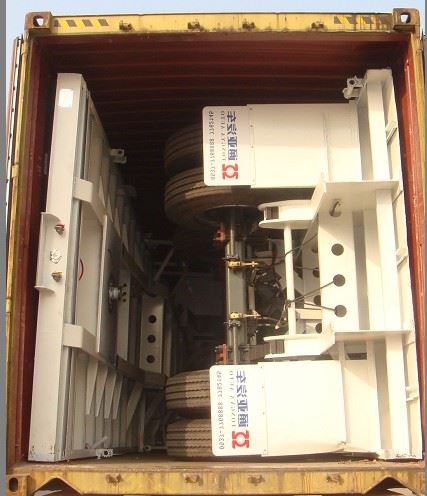

By 40 HQ container

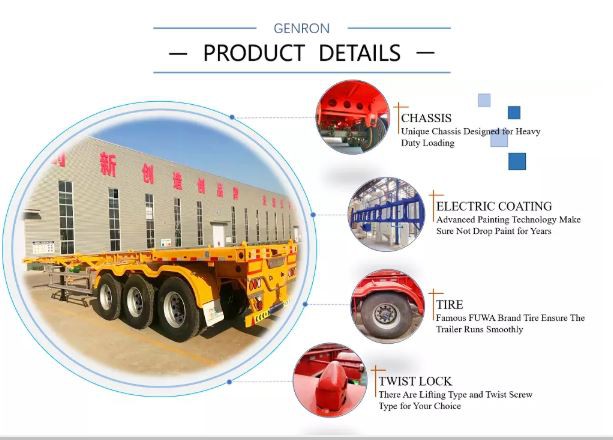

The details of the flatbed semi truck
FAQ
Q: What’s your payment terms?
A: T/T or L/C
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
