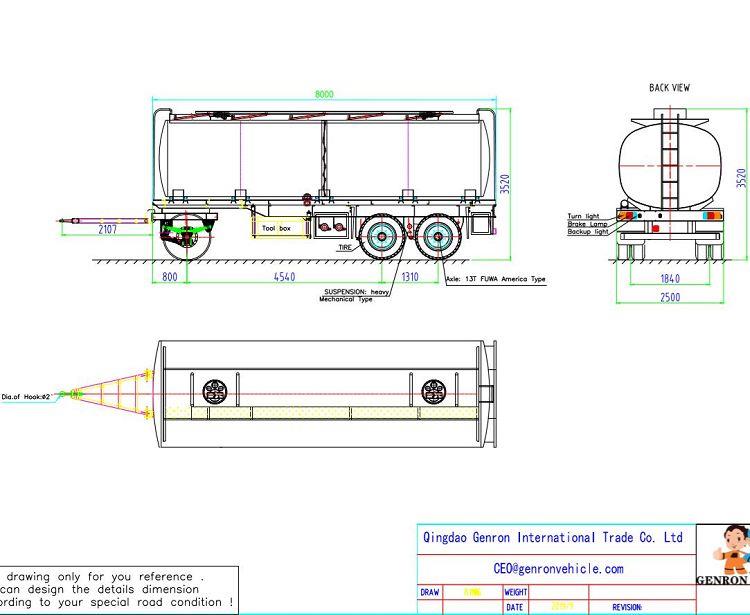

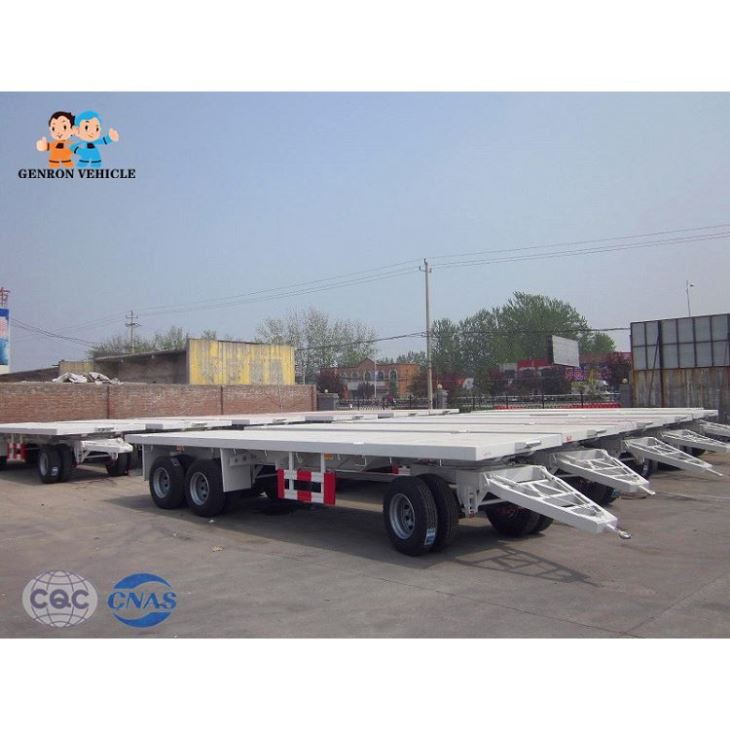

Dolly Trailer

(This type trailer can be flatbed ,drop side ,tanker trailer )

Shape

Optional ( One Silo with V type )

Dimension

(7800+7800)mm*2450*1550mm

Tare weight

About 5200-6000KGS

Traction hook

2.00inch

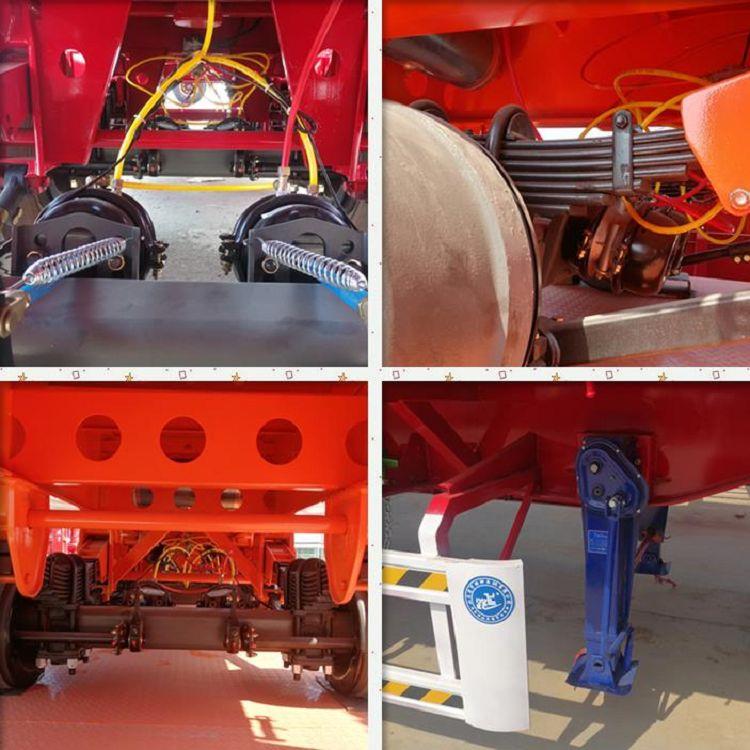

Chassis

Main Beams

Welding I beam Design, Q345 carbon steel ,Height: 480MM, Top Flange Plate:12mm, Bottom Flange Plate:14mm, Middle Flange Plate 6mm

Axle

3 axles, 12T or 13T, FUWA,BPW OR GV brand with three sets mechanical suspension

Landing Gear

CHINA BRAND 28T double speed

King Pin

JOST2.00 or 3.5 -inch bolt-in king pin

Leaf Spring

Six units 90(W)mm*13(Thickness)mm*10 Layer

Pneumatic Braking System

WABCO RE 6 relay valve;; Aluminum air brake tanker.

Brake Chamber

T30/30 air brake chamber six double chambers , china brand

Rim

9.00-22.5 STEEL China Brand

Tire

12R22.5-22.5 Triangle brand

Twist Locks

12 pcs lifting type

ABS

Optional/without

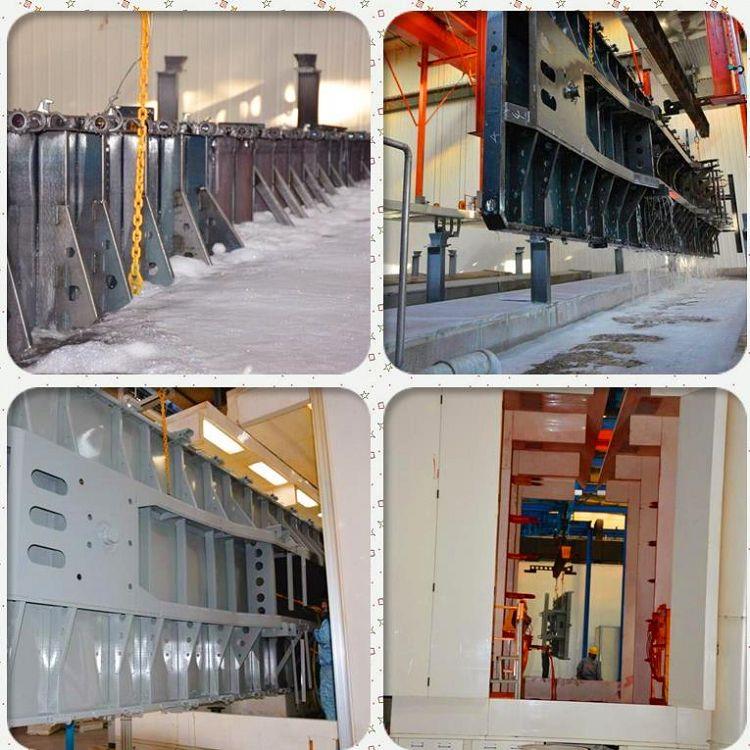

Painting

E-coating Process

Accessories

One standard tool box

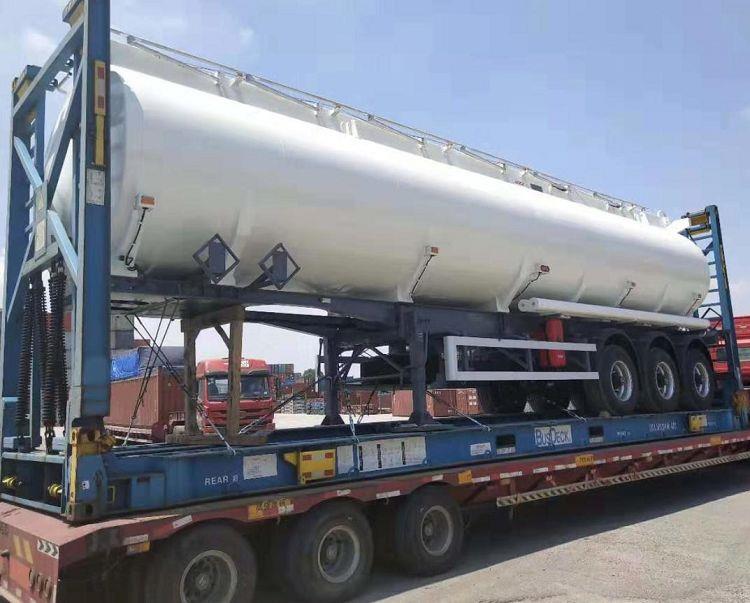

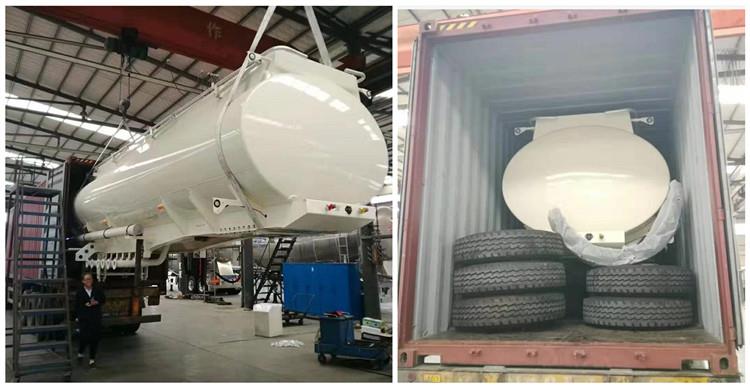

Shipping Terms

By 40HQ container
