Semi-trailer

The use of this automatic cleaning machine can make every point of the trailer very clean and remove all residues.

Send Inquiry

50(001)

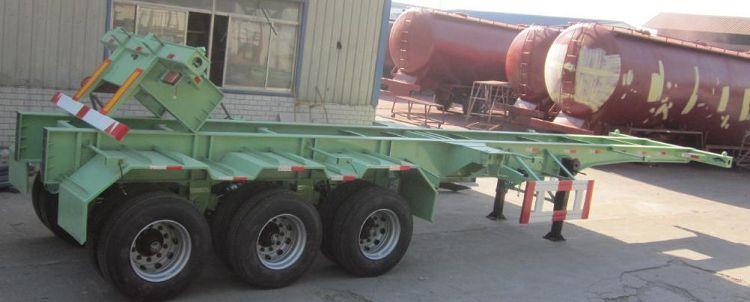

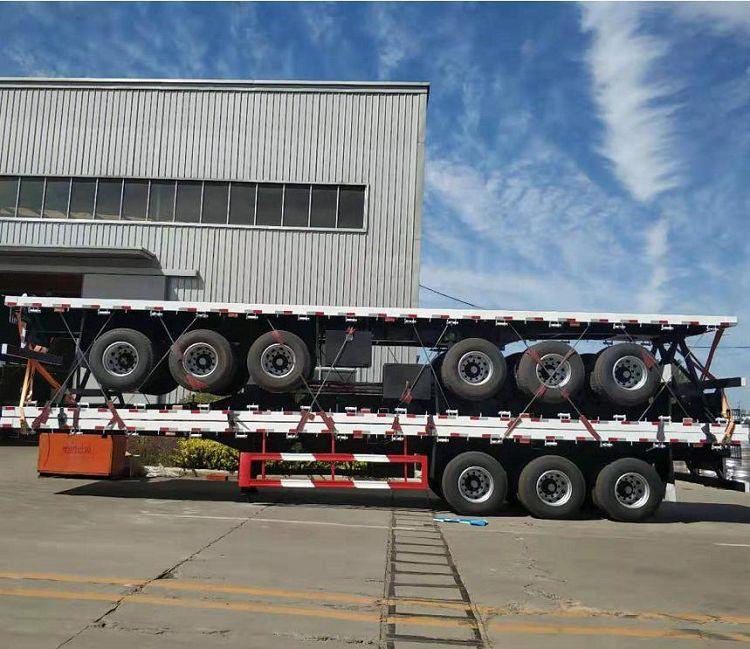

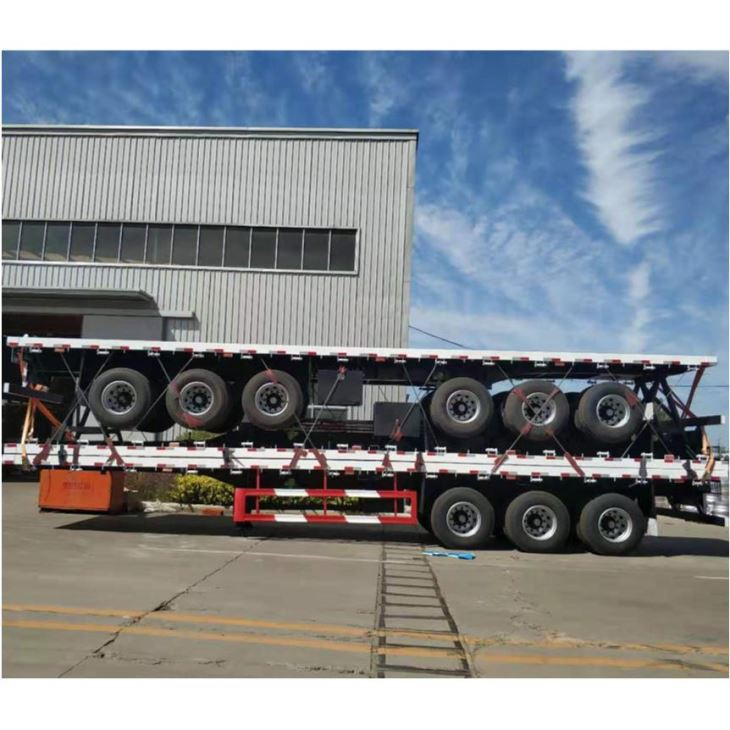

Semi-Trailer
Shape	Optional ( One Silo with V type )

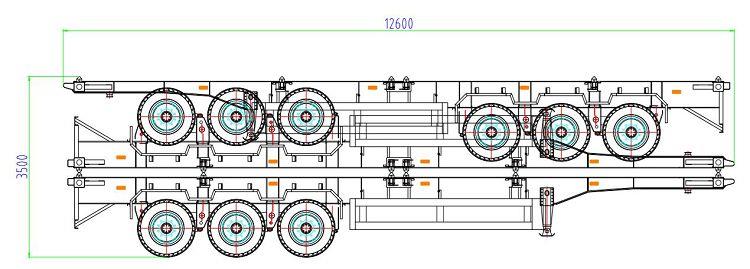

Dimension	12500-1350024501550mm
Tare weight	About 5200-6000KGS
Chassis
Main Beams	Welding I beam Design, Q345 carbon steel ,Height: 480MM, Top Flange Plate:12mm, Bottom Flange Plate:14mm, Middle Flange Plate 6mm
Axle	3 axles, 12T or 13T, FUWA,BPW OR GV brand with three sets mechanical suspension
Landing Gear	CHINA BRAND 28T double speed
King Pin	JOST2.00 or 3.5 -inch bolt-in king pin
Leaf Spring	Six units 90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve;; Aluminum air brake tanker.
Brake Chamber	T30/30 air brake chamber six double chambers , china brand
Rim	9.00-22.5 STEEL China Brand
Tire	12R22.5-22.5 Triangle brand
Twist Locks	12 pcs lifting type
ABS	Optional/without
Painting	E-coating Process
Accessories	One standard tool box

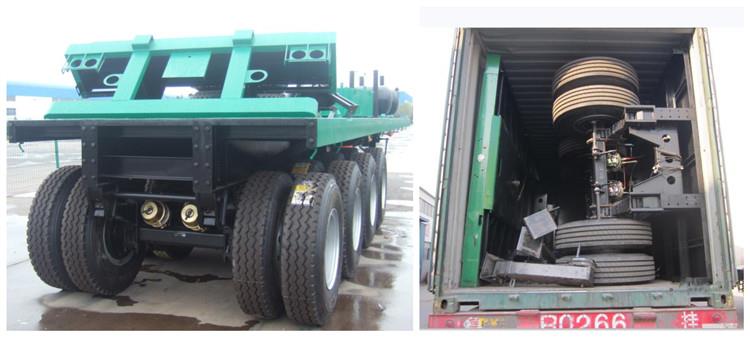

Shipping Terms	By 40HQ container

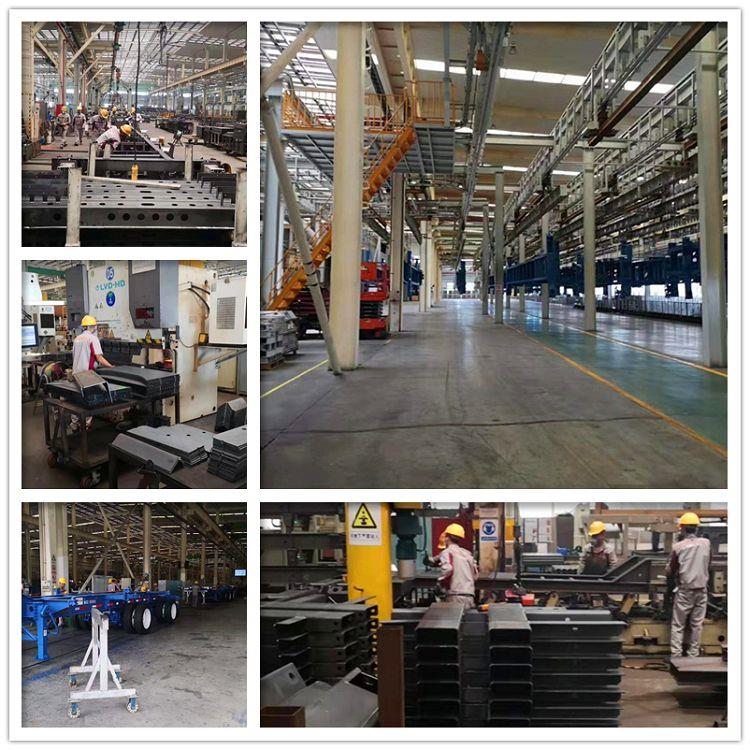

Production Line for Semi-Trailer

52(001)

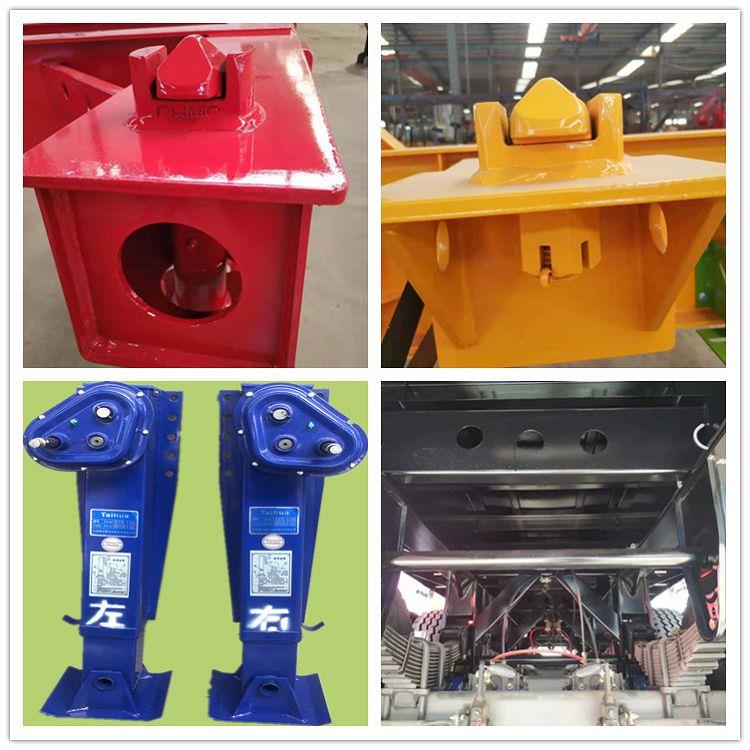

Spare parts for Semi-trailer

53(001)

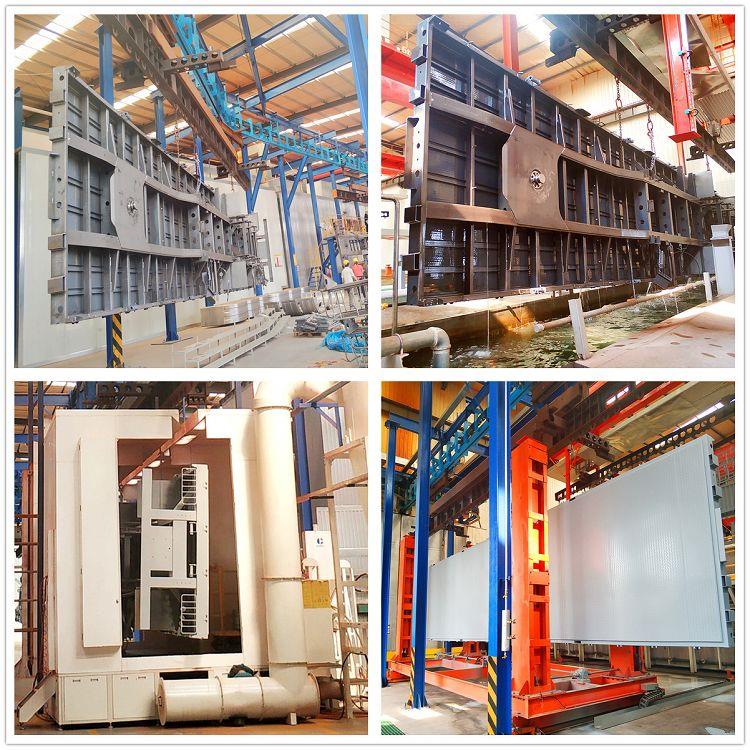

Semi-Trailer PAINTING : E-COATING PROCESS

The use of this automatic cleaning machine can make every point of the trailer very clean and remove all residues. Put the main body of the trailer into the steam room for drying, adjust the temperature to below 50 ℃, and then carry out powder spraying to make it steam again, so that its surface is very smooth. After spraying, it is in close contact with the trailer, keeping color for 7 years.

7(001)
