Skeleton Semi Trailer

The use of this automatic cleaning machine can make every point of the trailer very clean and remove all residues.

Send Inquiry Chat Now

26(001)

Skeleton Semi Trailer

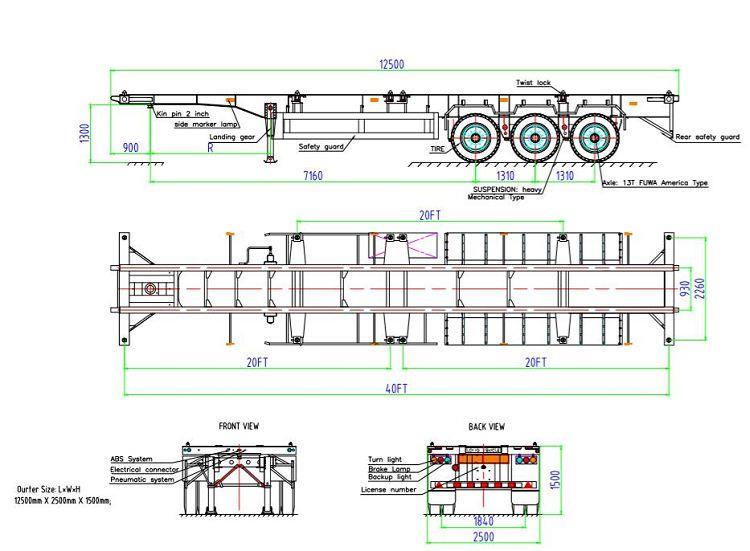

Main Dimensions
Shape	Optional ( One Silo with V type )

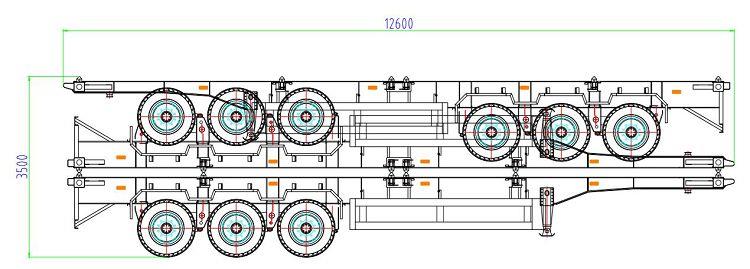

Dimension	1250024501550mm
Tare weight	About 5200-6000KGS
Chassis
Main Beams	Welding I beam Design, Q345 carbon steel ,Height: 480MM, Top Flange Plate:12mm, Bottom Flange Plate:14mm, Middle Flange Plate 6mm

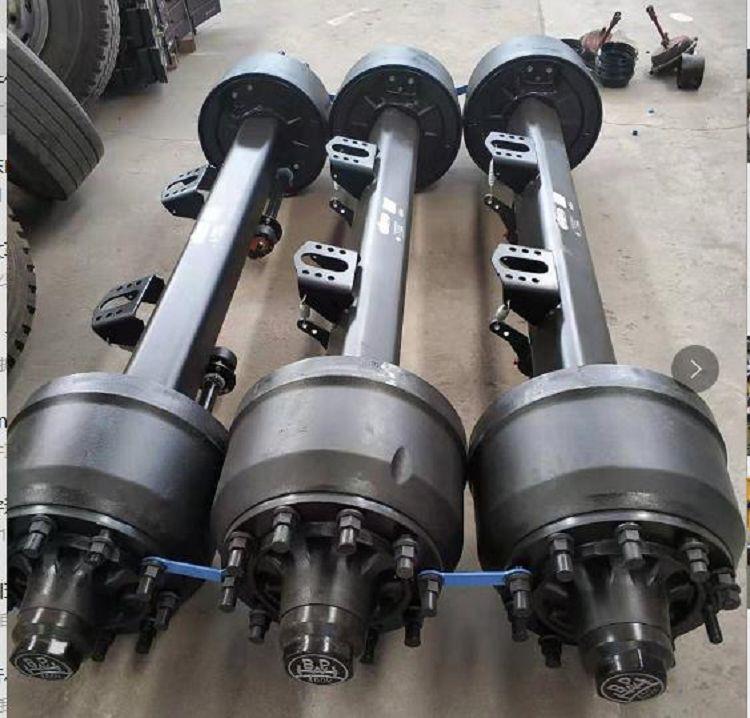

Axle	3 axles, 12T or 13T, FUWA,BPW OR GV brand with three sets mechanical suspension

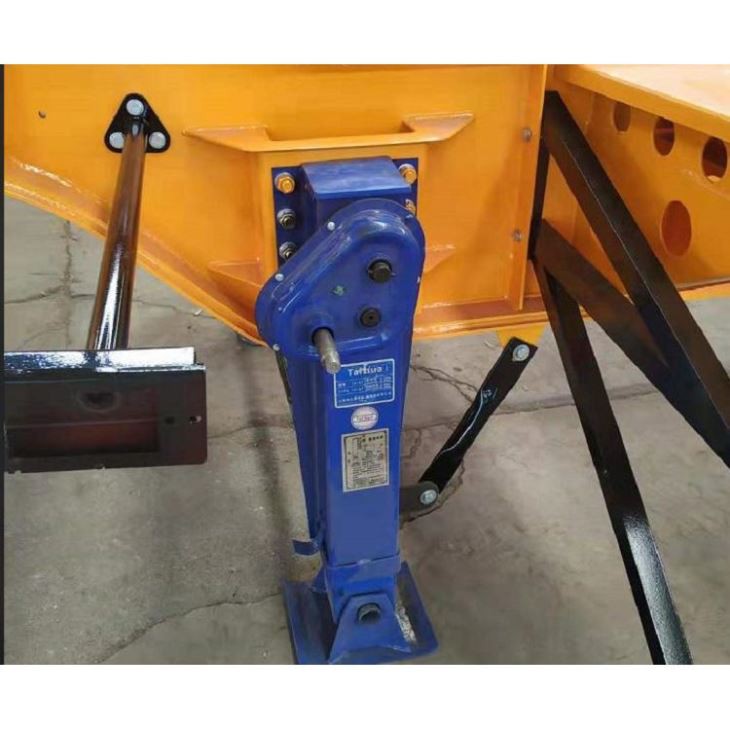

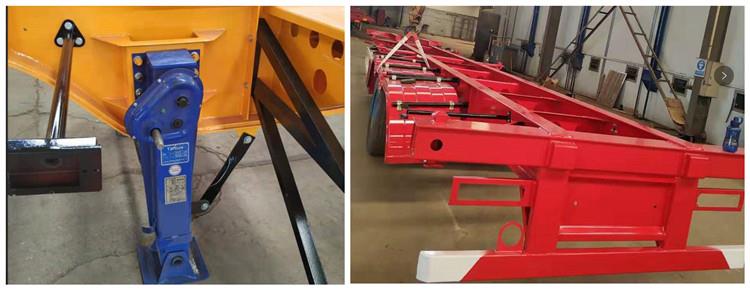

Landing Gear	CHINA BRAND 28T double speed

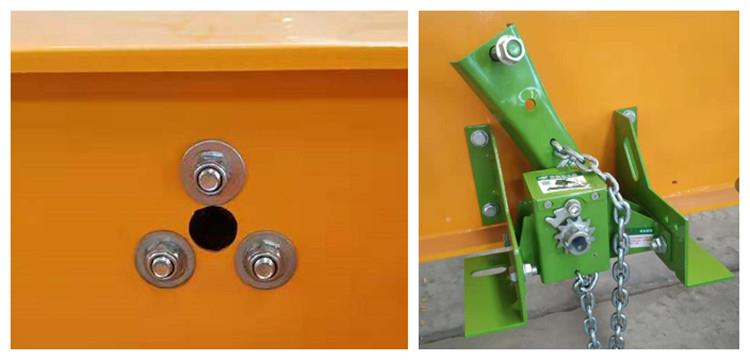

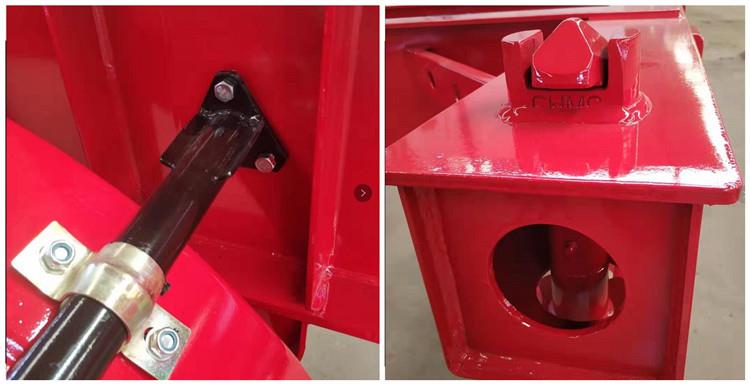

King Pin	JOST2.00 or 3.5 -inch bolt-in king pin
Leaf Spring	Six units 90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve;; Aluminum air brake tanker.

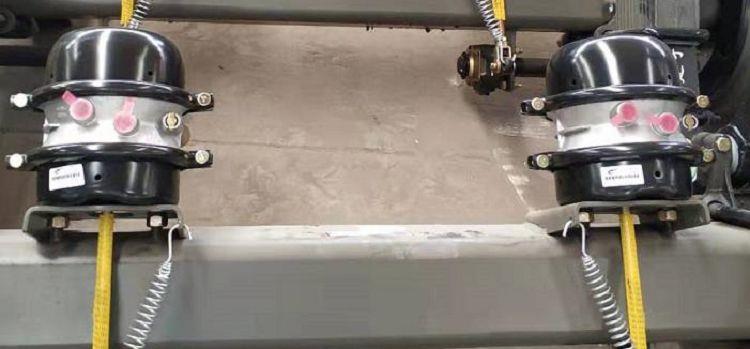

Brake Chamber	T30/30 air brake chamber six double chambers , china brand

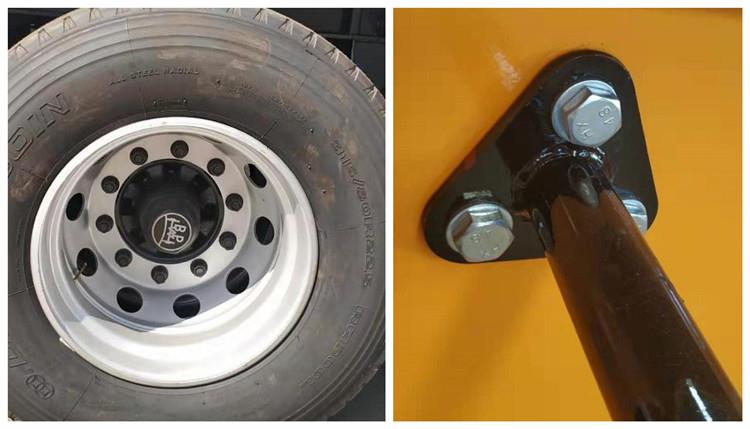

Rim	9.00-22.5 STEEL China Brand
Tire	12R22.5-22.5 Triangle brand
Twist Locks	12 pcs lifting type
ABS	Optional/without
Painting	E-coating Process
Accessories	One standard tool box

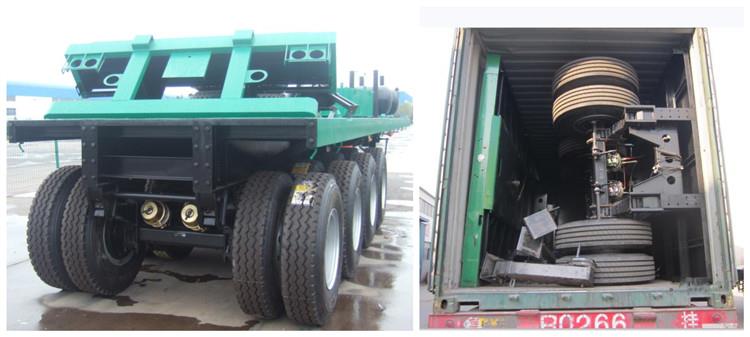

Shipping Terms	By 40HQ container

28_3

30_fdd

33_dfd

33_df

36(001)

37(001)

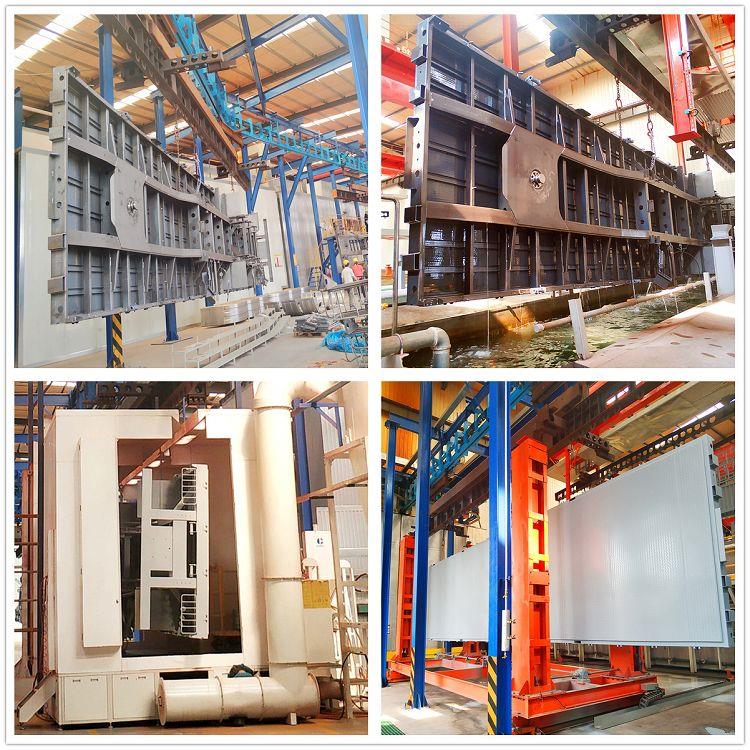

Skeleton Semi Trailer PAINTING : E-COATING PROCESS :

The use of this automatic cleaning machine can make every point of the trailer very clean and remove all residues. Put the main body of the trailer into the steam room for drying, adjust the temperature to below 50 ℃, and then carry out powder spraying to make it steam again, so that its surface is very smooth. After spraying, it is in close contact with the trailer, keeping color for 7 years.
