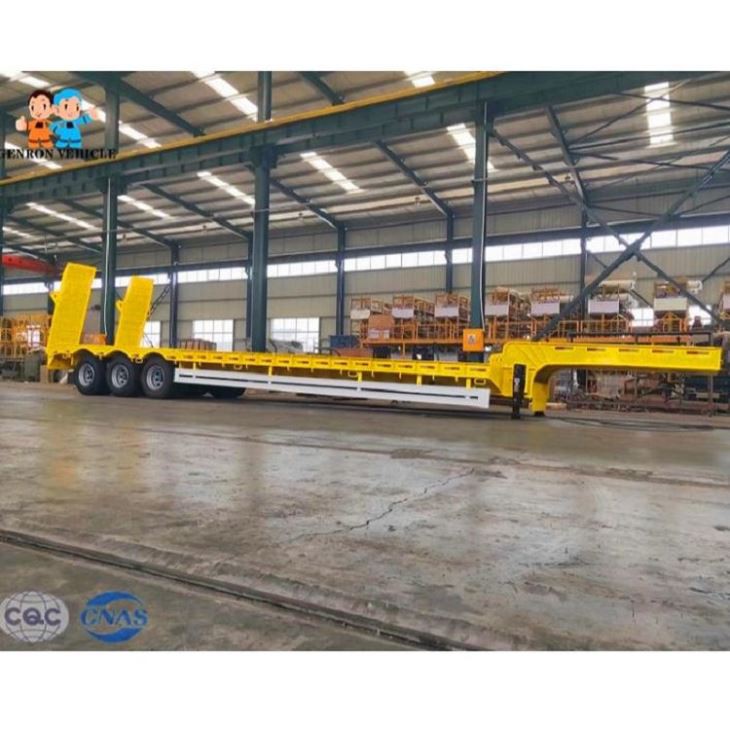

Road Roller Transporter Vehicle

Name: Road Roller Transporter Vehicle
Brand: Genron
SKU: 89046440

Use this automatic washing machine can make the trailer all points very cleaning ,remove all residual. put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under 50 centigrade ,and then powder painting to make steam again to make the surface very smooth and painting touch the trailer firmly till 7 years.

Send Inquiry Chat Now

100.1(001)

1.road roller transporter vehicle –Shipping for heavy machinery

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm (Size can be chosen freely)
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market)
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (Special for export market)
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform	3-6mm thickness diamond steel plate
Ladder	Manual or Hydraulic type
Gooseneck	For choice
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

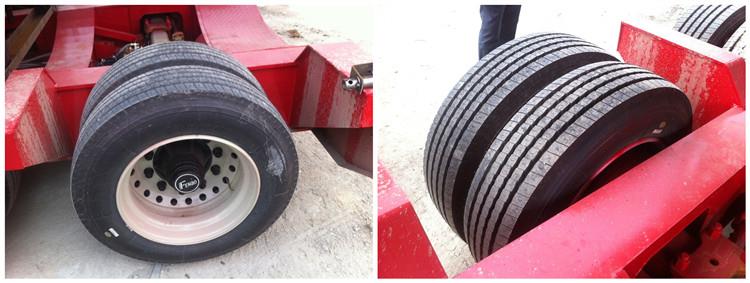

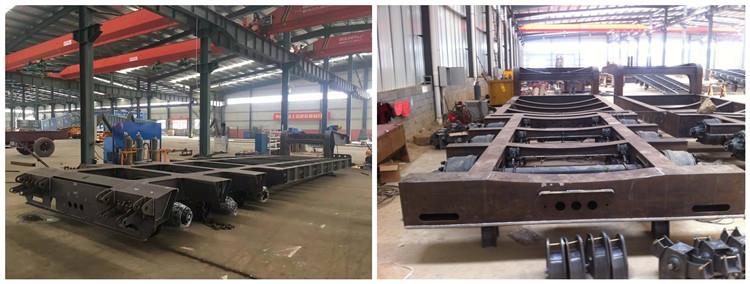

Road roller transporter vehicle Spare Parts Photos:

100.3_SD

100.5_SD

Electric Coating Process :

84(001)

The step of E-coating Process

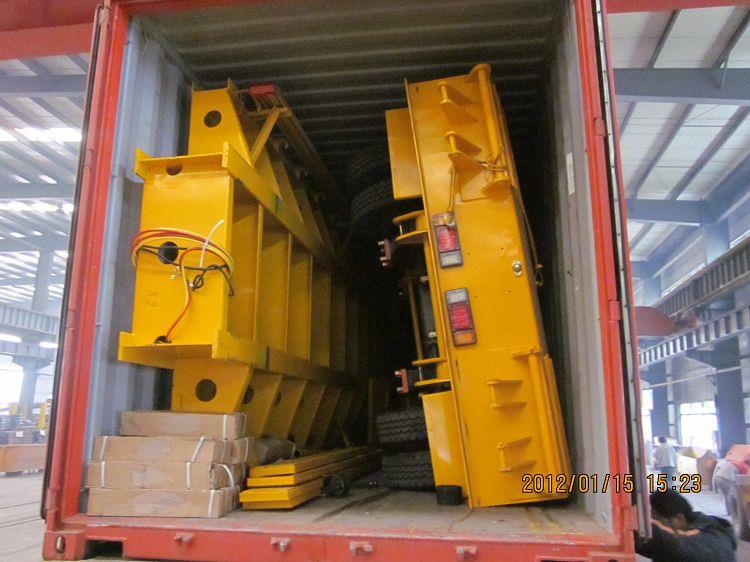

Road roller transporter vehicle Shipping Item : A & B

100.7

99.4(001)

B:Delivery time: Shipped within 18 days after receiving the prepayment.

Standard packaging:

1.Nude Packing/Customer Customized.

2.2/3 Trailers Stacked together,1/2 Trailers can be placed into 1*40 feet container or 1*45 feet container.

3.Bulk Loading/Ro-Ro Loading/Container Frame Loading.

Pre-sales service

We will give you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.

After sale service

We have our own technical team, we will give you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.

What we can do for customers:

1. The satisfied product with high level standard;

2. The full aspect service from order to shipping;

3. Give customer most suitable advice when customer has special needs for your transportation or construction;

4. Help customer to get the related spare parts of trailer or tractors if customer needs.

we are waiting for you to get this ideal products and best quotation!

Professional Technical Team:

85.6(001)
