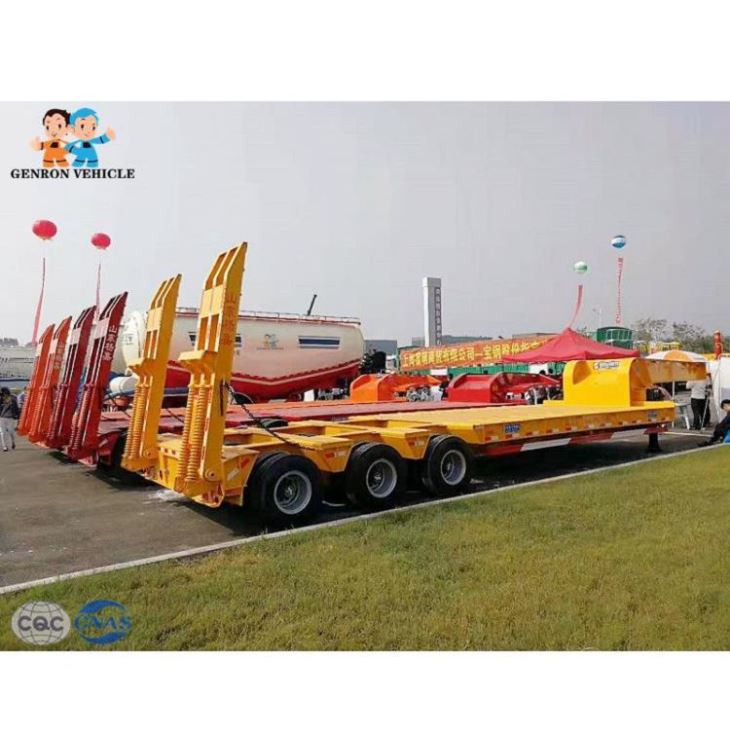

Gooseneck Low Bed Truck Trailer

Use this automatic washing machine can make the trailer all points very cleaning ,remove all residua.then put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under 50 centigrade ,and then powder painting to make steam again to make the surface very smooth and painting touch the trailer firmly till 7 years.

Send Inquiry

100.1(001)

1.Gooseneck Low Bed Truck Trailer –To transport heavy machinery Road Rollers, Excavators

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm (Size can be chosen freely)
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market)
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (Special for export market)
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform	3-6mm thickness diamond steel plate
Ladder	Manual or Hydraulic type
Gooseneck	For choice
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

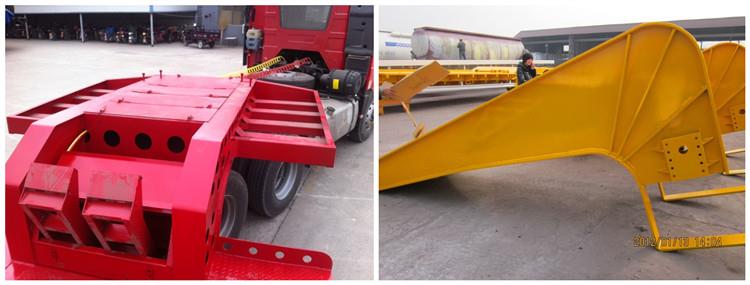

Gooseneck Low Bed Truck Trailer Spare Parts Show

100.5SD

100.3_SD

Electric Coating :

84(001)

The E-coating Process

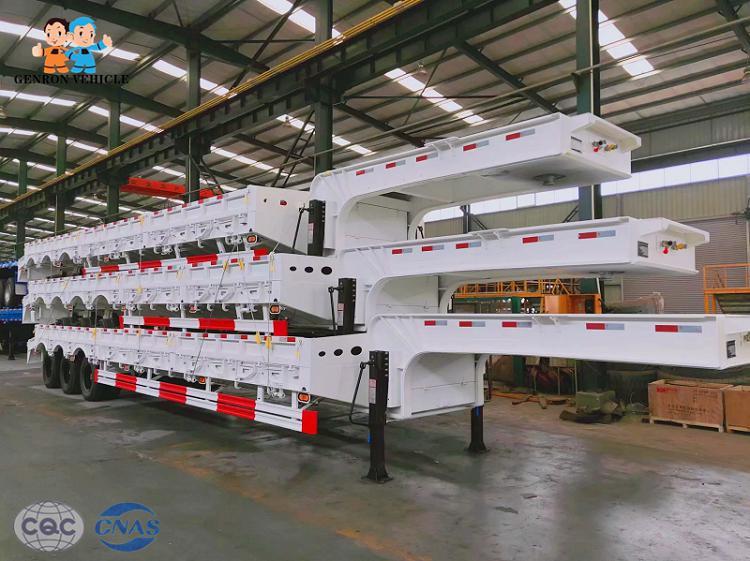

Gooseneck Low Bed Truck Trailer Shipping Item : A & B

101.3

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received

99.4(001)

If your order is two units flatbed trailer or double pieces you can choose put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Our Technical Support Team:

As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited On Ghana,Burkinafaso,Cameroon,Nigeria,Mozambique,Zambia ,Tanzania ,Kenya,Malaysia ,Indonesia ,Philippine,Vietnam ,LAOS ,Mayanmar,Algeria,Dubai.

What are our advantages compared with other trade companies.

Competitive Price -- We have our own factory, which leads China Semi Trailers industry, hence we can give you our very reasonable price because of the low production cost.

Quick Response-- Our team is consisted of a group of diligent and enterprising people, waiting to respond client inquiries and questions all the time. Most problems can be solved within 12 hours.

Fast delivery -- Normally it will take more than 25-45 days for other manufacturers/ factories to produce the ordered trailers, while We have more than ten years of production experience, skilled production workers, and the ability to handle large orders. So in most cases, we can have a 15-20 days delivery of regular trailers for our clients.
