High Bed Semi Trailer

Name: High Bed Semi Trailer
Brand: Genron
SKU: 89045495

Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded.

Send Inquiry Chat Now

98.8(001)

1.high bed semi trailer –To transport heavy machinery

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm (Size can be chosen freely)
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market)
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (Special for export market)
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform	3-6mm thickness diamond steel plate
Ladder	Manual or Hydraulic type
Gooseneck	For choice
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

We produce and sale 40 tons low bed semi trailer ,60 tons road roller transport trailer ,50 tons excavator transport trailer, Lowbed semi trailer ,Lowboy semi trailer for sale ,Equipment trailers, cheap trailer for sale ;size can be 10m to 16m .

Genron Brand Low bed semi trailer can be delivery for excavators , road rollers , tankers, water trucks and other equipment .some body want 40 tons low bed semi trailer ,50 tons low bed semi trailer,60tons low bed semi trailer ,The size can be design as customer requirements or according to the size of equipment.

1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation,

saving the packing materials to reduce the transport costs.

2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded.

3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

4. The diesel engine, providing compressed air.

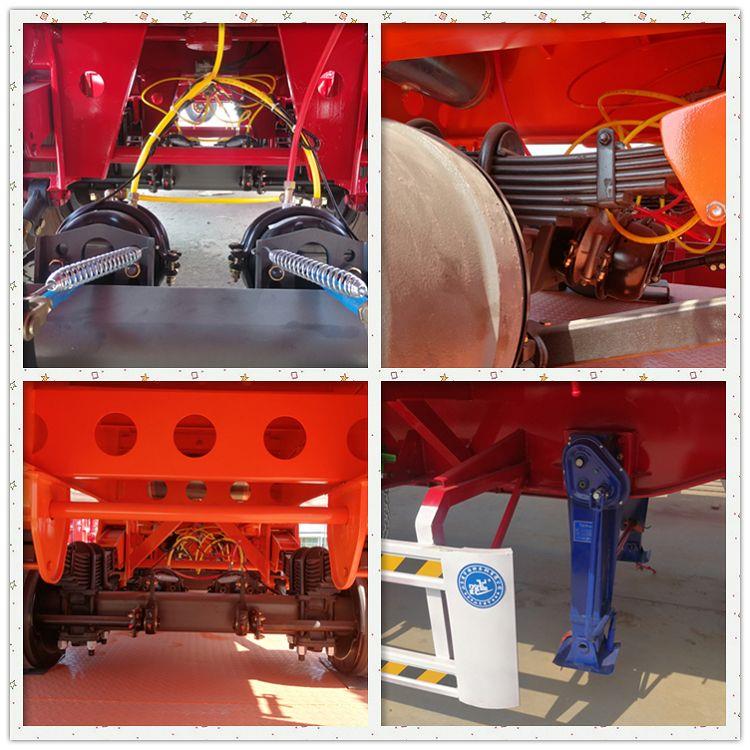

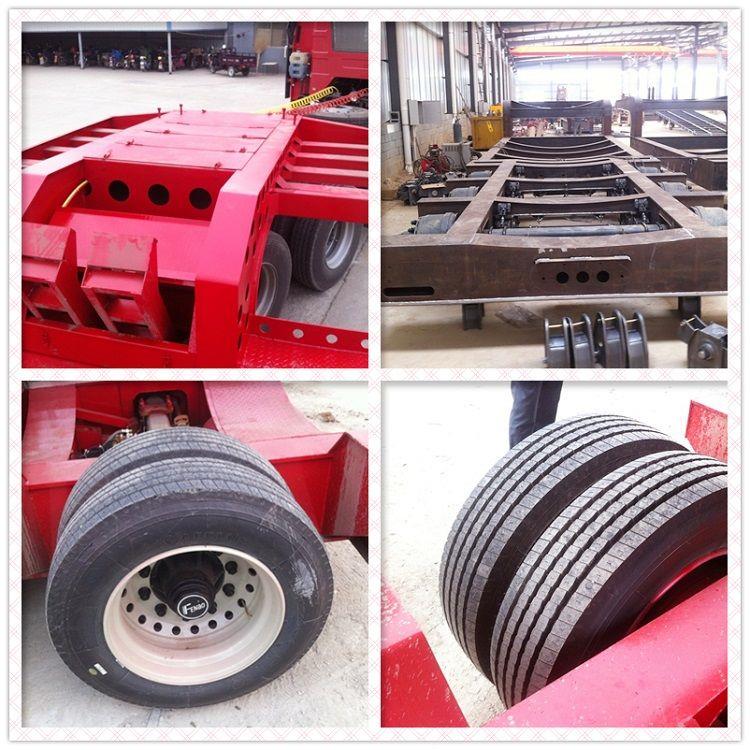

High bed semi trailer Parts pictures:

99.1(001)

99.2(001)

Electric Coating/Painting Process :

84(001)

The step of E-coating Process

Use this automatic washing machine can make the trailer all points very cleaning ,remove all residual. put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

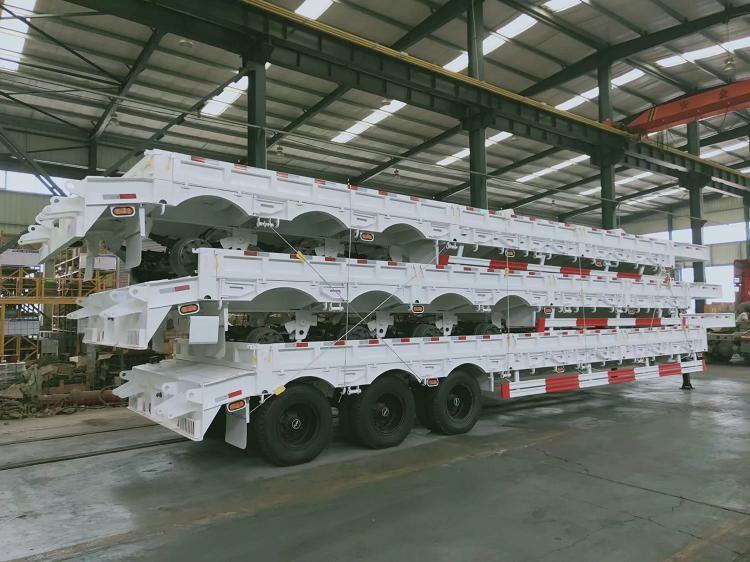

High bed semi trailer Shipping Item : A & B

99.3(001)

A : This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received

99.4(001)

B: If your order is two units flatbed trailer or double pieces，then you can choose to put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.

Before-sales service

* Inquiry and consulting support.

* Sample testing support.

After sale service

* Engineers available to service machinery overseas.
