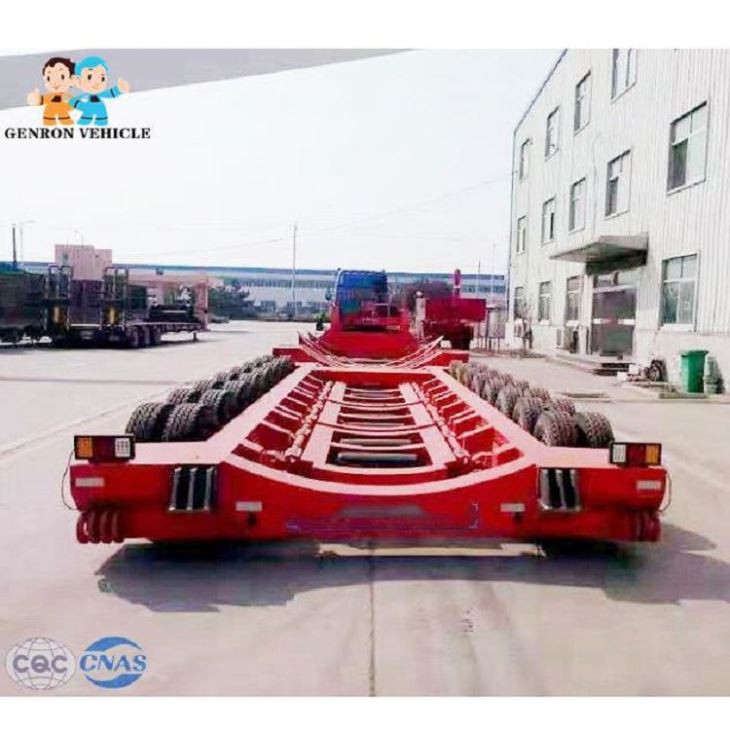

Heavy Machinery Transport Truck Trailer
The main body of the trailer was put into the drying room for electrophoretic drying, the temperature was adjusted to below 50℃, and then the powder spraying was carried out to steam it again to make its surface very smooth.
Send InquiryChat Now
1.Heavy machinery transport truck trailer –Delivery for heavy machinery
Tare Weight | About 8.5-13T |
Dimension | 13000mm*3000mm-3500mm*1650mm (Size can be chosen freely) |
Loading Capacity (T) | 40T-100T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market) |
Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, |
Side beam | 16mm -30mm channel steel ( Material is Q235steel ). |
Bottom Platform | 3-6mm thickness diamond steel plate |
Ladder | Manual or Hydraulic type |
Gooseneck | For choice |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light (Special for export market) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |

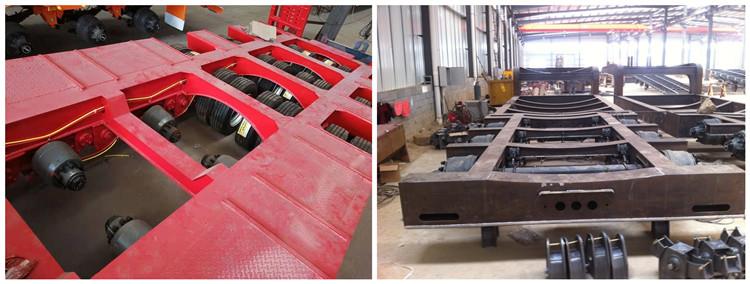

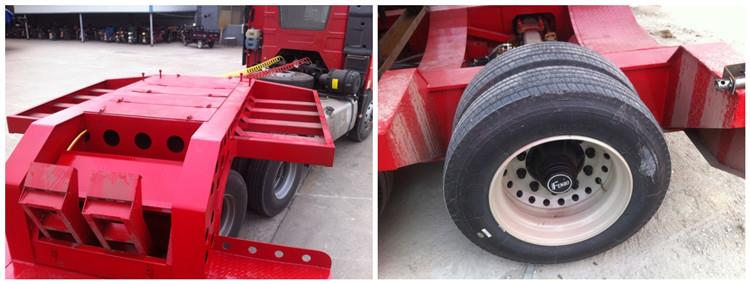

Heavy machinery transport truck trailer Spare Parts Show
Electric Coating/Painting Process :
The step of E-coating Process:
The main body of the trailer was put into the drying room for electrophoretic drying, the temperature was adjusted to below 50℃, and then the powder spraying was carried out to steam it again to make its surface very smooth. After spraying, it was in close contact with the trailer for 7 years.

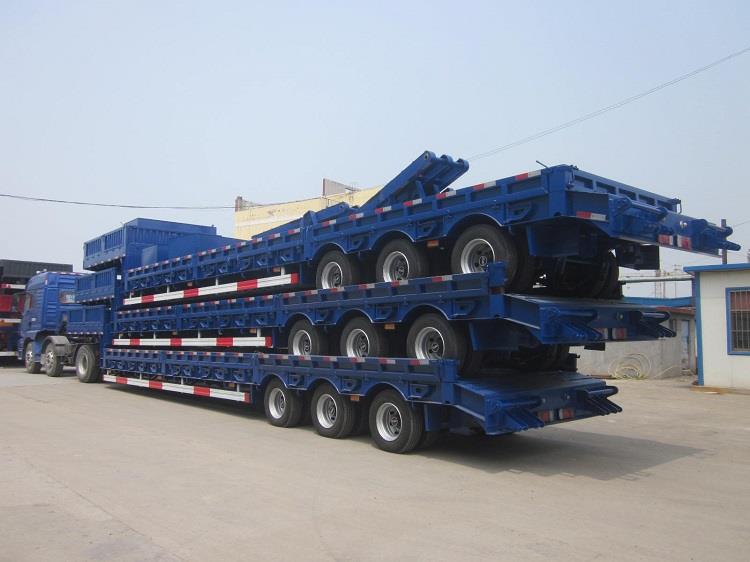

Heavy machinery transport truck trailer Shipping Item : A & B
A:
B:
Before-sales service
* Inquiry and consulting support.
* Sample testing support.
After sale service
* Engineers available to service machinery overseas.
Our Technical Support Team:
China as a global manufacturing center, Genron want to be your first service center in china. Genron composed by and efficient, experienced and reliable team, has low costs, competitively priced services and reliability reputation. We have ability to reduce risk and facilitate procurement in the mirror trade business averment through our comprehensive system and reliable factories.
The strong advantage of Genron company with other trading company is we have our own professional technical design team.If you uncertain your products or your own design,we can go to visit you ,help you checking and analysis your market and gave you special and right design according to your country situation. As our more than 11 years overseas visited record and exporting business experience focus on the trailer and truck filed ,we can gave you the right product in very short way.
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
