3 Axles/4 Axles Low Bed Semi Trailer
Low flat semi-trailer is usually used to transport heavy vehicles (such as tractors, buses, special purpose vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy goods. The lower the center of gravity, the better the stability and safety, and the more capable of transporting super high goods and passing overhead obstacles Strong.
Send Inquiry
3 axles/4 axles low bed semi trailer-- transport for heavy vehicles (such as tractors, buses, special purpose vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy goods.
Tare Weight | About 8.5-13T |

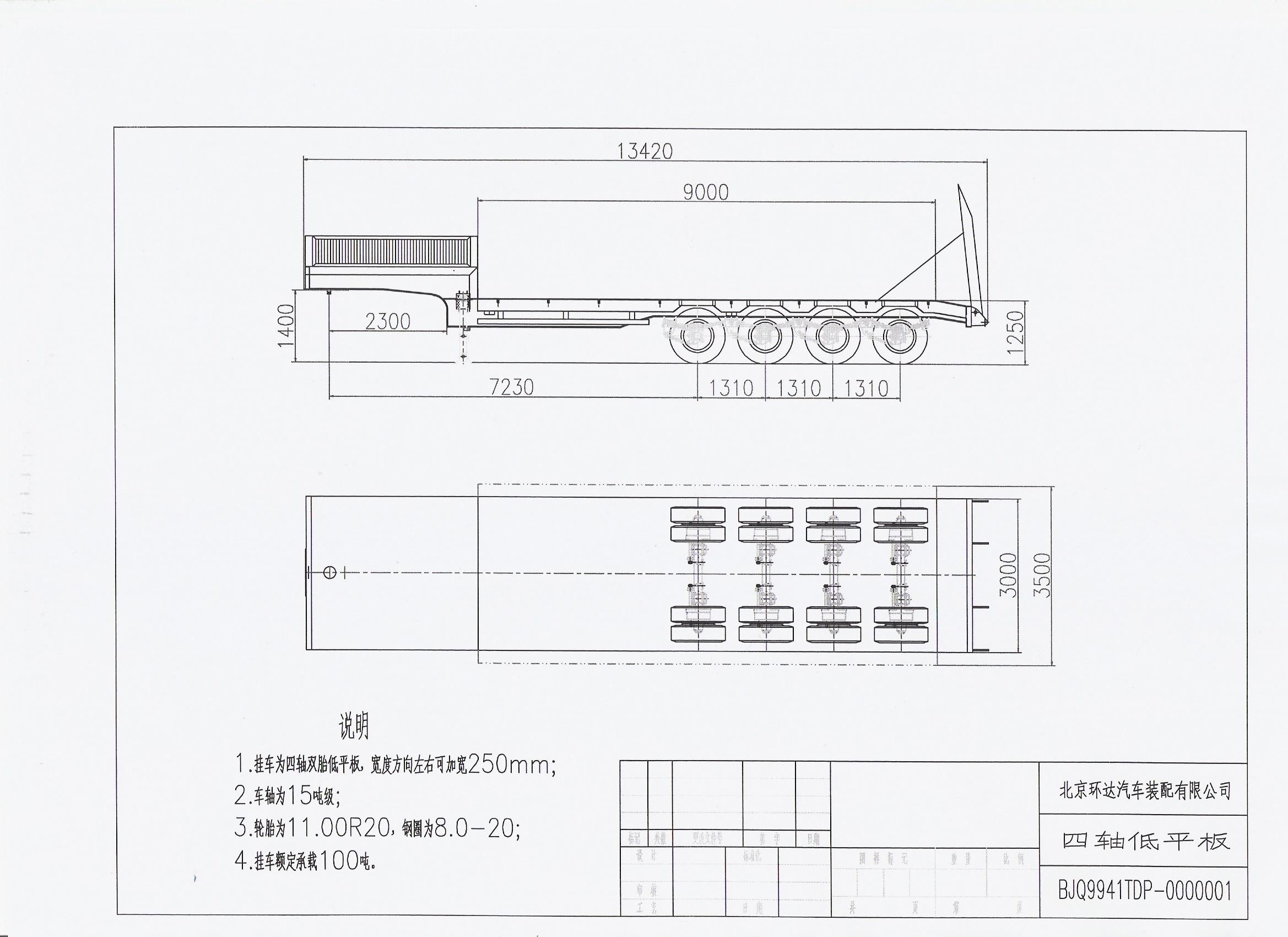

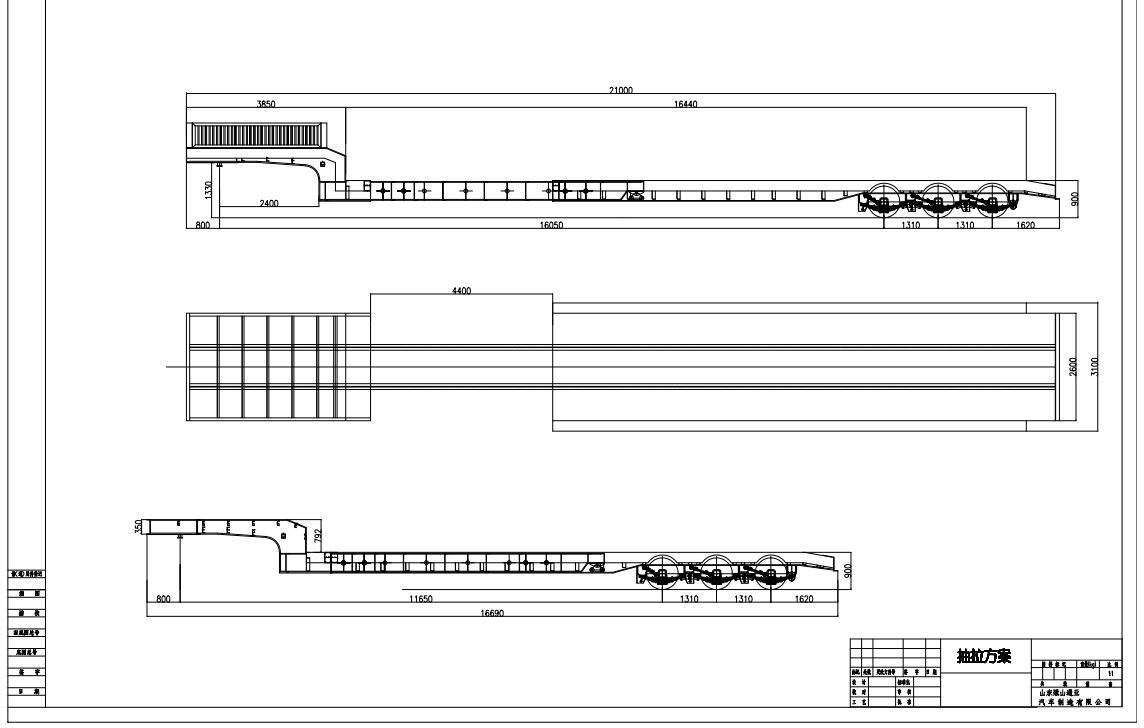

Dimension | 13000mm*3000mm-3500mm*1650mm (Size can be choose freely) |
Loading Capacity (T) | 40T-100T |
Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
Rim | 6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market) |
Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (Special for export market) |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
Side beam | 16mm -30mm channel steel ( Material is Q235steel ). |

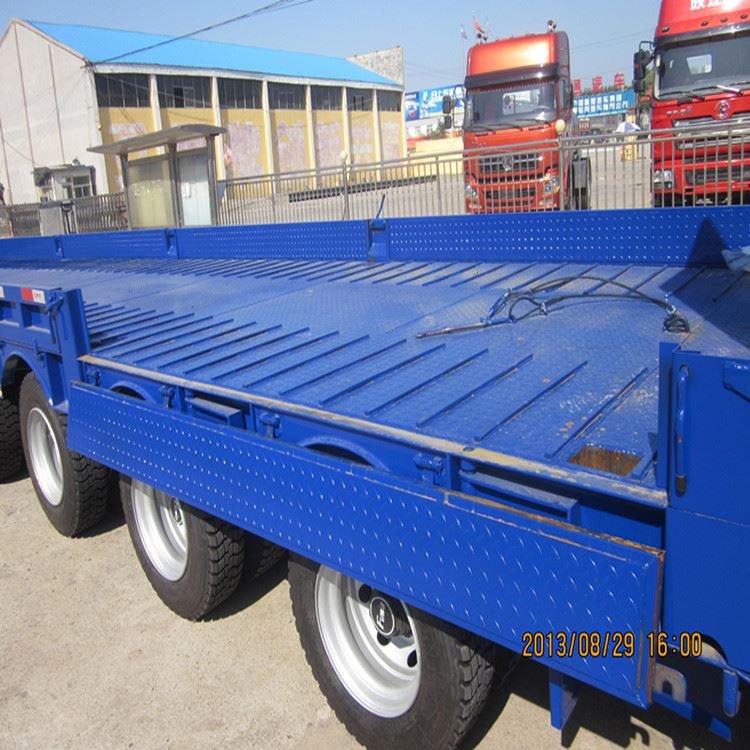

Bottom Platform | 3-6mm thickness diamond steel plate |

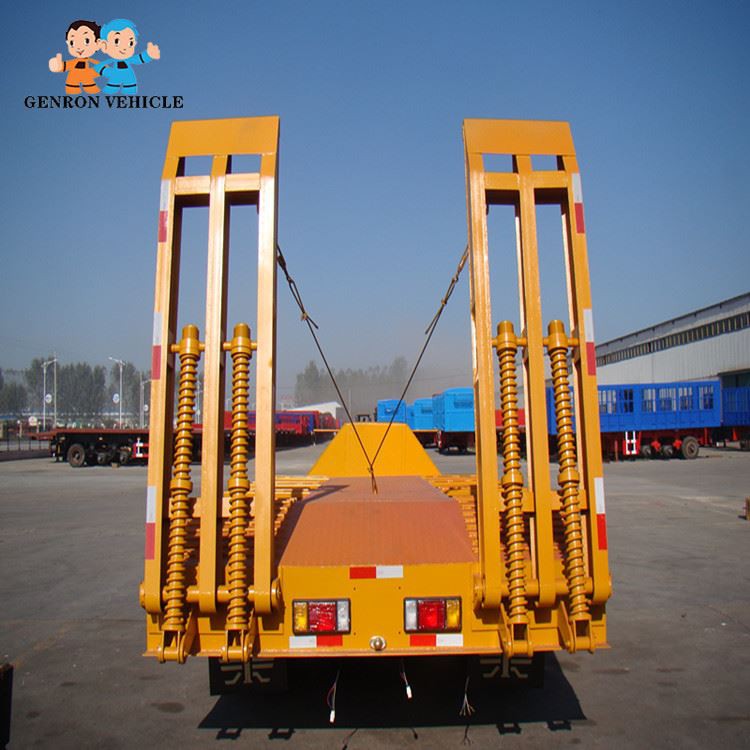

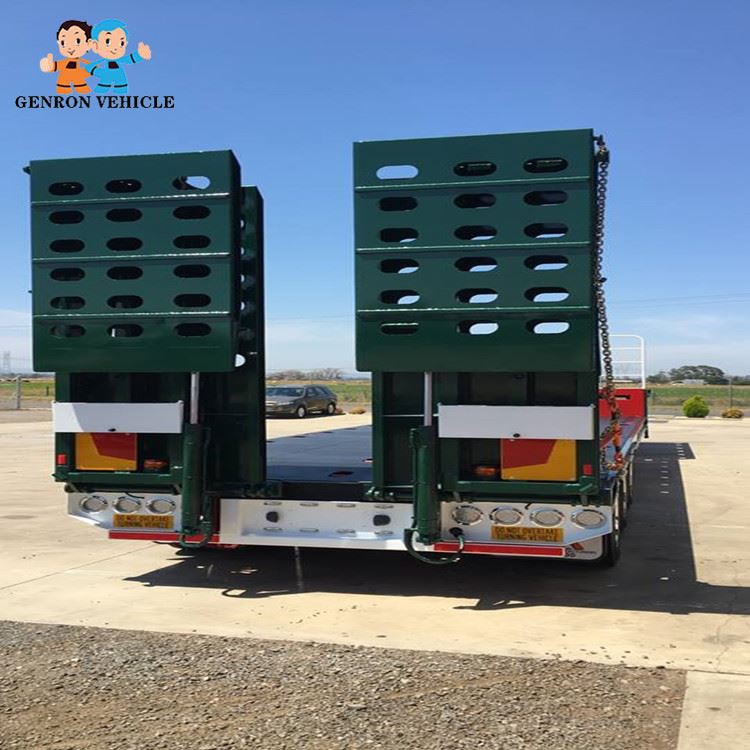

Ladder | Manual or Hydraulic type |
Gooseneck | For choose |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light (Special for export market) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Advantages of the low bed semi trailer
1. The low flat semi-trailer has no breast board, which can be divided into big goose neck type and small goose neck type. It is widely used in medium and long-distance freight transportation.
2. The low plane of rack column ensures the stability of transportation, and is suitable for carrying all kinds of construction machinery, large equipment and steel.
Details of the low bed semi trailer
FAQ
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A: T/T or L/C
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it
