Lowbed Trailer for Heavy Machinery

The body of the vehicle is made of high-quality steel, advanced technology and strict production. The whole vehicle has reasonable structure, reliable performance, simple operation and beautiful appearance.

Send Inquiry

102.1(001)

1.lowbed trailer for heavy machinery –For delivering heavy machinery

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm (Size can be chosen freely)
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market)
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (Special for export market)
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform	3-6mm thickness diamond steel plate
Ladder	Manual or Hydraulic type
Gooseneck	For choice
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Features

1.The body of the vehicle is made of high-quality steel, advanced technology and strict production. The whole vehicle has reasonable structure, reliable performance, simple operation and beautiful appearance.

2.The series of semi-trailers are of the beam-type structure, and the stringers are straight or gooseneck. The web height is welded from 400mm to 550mm manganese plate, the longitudinal beam is automatically buried and welded, the frame is shot peened, the beam is inserted into the stringer and welded.

3.Widely used in different areas, mainly used in long-haul freight transport.

4.Reasonable structure, strong rigidity and strength, can be used to impact the bearing the strike.

5.Customized design to meet different customer needs.

6.Advanced Manufacturing Technology

Laser cutting, robot automatic welding, reliable quality

7.Advanced painting technology

KTL electrophoresis + powder spraying, instead of traditional paint process, has good anti-corrosion effect and long paint life.

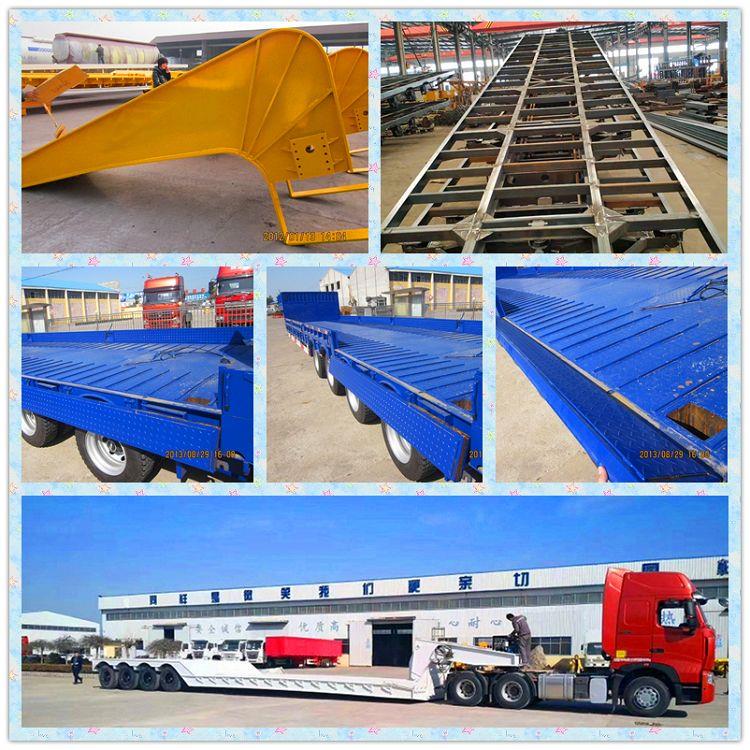

Lowbed trailer for heavy machinery Spare Parts Pictures:

101.6_SD 101.1_S

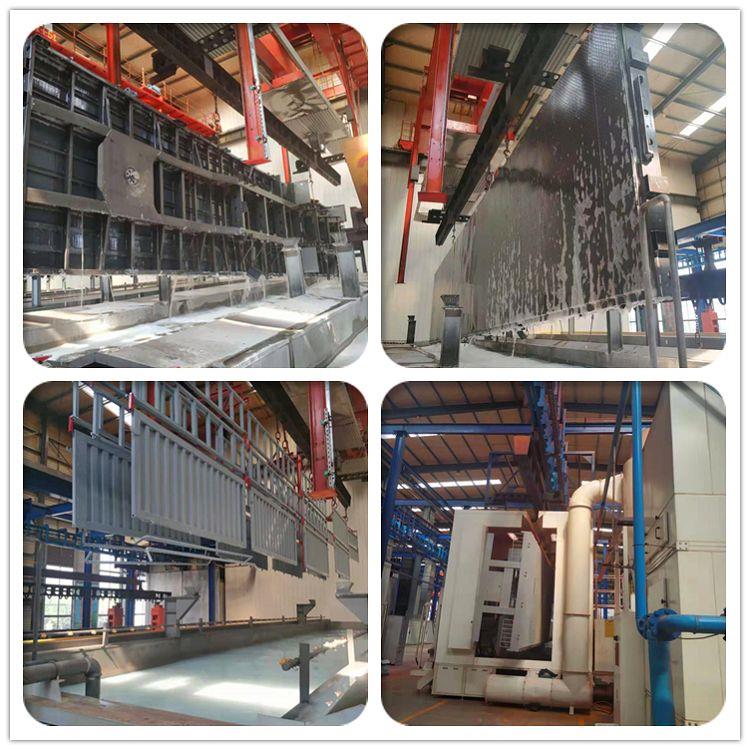

E-coating :

84(001)

The first step of E-coating :

Use this automatic washing machine can make the trailer all points very cleaning ,remove all residual.

85.5(001)

Second Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

Lowbed trailer for heavy machinery Shipping Ways : A & B

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Advantage: no need welding ,can be work directly after you received

99.4(001)

B: If your order is two units flatbed trailer or double pieces you can choose put two units body into one 40HQ container for shipping ,and cut down the gooseneck after you received the trailer you should connecting them welding the two parts together ,Its easily work for welding man.

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.
