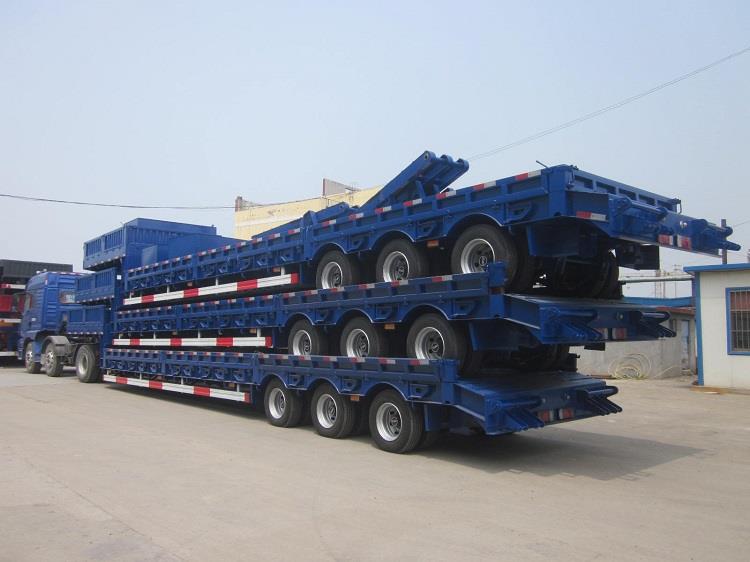

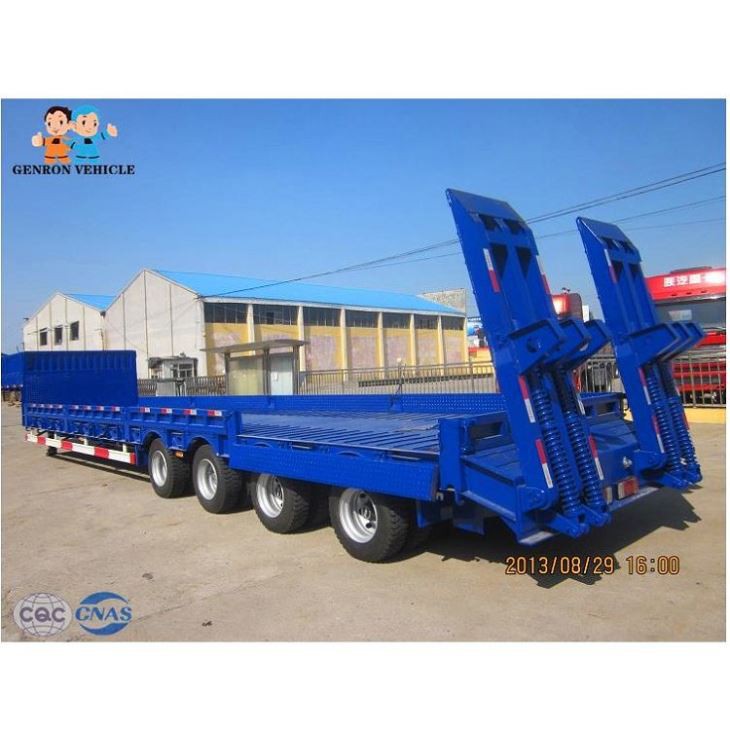

Lowboy Trailer Long Vehicle

We will give you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.

Send Inquiry Chat Now

98.1(001)

1.lowboy trailer long vehicle –Delivery for heavy machinery.

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm (Size can be chosen freely)
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market)
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (Special for export market)
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform	3-6mm thickness diamond steel plate
Ladder	Manual or Hydraulic type
Gooseneck	For choice
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

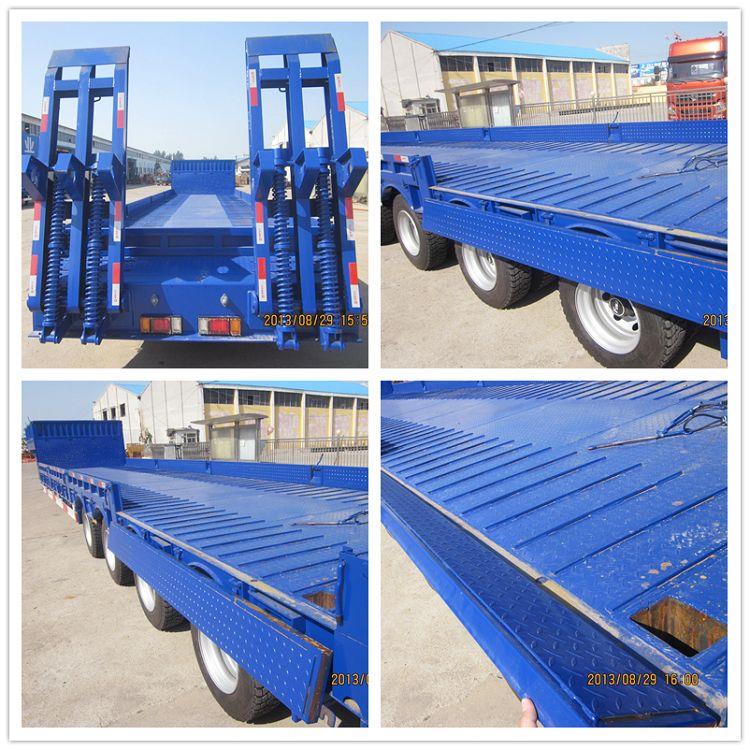

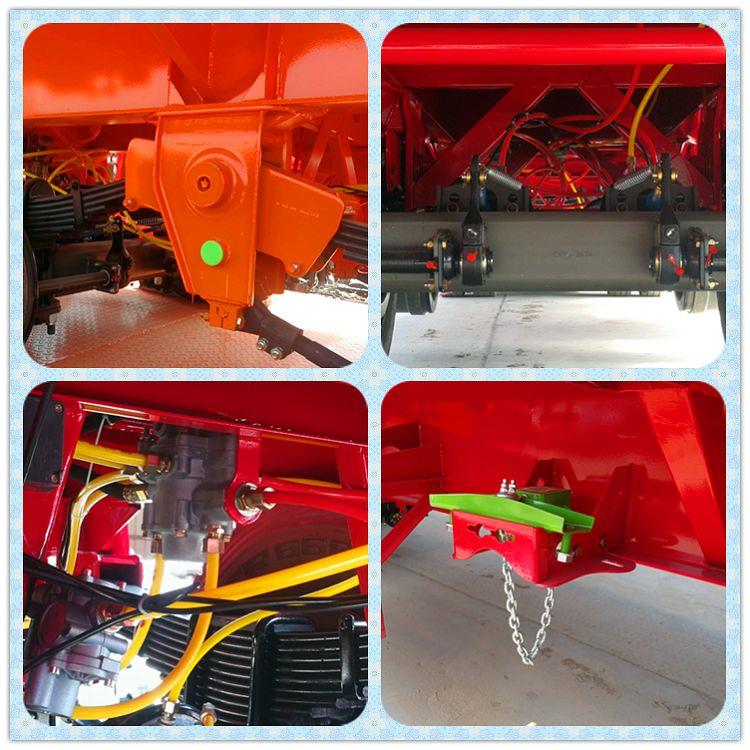

Lowboy trailer long vehicle Parts Picture Show:

98.3(001)

98.4(001)

Painting:

84(001)

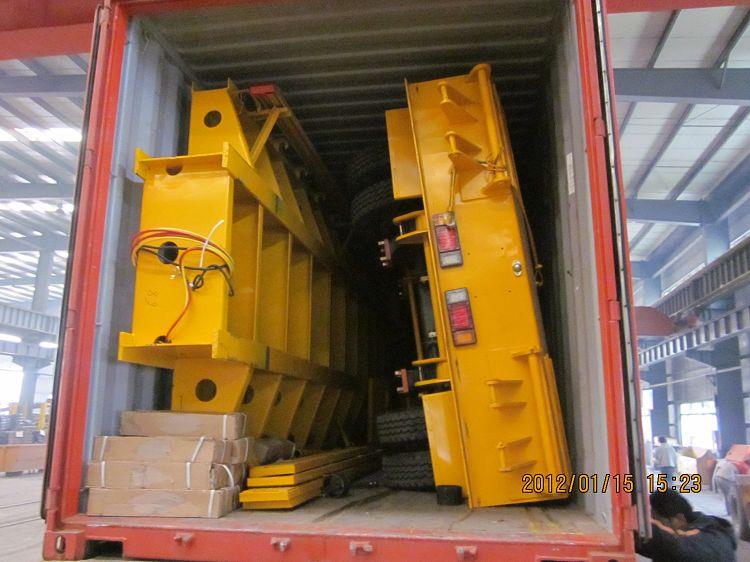

Lowboy trailer long vehicle Shipping Item : A & B

98.5

B: I

98.6(001)

Before sale service

We will give you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

How about delivery time?

In general, 15-25 working days after receive deposit, depending on the purchase quantity.

What about your products quality?

Quality is our culture! "Our factory has advanced production technology and management team!

We always attach great importance to quality controlling from the very beginning!

How to guarantee customers get the goods smoothly after they pay?

We had joined the trade assurance, you can place the order by trade assurance, and the deposit will be given to Alibaba. if we don't delivery products on time, the deposit will return to you.

Can you paint our company logo on the trailer?

Yes, it is available, you can send to me the logo picture before trailer finished, we will put your company logo on the trailer.
