Product introduction:
Tare Weight | About 8.5-13T |
Dimension | 13000mm*3000mm-3500mm*1650mm (Size can be chosen freely) |
Loading Capacity (T) | 40T-100T |
Axle | 13 T/16T, FUWA Brand |
Rim | 8.5-20 |
Tire | 8.25R20 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (Special for export market) |
King pin | JOST brand3.5inch bolts type |
Support leg | China brand 28Tons (Double speed) |
Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
Side beam | 16mm -30mm channel steel ( Material is Q235steel ). |

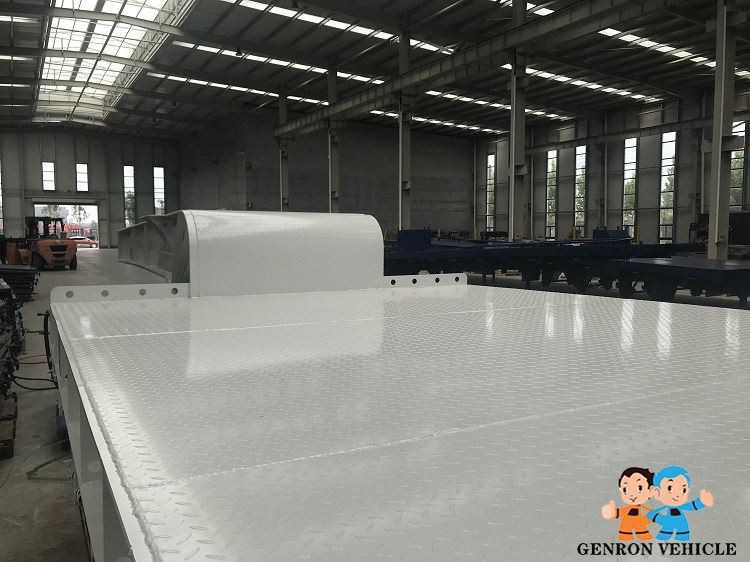

Bottom Platform | 3-6mm thickness diamond steel plate |
Ladder | Manual or Hydraulic type |
Gooseneck | For choice |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways |
Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |

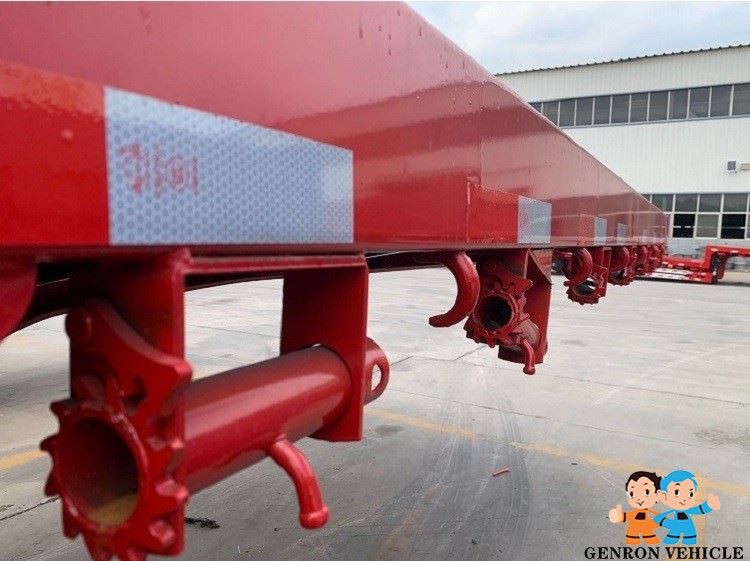

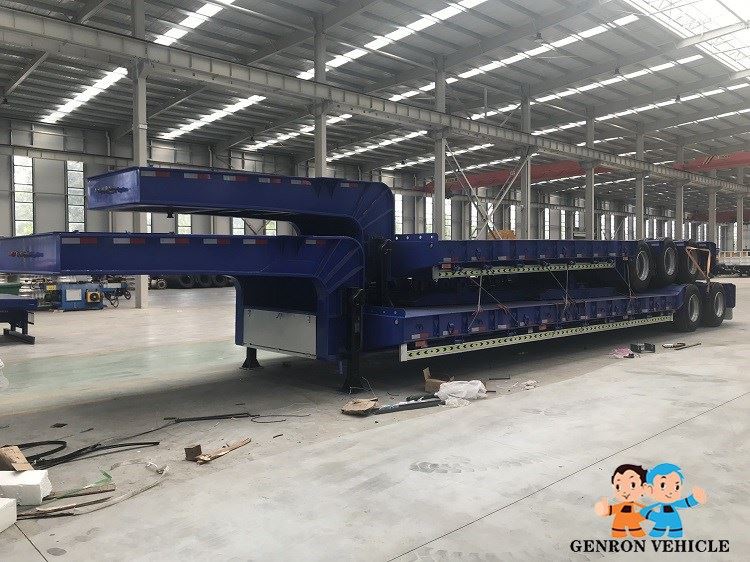

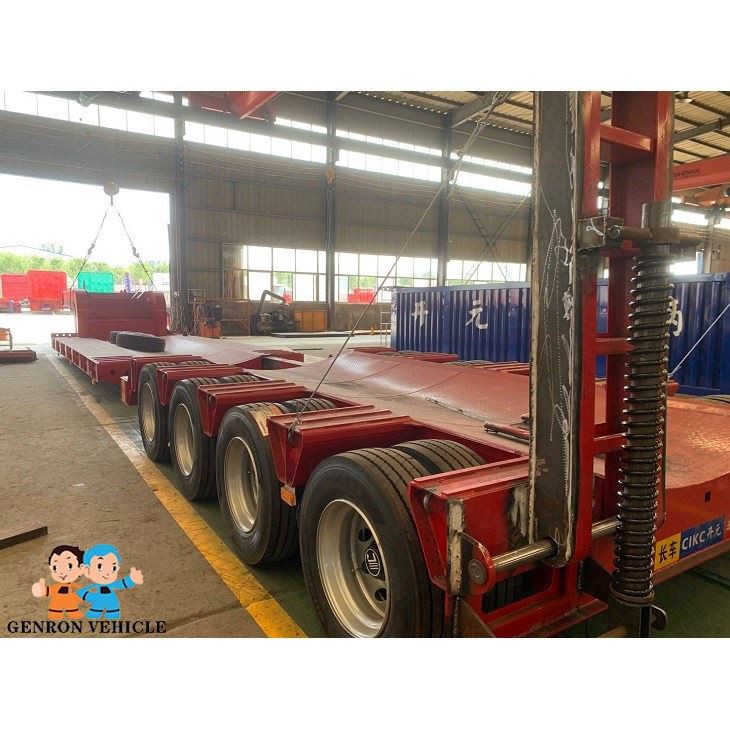

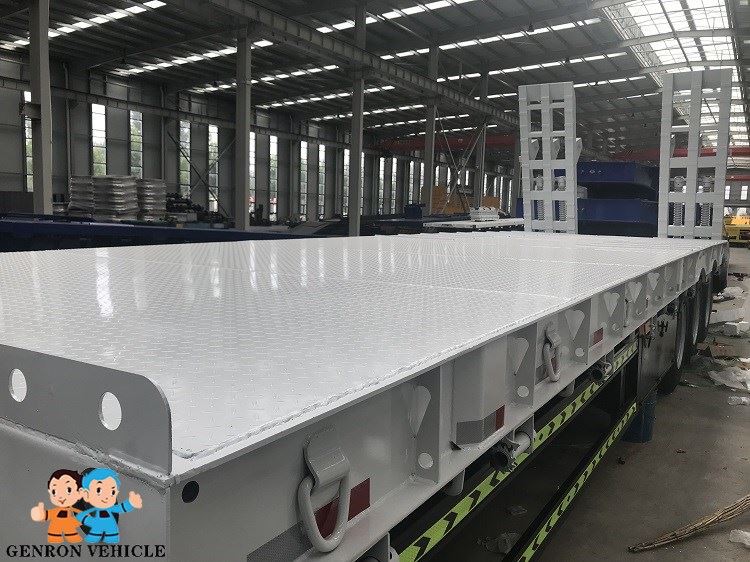

Detail information:
Certification:

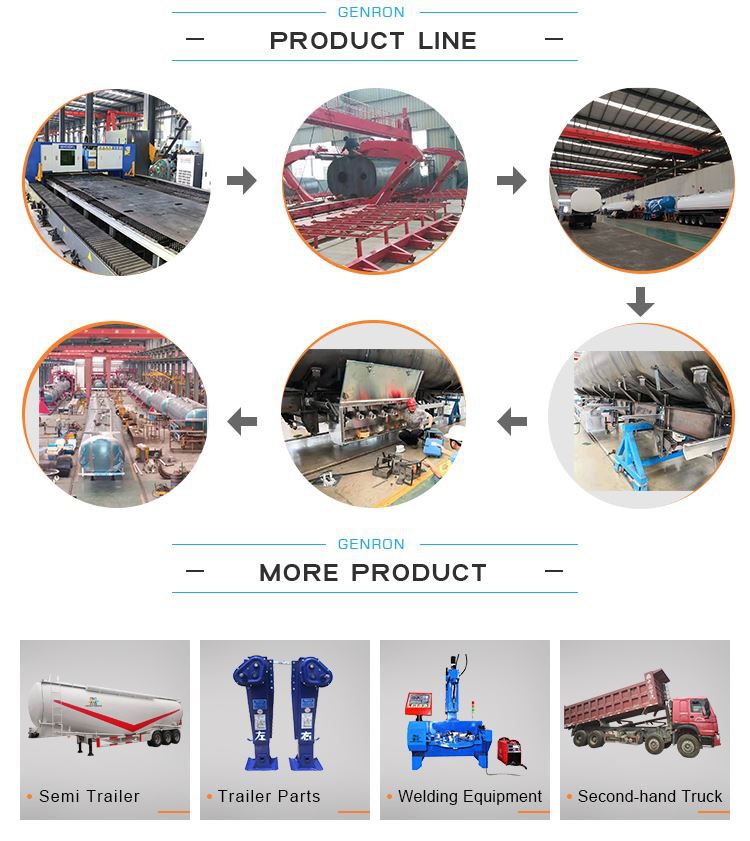

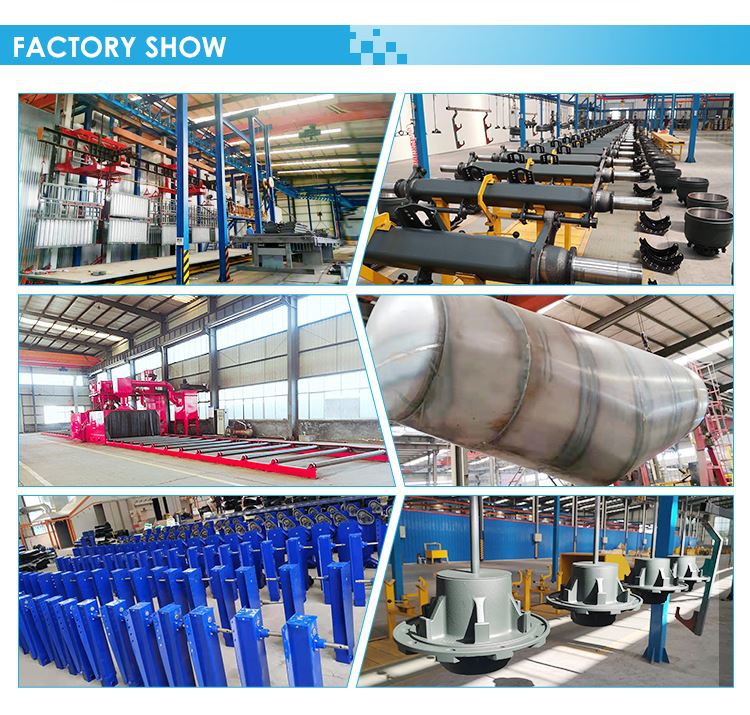

Our Factory:
Our customer:
