Side Wall Semitrailer With Mechanical Suspension
side wall SEMI TRAILER –Delivery for 40FT or 20FT containers and groceries, bags, etc.
Send InquiryChat NowProduct Display

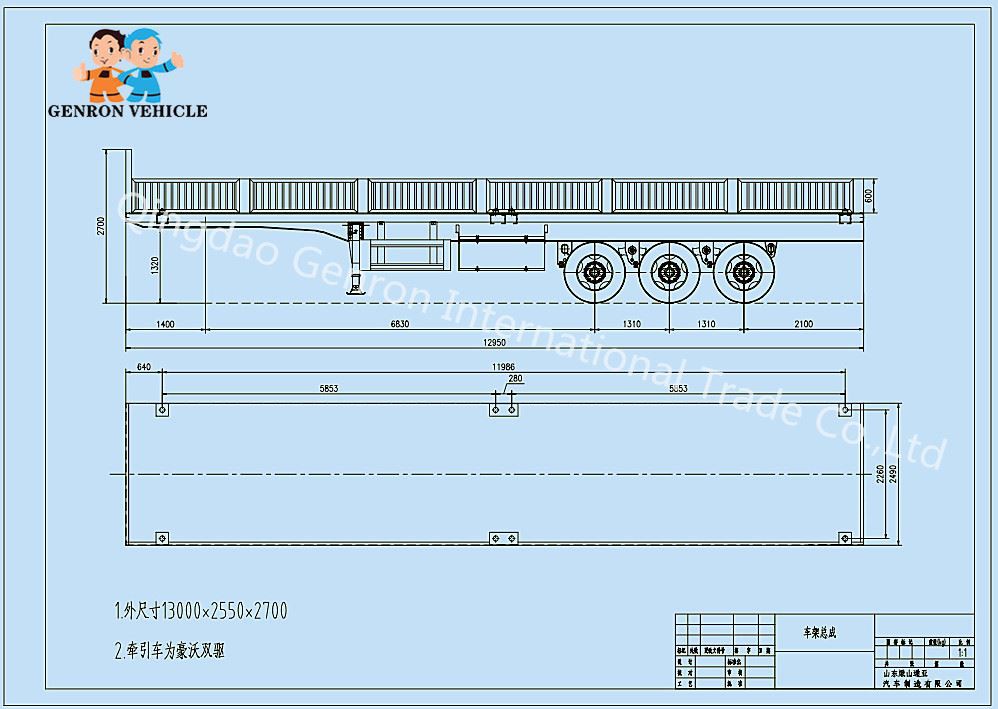

The Drawing of the side wall semi trailer

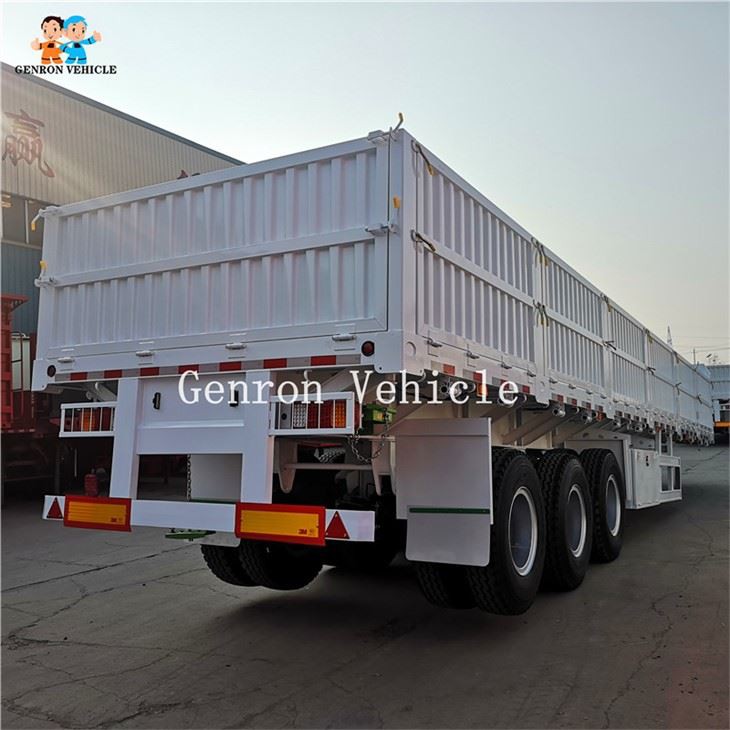

Side Wall Semitrailer With 3 Axles Mechanical Suspension used to delivery bulk cargo
Product Description
1.SIDE WALL SEMI TRAILER –Delivery for 40FT or 20FT containers and groceries, bags, etc.
2. The loading part of the rail type semi-trailer is the semi-trailer with the rail structure. It is widely
used in medium and long-distance transportation of medium and heavy and bulk goods. According to
the special requirements of customers, our company can also add container lock or detachable column
for container (40 feet and 20 feet) transportation or timber transportation. It has become the first choice
of medium and long-distance freight vehicles.
3. The frame of drop side semi-trailer is of beam through structure, and the longitudinal beam is of
straight or gooseneck type. The height of web plate is 450mm to 550mm, the longitudinal beam is welded
by automatic submerged welding, the frame is shot peened, and the cross beam is penetrated into
the longitudinal beam and welded as a whole.

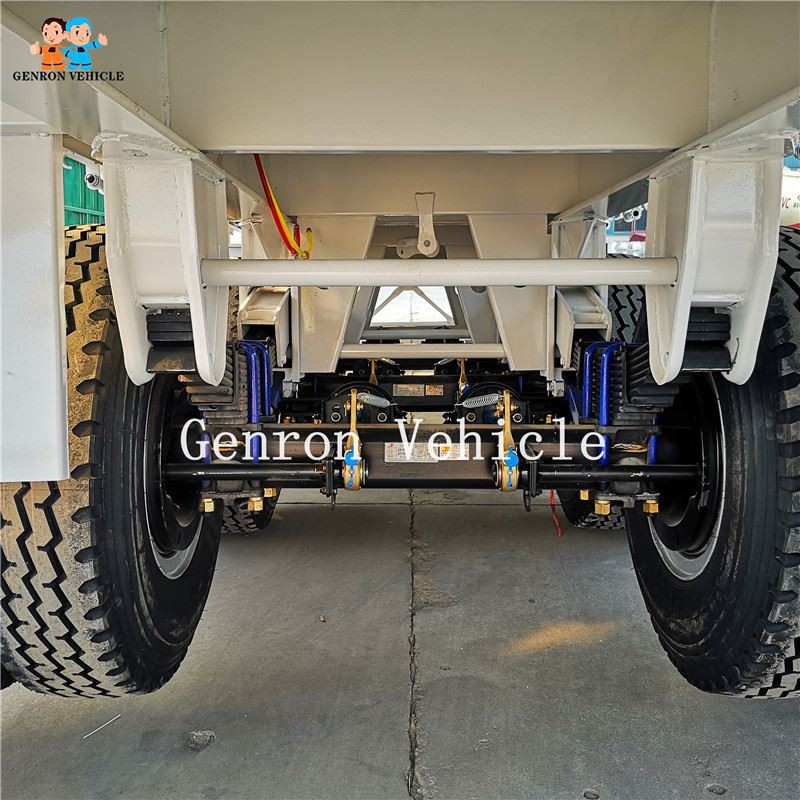

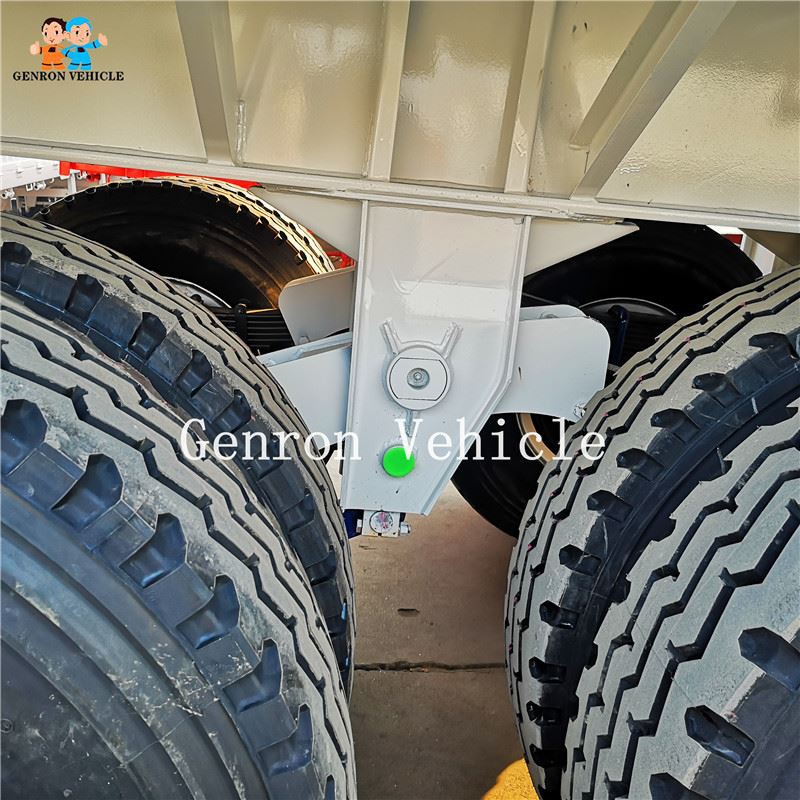

4. Suspension system: new air suspension, American or German mechanical suspension system,
with high strength and strong impact resistance; the load of each axle is balanced, and the angle of system
pull rod is reasonably designed. In the process of frequent bumps, the friction and slip distance between
the tire and the ground can be reduced, and the tire wear can be effectively reduced. At the same time,
the pull rod can be adjusted, and the wheelbase can be adjusted to effectively avoid the eccentric
running in of the tire Gnawing wheel phenomenon
5. It can be designed separately according to the different needs of customers, or tell us that the medium
of the goods you carry is different. We will design the corresponding model for you to meet
the personalized needs of customers
6. Transportation: because the breast board can be made of disassembly type, if the height of the breast
board is less than 80cm, the transportation mode can refer to the mode of 40 foot container transport and trailer,
and bulk carrier or container transportation can be selected.

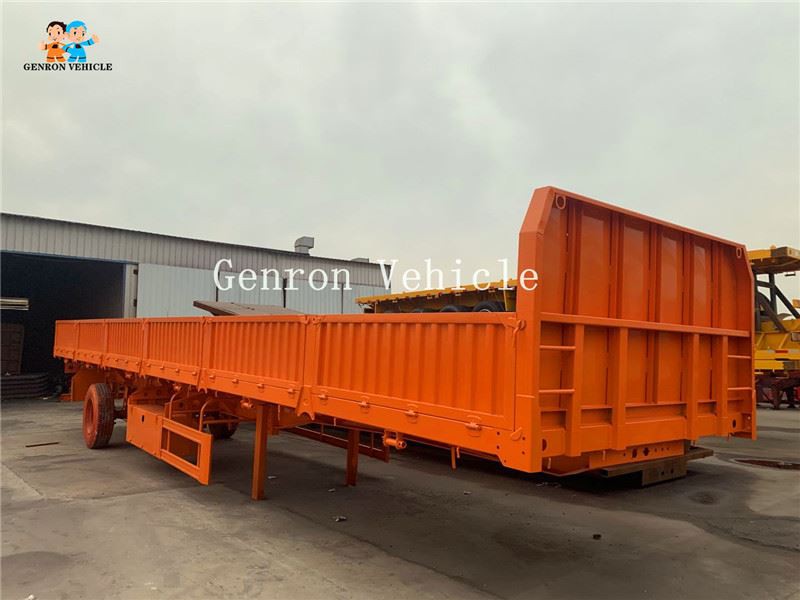

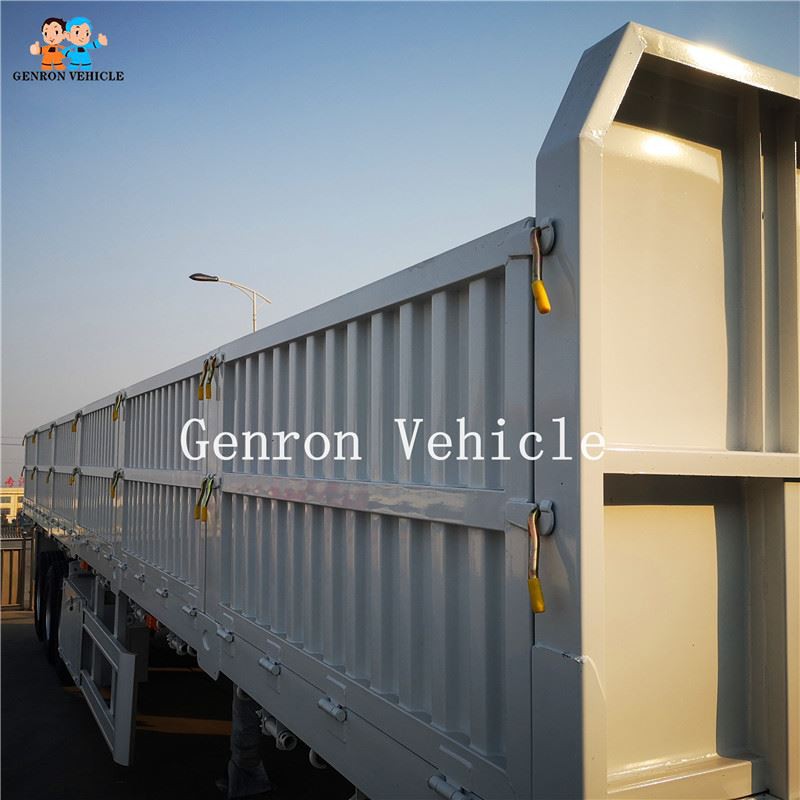

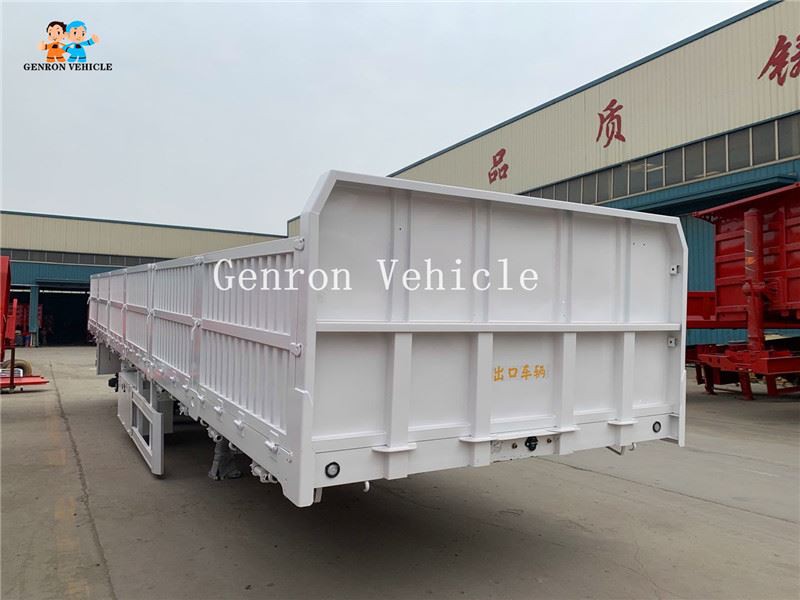

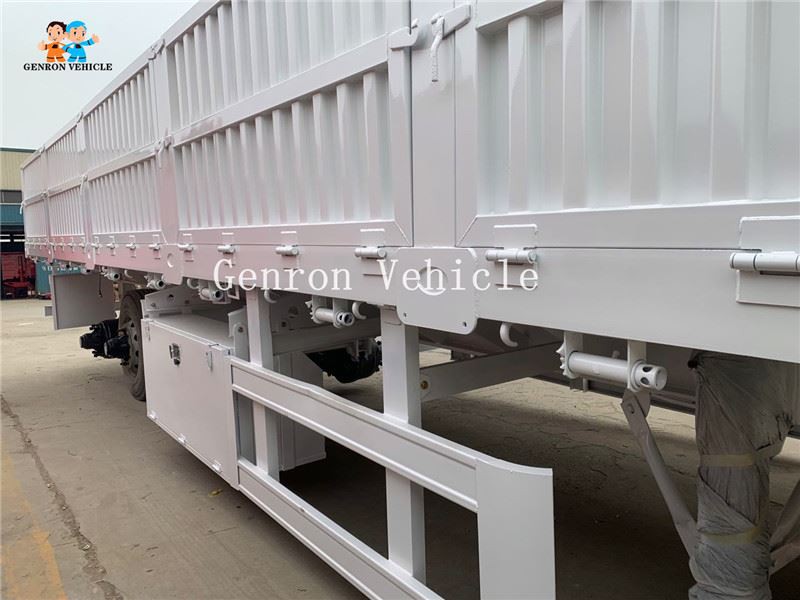

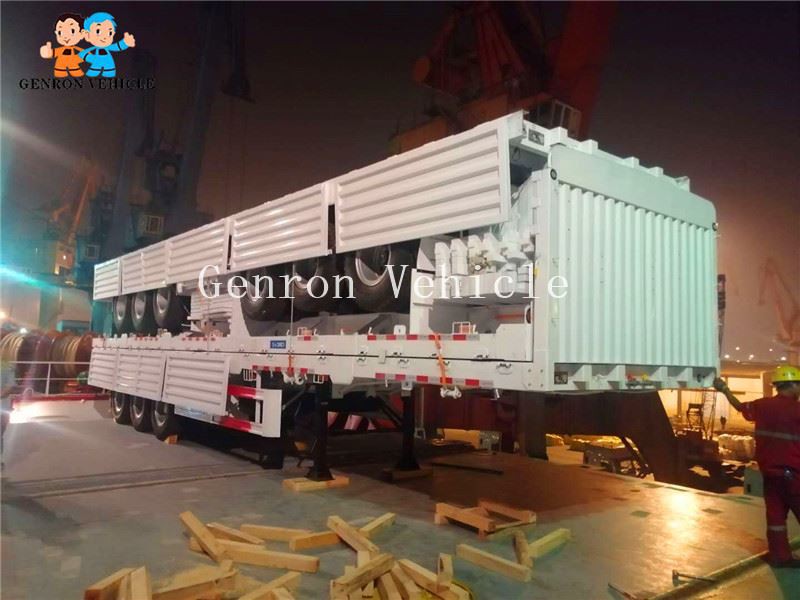

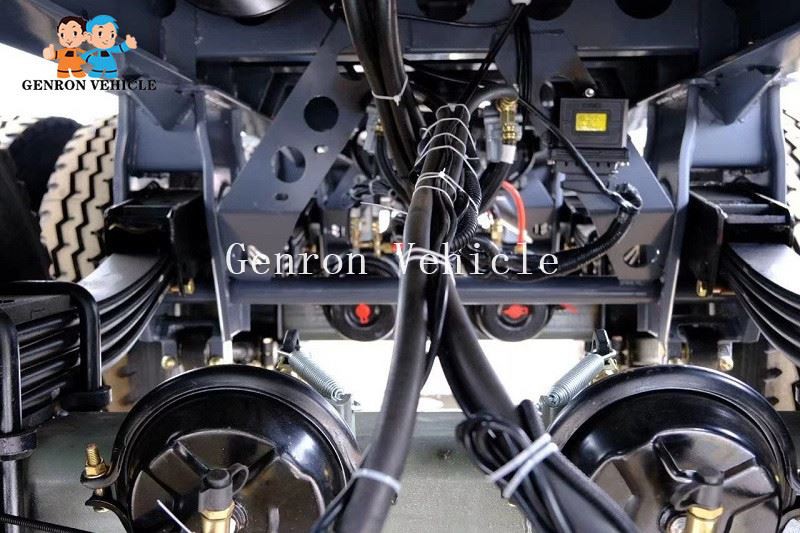

The Details of the Side wall semitrailer
Product Configuration
Side Wall Semitrailer With 3 Axles Mechanical Suspension used to delivery bulk cargo
Tare Weight | About 7.6T |
Dimension | 13000mm*2490mm*2860mm |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
Rim | 9.00-22.5 9.75-22.5（special for export market ） |
Tire | 12.00R22.5/ 315 80R22.5 （special for export market） |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) （special for export market ） |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 （special for export market） |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom Platform | 3mm diamond steel plate |
Side Wall | 600mm-1500mm ，or can be do box type ,for choose |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
Valve | WABCO valve |
Light | LED light （special for export market ） |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Our company
Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers,
trailer parts and Man-hand Welding Machinery, Automatic Welding machinery, Trailer Production
Line Etc. We have our own factory which produce trailers for more than 15 years,
Our CEO Mrs. Zhao have 11 years export Construction and trailer trucks experiences;
She have visited more than 22 countries for checking trailer truck markets.
We can supply the right product in shortest ways and cheapest value.
The strong advantage of Genron company with other trading company is we have our own professional
technical design team.If you uncertain your products or your own design,we can go to visit you ,
help you checking and analysis your market and gave you special and right design according to your country situation.
As our more than 11 years overseas visited record and exporting business experience focus on the trailer and truck filed ,
we can gave you the right product in very short way.

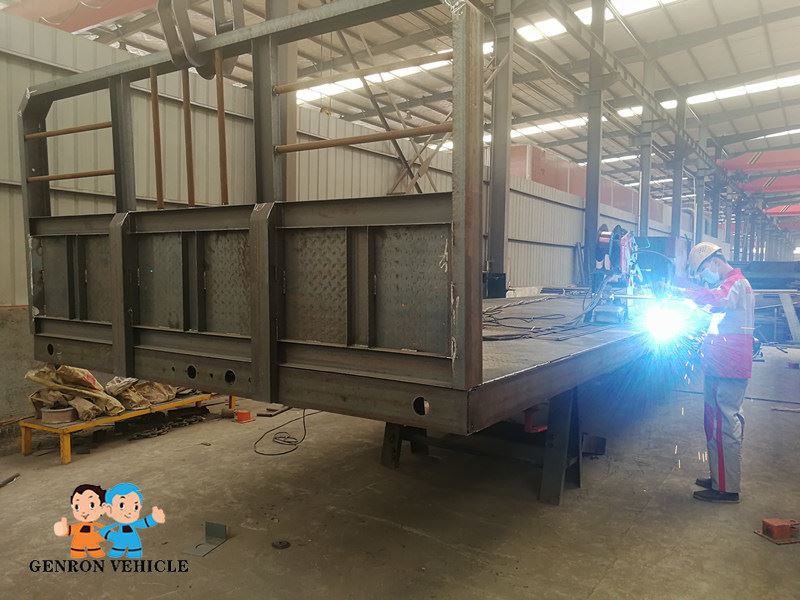

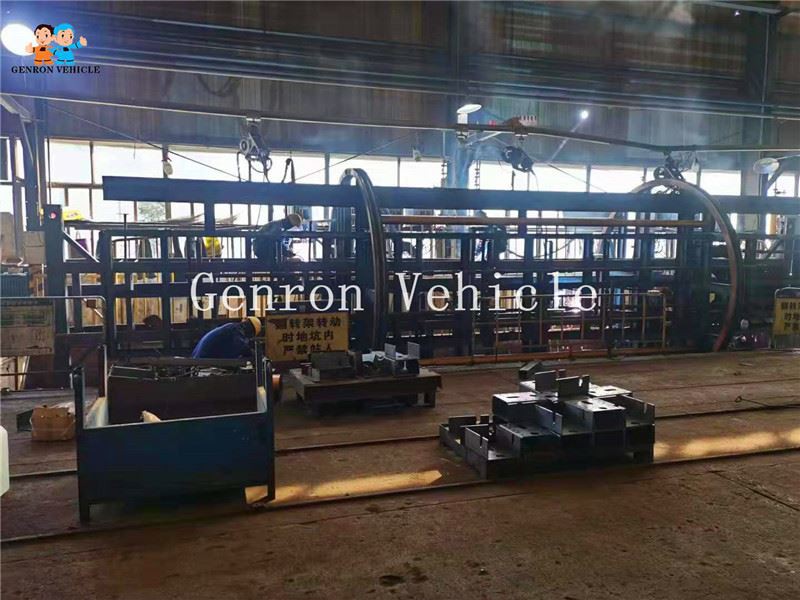

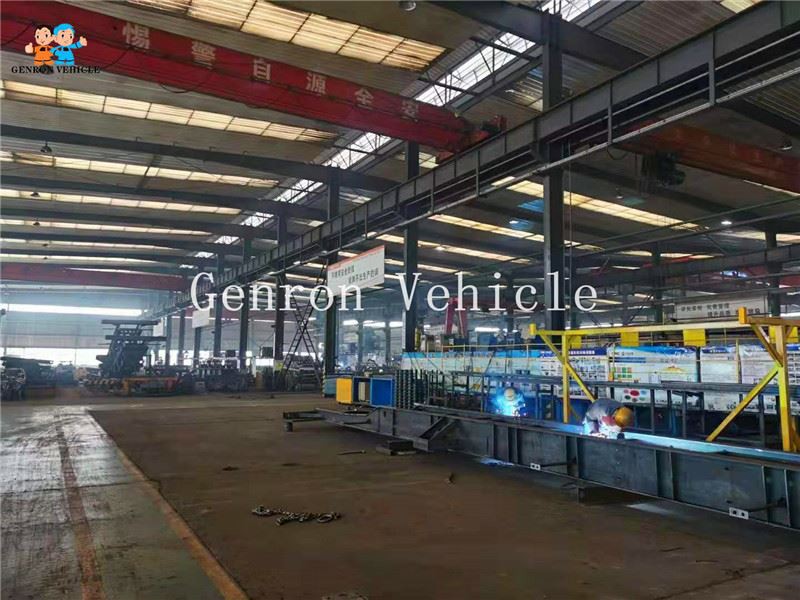

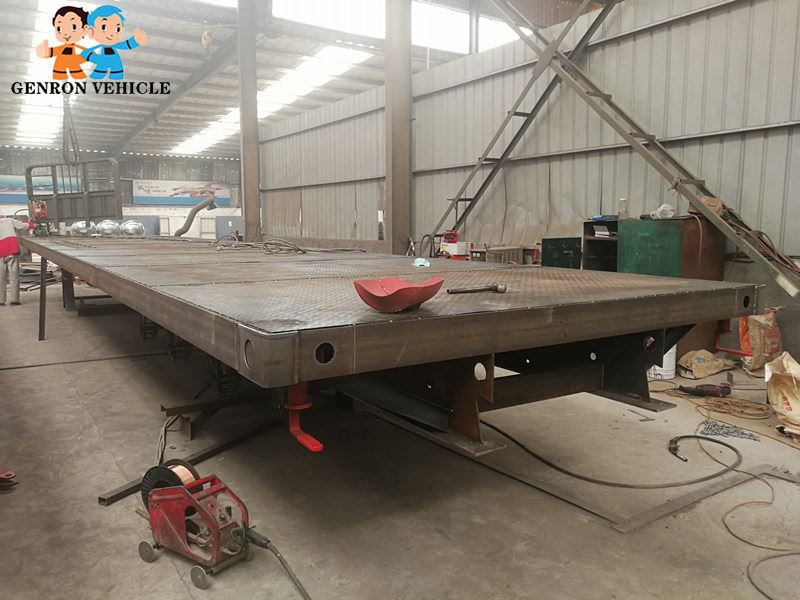

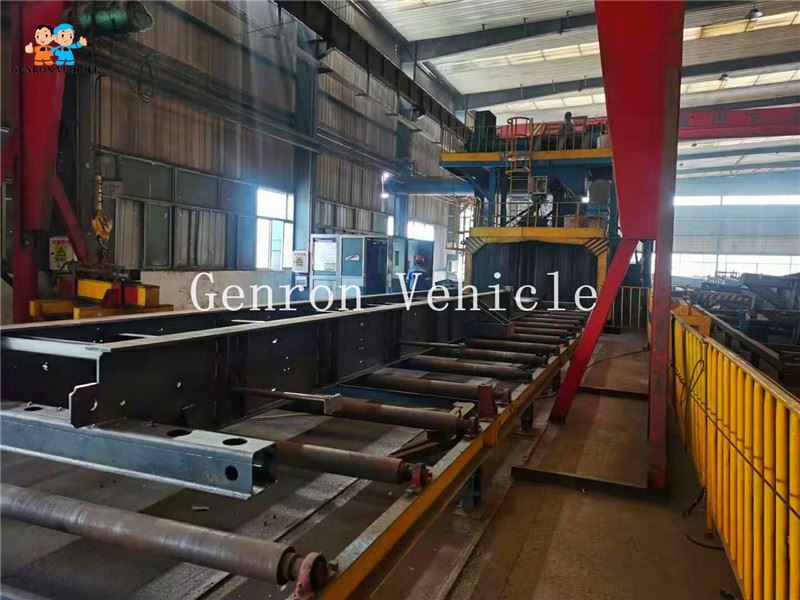

The factory workshop

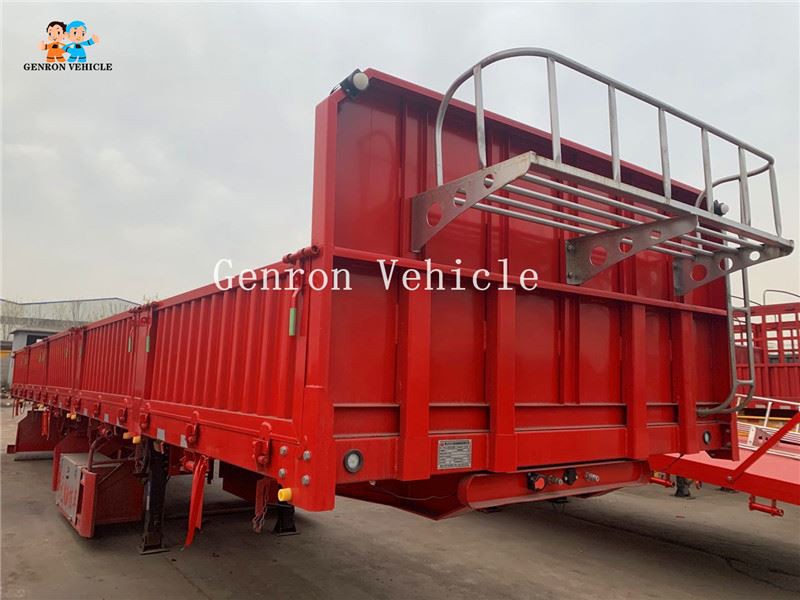

Other products

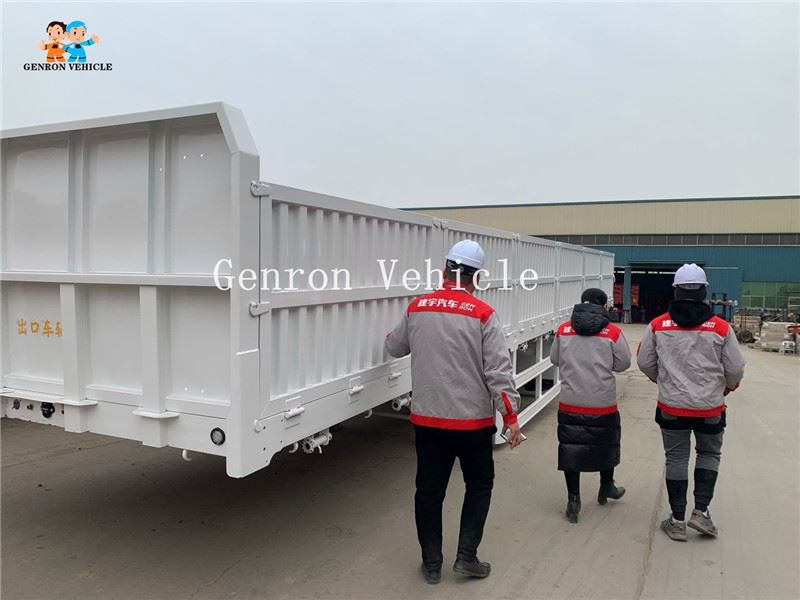

Our Customer

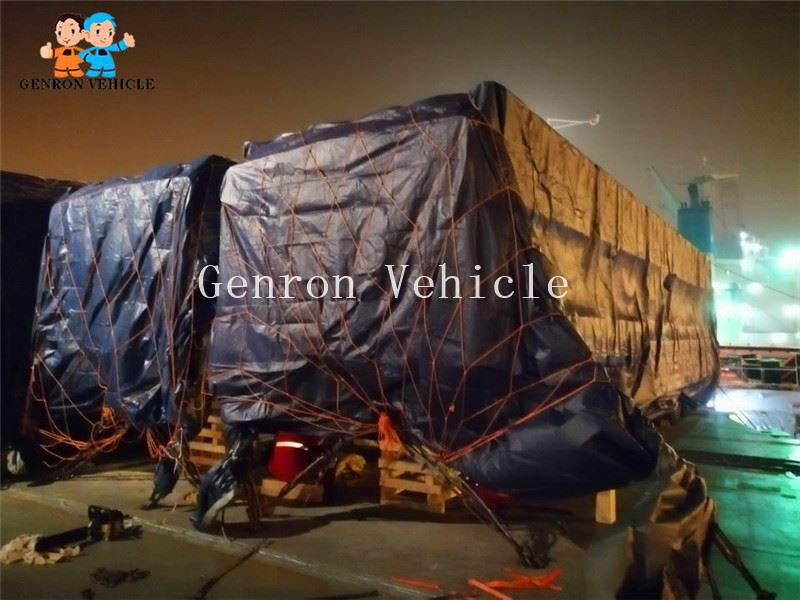

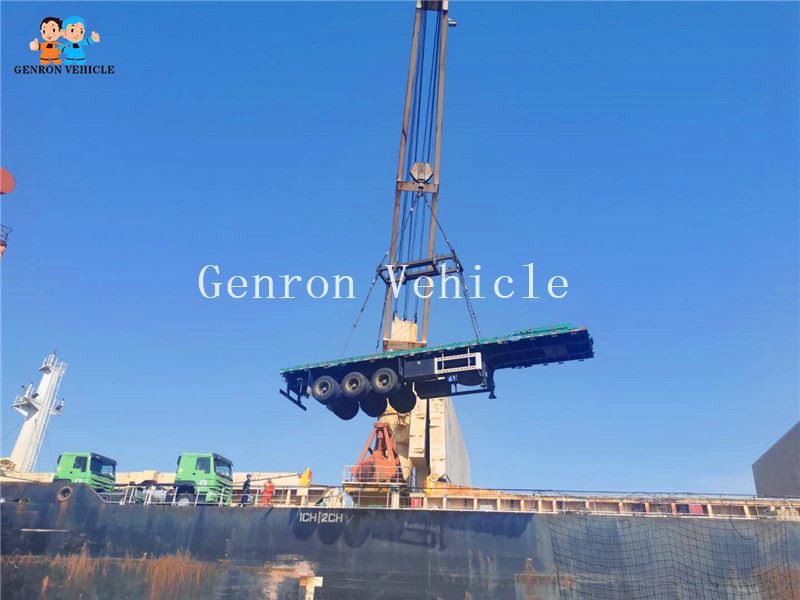

Delivery And Shipping
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable
price according to the trailer quality .The best expensive brand is CIMC
( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money .
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time
after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
