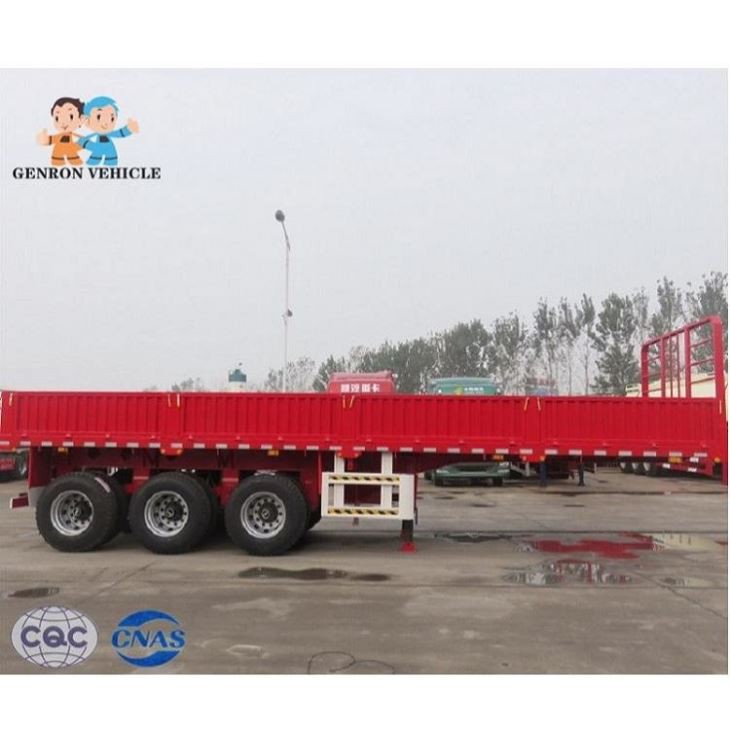

Side Wall Semi Trailer

Name: Side Wall Semi Trailer
Brand: Genron
SKU: 89002728

Professional China Side Wall Semi Trailer, Cargo Box Semi Trailer, Sideboard Semi-trailer, By integrating manufacturing with foreign trade sectors

Send Inquiry Chat Now

85.7(001)

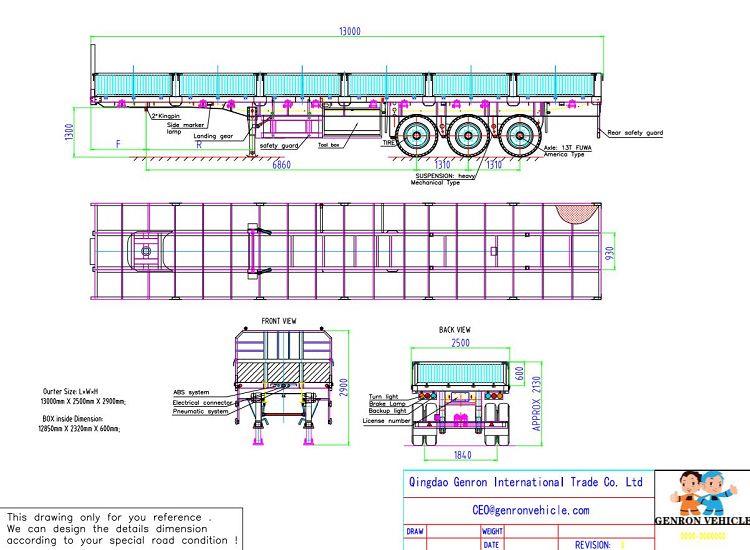

1.side wall semi trailer –For shipping beer case or cement powder bags and other bulk cargo.

Tare Weight	About 7.6T
Dimension	13000mm2490mm2860mm
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5（special for export market ）
Tire	12.00R22.5/ 315 80R22.5 （special for export market ）
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) （special for export market ）
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 （special for export market ）
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Bottom Platform	3mm diamond steel plate
Side Wall	600mm-1500mm ，or can be made into box type ,for choice
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
Valve	WABCO valve
Light	LED light （special for export market ）
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Our firm sticks towards the basic principle of "Quality could be the life of your organization, and name may be the soul of it" for Professional China Side Wall Semi Trailer/cargo Box Semi Trailer/sideboard Semi-trailer, Our corporation insists on innovation to promote the sustainable enhancement of enterprise, and make us become the domestic high-quality suppliers.

Professional China Side Wall Semi Trailer, Cargo Box Semi Trailer, Sideboard Semi-trailer, By integrating manufacturing with foreign trade sectors, we can supply total customer solutions by guaranteeing the delivery of right products and solutions to the right place at the right time, which is supported by our abundant experiences, powerful production capability, consistent quality, diversified product portfolios and the control of the industry trend as well as our mature before and after sales services. We'd like to share our ideas with you and welcome your comments and questions.

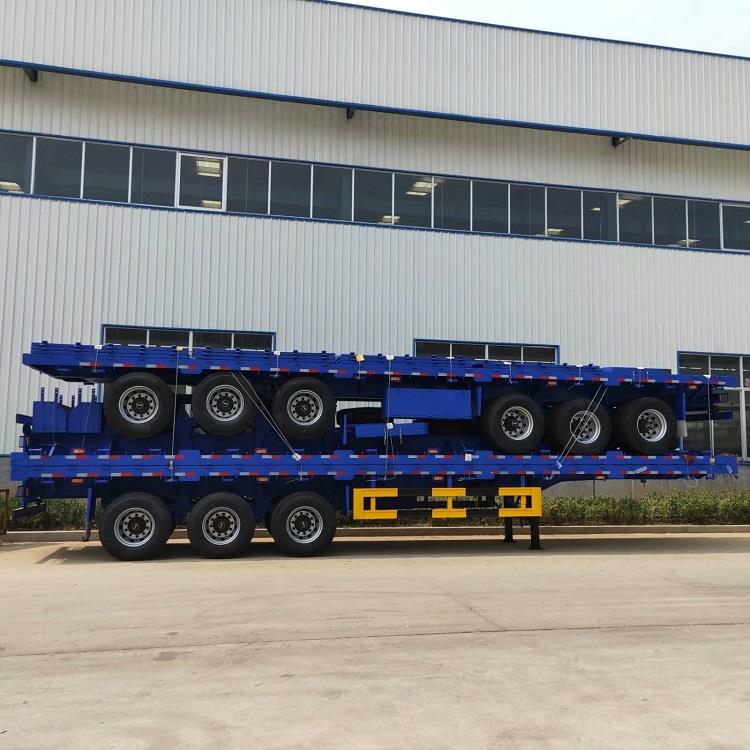

The shipping way of Side Wall Semi Trailer :

This package for roro ship or bulk cargo ship delivery .

If your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Advantage: no need welding ,can be work directly after you received.

85.9

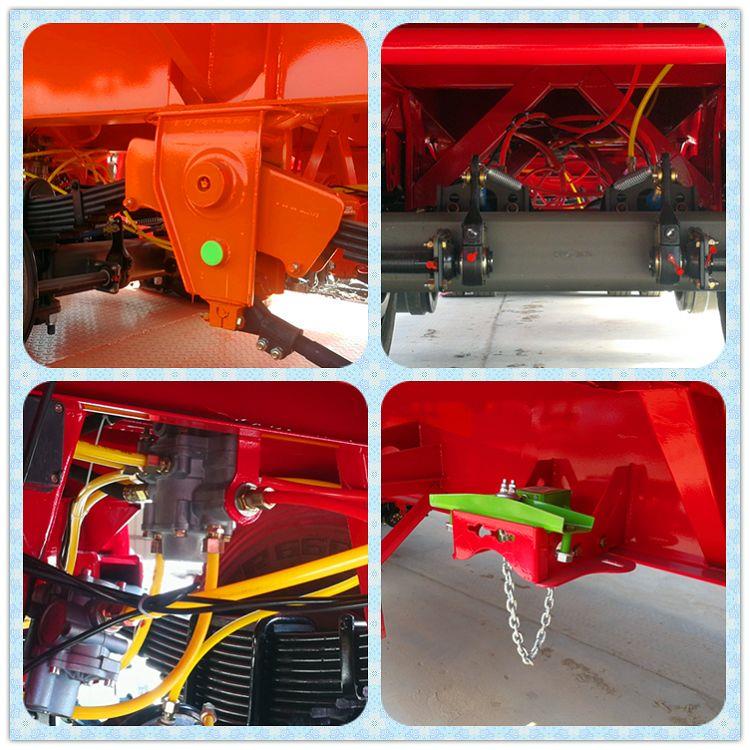

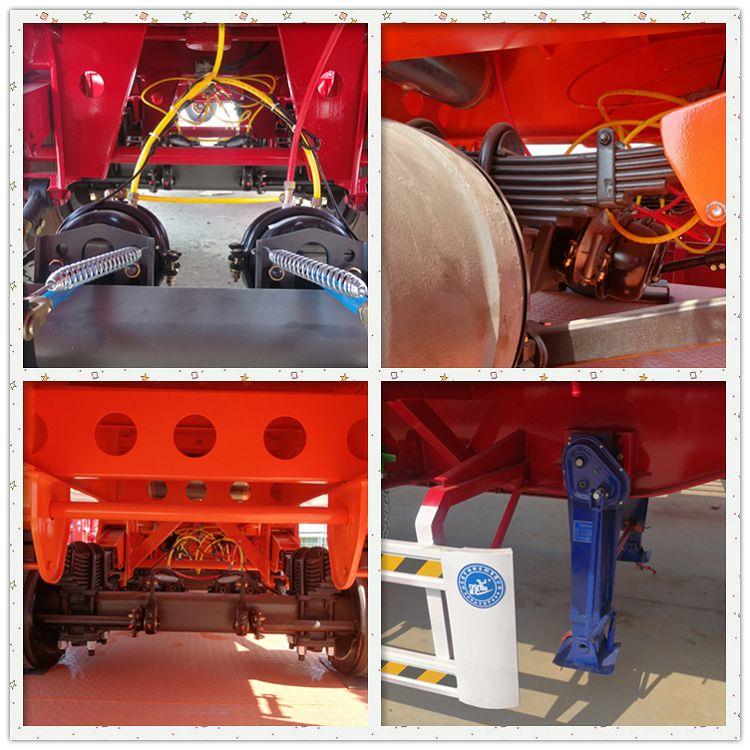

Side Wall Semi Trailer Spare Parts pictures:

86(001)

85.2(001)

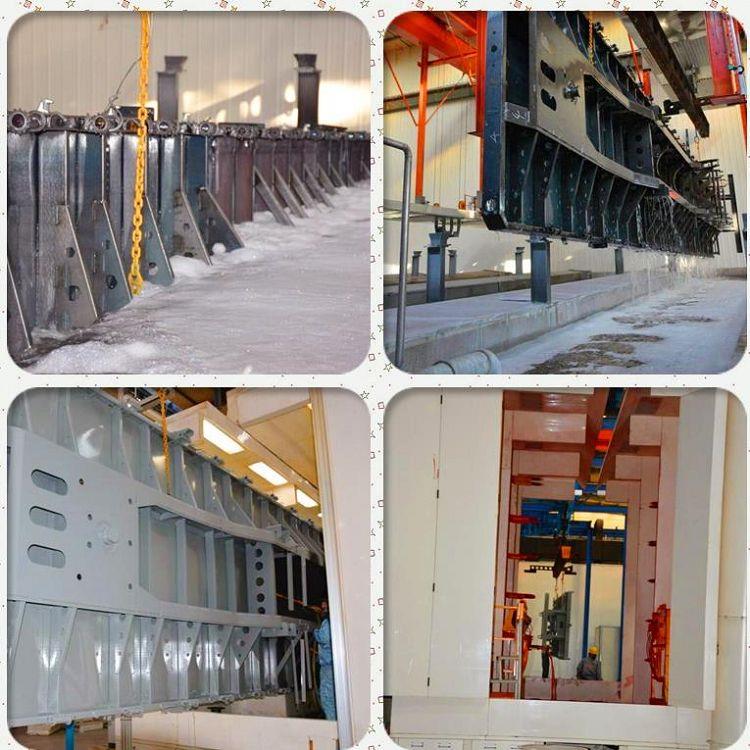

Electric Coating Process :

84(001)

85.5(001)

Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under 50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

Before sales service

We will give you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.

After sale service

We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.

We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.

We can go to your place to teach your team how to operate the trailer or our machines .

Technical Team:

85.6(001)
