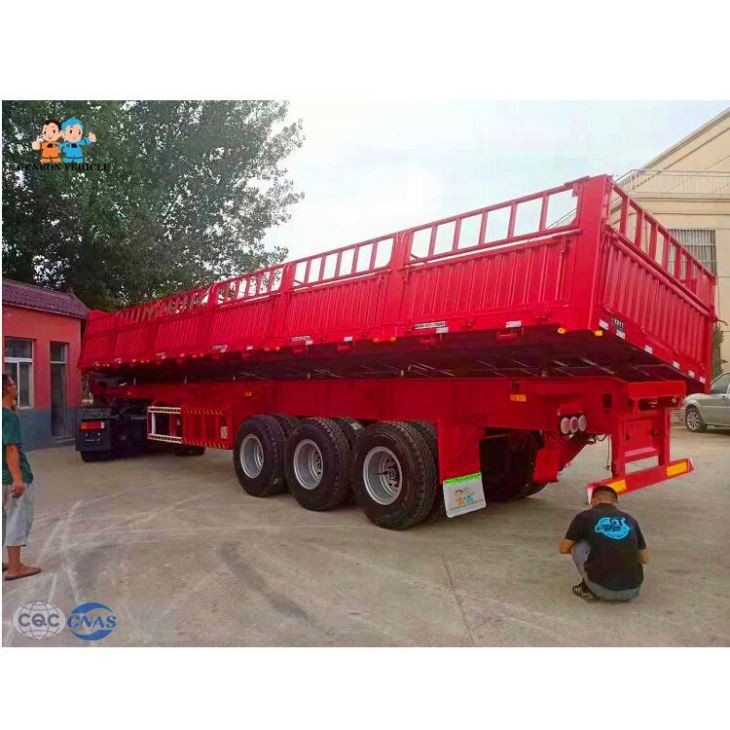

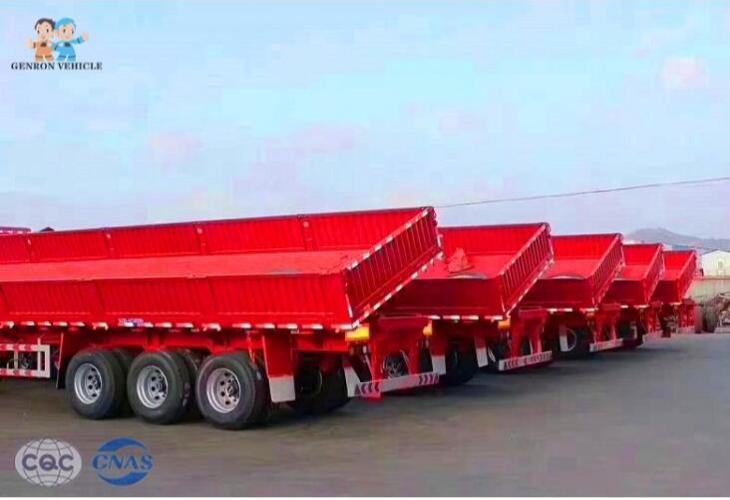

Side Dumping Trailer

Name: Side Dumping Trailer
Brand: Genron
SKU: 89062508

Our After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).

Send Inquiry

115.5

1.side dumping trailer –Delivery for sands and stones.

Main Dimensions
Dimension	1100024002600mm ( outside) 108502200600mm (work space )
Tare weight	About 9000KGS
Total Volume（m3）	20 m³ or less than 50tons
Side wall thickness（mm）	2.3mm Q235 steel (three or five door opening door )
Bottom plate thickness(mm)	3mm diamond plate /Q235 steel
Lifting system	Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.)
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/GV brand 13tons or 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

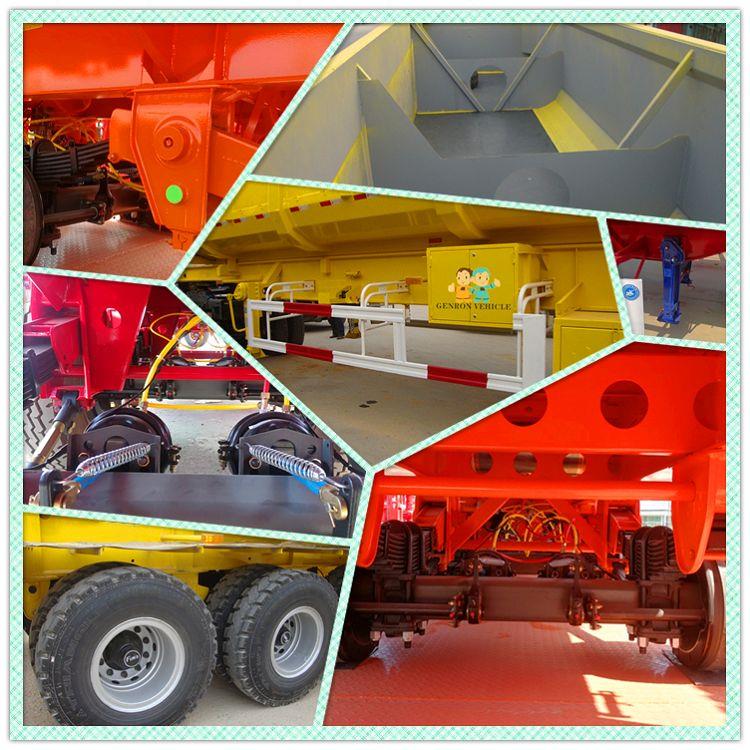

Side dumping trailer Spare Parts Exhibition:

115.6(001)

E-Coating :

The first step of E-coating Process

Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.

Last Process: put the trailer body into the steaming room to Electrophoresis drying,and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

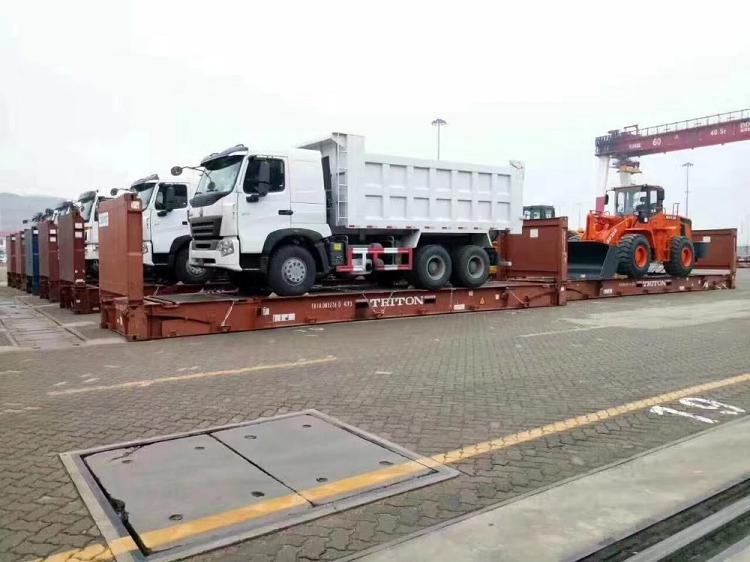

Side dumping trailer Shipping :

113.7

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received.

Our After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).We are focusing on that Genron products can got repair within 24 hours in everywhere of the world.We did it in china market ,We are doing step by step out of china market .

We have flexible cooperate items.Firstly, you can be Genron Sales Agent:We have our own brand and logo,we have more than five very steady producer partners of each product which we supply to you from China,after you to be Genron agent in your country you will have very steady supplier of China,no need worried one factory will close down.Or you can choose Genron As your China Purchasing Agent. Your can buy from the China factory directly,we can be your exporting agent in China.
