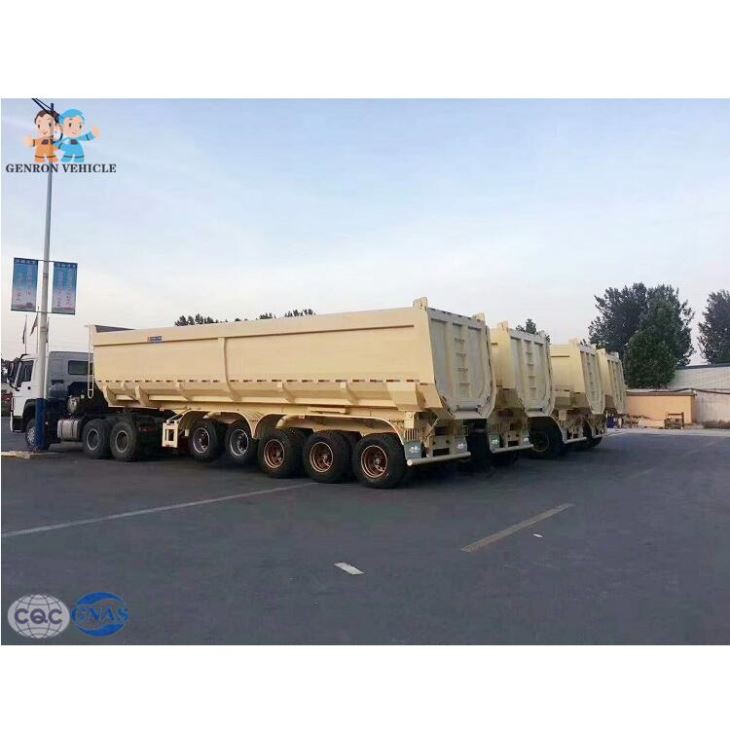

Sands Transporter Trailer

Name: Sands Transporter Trailer
Brand: Genron
SKU: 89060418

We have our own factory which produce trailers for more than 15 years, we can help you exporting other machinery and trucks.

Send Inquiry

113.8

1.sands transporter trailer –Deliver sands and stones.

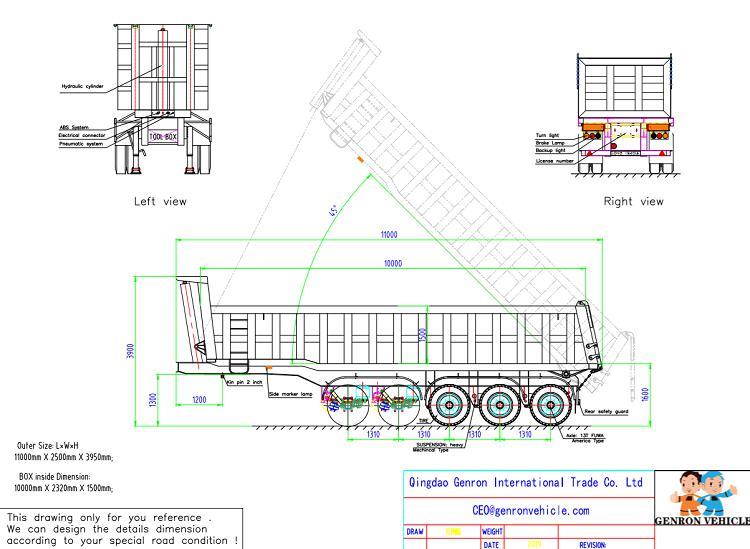

Main Dimensions
Dimension	1128024953970mm ( outside) 1050023001700mm (work space )
Tare weight	About 15600KGS
Total Volume（m3）	37 m³ or less than 80tons
Side wall thickness（mm）	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double +three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/GV brand 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

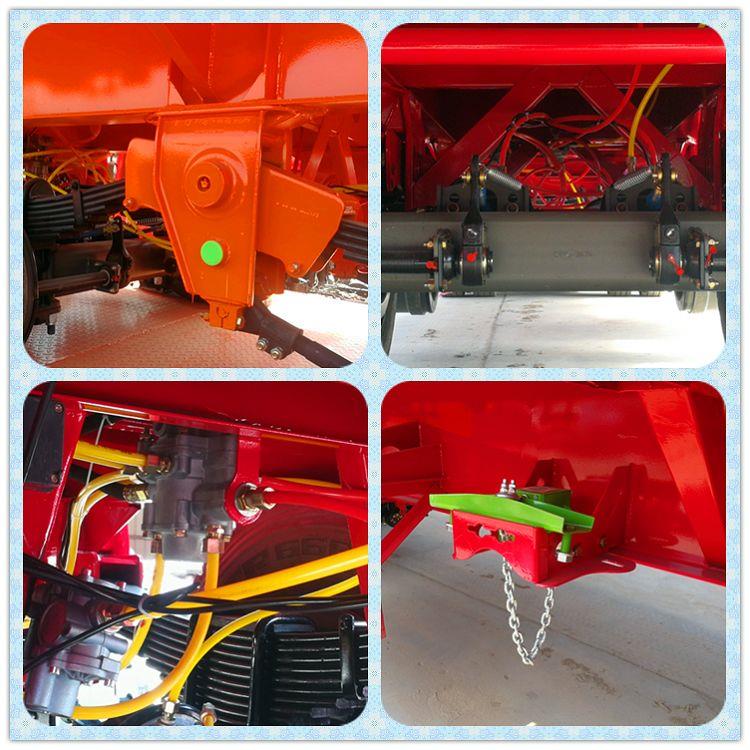

sands transporter trailer Parts Pictures:

99.2(001)

112.7_SD

E-Coating :

First step：

Use this automatic washing machining ,can make the trailer all points very cleaning ,remove all residual.

Final Process:

The main body of the trailer is put into the drying room for electrophoretic drying, the temperature is adjusted to below 50℃, and then the powder is sprayed to make it steam again, so that the surface is very smooth and the electrophoretic layer is in close contact with the metal surface of the vehicle, which can effectively prevent the color from fading for seven years.

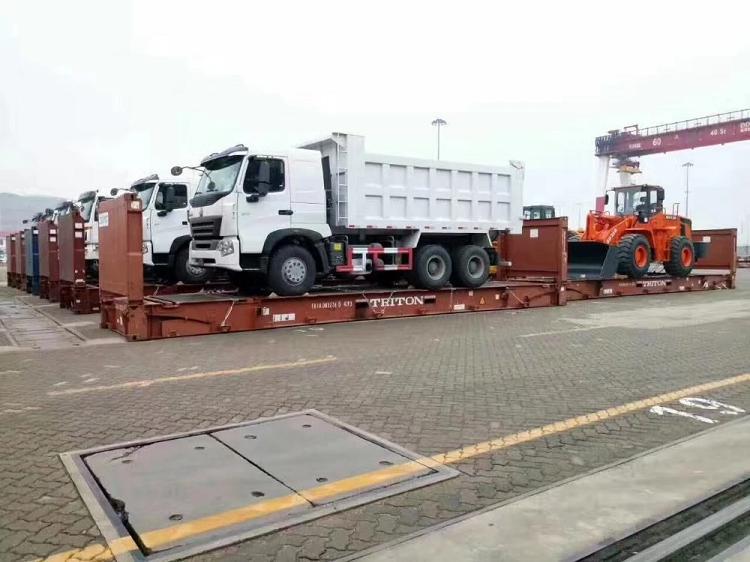

Sands transporter trailer Transport Item :

113.7

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received.

Before sale service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers, trailer parts and Man-hand Welding Machinery, Automatic Welding machinery, Trailer Production Line Etc. We have our own factory which produce trailers for more than 15 years, we can help you exporting other machinery and trucks.
