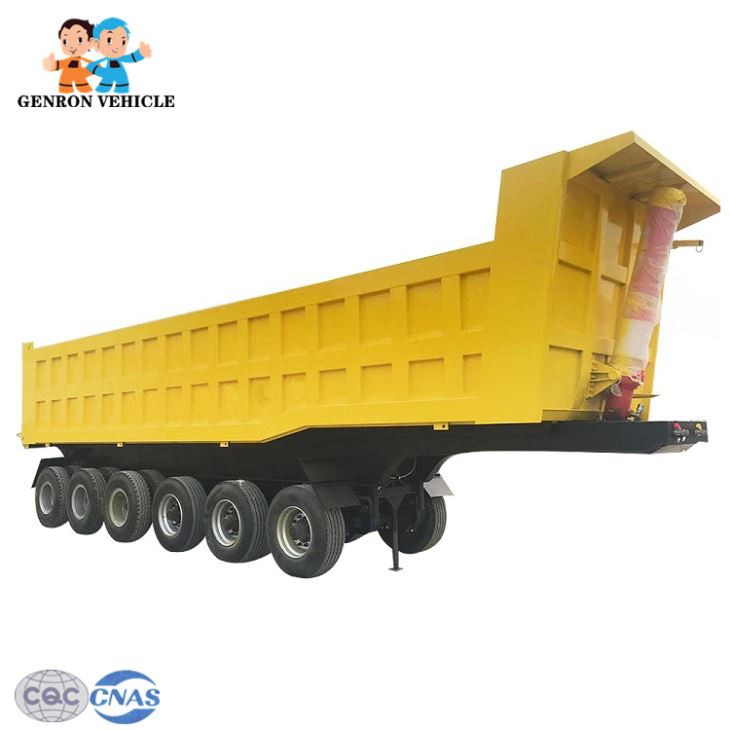

50 Tons Tipper Semi Trailer
Becoming the specialist manufacturer in this sector, we have now attained abundant practical expertise in producing and managing for China Manufacturer for 3 Axles U Shape Rear Dump Semi Trailer Truck Dumper Tipper Semi Trailer, We play a leading role in supplying clients with high-quality items very good provider and competitive price ranges.
Send InquiryChat Now
1.50 tons tipper semi trailer –Transport sands and stones.
We support our prospective buyers with ideal top quality merchandise and superior level provider. Becoming the specialist manufacturer in this sector, we have now attained abundant practical expertise in producing and managing for China Manufacturer for 3 Axles U Shape Rear Dump Semi Trailer Truck Dumper Tipper Semi Trailer, We play a leading role in supplying clients with high-quality items very good provider and competitive price ranges.

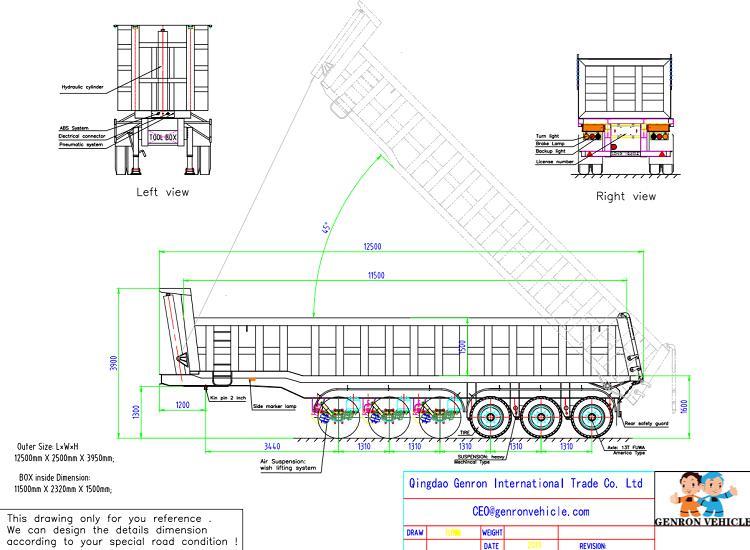

Main Dimensions | |
Dimension | 11280*2495*3970mm ( outside) |
Tare weight | About 15600KGS |
Total Volume（m3） | 37 m³ or less than 80tons |
Side wall thickness（mm） | 6mm Q235 steel |
Bottom plate thickness(mm) | 8mm /Q235 steel |
Lifting system | Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
Axle | 3 axles, FUWA/GV brand 16tons per axles |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/ America type / |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |

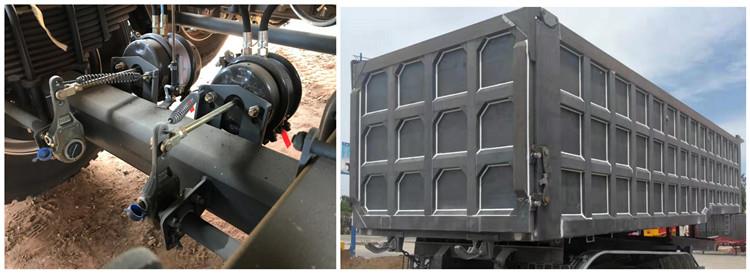

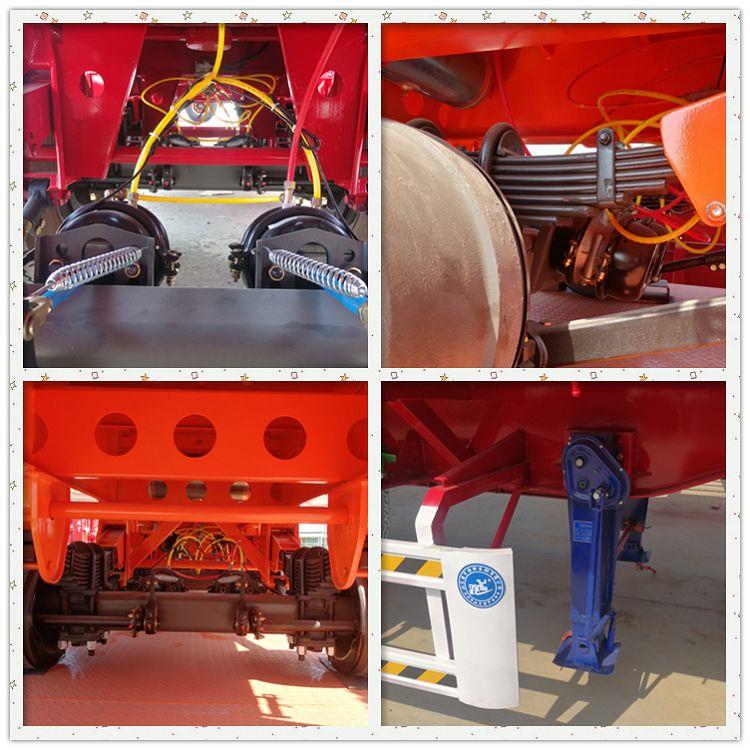

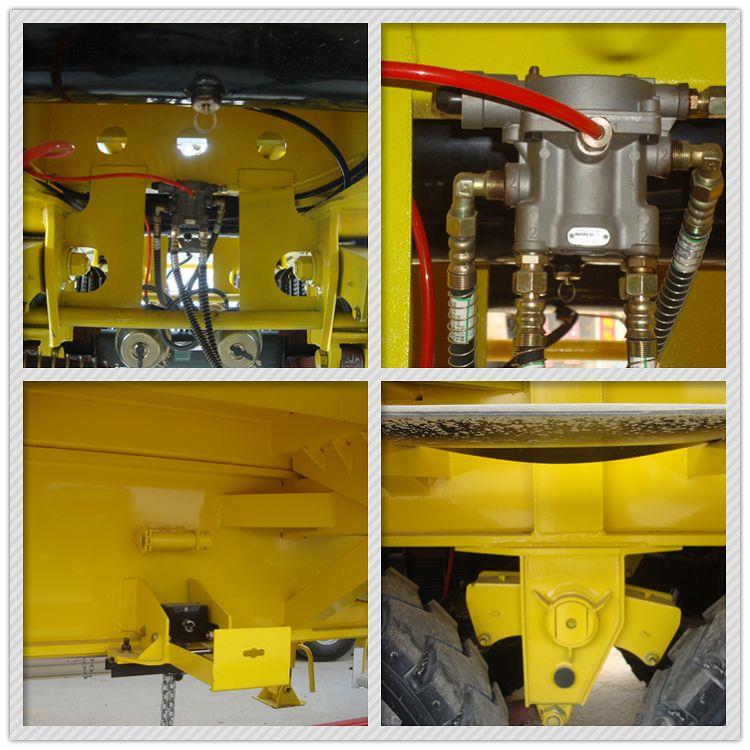

50 tons tipper semi trailer Spare Parts Display
Painting Process :
First Process:
Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.
Last Process: The main body of the trailer is put into the drying room for electrophoretic drying, the temperature is adjusted to below 50℃, and then the powder is sprayed to make it steam again, so that the surface is very smooth and the electrophoretic layer is in close contact with the metal surface of the vehicle, which can effectively prevent the color from fading for seven years.
Rear tipper semi trailer Shipping Item :
The trailer length less than 12m can choose the flat rack container shipping .More than 12 meters can be shipping by bulk cargo or Roro ship.
Before sale service
* Inquiry and consulting support.
* Sample testing support.
* pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service
* We will often go abroad to check our products .
* Engineers available to service machinery overseas.
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our Technical Support Team:
Don't waste your time! Don't waste more money!
Cooperate with professionals! Spent your Money on valued things!
Let us to be your business partner is the shortest way to get your goods!
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
