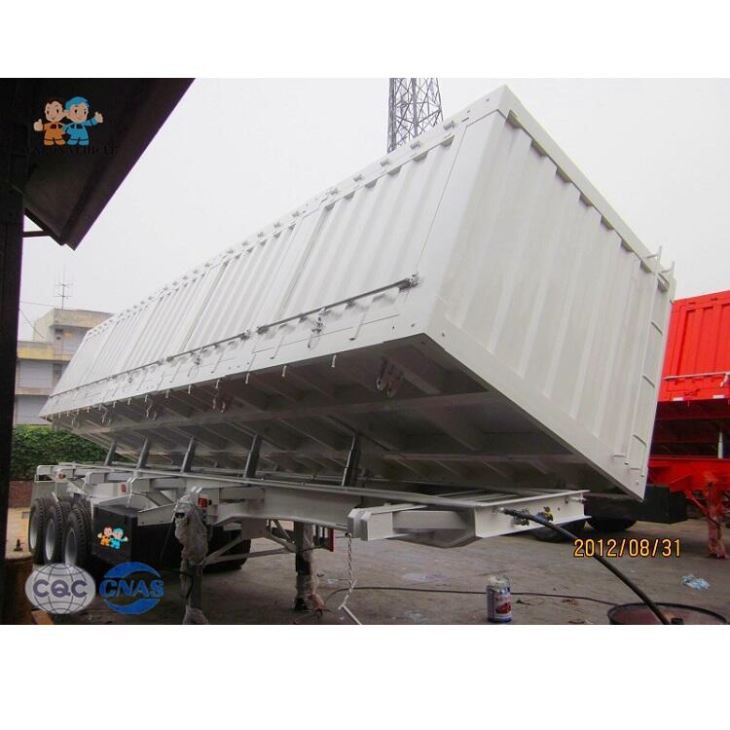

50 Tons Side Drop Trailer Vehicle

Name: 50 Tons Side Drop Trailer Vehicle
Brand: Genron
SKU: 89062889

Second Process: put the trailer body into the steaming room to Electrophoresis drying,and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

Send Inquiry

115.7

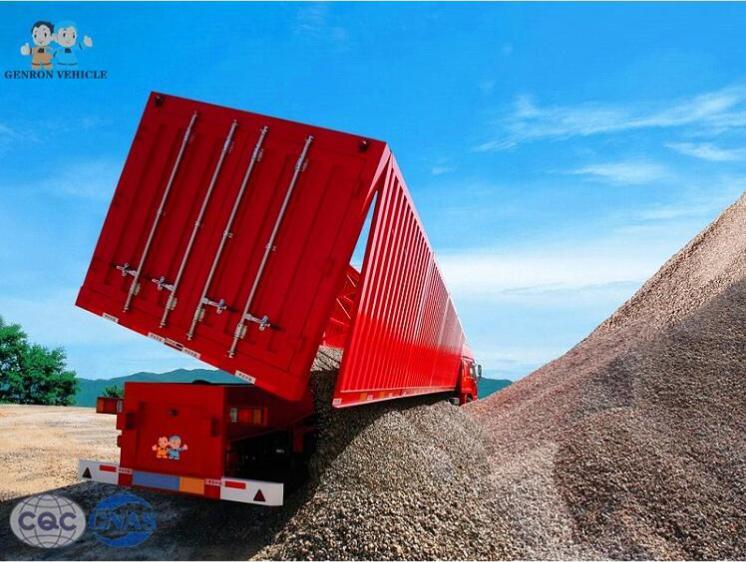

1.50 tons side drop trailer vehicle –For delivering sands and stones.

Main Dimensions
Dimension	1100024003350mm ( outside) 1085022001500mm (work space )
Tare weight	About 10000KGS
Total Volume（m3）	35 m³ or less than 50tons
Side wall thickness（mm）	2.3mm Q235 steel (three or five door opening door )
Bottom plate thickness(mm)	3mm diamond plate /Q235 steel
Lifting system	Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.)
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/GV brand 13tons or 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

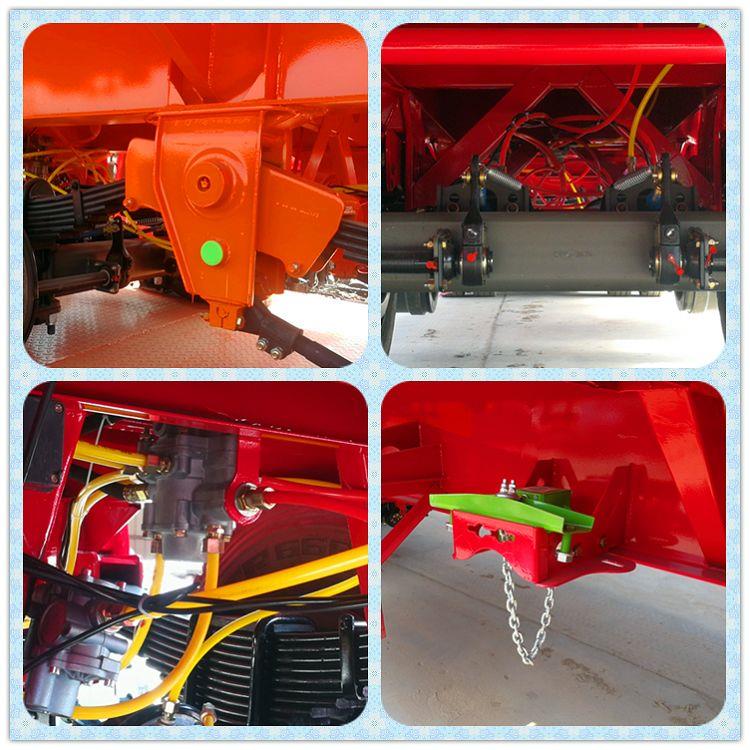

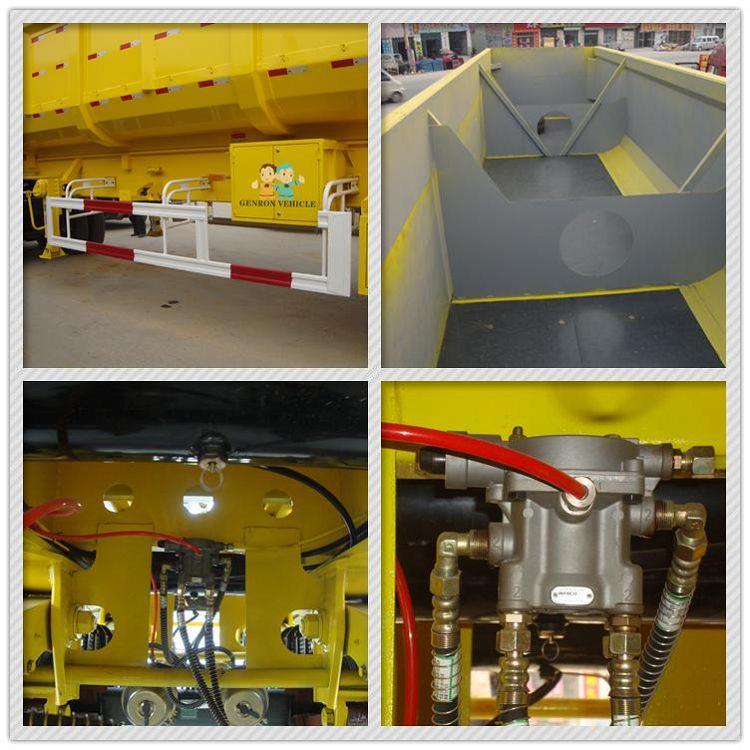

50 tons side drop trailer vehicle Spare Parts Photos

115.8(001) 98.4(001)

Painting Process :

The first step

Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.

Mode of 50 tons side drop trailer vehicle Shipment :

112.9

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received.

Why do you choose Genron?

11 years overseas experience :

As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana,Burkina faso,Cameroon,Nigeria,Mozambique,Zambia ,Tanzania ,Kenya,Malaysia ,Indonesia ,Philippine,Vietnam ,LAOS ,Mayanmar,Algeria,Dubai.

Mirror Trading:

we will gave you the best price and quality product .Because we hope our cooperation like mirror ,Customer as mirror ,one side is factory ,inside is Genron,

We Minimize all loses that may arise from the producers .We respond to the demands and requirements of the companies , we work with in the most effective way and as soon as possible.

Professional Technical Team:

The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years,design trailer and production line six years),Five technical person:Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang( design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).
