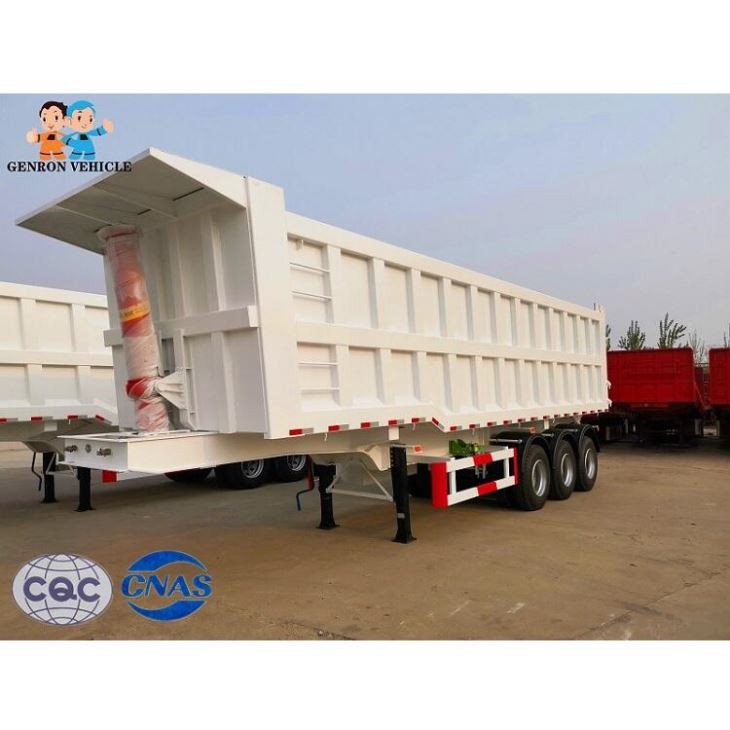

Rear Tipper Semi Trailer

We are trailer manufacturer and we have our own factory in Shandong province, China. You are welcomed to visit our factory.

Send Inquiry

114.1

1.Rear tipper semi trailer –To ship sands and stones.

Main Dimensions
Dimension	1128024953970mm ( outside) 1050023001700mm (work space )
Tare weight	About 15600KGS
Total Volume（m3）	37 m³ or less than 80tons
Side wall thickness（mm）	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/GV brand 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

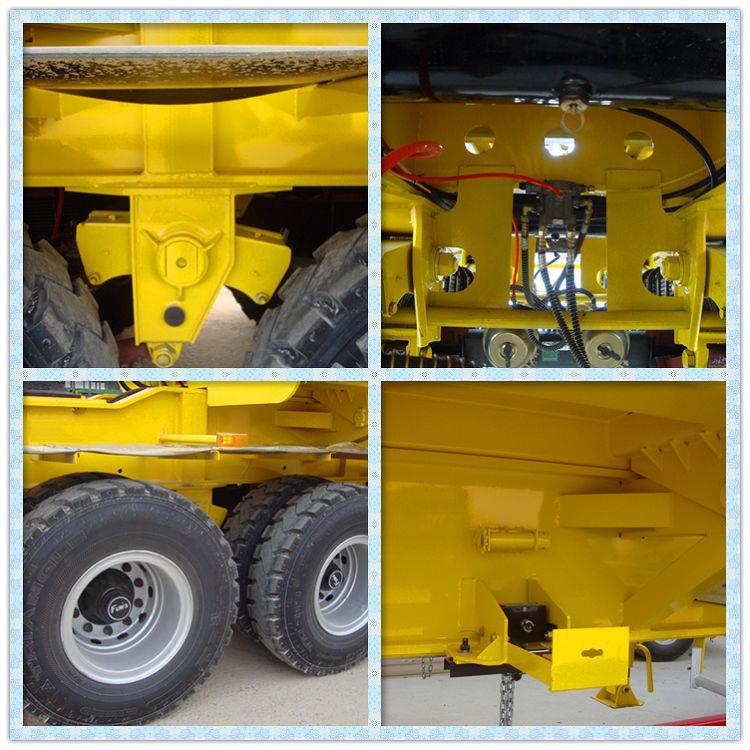

Rear tipper semi trailer Parts Picture 114.3(001)

50 tons tipper semi trailer Spare Parts Display

112.7_SD

Electric Coating :

Electrophoretic primer + powder spray baking paint for the whole vehicle. 7 electrophoresis processes, no dead angle at the paint part of the whole vehicle, strong anti rust ability, can effectively protect the steel structure of the frame.

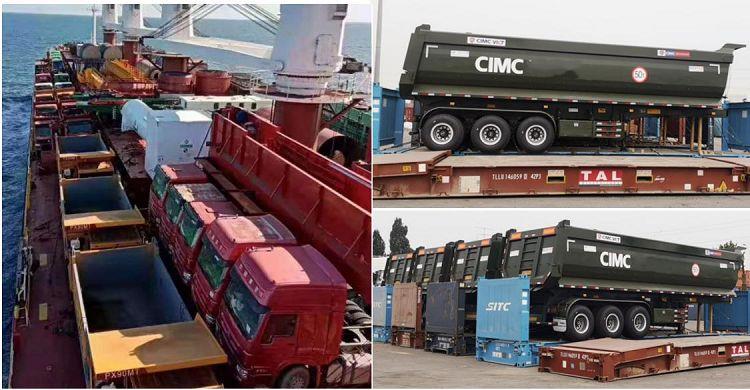

Rear tipper semi trailer Shipping Item :

The trailer length less than 12m can choose the flat rack container shipping .More than 12 meters can be shipping by bulk cargo or roro ship.

114.4(001)

Before-sales service

* Inquiry and consulting support.

* Sample testing support.

* pick you from airport together to visit factory production line ,and make sure your safety in China.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Are you a Manufacturer or Trading company?

We are trailer manufacturer and we have our own factory in Shandong province, China. You are welcomed to visit our factory.

How long do you need to finish a trailer ?

It usually takes round 10 days to finish the common low bed trailer, container trailer, skeleton trailers after confirming the order. Oil tanker trailer, bulk cement trailer and special trailer needs round 20 days.

How about your after-sale service?

We provide trailers and truck parts, technical support, etc for your all life once we have reached the deal and placed order from us.
