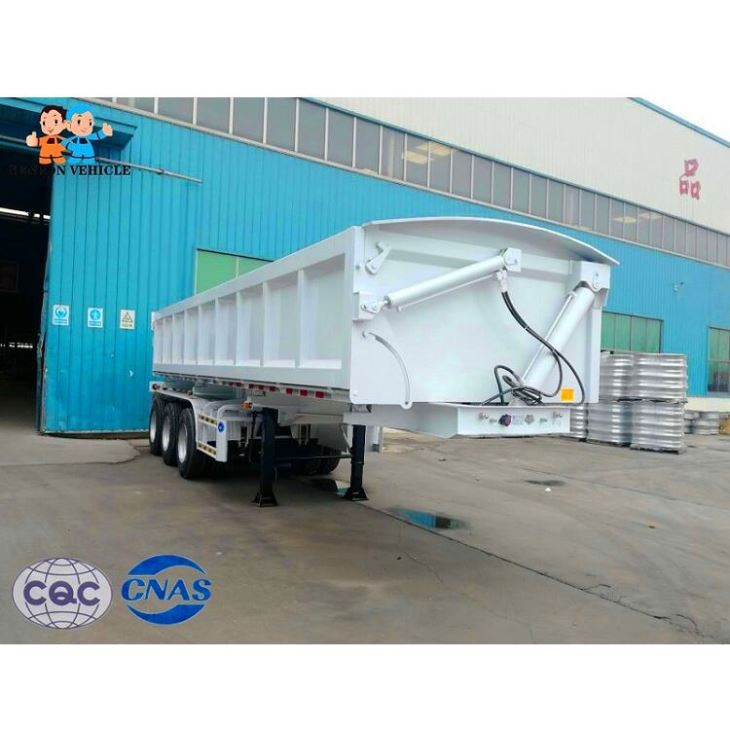

Australia Side Tipper Trailer

Name: Australia Side Tipper Trailer
Brand: Genron
SKU: 89062119

As our more than 11 years overseas visited record and exporting business experience focus on the trailer and truck filed ,we can gave you the right product in very short way.

Send Inquiry Chat Now

114.7

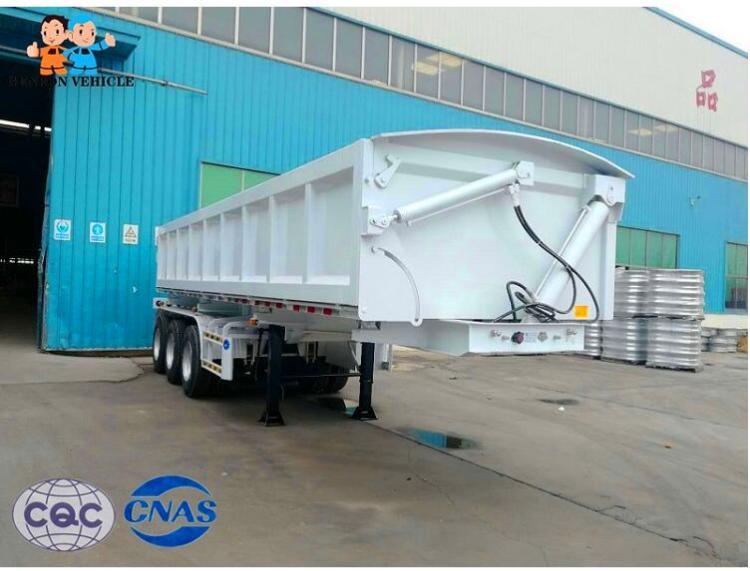

1.Australia side tipper trailer –Delivering sands and stones.

Main Dimensions
Dimension	920024003200mm ( outside) 900022001500mm (work space )
Tare weight	About 10000KGS
Total Volume（m3）	30 m³ or less than 50tons
Side wall thickness（mm）	2.3mm Q235 steel (three or five door opening door )
Bottom plate thickness(mm)	3mm diamond plate /Q235 steel
Lifting system	Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.)
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/GV brand 13tons or 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

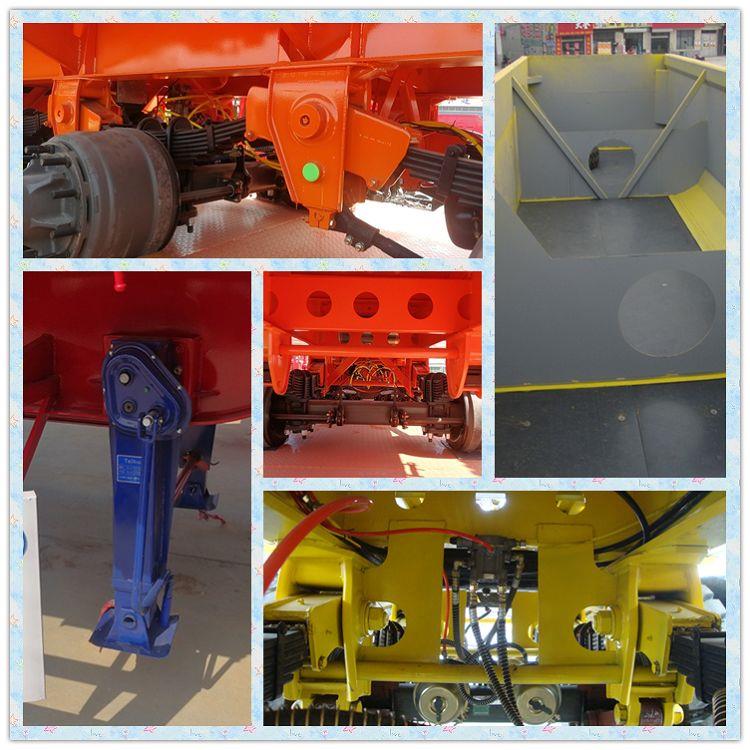

Australia side tipper trailer Parts Display

115.2(001)

Painting:

Electrophoretic primer + powder spray baking paint for the whole vehicle. 7 electrophoresis processes, no dead angle at the paint part of the whole vehicle, strong anti rust ability, can effectively protect the steel structure of the frame

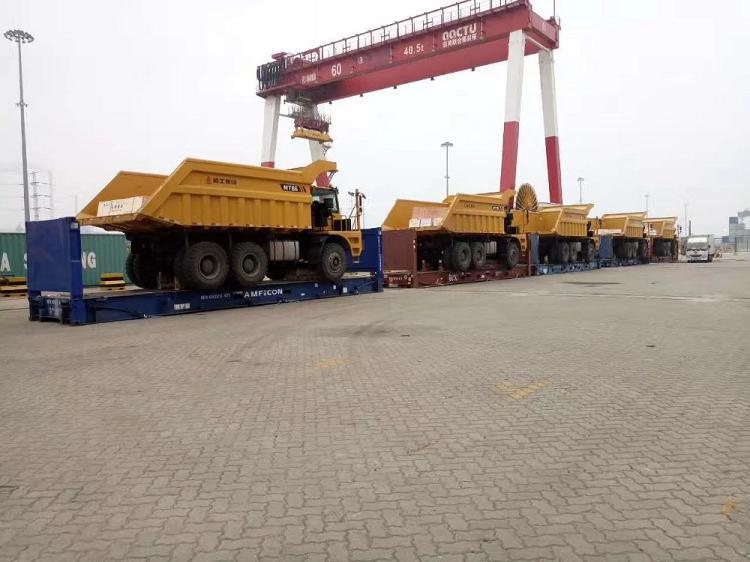

Australia side tipper trailer Shipping Method :

113.1

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Our service

Reply your inquiry in 12 working hours;

Experienced staffs answer all your questions;

Customer’s design is available for certain products(OEM);

Spare parts for all types of engine machinery with reasonable price;

Different kinds of semi trailer can be provided with competitive price.

The strong advantage of Genron company with other trading company is we have our own professional technical design team. If you uncertain your products or your own design, we can go to visit you ,help you checking and analysis your market and gave you special and right design according to your country situation. As our more than 11 years overseas visited record and exporting business experience focus on the trailer and truck filed ,we can gave you the right product in very short way.
