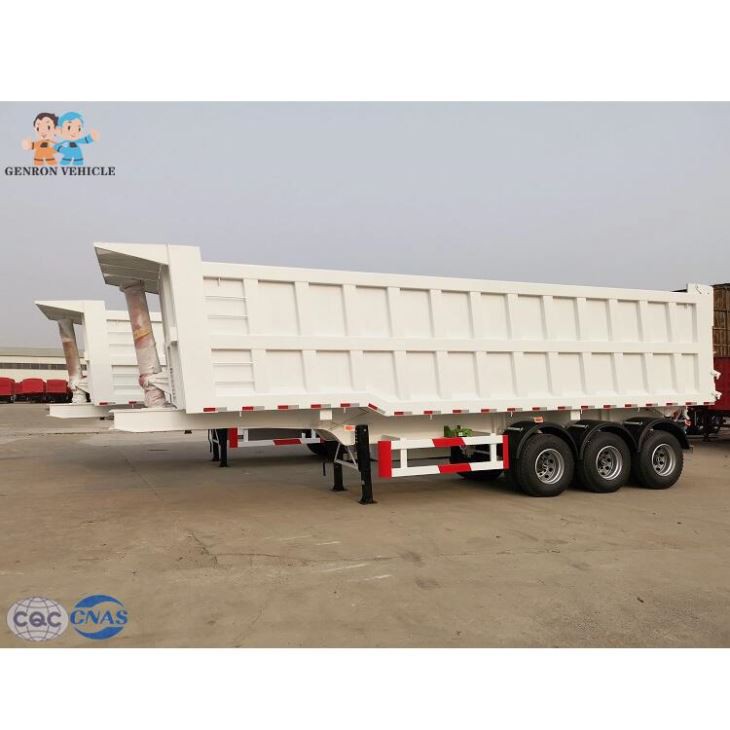

Dumping Trailer Truck

Name: Dumping Trailer Truck
Brand: Genron
SKU: 89059698

The first step: Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.

Send Inquiry

112.5

1.dumping trailer truck –Transport for sands and stones.

Main Dimensions
Dimension	1128024953970mm ( outside) 1050023001700mm (work space )
Tare weight	About 15600KGS
Total Volume（m3）	37 m³ or less than 80tons
Side wall thickness（mm）	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/GV brand 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

Dumping trailer truck Spare Parts Display

99.2(001)

112.6(001)

112.7_SD

Electric Coating

The first step: Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.

The second step: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

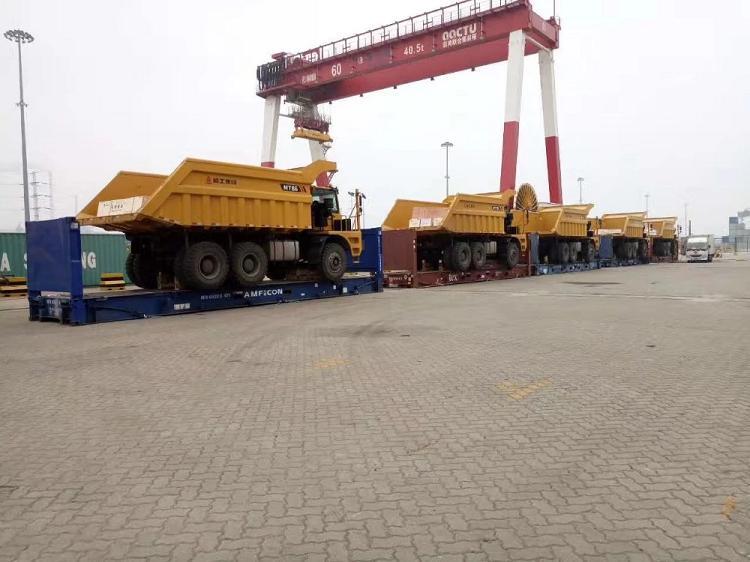

Dumping trailer truck Shipping Method:

113.1

This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received.

1. How we can do After Sale Service ?

We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.

We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.

2. Our Main Target :

To build ‘Genron’ Maintenance department in every place where Genron products arrived. (We are looking for local cooperate also) We focus on Genron products can got repair within 24 hours in everywhere of the world. We did it in China ,We are doing step by step out of China.
