Side Tipper Semi Trailer
Last Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.
Send InquiryChat Now

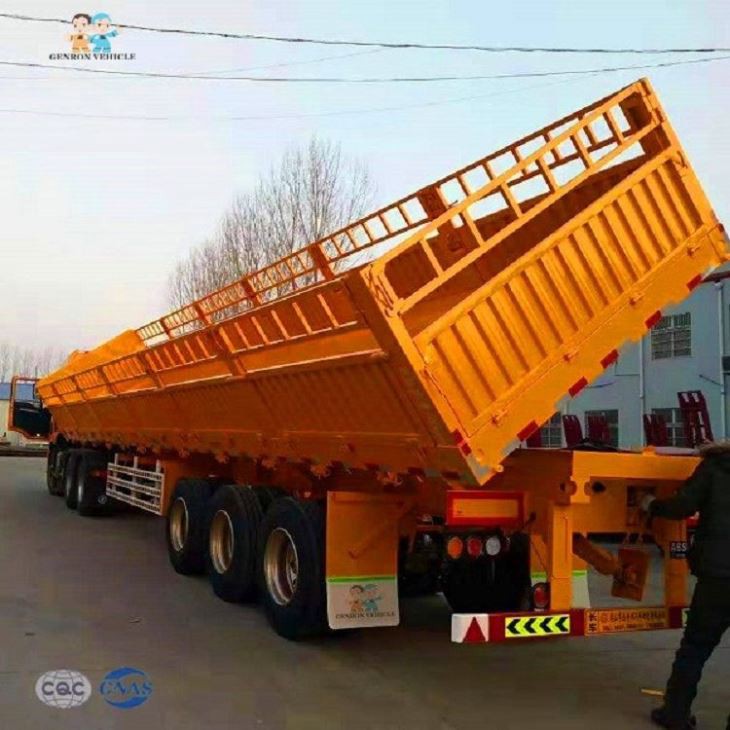

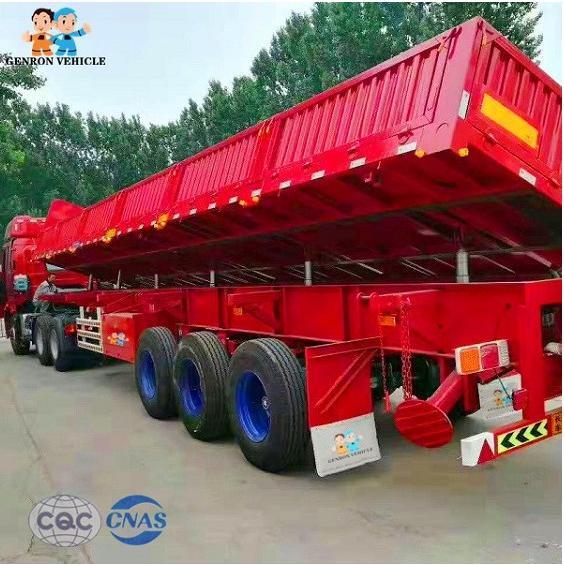

1.side tipper semi trailer –Delivery for sands and stones.
Main Dimensions | |
Dimension | 9200*2400*3200mm ( outside) |
Tare weight | About 10000KGS |
Total Volume（m3） | 30 m³ or less than 50tons |
Side wall thickness（mm） | 2.3mm Q235 steel (three or five door opening door ) |
Bottom plate thickness(mm) | 3mm diamond plate /Q235 steel |
Lifting system | Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.) |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
Axle | 3 axles, FUWA/GV brand 13tons or 16tons per axles |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/ America type / |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |

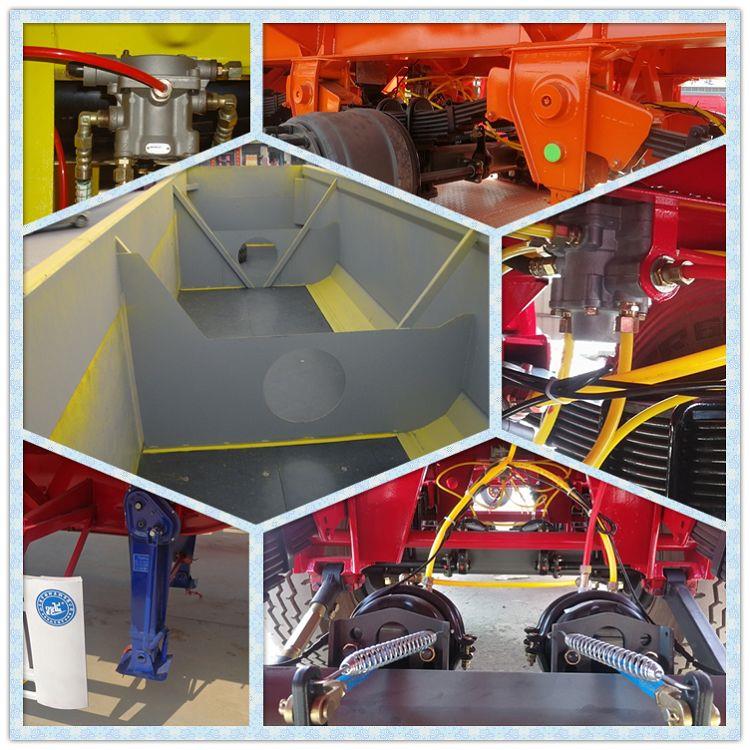

Side tipper semi trailer Parts Photos
E-Coating:
The first step of E-coating Process
Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.
Last Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

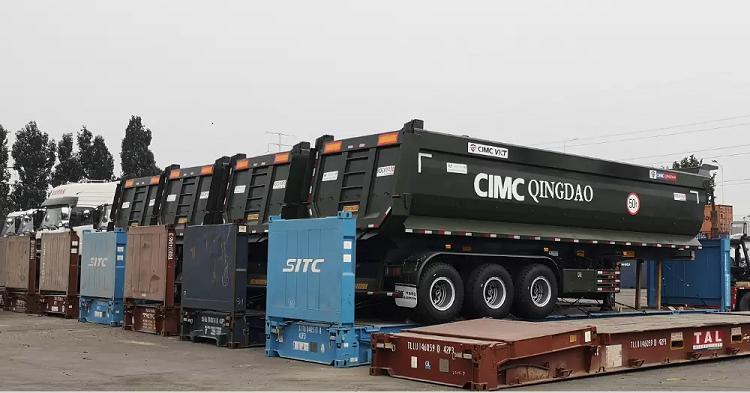

Side tipper semi trailer Shipping Way :
This package for roro ship or bulk cargo ship delivery .
IF your order is more than three units or 6 or 9 can be package like this .
Pls check your destination port if there is bulk cargo port near to your city.
Disadvantage : the bulk cargo fee is a little expensive than the container fee.
Advantage: no need welding ,can be work directly after you received.
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service
* We will often go abroad to check our products .
* Engineers available to service machinery overseas.
How To Buy From Us ?
- You Can Select The Desired Products From Our Online Shop,
A. Clicking Our Sales Manager To Confirm The Model;
B. Telling Our Sales Manager Special Request If You Have;
C. Confirmed The Quantity And Price On The Desired Model;
D. Confirming The Terms Of Delivery (Fob/Cfr/Cif/Daf.. Etc By Mutual Agreement);
E. Our Sales Manager Can Issue You The Commercial Invoice On Agreement;
F. 1st Down Payment 30% On Total Invoice Value Should To Paid Us By Tt/Online Upon The Invoice Issuing.
G. Our Factory Will Finish The Production According To The Agreed Production Time.
H. Final Payment Will Be Paid After We Showing All Production As Per Clients’ Need.
I. Shipment Arrange And Final Document Arrange To Customer.
What’s The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
Our Technical Support Team:
Don't waste your time! Don't waste more money!
Cooperate with professionals! Spent your Money on valued things!
Let us to be your business partner is the shortest way to get your goods!
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
